Talon Magazine Adapter

THIS STILL WORKS, BUT THERE IS A NEW VERSION!
https://makerworld.com/en/models/2867371-stryfe-talon-adapter-v2


Stryfe Talon Adapter:
-------------------------------------------------------------------------------
* Based on "Talon mag adapter body (modified)"
https://www.printables.com/model/978004-talon-mag-adapter-body-modified/files
by @gargunkle
* The magwell is based on "Wild Card Katana/Talon Adapter"
https://www.thingiverse.com/thing:3245243 by captainslug
* The adapter is not compatible with the Stryfe magazine sensor (either remove
the nub that stops the trigger or remove the whole thing)
* May work with other models, including non-electric blasters, but I have not
tested this.

Changes to the original design:
-------------------------------------------------------------------------------
* Moved the notch for the adapter retention for a more positive hold in the
blaster.
* Enlarged and moved the spring retention holes in both the lever and the
insert to allow for a more powerful spring.
* Adjusted the adapter height for a tighter fit in the blaster. This helped
prevent some feed issues.
* Adjusted screw positioning to make everything neater.
* Added a lower frame around the magwell. Because why not.
* Replaced release lever with a longer version that includes an angle for
better grip.
* Lightly beveled the magwell for easier magazine indexing.

Materials:
-------------------------------------------------------------------------------
2x M3x6mm Pan Head Screw
1x Spring - I used a 0.7*7*15mm 8 lap (0.027x0.3x0.59), but a pen spring works

Compatibility:
-------------------------------------------------------------------------------
Tested with 2 different model Nerf Stryfe, mainly with trash darts that I
picked up off a field (on purpose to see how they would do). All my testing was
done with PETG, but I would expect other materials would be fine, too. In the
final version of the model, I got zero failures to feed except one where the

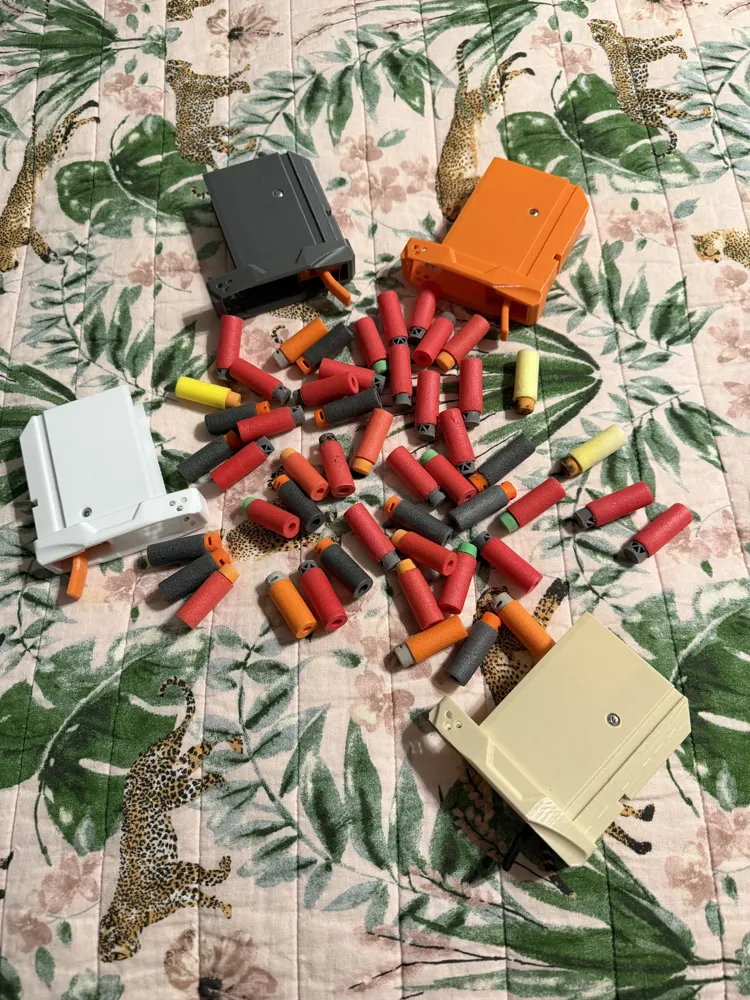

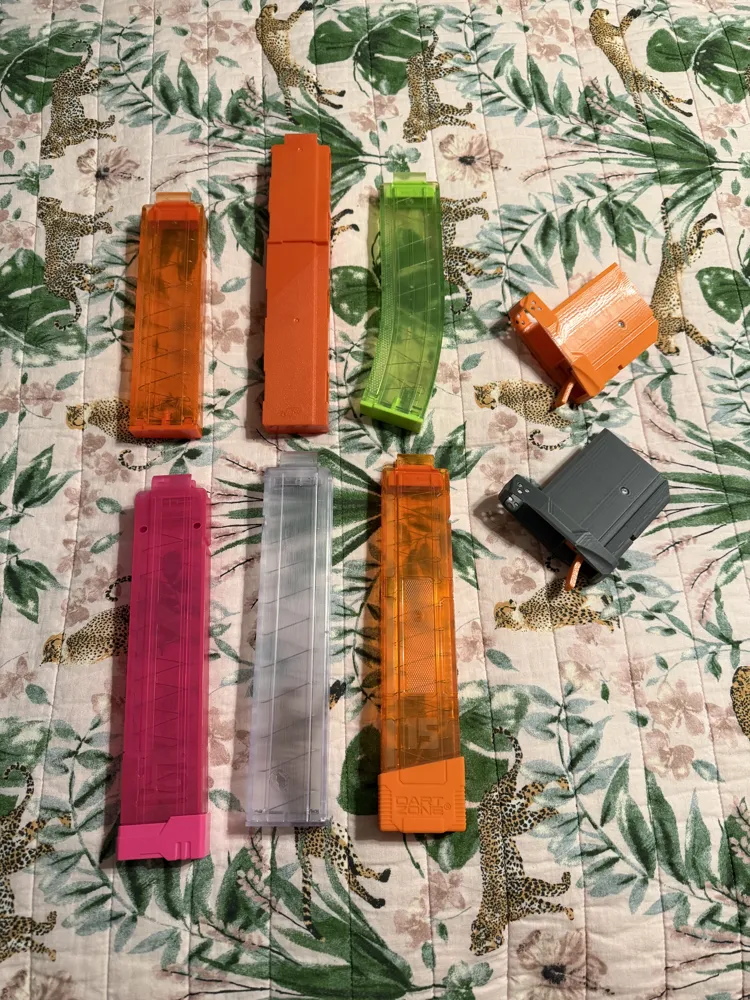

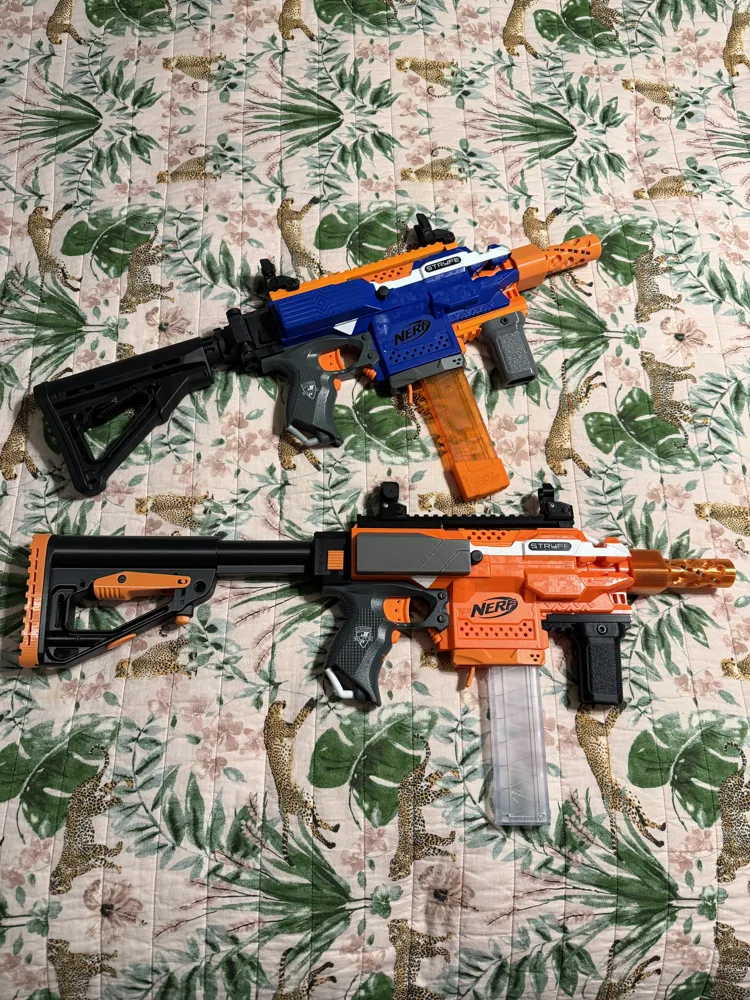

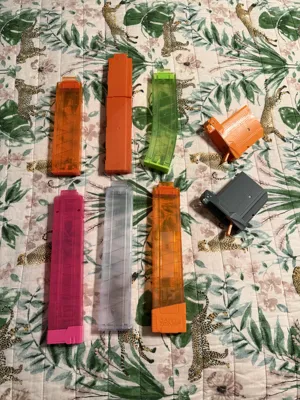

magazine follower did not press up the dart. Actual testing Stryfes, darts,
and magazines are included in the pictures.

Dart Zone 12rd Talon Clone: Yes
Dart Zone 12rd Curved Talon Clone: Yes
Dart Zone 15rd Talon Clone: Yes
Nerf Talon Clone: Yes
Worker Talon: Yes
X-Shot Talon Clone: Yes
X-Shot Curved Talon Clone: No

Instructions:
-------------------------------------------------------------------------------
* Peel out the area covering the adapter retention notch in the adapter body. I
can usually just grab it.
* Add the latch to insert block and use a spring to help it hold in your talon
magazine. Pictures are provided.
* Slide the insert and latch into the tall side of the adapter body as shown in
the pictures.
* Secure insert block to the adapter with one or two M3x6mm screws.
* Insert it into the magwell.
* Slide a magazine into the adapter and try it out!
