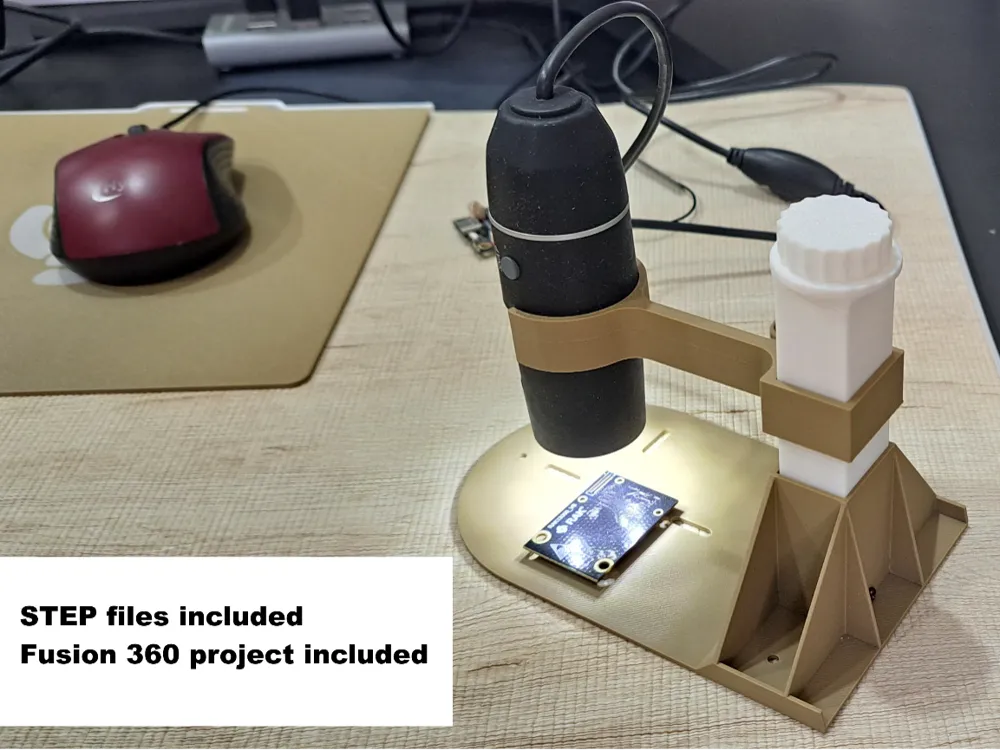

All my models come with STEP files and Fusion 360 project files for customization.

-------------------------------------------------------------------------------------------------------------------------------

I like these “cheap” USB microscopes as they are very useful to investigate problems on PCB's.
However, the stand that comes with these microscopes is crap.

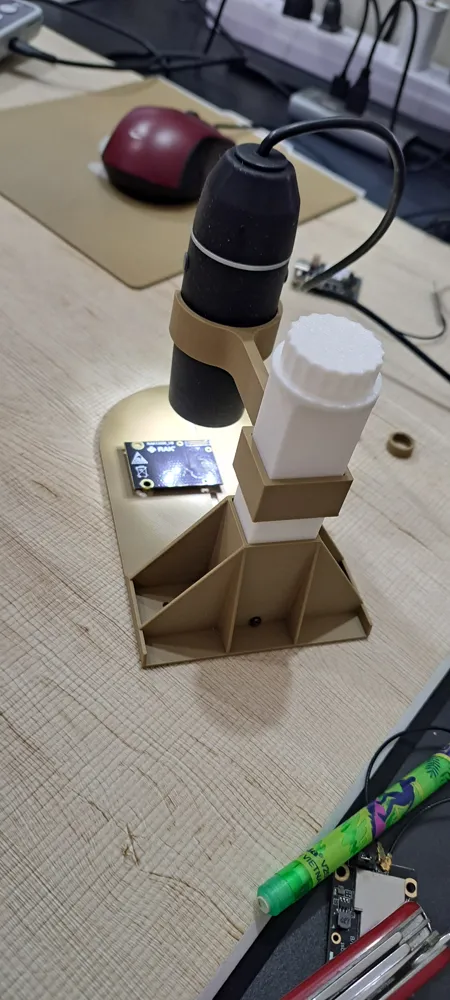

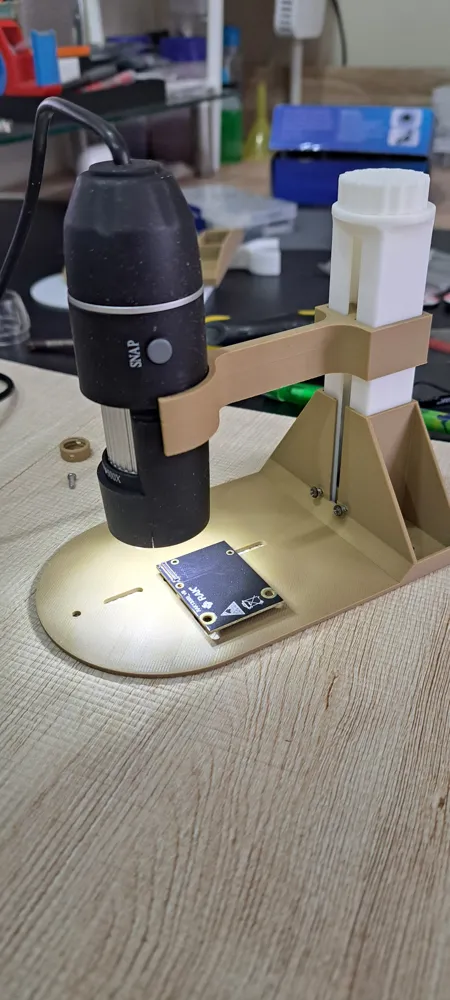

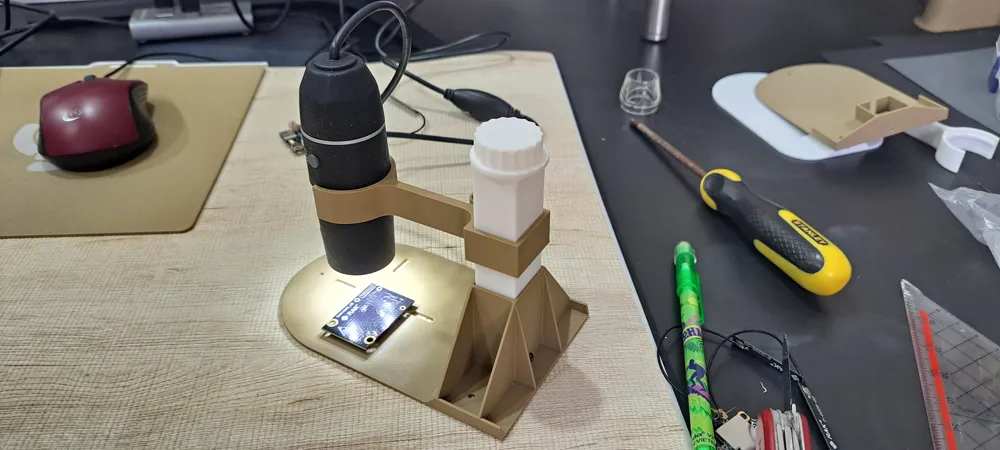

I made this vertical adjustable stand for one of these USB microscopes that makes it much easier to get a clear focus and a stable image, even at the mx magnification of 500x.

This design works with generic digital microscopes you can find on
- AliExpress
- Amazon
- CircuitRocks
- Alibaba


If you experience problems with the threads moving badly, try to print the vertical adjust and the microscope slide with .12mm to get a smoother thread.

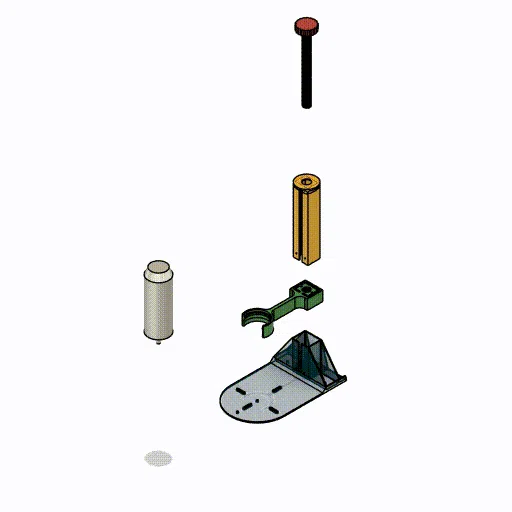

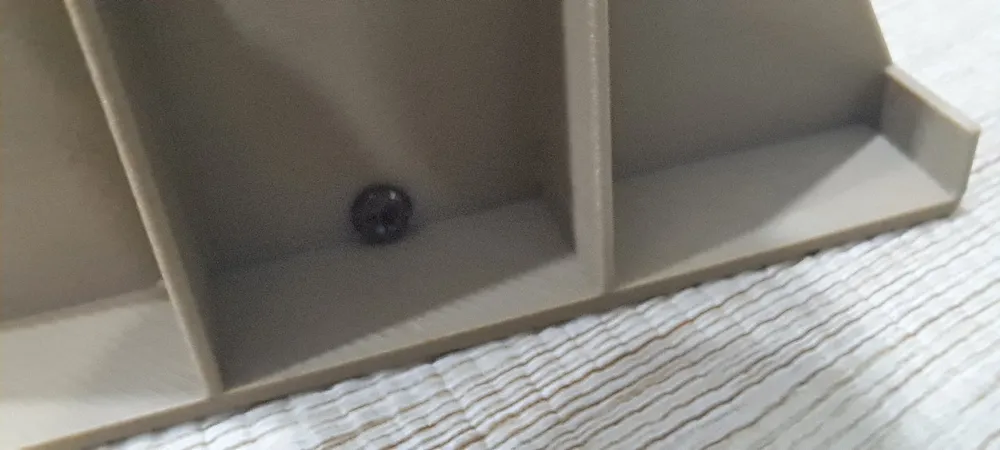

Assembly is quite simple, just slide the parts together, fix it with 3 short (max 5 mm) small self-tapping screws and clip the camera into the holder.

-------------------------------------------------------------------------------------------------------------------------------
