Nissan TD42/TB42/TB45/TB48 Oil Separator Catch can
Print Profile(0)
Description

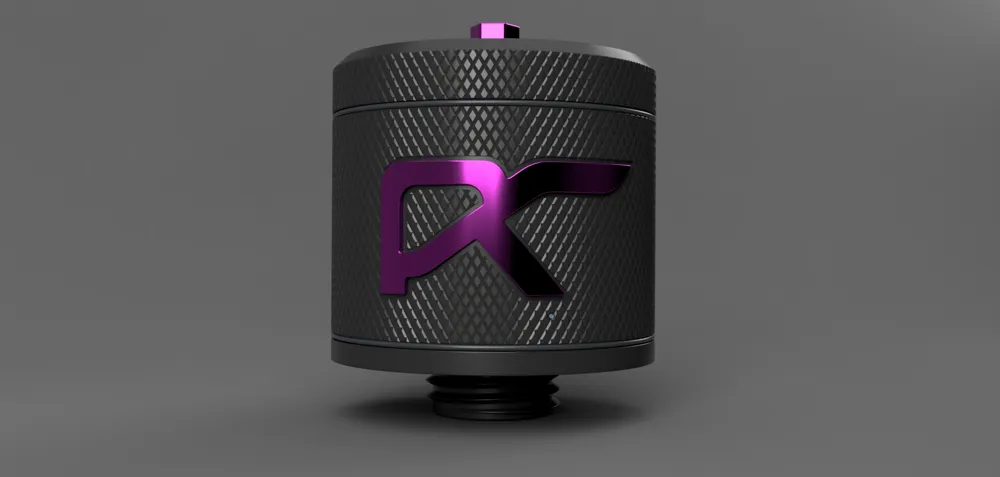

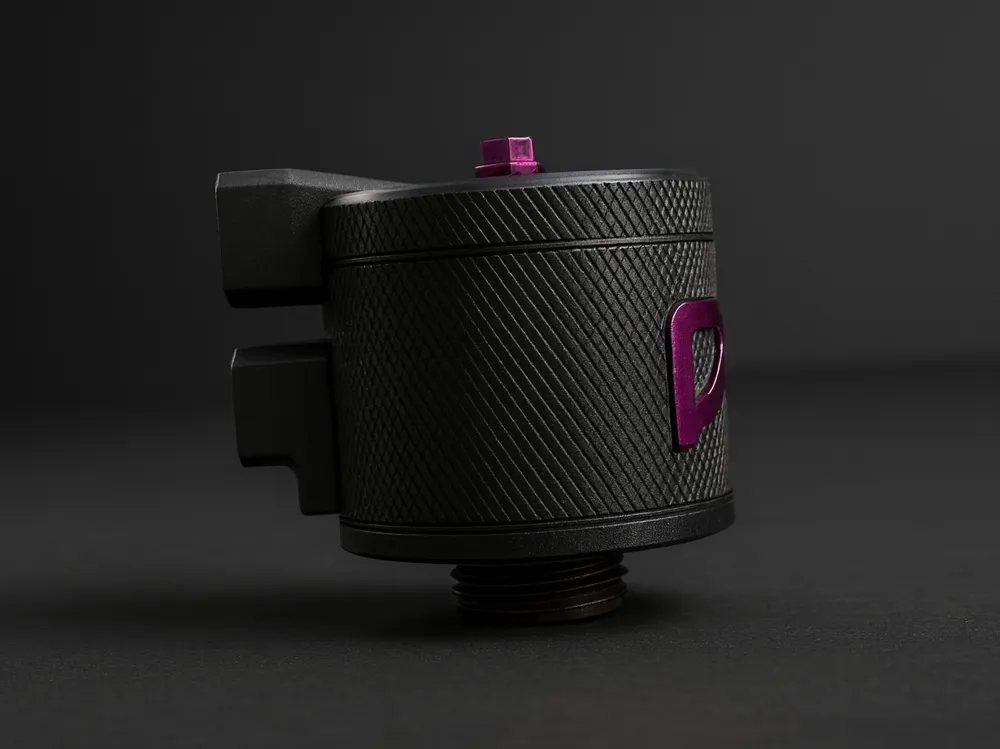

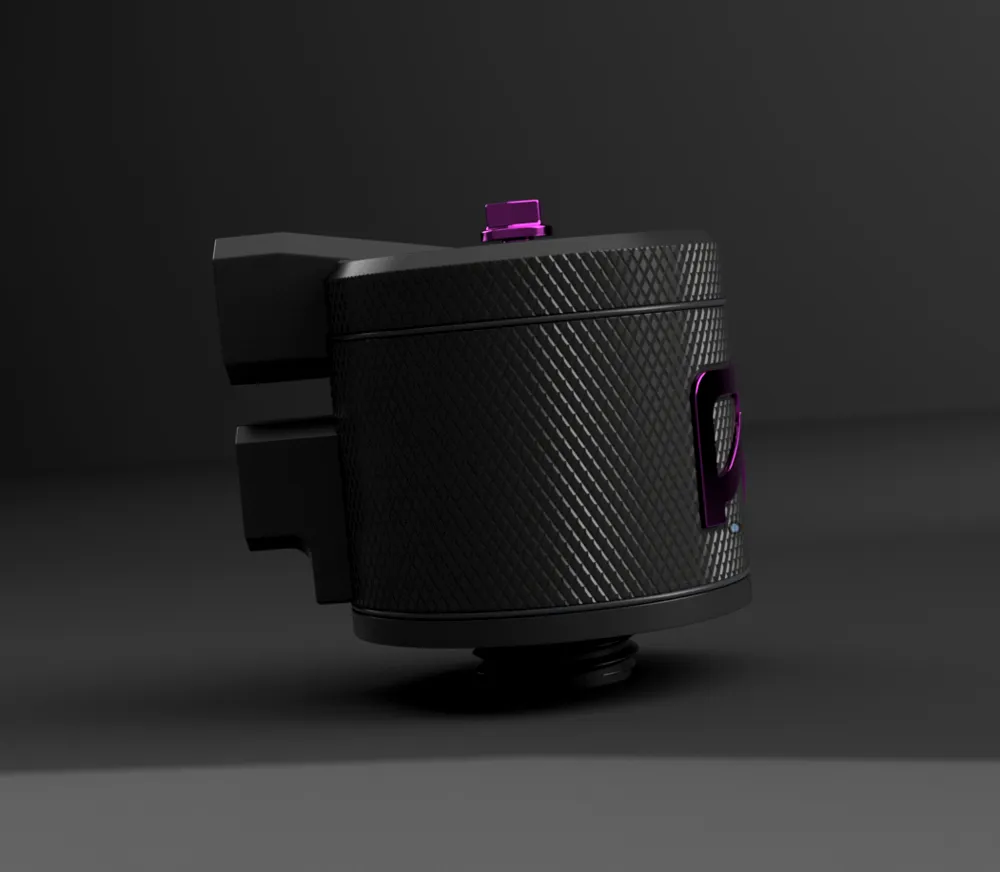

Nissan TD42/TB42/TB45/TB48 Oil Separator/ Breather upgrade
Utilise the Oil Filler neck as a secondary breather port+ Drain
Screws In instead of the Oil cap.

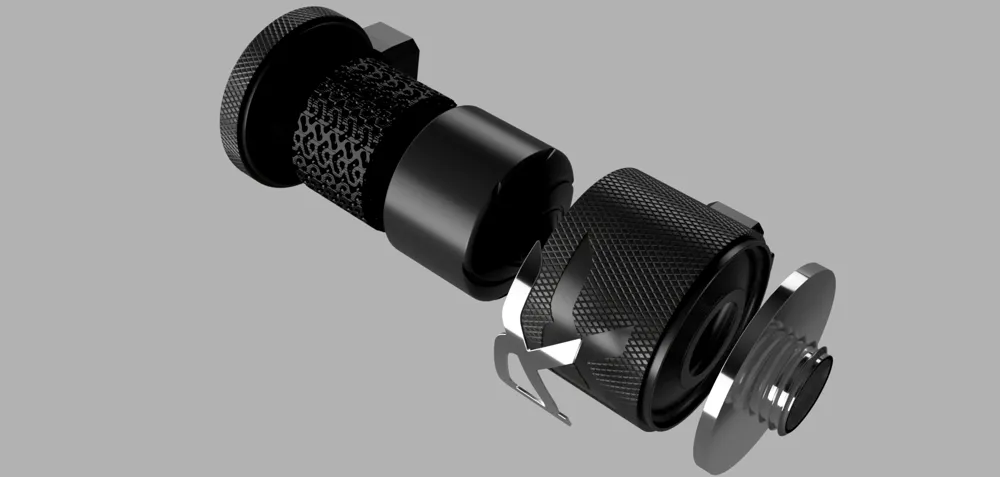

360° Rotation on both top Parts for easy orientation and installation

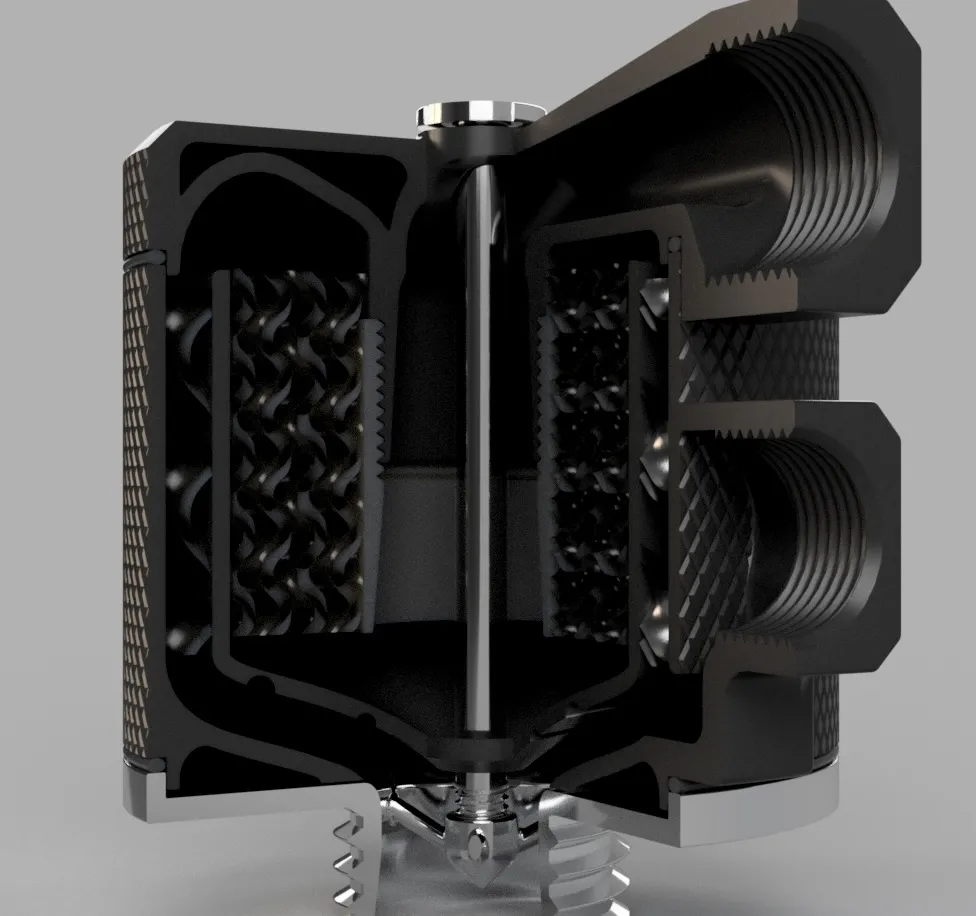

Gravity drain back into rocker cover
Bottom port AN8 3/4-16 UNF for OEM PCV hose inlet
AN10 7/8-14 UNF outlet on top
Required parts
2x 72x2mm O-Rings
1x 10x2mm O-Ring
Centre Screw print in slm,
Or M6x1mm 80mm Screw
Min. Suggestions PA / PA-CF for oil and temp. Resistance
More details on Insta.
