Sig Sauer P365 XMACRO TLR7-sub (1913s) IWB Holster

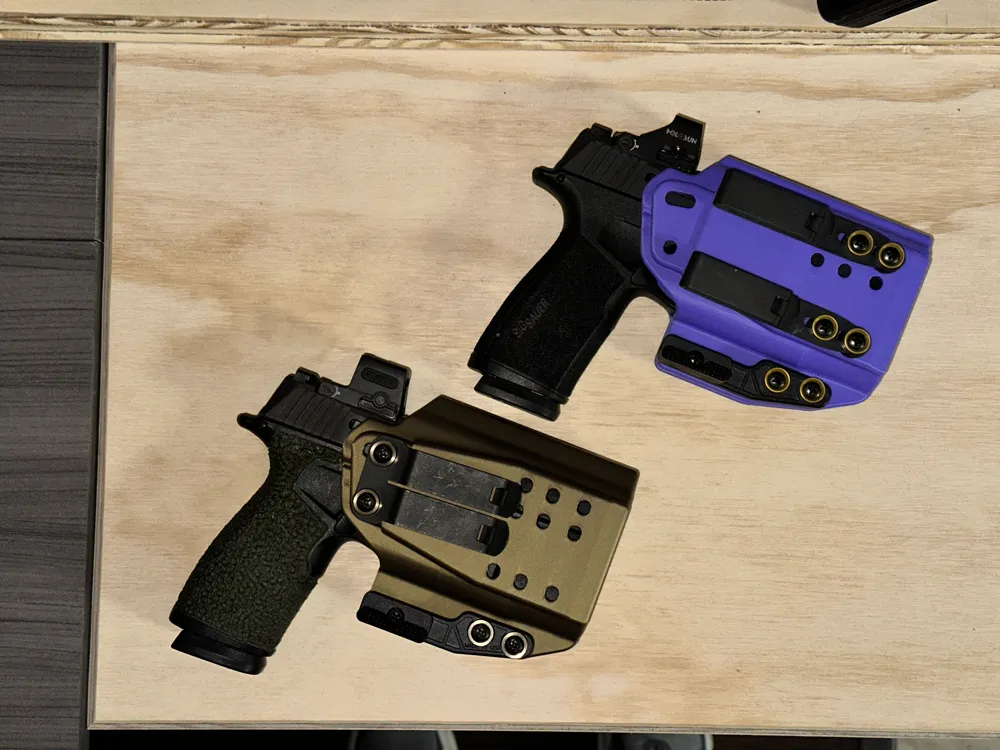

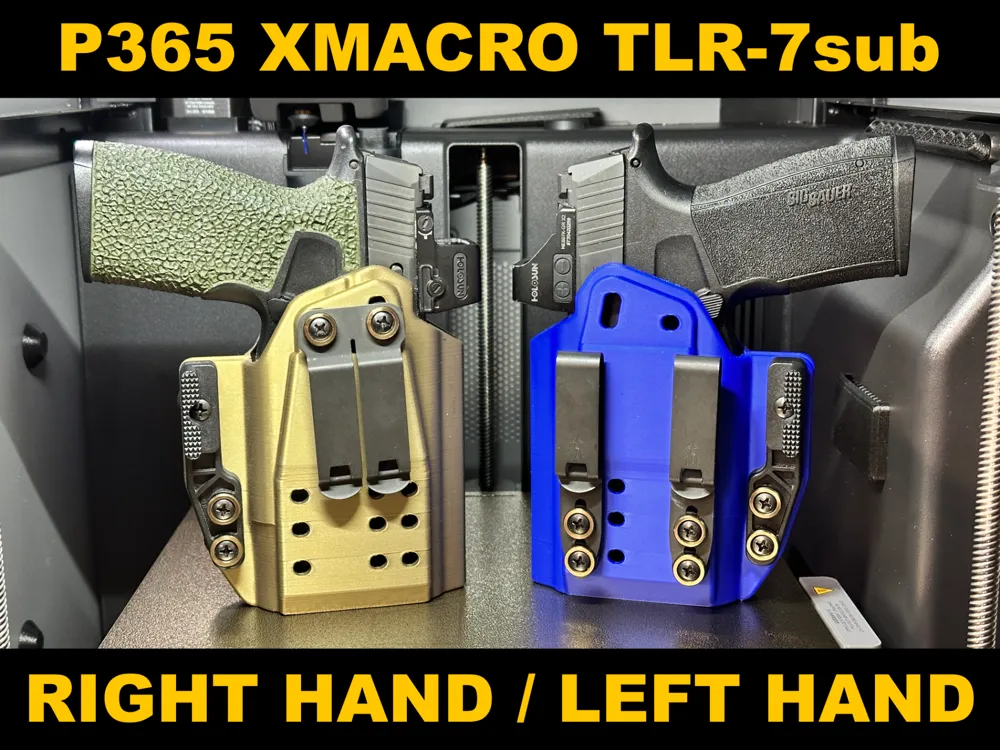

02/23/26 - Update: Left hand IWB model is now available in the print profiles.

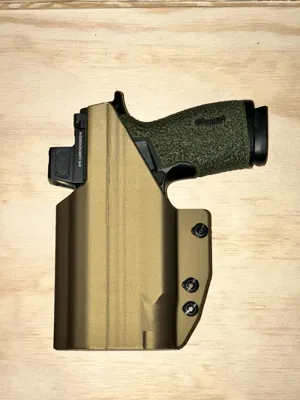

This model is a printable version of a thermoform-style holster, purpose-built for makers who want to print, fit, and carry. Designed for the Sig Sauer P365 XMACRO with the Streamlight TLR-7sub installed.

Features

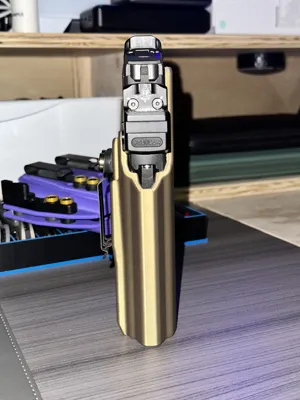

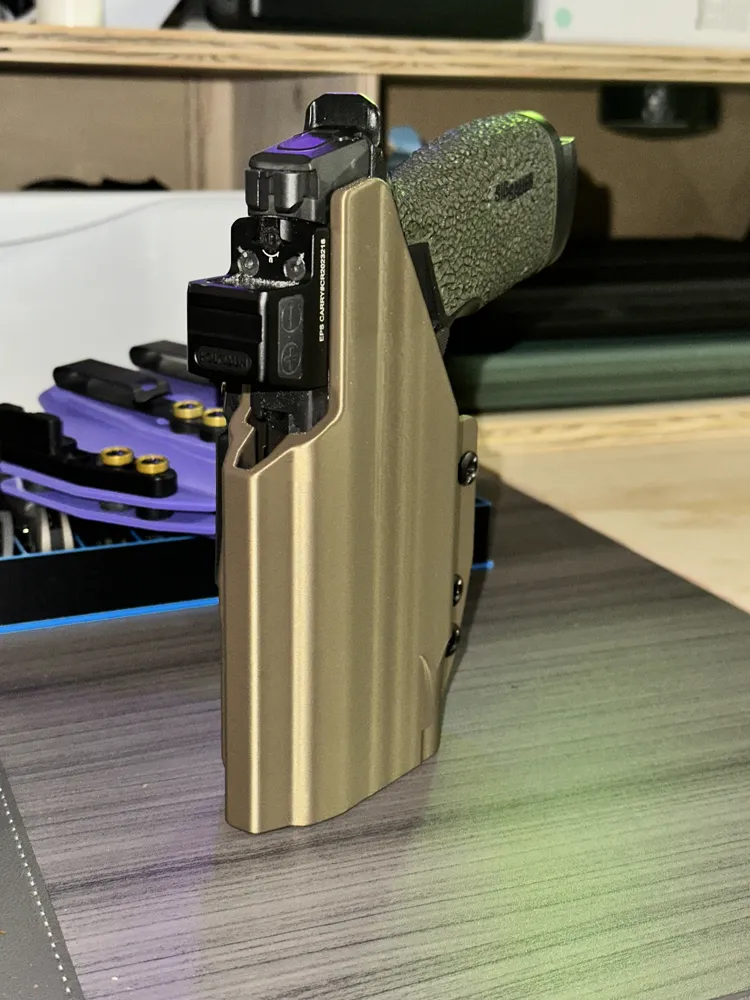

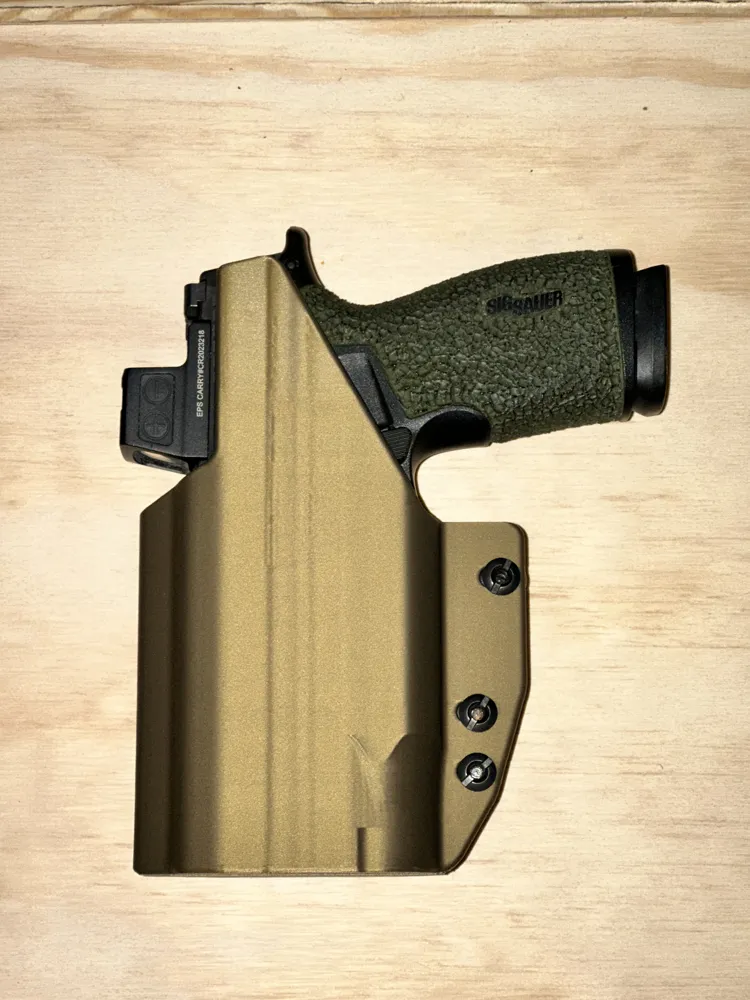

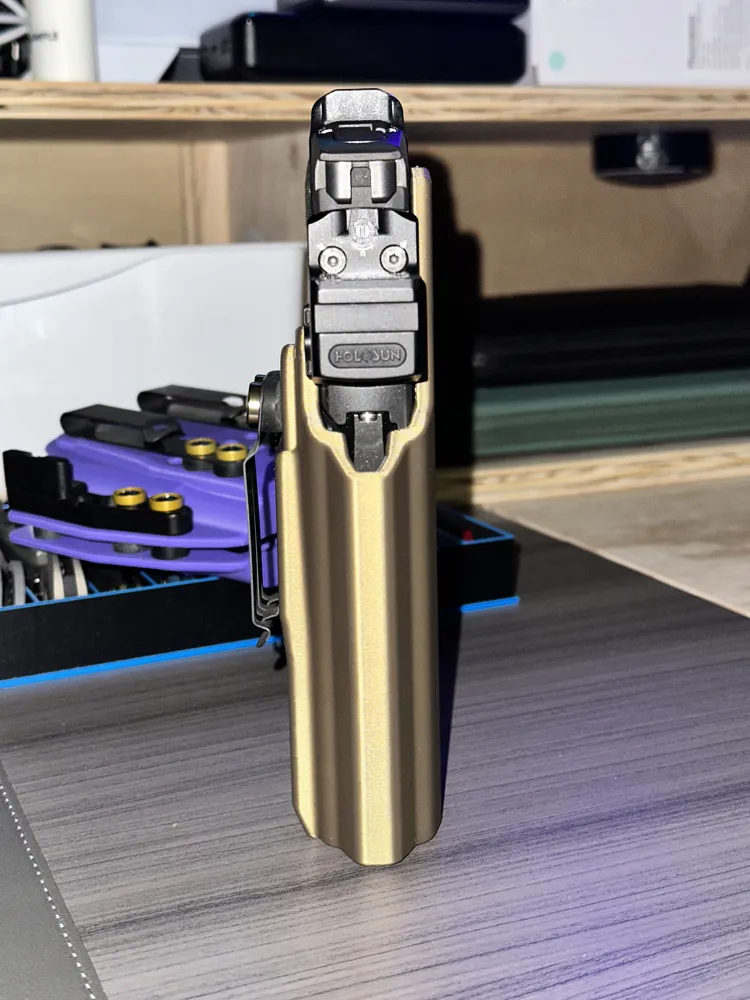

• IWB design with full-height sweat guard.

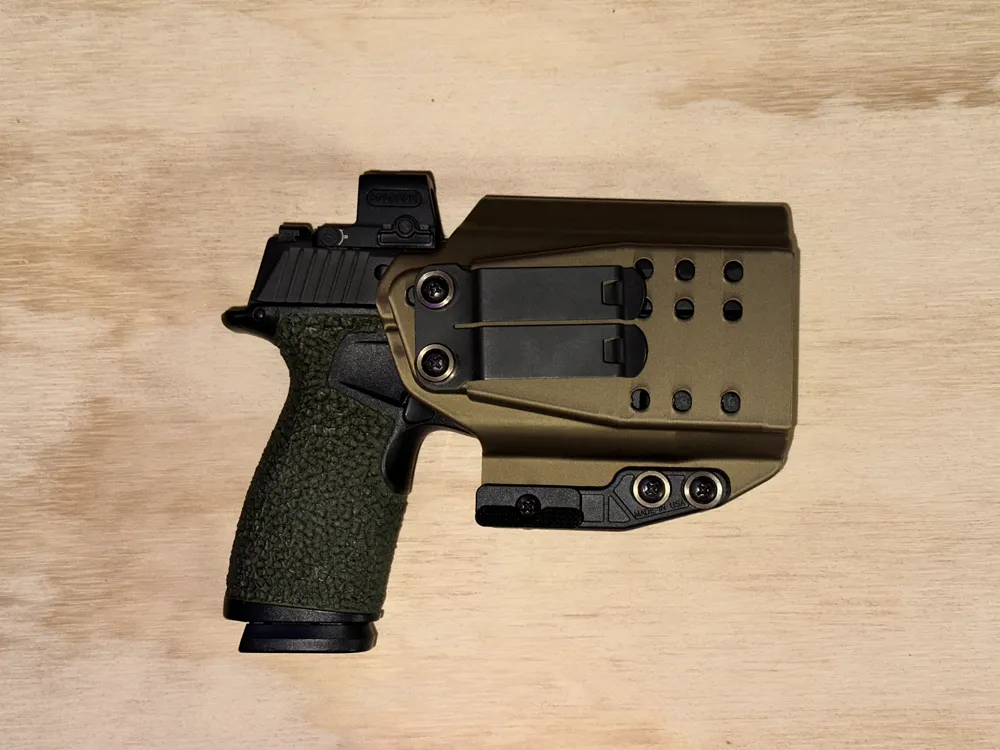

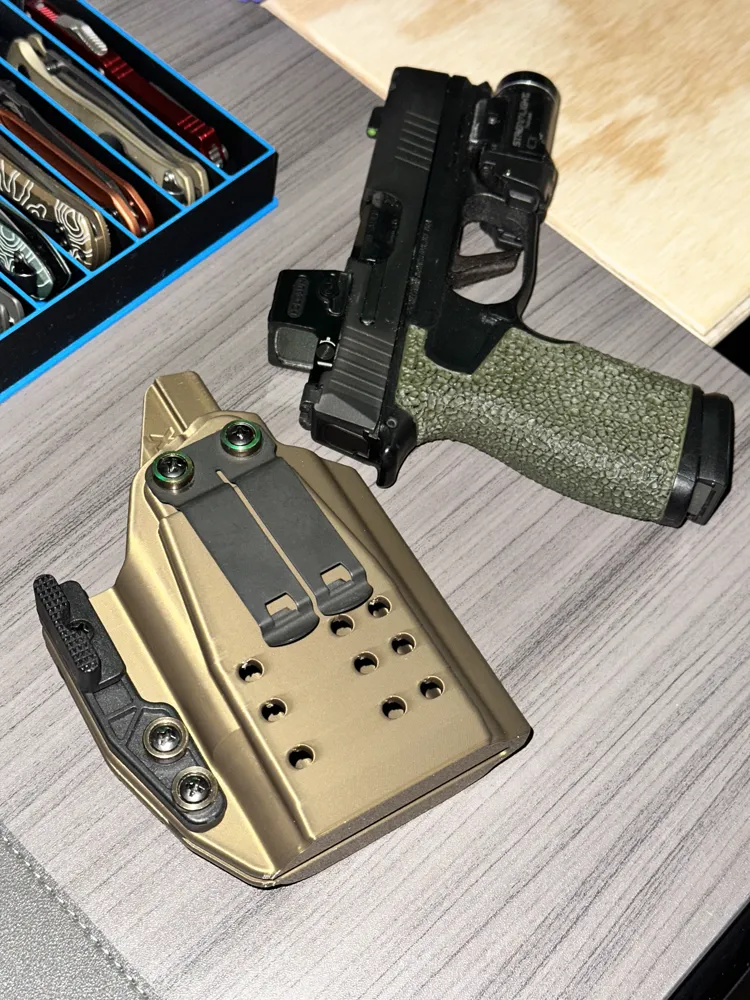

• FOMI & Tri RCS hole patterns for wide compatibility with most IWB belt attachments.

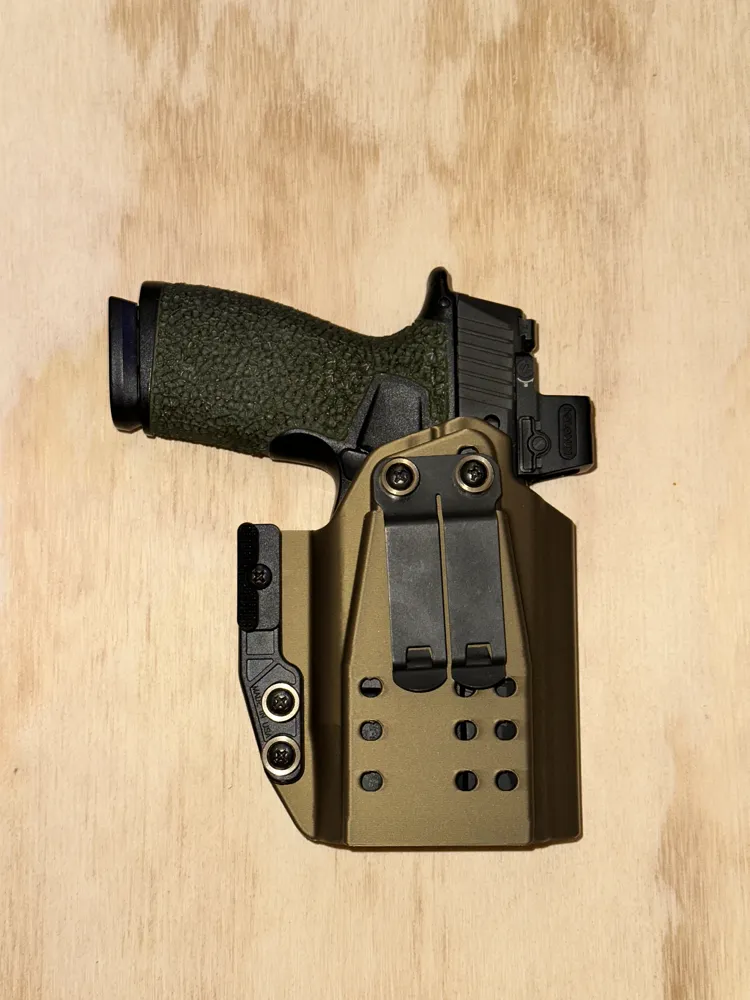

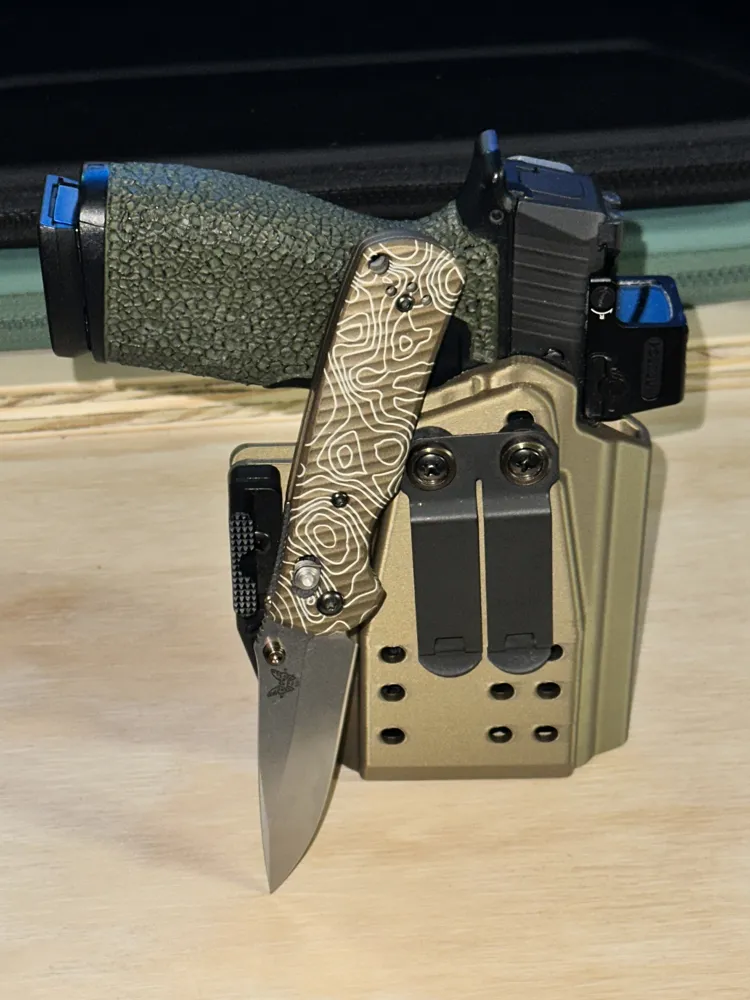

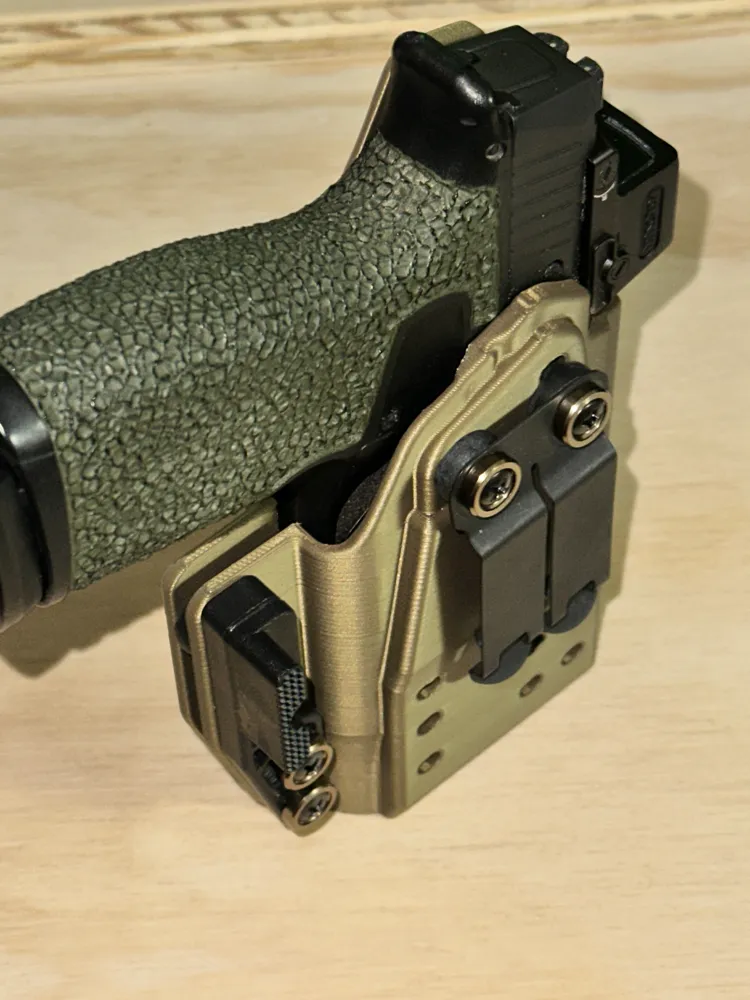

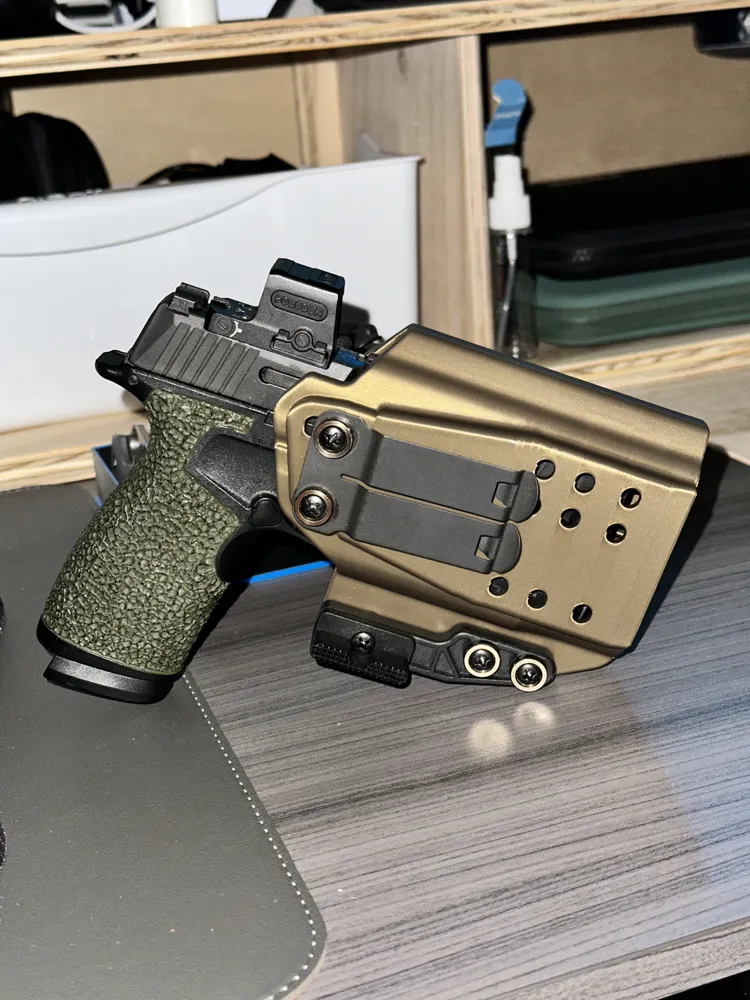

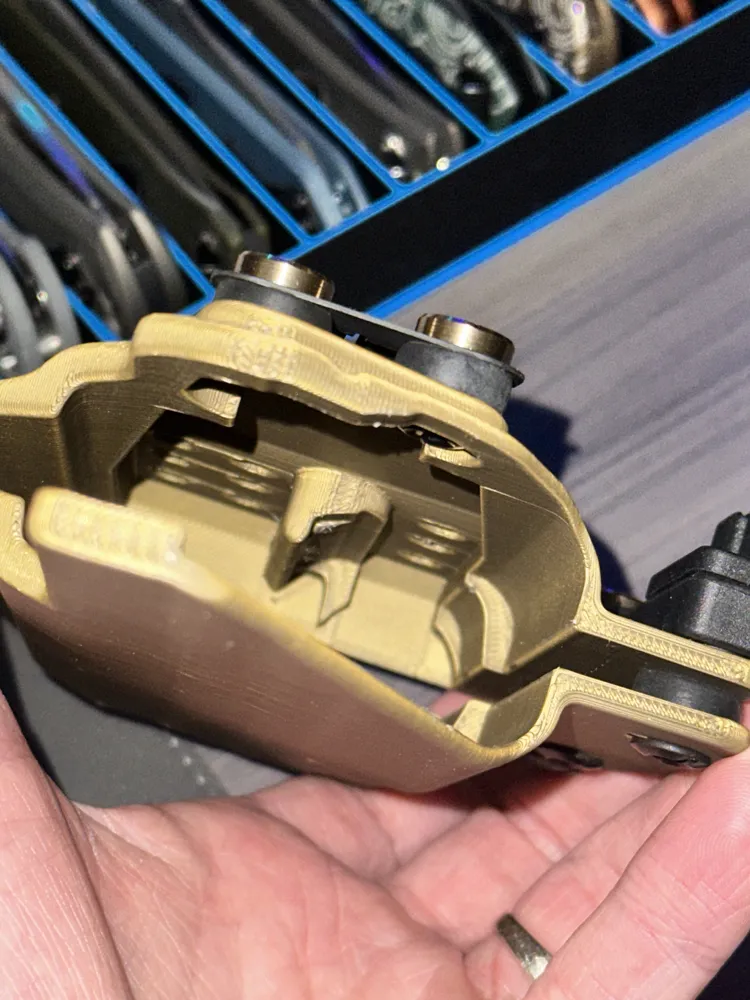

• Mounting holes for the ModWing LB concealment claw (recommended) double as adjustable retention points. Includes a third hole behind the claw head for added stability - replace the short factory screw & nut with the specified size below.

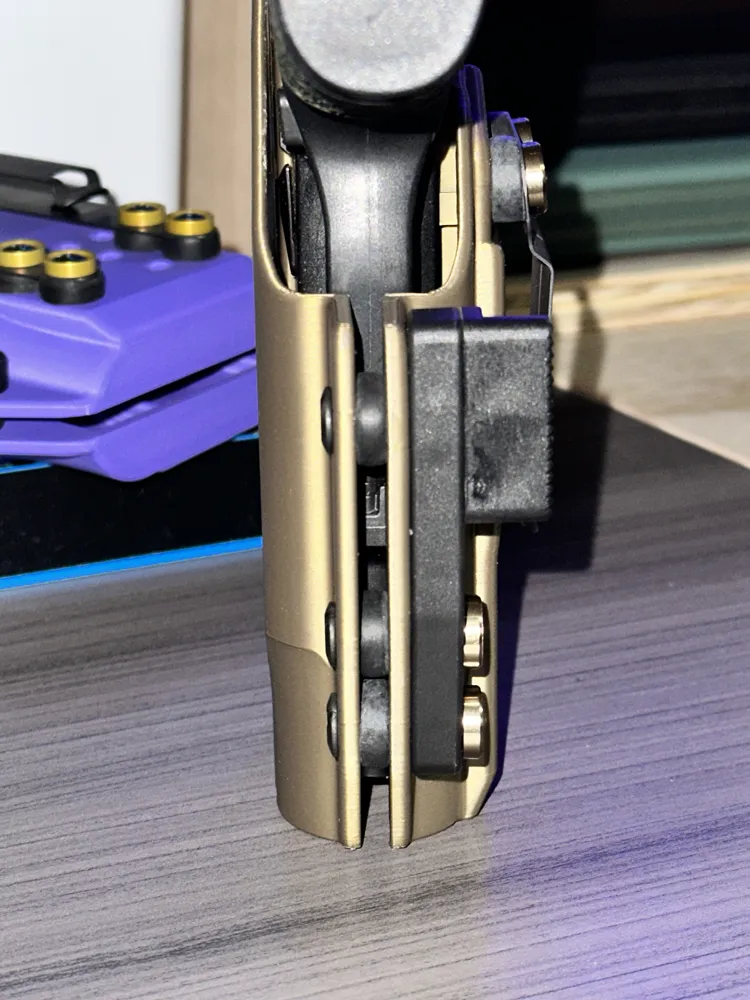

• Built-in concealment geometry: raised offset behind belt attachment helps pull the holster tighter to the body, even without a claw.

Material & Printing Tips

• Recommended material: PLA Basic is fine, PETG is recommended. For users expecting excesive heat, ABS or PET-CF is recommended.

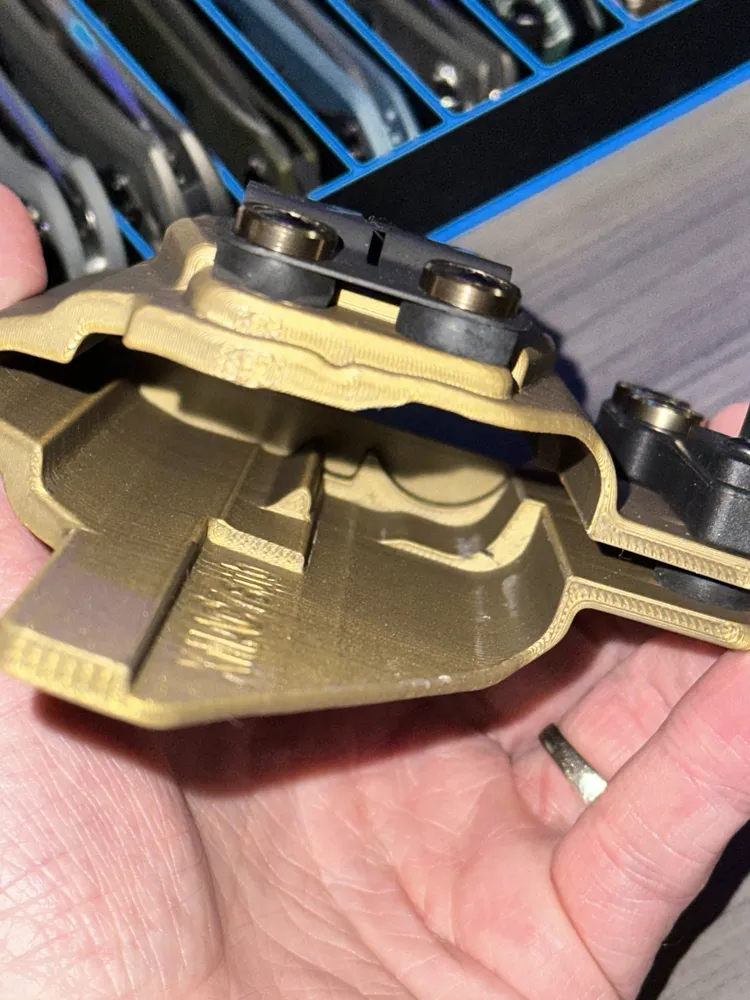

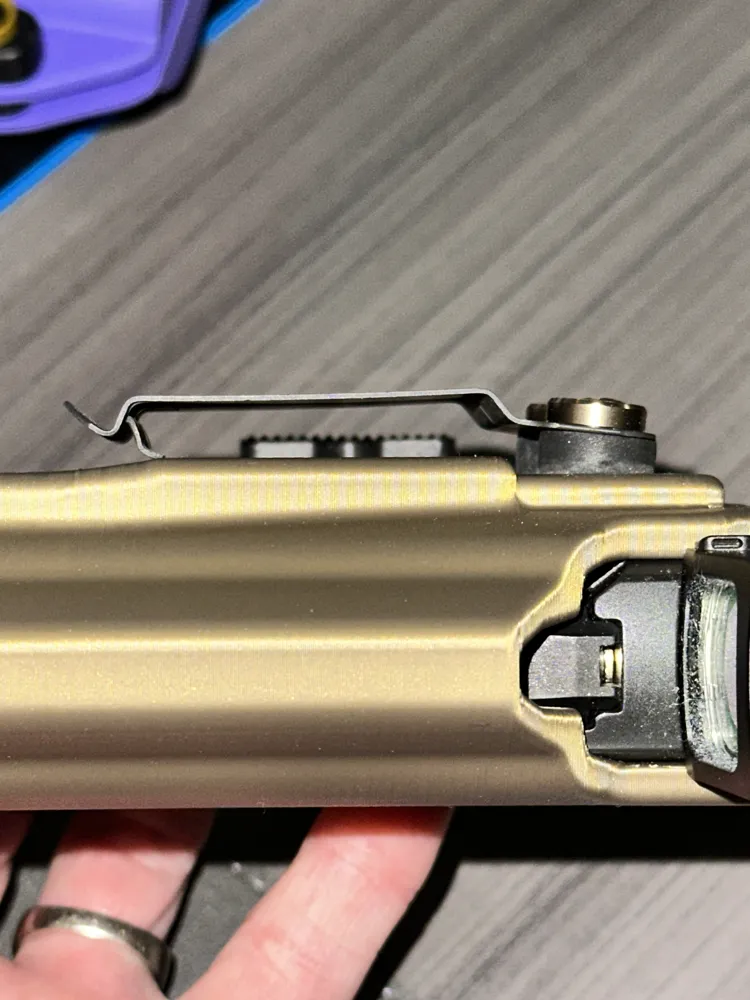

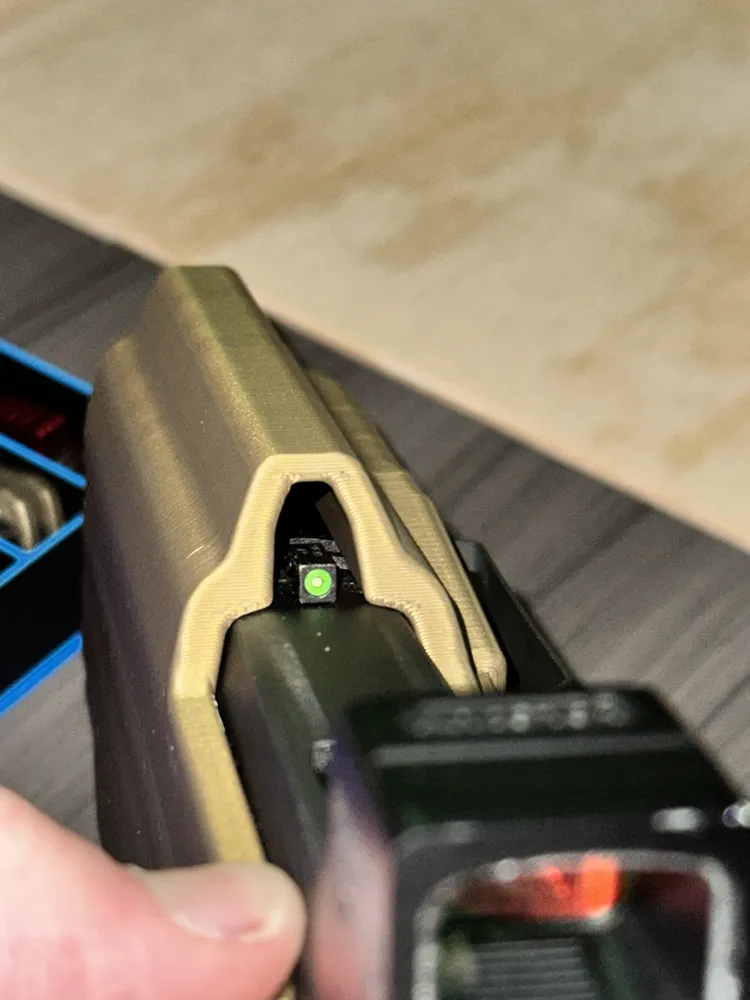

• Supports: Required and can be stubborn dependant upon print orientation and support settings. Clean carefully to avoid over flexing and snapping the sight channel - applicable for more brittle mateirals. A needlenose pliers is quite handy here.

Hardware Recommendations

Retention Hardware - If installing a ModWing

• Slotted Posts: 3× (8-32) 0.5"
• Screws: 1× Oval Head 0.625" (0.3" head) for ModWing head mount; 2× Truss Head 0.5" or 0.75" (0.4" head)
• Rubber Bushings: 3× 0.5" x 0.18" x 0.25" (the lower 2 can be swapped for thicker 0.5" x 0.18" x 0.375" bushings if desired)

If not installing a ModWing:

• Slotted Posts: 3× (8-32) 0.25"
• Screws: 3× Truss Head 0.375" (0.4" head)
• Rubber Bushings: 3× 0.5" x 0.18" x 0.25" or 3× 0.5" x 0.18" x 0.375"

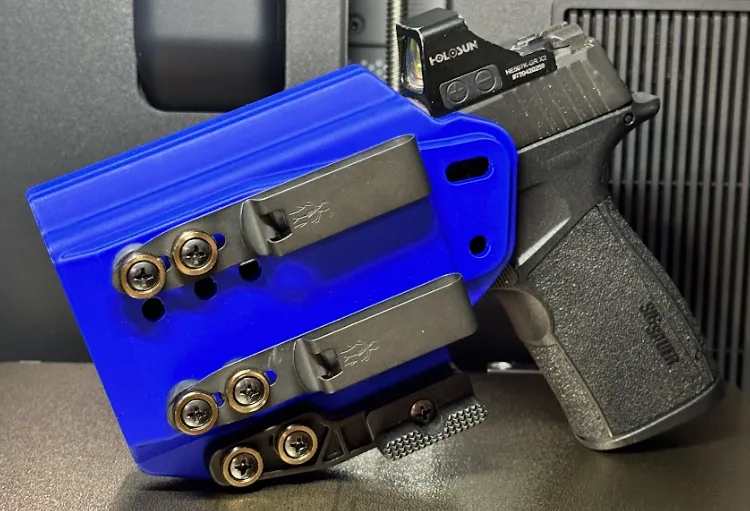

Belt Attachment Hardware (Double for dual-clip configurations):

• Slotted Posts: 2× (8-32) 0.25"
• Screws: 2× Truss Head 0.25" (0.4" head)
• Rubber Bushings: 2× 0.5" x 0.18" x 0.25"

For reliable hardware, attachments, and other gear, further check out HolsterSmith.com or HolsterBuilder.com both offer all components listed above, and so much more. Adjust screw length or bushing thickness to suit your chosen attachments (DCC Monoblocks, MOD 4s, RCS Over-Hooks, etc.).
