Luffy Gear 5 - Magnetic Deckbox - One piece

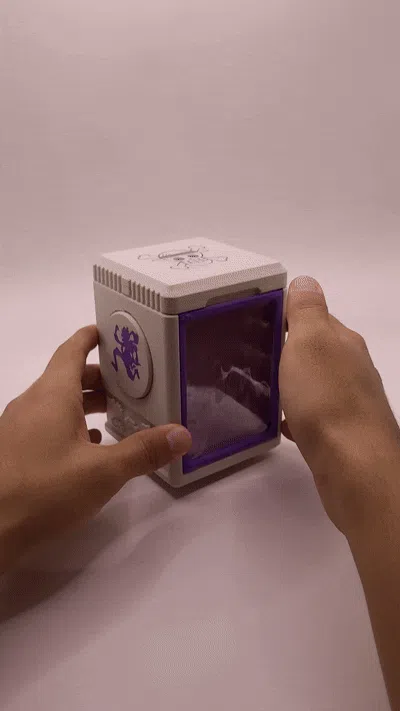

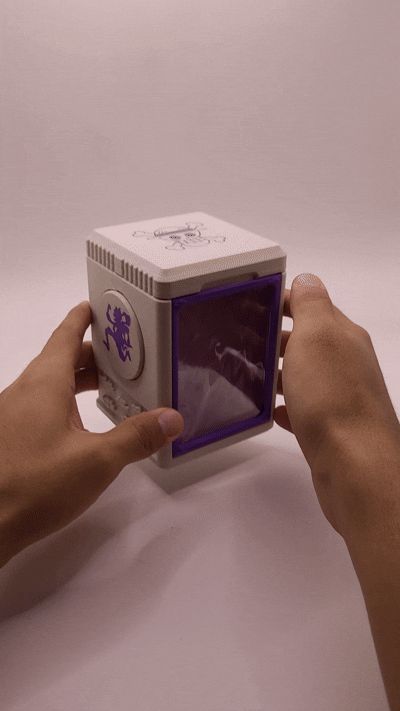

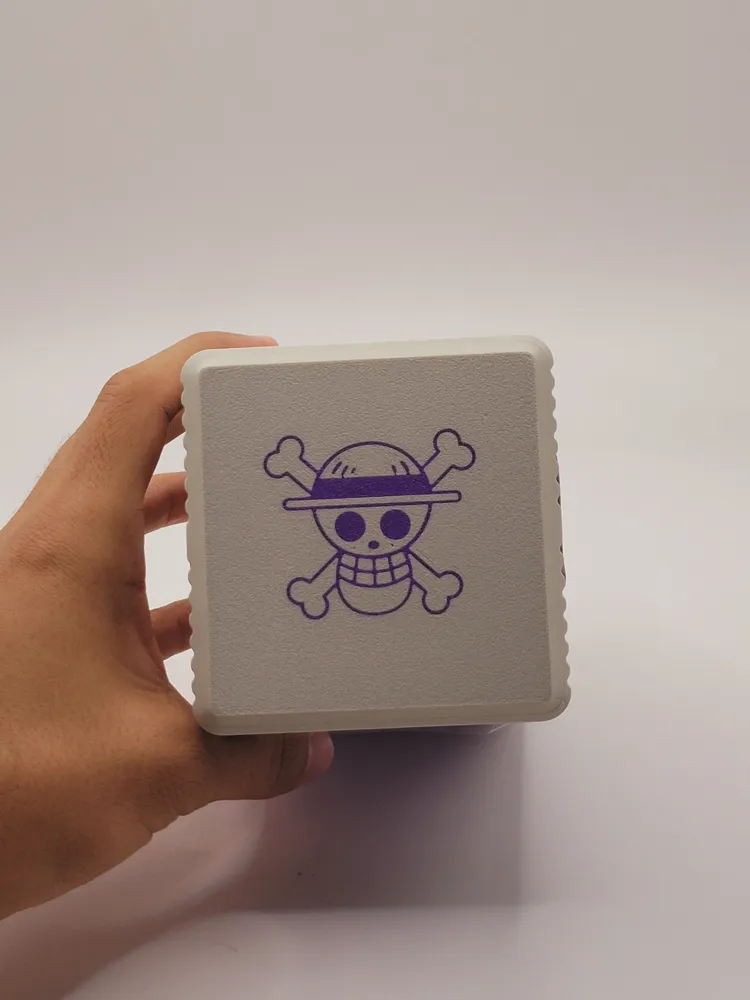

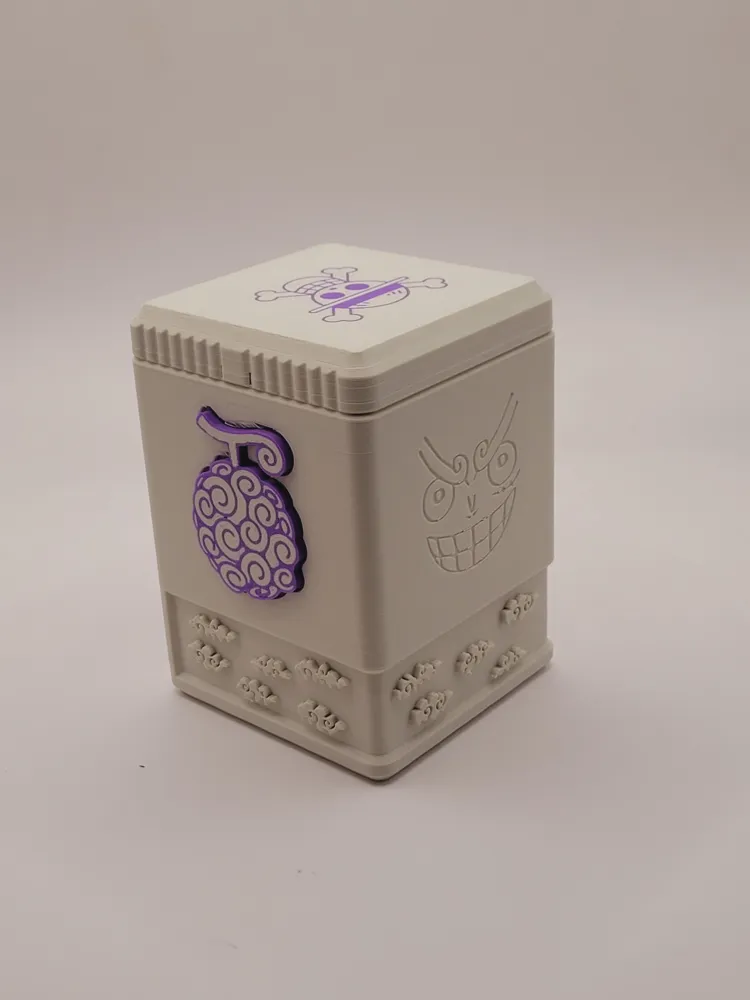

This is a magnetic deckbox inspired by Luffy Gear 5, designed for both functionality and display. It’s perfect for players who want to protect their deck while giving their leader a spotlight.

Features

• Hidden magnetic closure using rectangular magnets that are fully concealed once assembled.
  • Compatible with the official Bambu Lab magnets, but you can also use 10 × 5 × 3 mm magnets for extra holding strength.

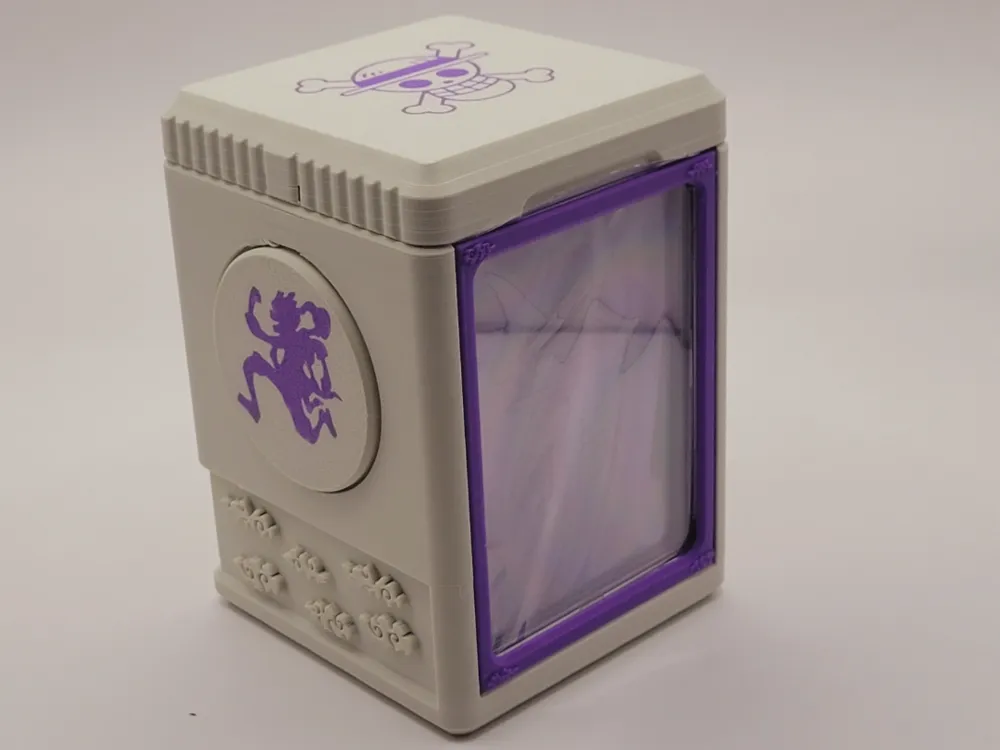

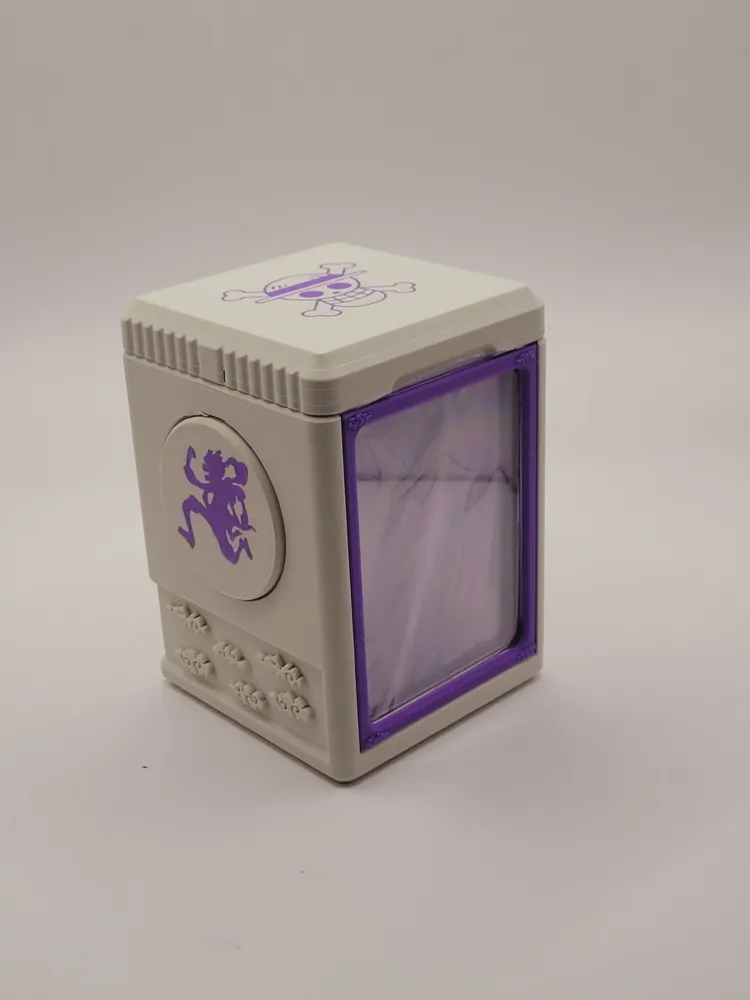

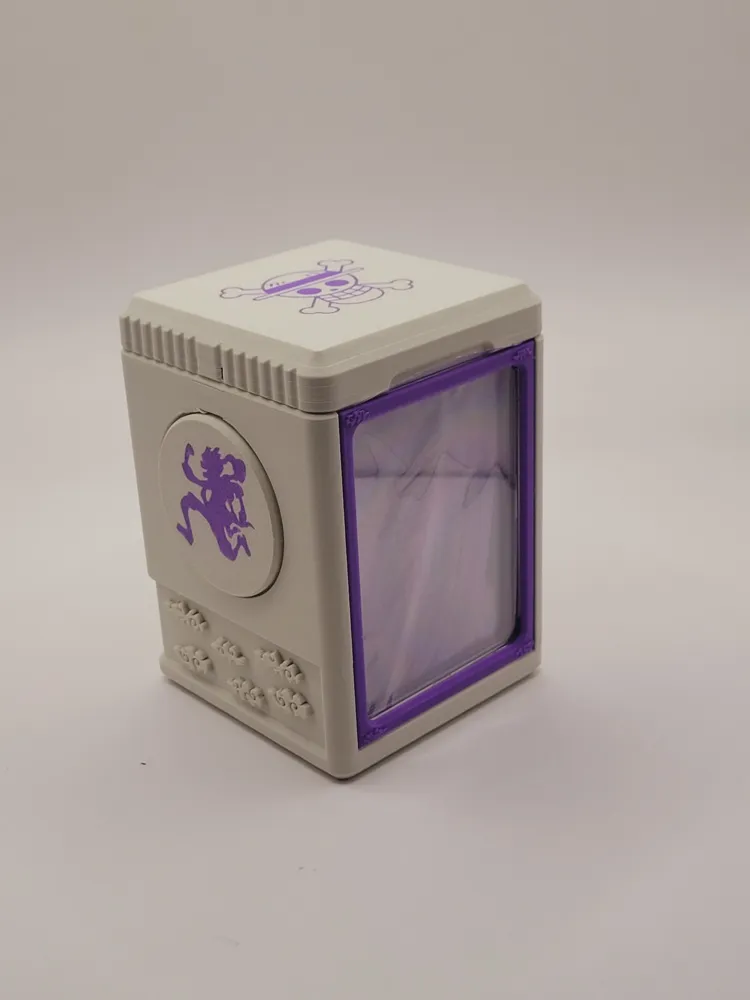

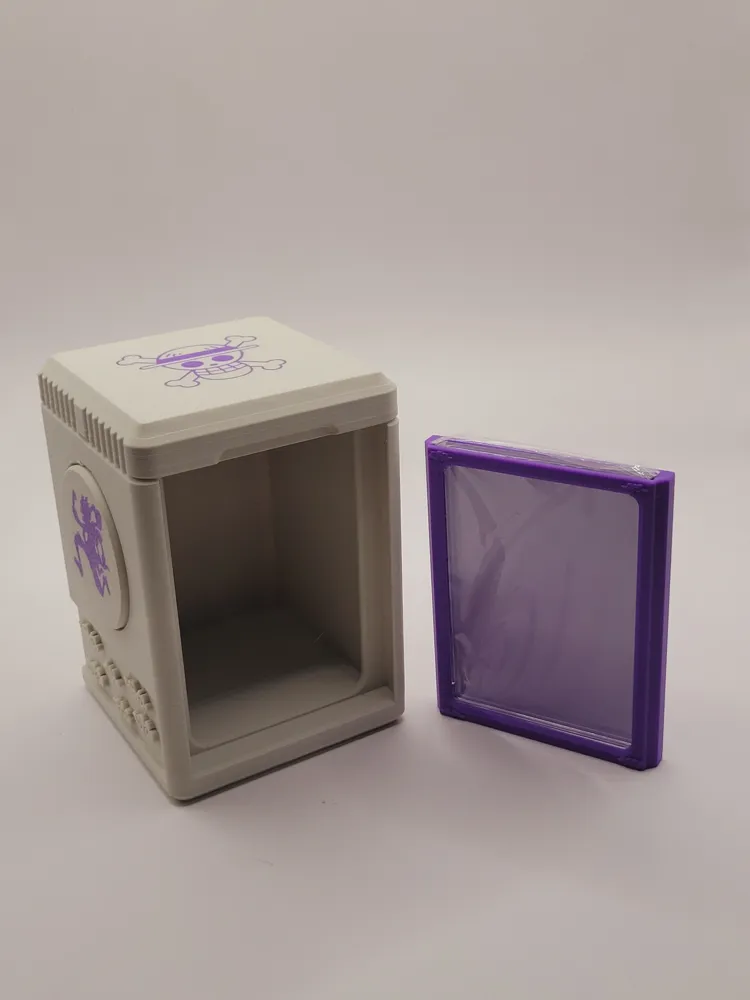

• Acrylic display window to highlight your leader card.
  • Designed to fit an acrylic sheet of 70 mm (L) × 95 mm (H) × 6 mm (W), easily found on AliExpress.
• Capacity for a full 60-card deck, including DON cards.
  • Works with cards with or without oversleeves.
• Optimized multi-color printing
  • Printed in multiple plates using the recommended colors, all available from the Bambu Lab store.

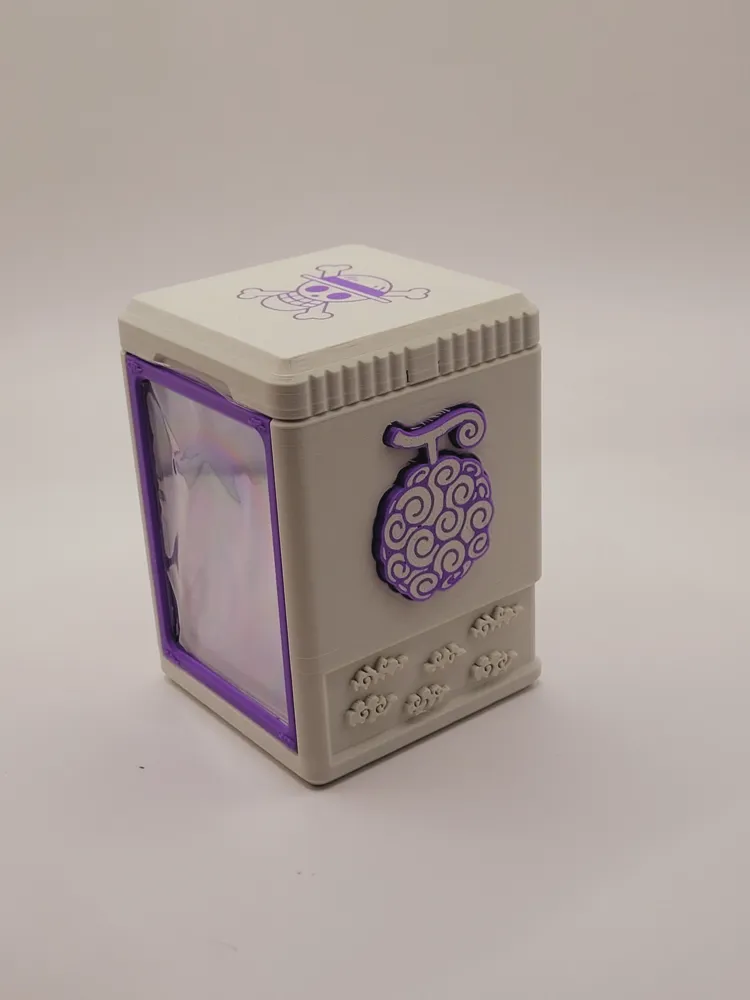

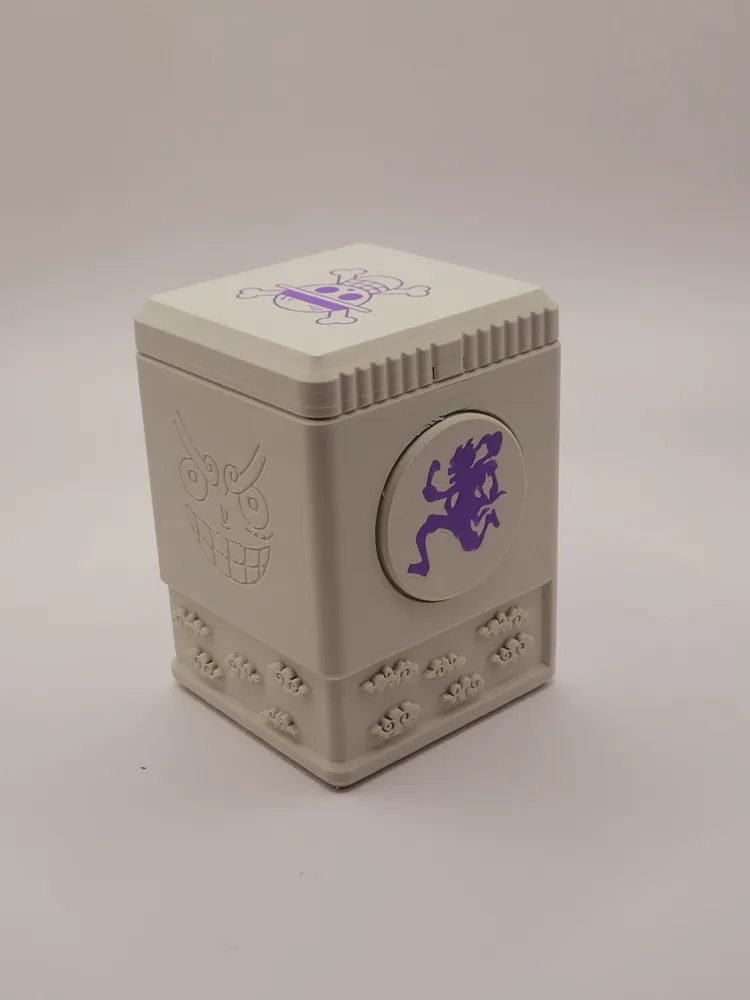

• Icons are separate parts
  • Attach them after printing using cyanoacrylate (super glue) for a clean finish.
• Material-efficient design
  • Printed in 4 build plates to reduce material usage.
  • Best surface quality is achieved by printing key faces against the build plate, taking advantage of the PEI plate texture.

Update:
New printing profiles have been added to print the icons without the need for AMS.

Profile #1 is assembled by press-fitting the parts together. Do it carefully to avoid applying excessive force and stretching the parts, which could cause visual defects.

Profile #2 is done by changing the filament during the print. The .3mf file already includes a pause at the required layer, so you only need to change the filament spool during the pause and purge the filament before resuming the print. Try to use the same filament type and brand to avoid visual defects.

Your support helps me keep designing and sharing more functional and character-driven prints. Thanks!
