60V 5X5 24S1P bottom thickness 1.0MM battery aperture 41mm compatible with Funeng 40140

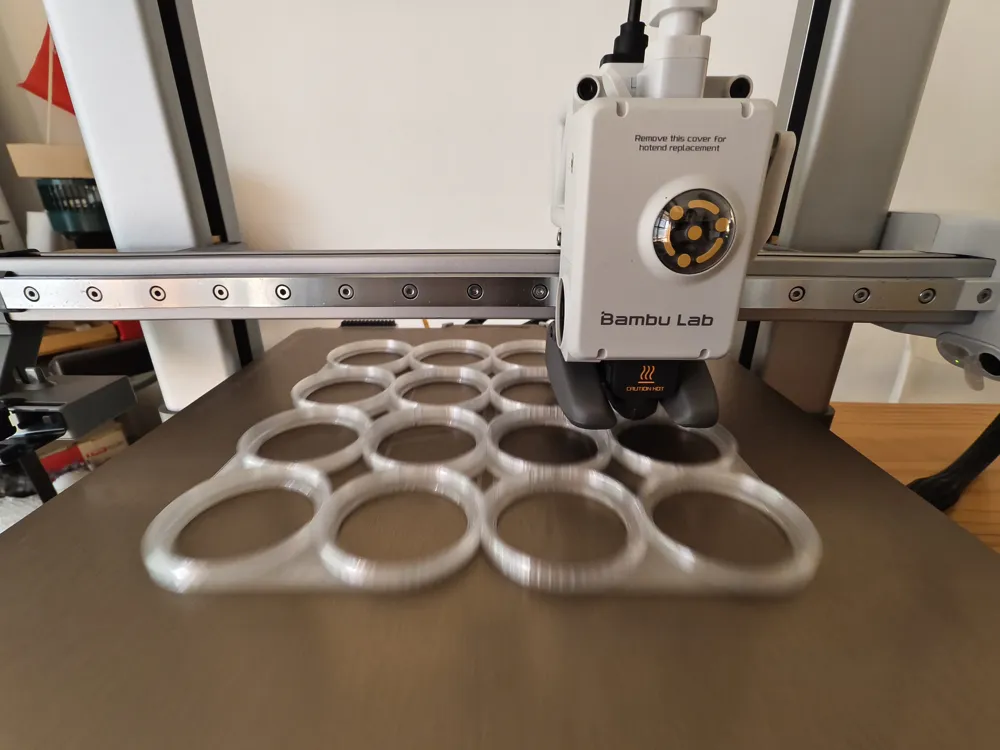

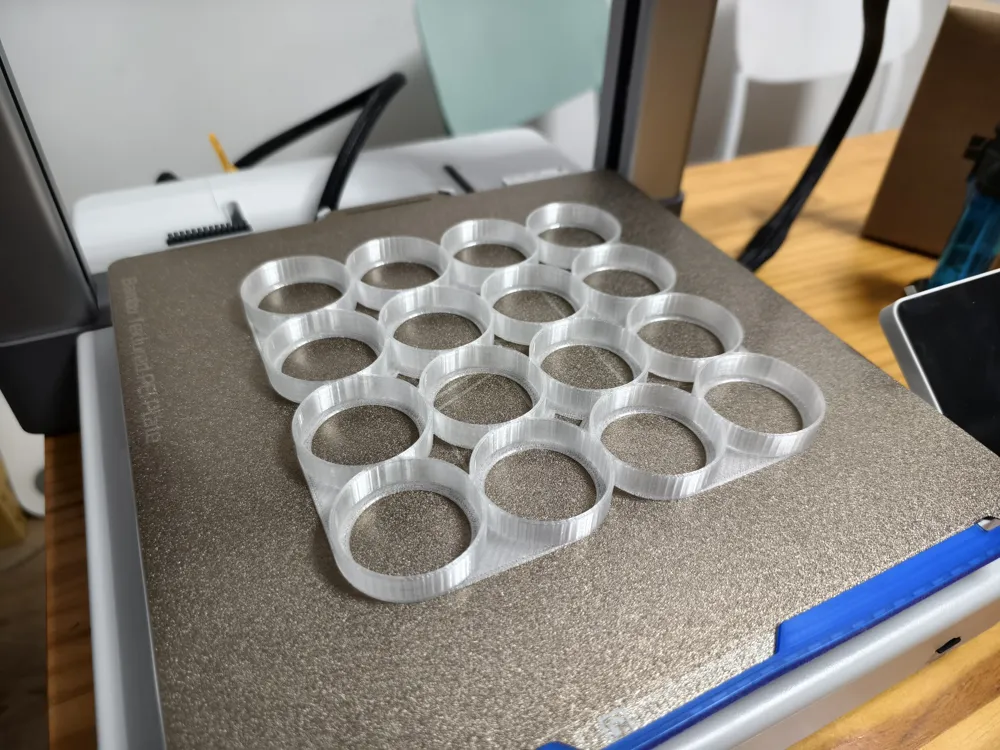

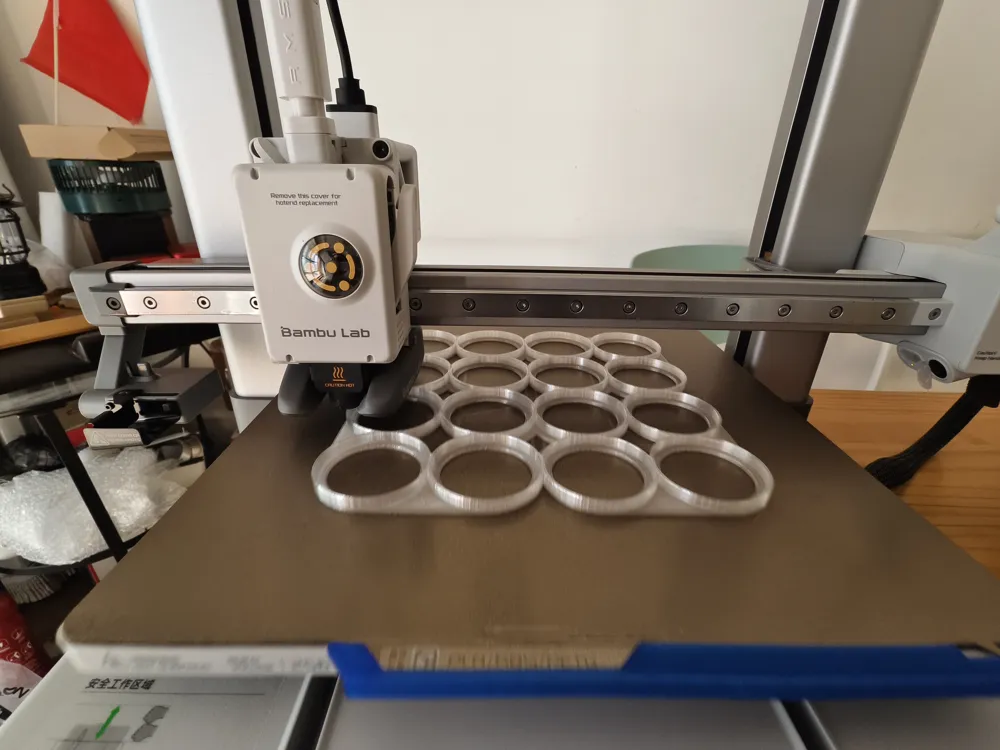

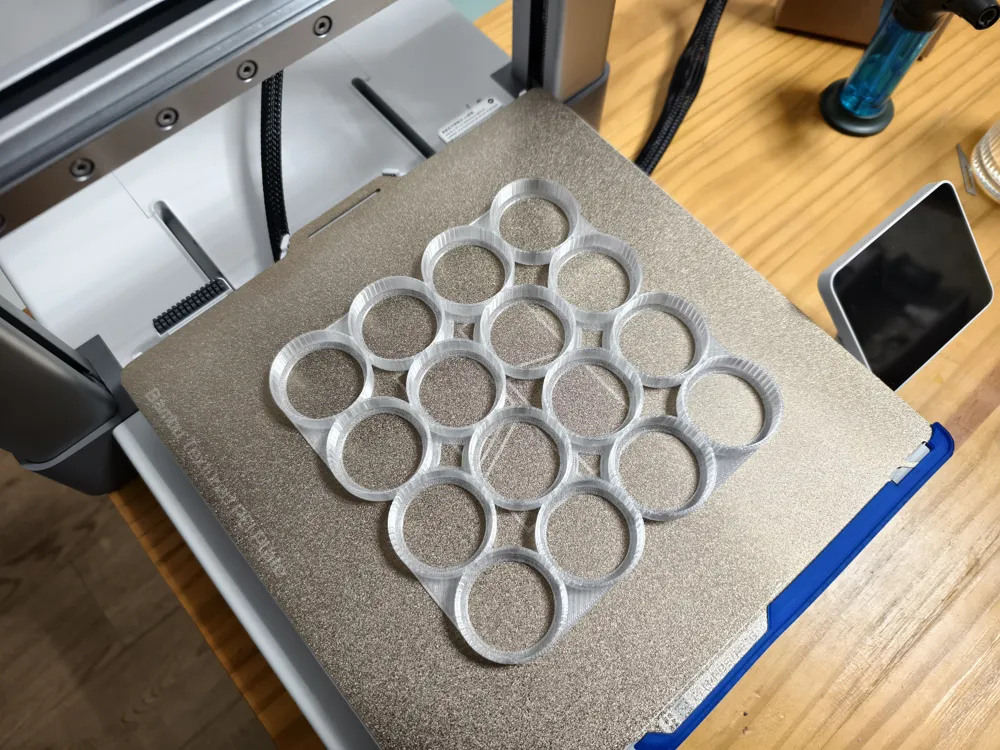

The original model is a 48V lithium battery holder. At a classmate's request, a 72V, 40.8 aperture solution was created. Currently, the 255X255 panel is adapted to its maximum size. For printing PETG, it is recommended to clean the build plate, apply glue, or increase the bed temperature:

24S1P - 72V lithium battery, battery hole size 41mm, compatible with Funeng 40140 battery - 40.8 diameter battery. Please recheck the dimensions before printing. Measurements can be taken with Bambu Lab's own software.

Number of batteries: 24 cells

Battery model: 40140 (If printing other types of batteries, please inform me if there are size discrepancies, and I will continue to improve)

Address of the original 48V lithium battery holder model: https://makerworld.com.cn/zh/models/1946427-48v-4x4-16s1p-40135-di-hou-1-5mm-li-dian-chi-zhi-j#profileId-2162304

Address of the original 60V lithium battery holder model: https://makerworld.com.cn/zh/models/2029027-60v-4x5-20s1p-40135-di-hou-1-0mm-li-dian-chi-zhi-j#profileId-2263423

The modifications are as follows, changed to 20 cells of 40140 batteries

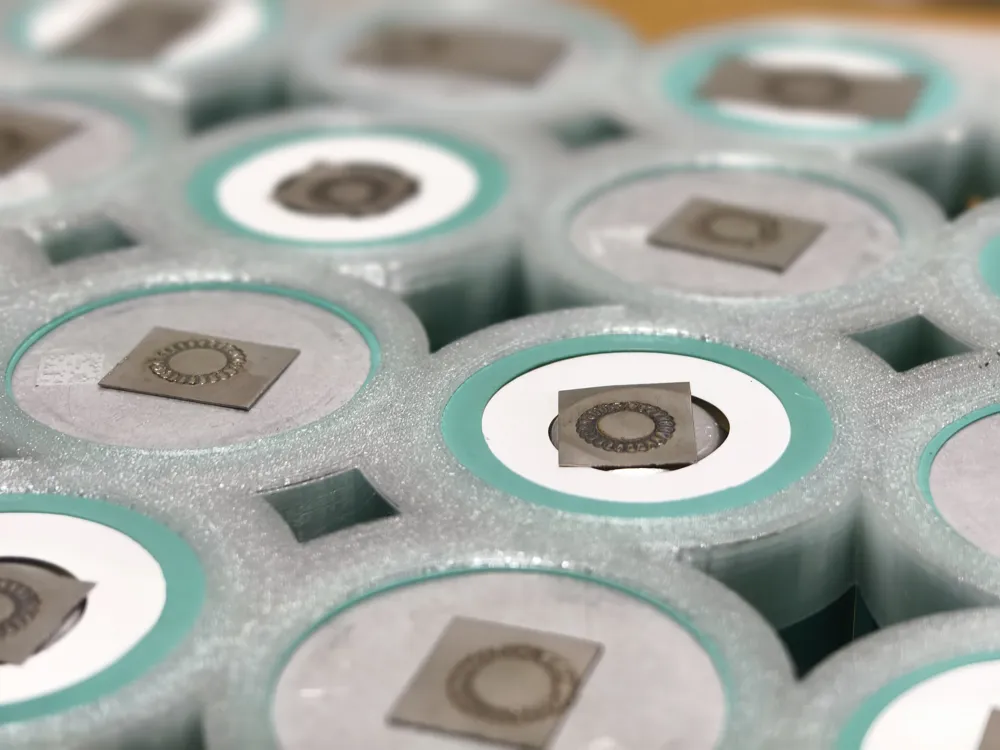

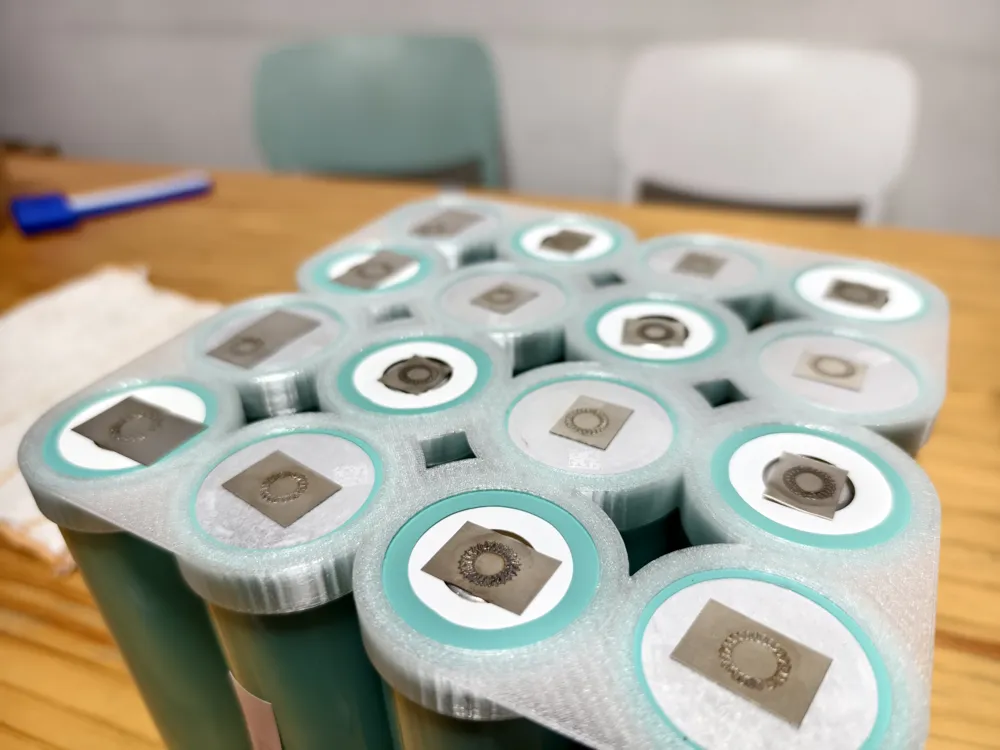

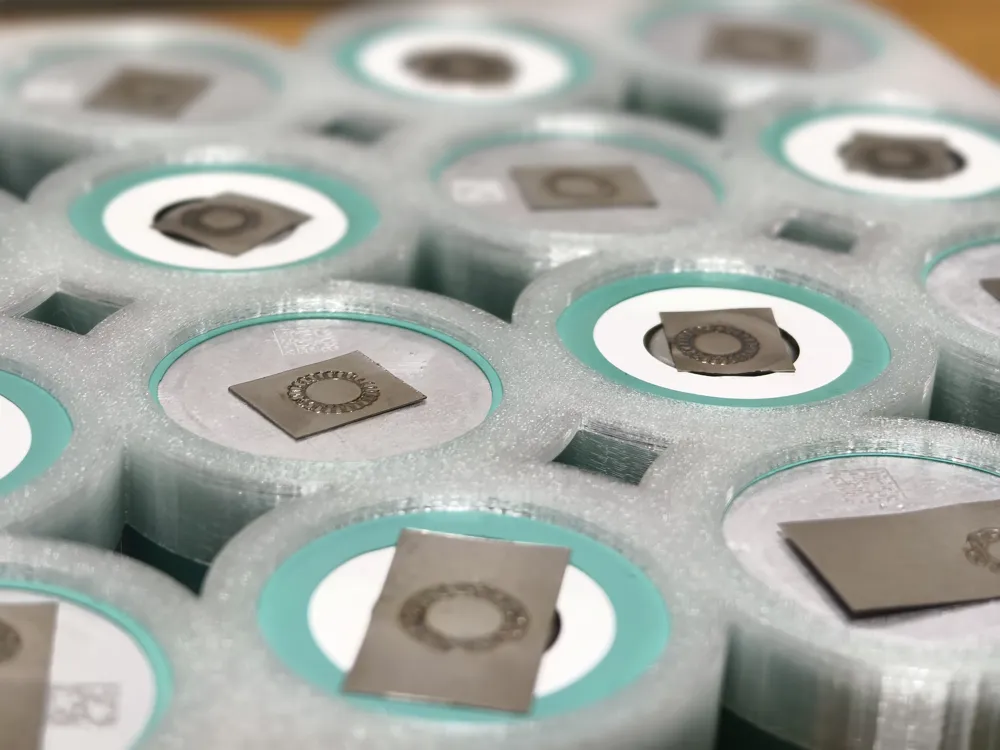

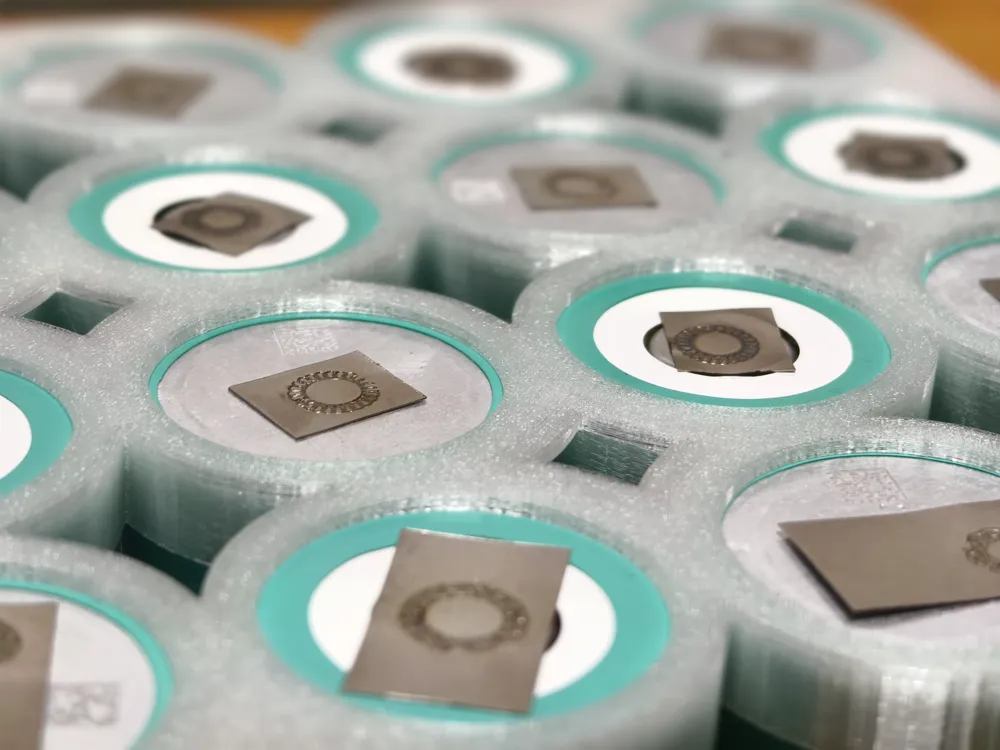

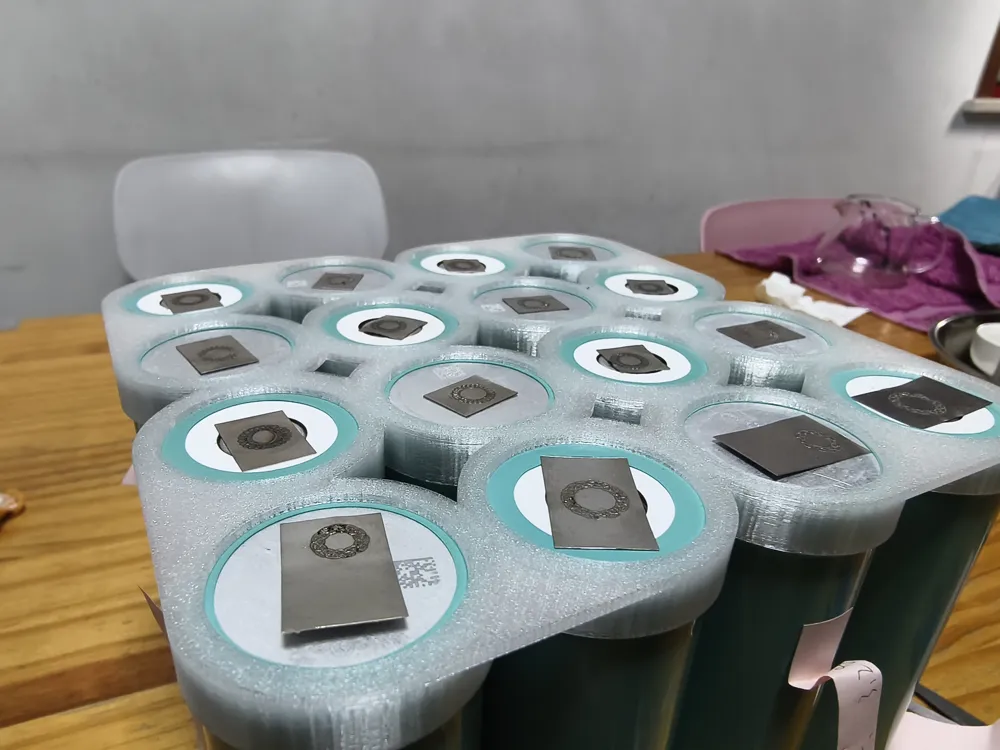

Holder battery aperture 40.8mm, it is not very sturdy when assembled after printing. Due to the increased number of batteries, 4mm fixing holes have been added around, M4 screws can be used to strengthen the fixation, or wires can be routed through the holes, fiber tape can also be used for fixation. The battery height has been increased from the original 10mm to 15mm to enhance the stability of the holder. Holes are opened in the middle for easy wiring and to save material, using a large and small hole design to ensure structural strength. If you need a matching box, please leave a comment.

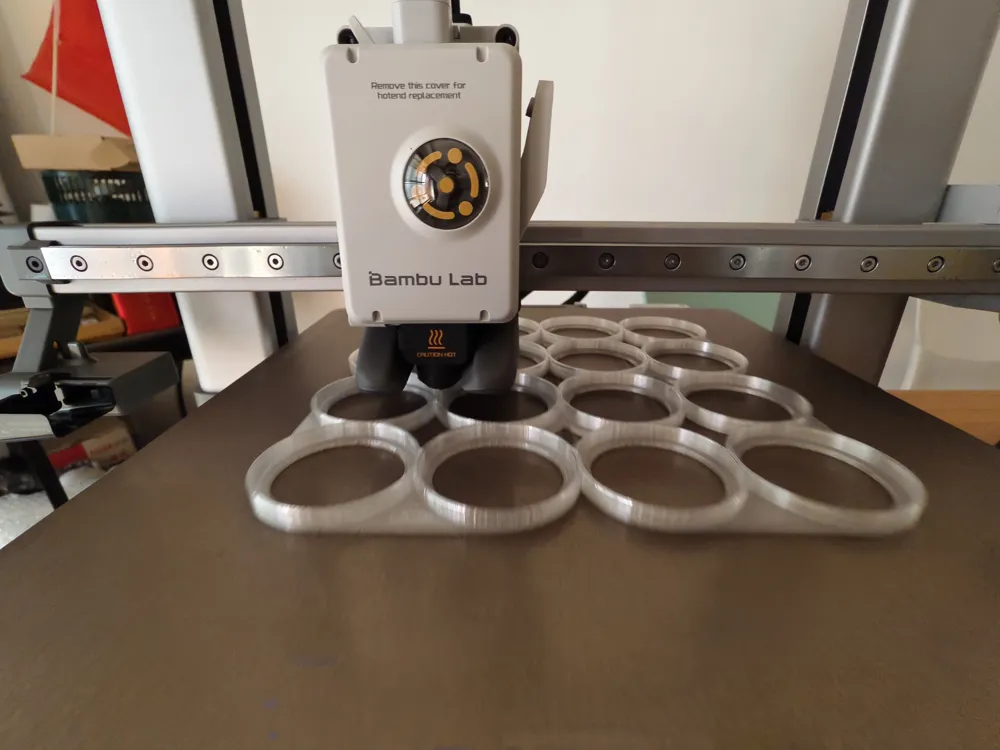

Bottom thickness 1mm, approximately 85 grams of PETG material is needed for printing. At standard printing speed, it is estimated to take 2 hours and 38 minutes to print one. Two pieces are needed for one set of batteries.
