T10 LED Light Bulb Diffuser Twist Lock Socket 12V

✨ [ Model Overview ]

This model is a set of light diffusers to use with the typical T10 twist sockets 12 Volts.

Fits Uxcell : US-SA-AJD-145950 (Amazon reference B01HSEIT6M) twist sockets (You must purchase the twist lock T10 / 194 type light sockets from Amazon).

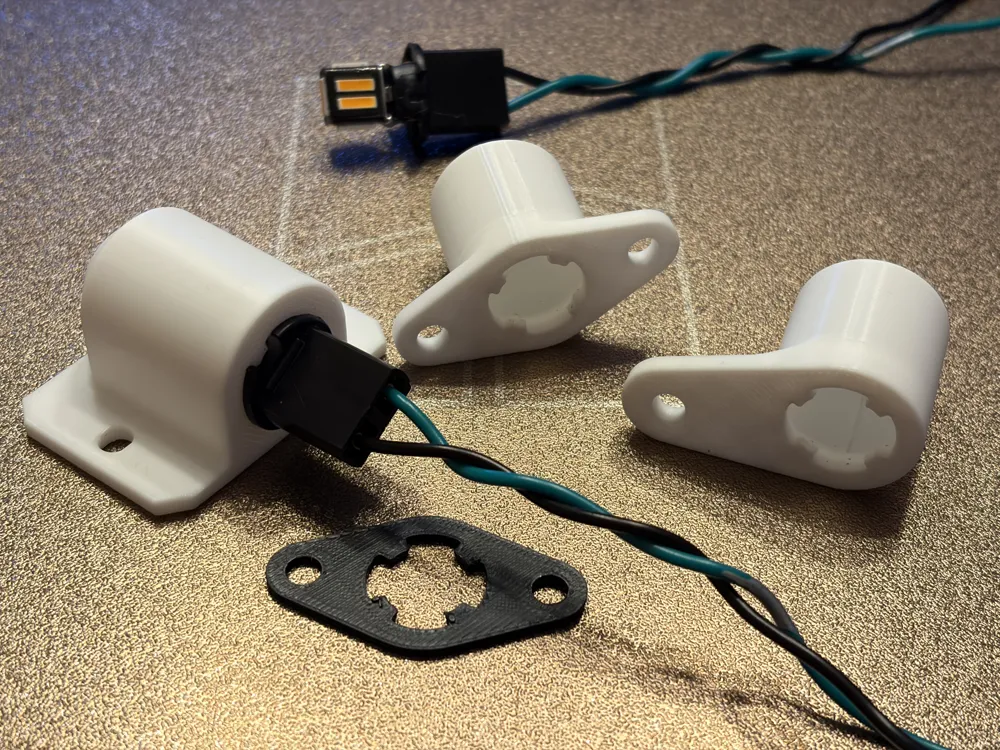

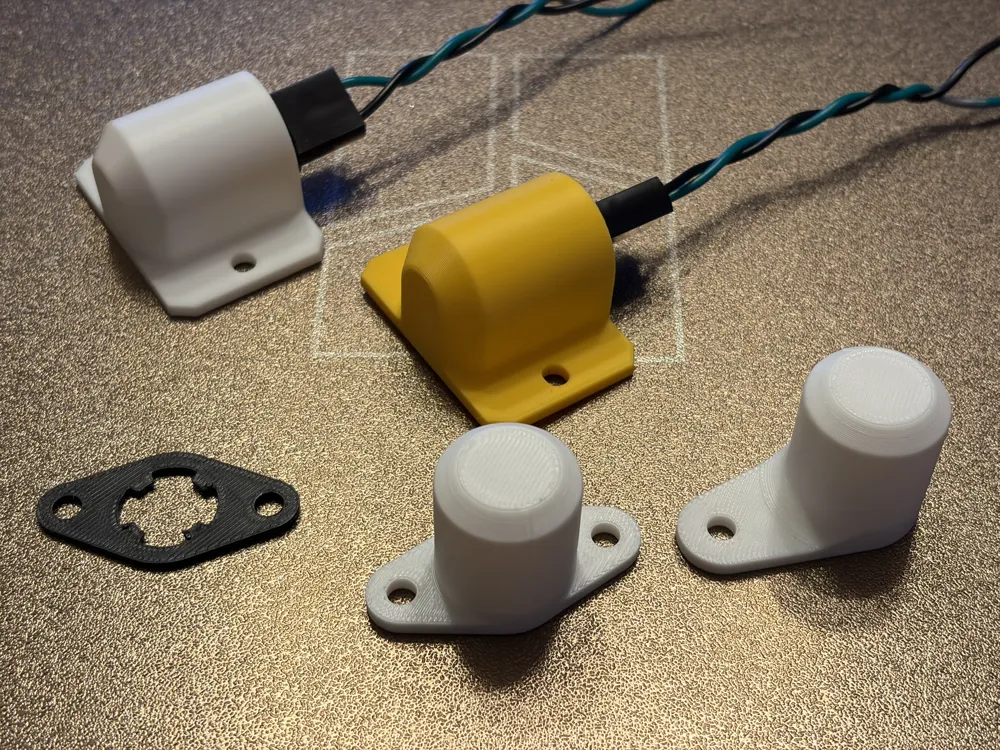

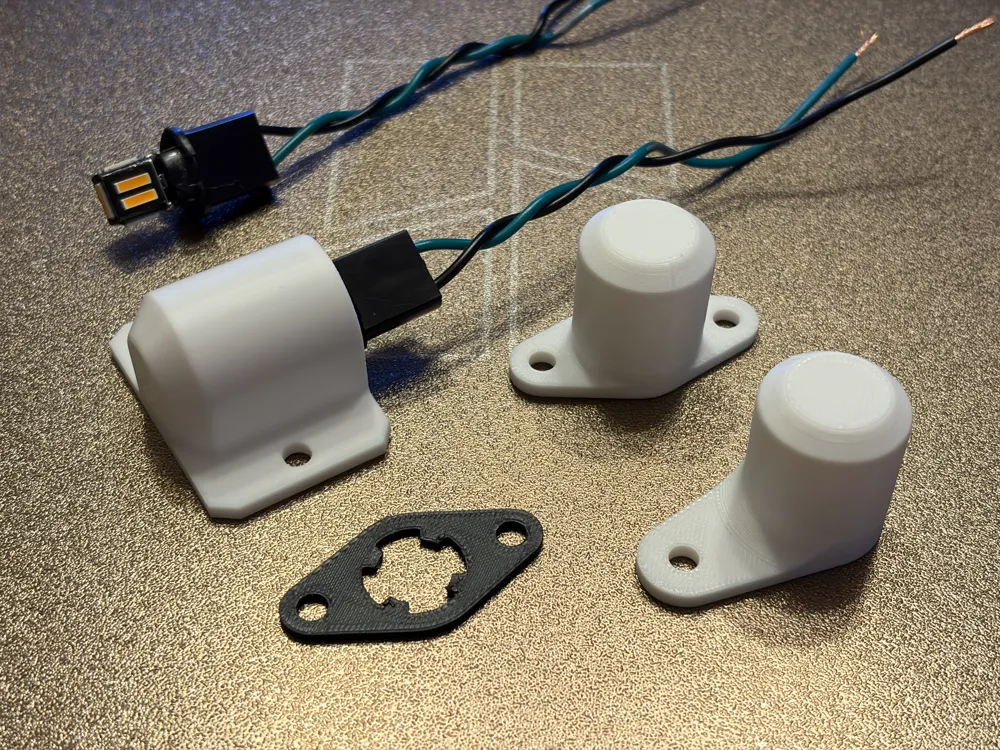

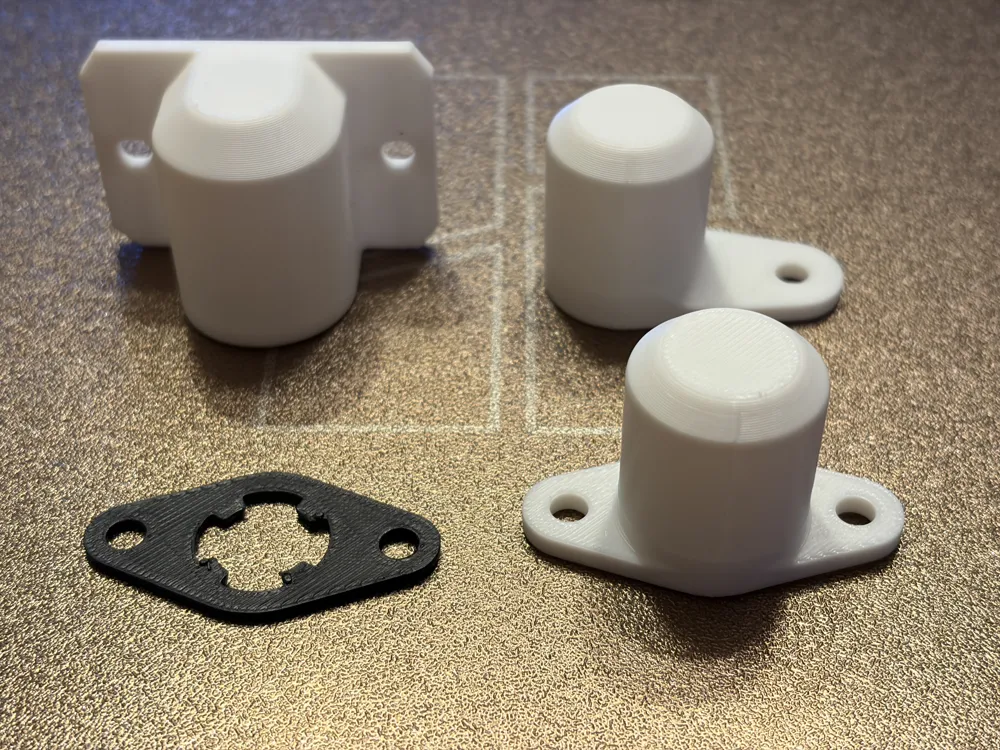

Four (4) objects are available in the profile:

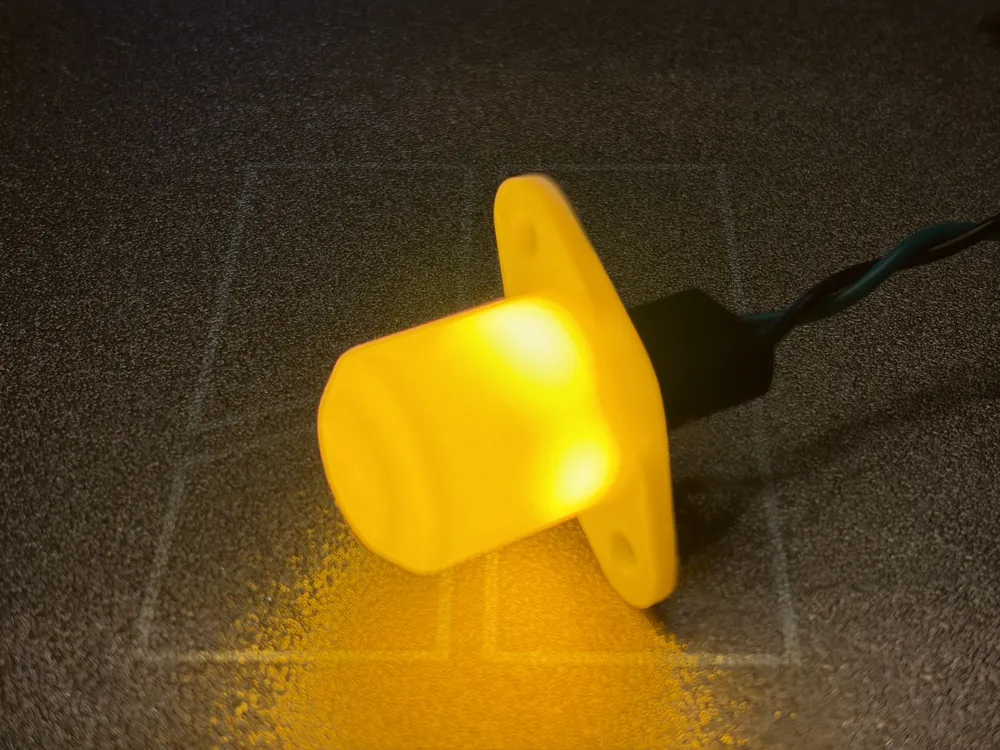

• Diffuser 1 -> Thru-mount 2 wings ;
• Diffuser 2 -> Thru-mount 1 wing ;

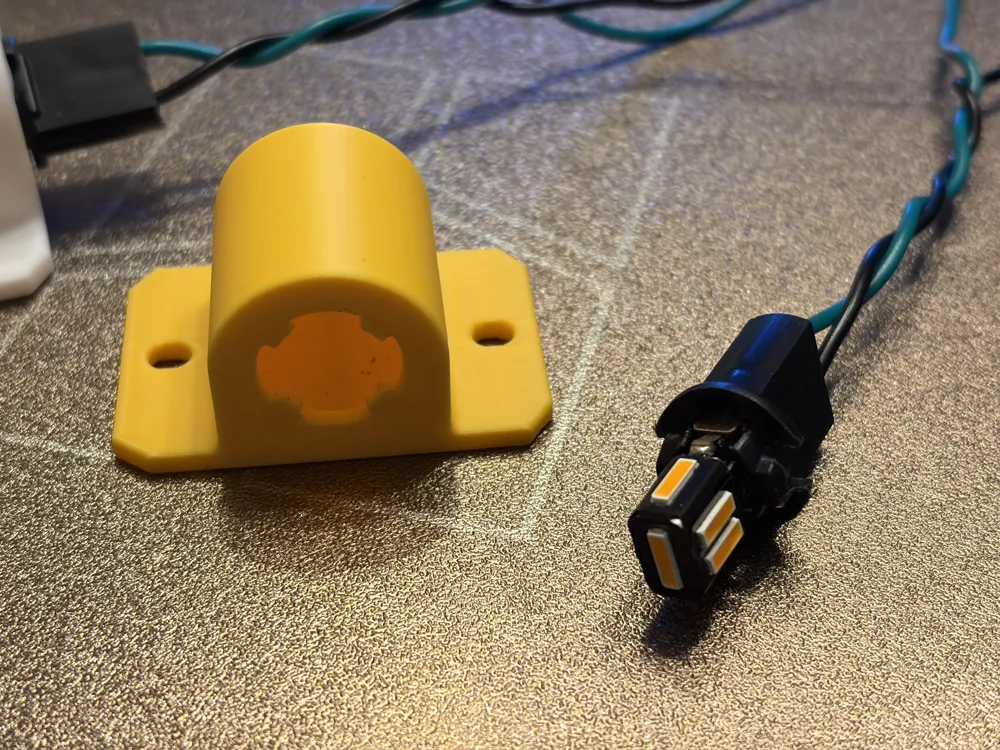

• Diffuser 3 -> Surface mount 2 wings ;

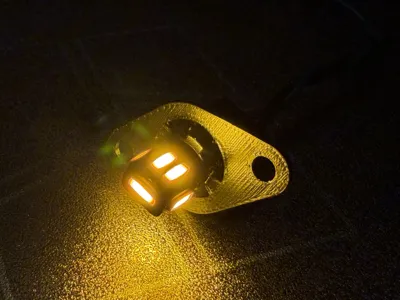

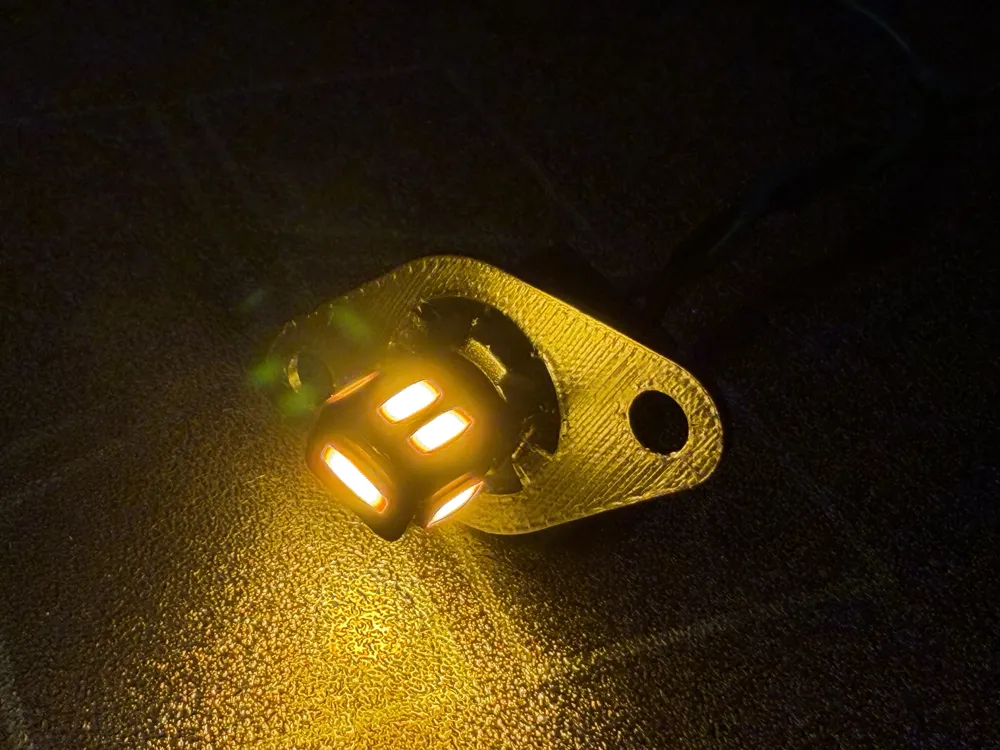

• No diffuser -> Twist lock base plate.

Ideal for 12 Volts LED applications such as car trunks, instruments panels, truck beds, enclosed trailers, RV’s and Vans etc.

The 3D file includes the 4 models.

The diffusers are for short LED 2W bulbs, I do not recommend using a long bulbs or using a filament 5W bulb in the closed housings due to the heat dissipation of such bulbs.

📇 [ Printing ]

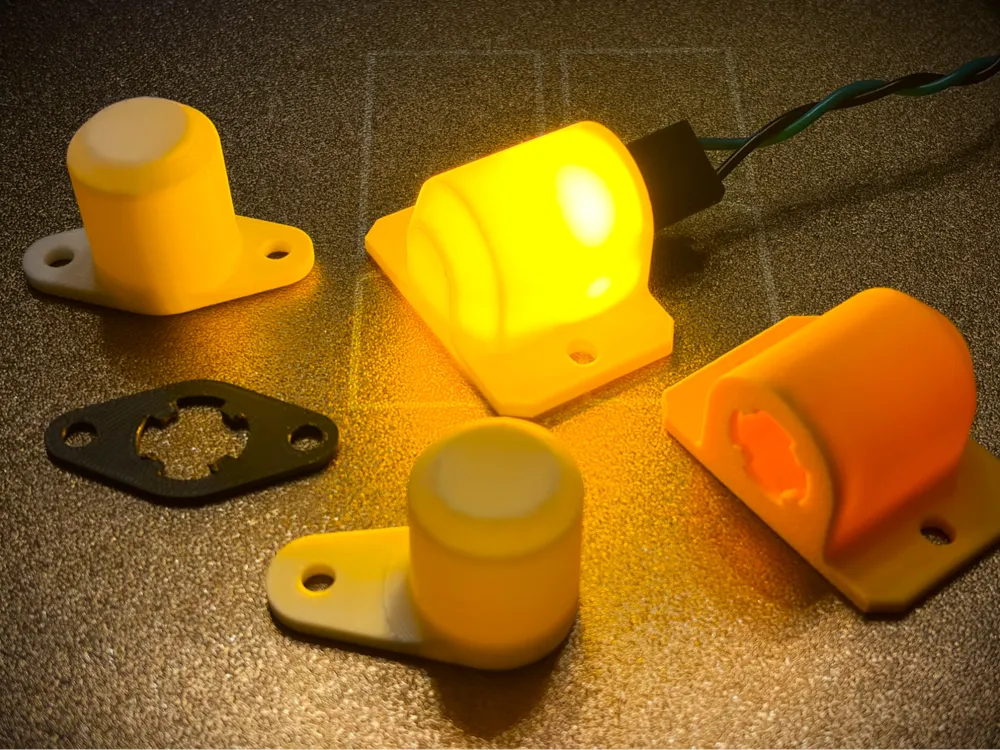

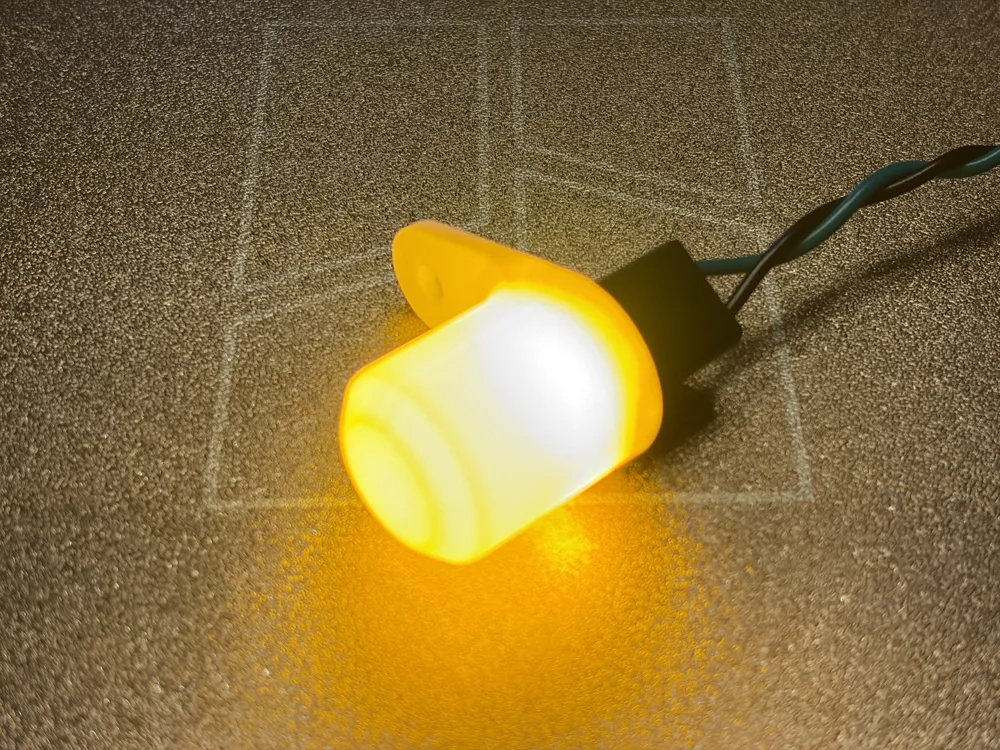

Print using a light color plastic … for the light to go thru the 3D printed part.

No special considerations, temporary supports should snap right off, use long nose pliers to pull them out.

PETG worked fine for my application.  Use the material according to your application.
