MR2 Mk3 (ZZW30) taillight mount bracket

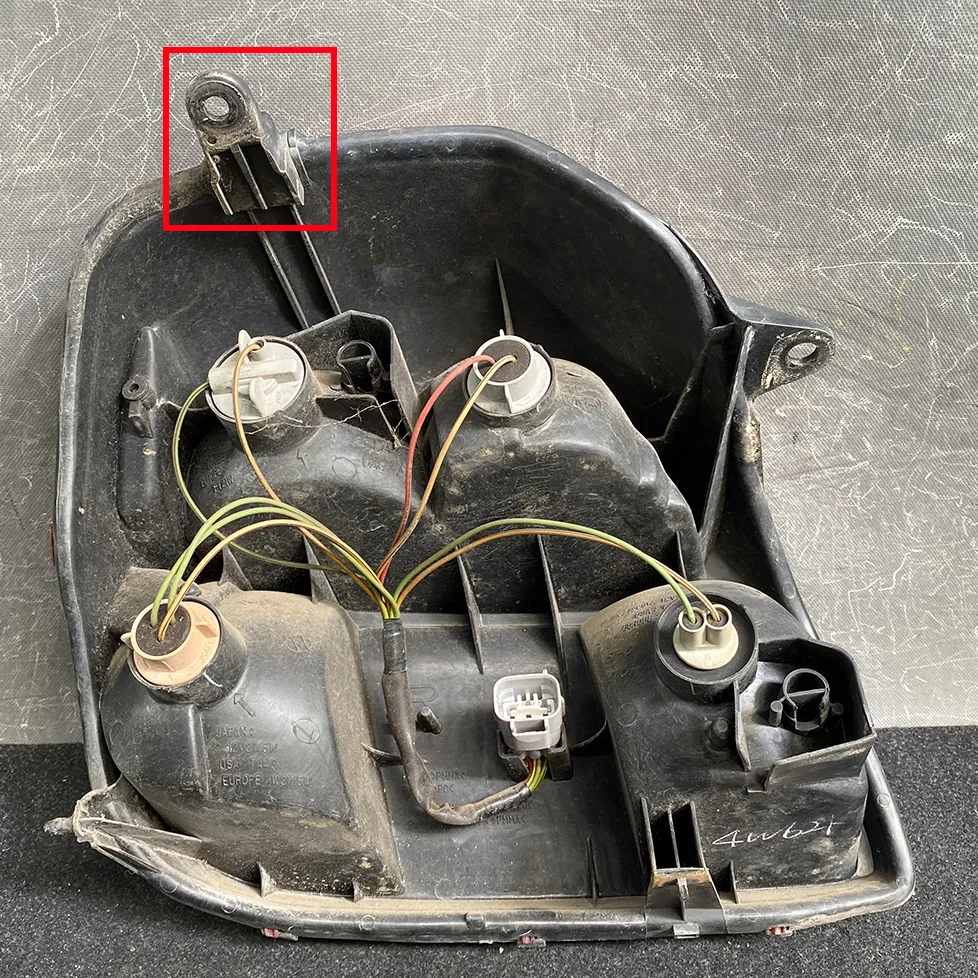

This part is a replacement for the top mounting bracket/clamp that connects the tail lights on 3rd generation Toyota MR2 to the chassis.

This part tends to break especially on older cars.

This part is for the right taillight, for the left taillight simply mirror the part along the X axis in your slicer.

Ideal printing materials are:

• PC (ideal)
• PA6-CF or other nylon-based materials
• ABS/ASA (acceptable, ABS preferred for better layer adhesion)
• PETG (not ideal but will be fine for a while)

Do not print out of PLA, it will deform from the heat of the engine bay.

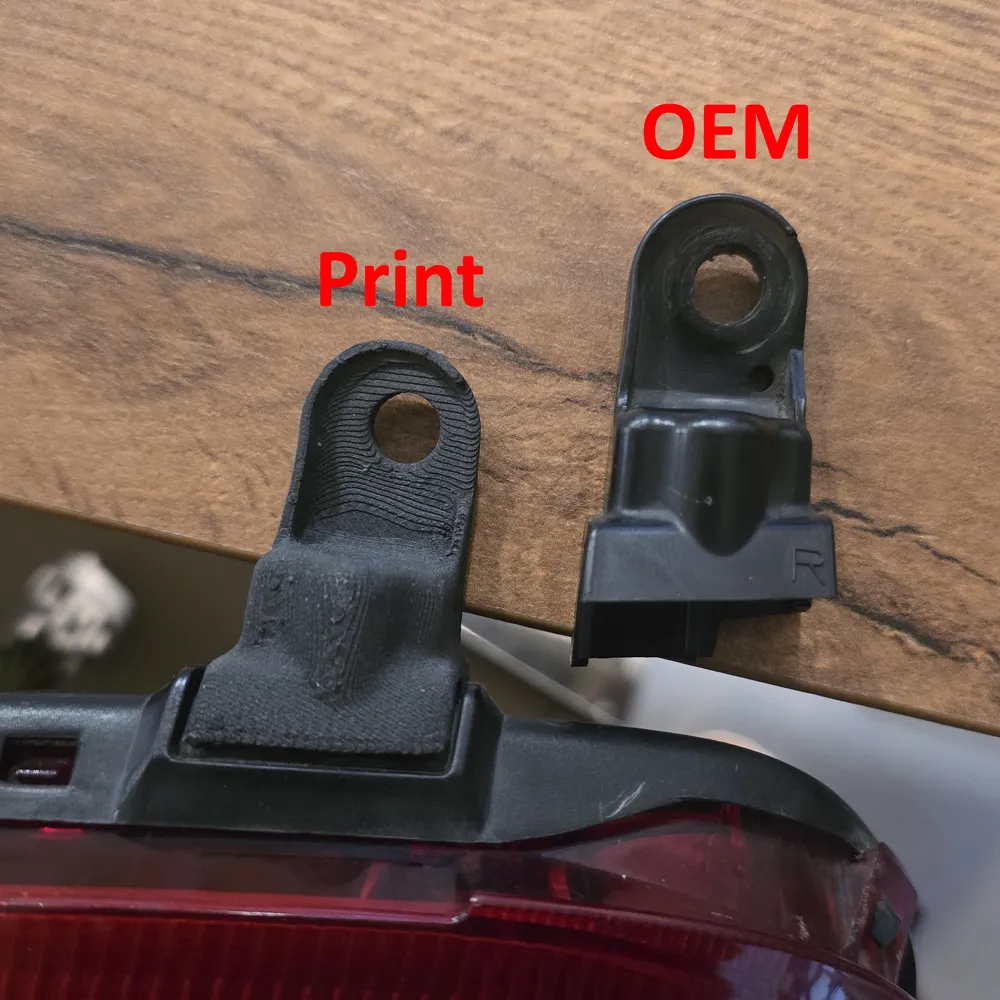

This part is based on a photogrammetry scan of the OEM part. The part is simply attached by 2 screws, one to the taillight and one to the car.

Due to limited time I have not been able to create a new parametric model for this part, it is simply a slightly cleaned up and modified version of the scan. I have attached the raw scan model for anyone who wants to attempt to improve it.
