Top Mount Spool Holder TPU PEBA One Piece Design
Print Profile(1)
Description
H2 Series Printers Only:

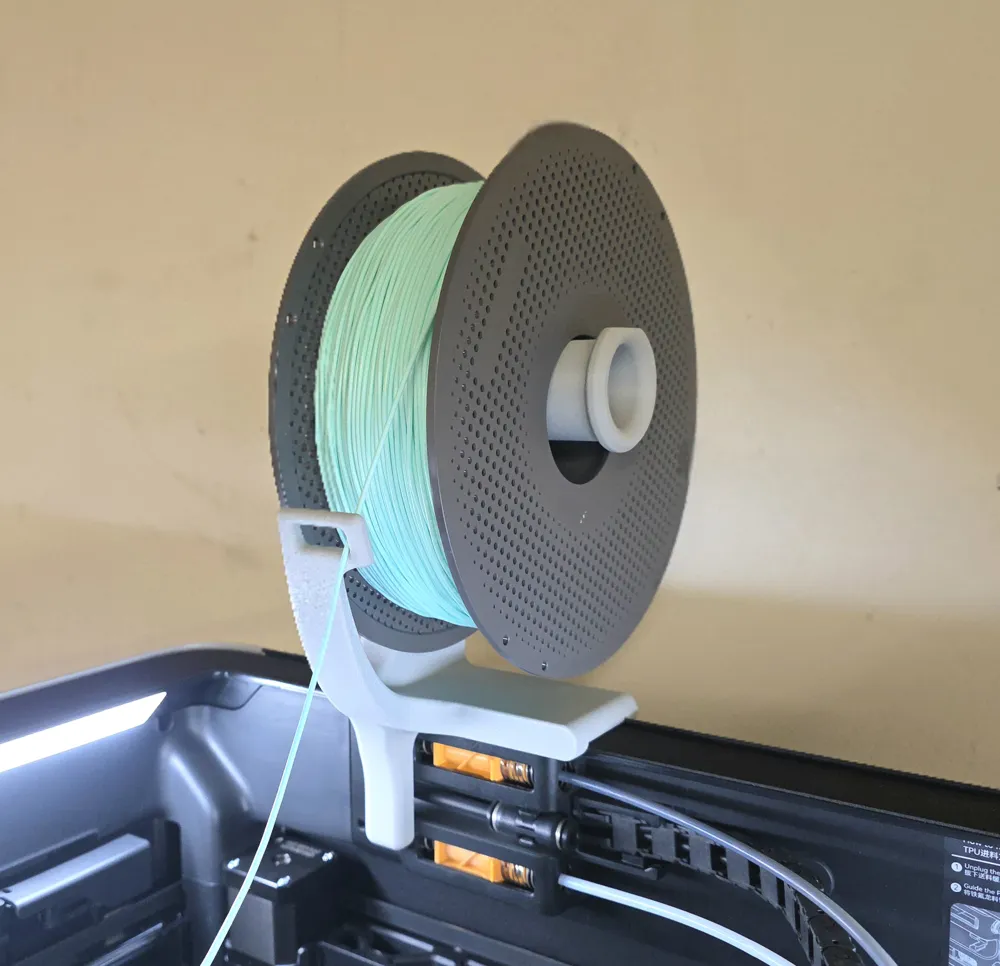

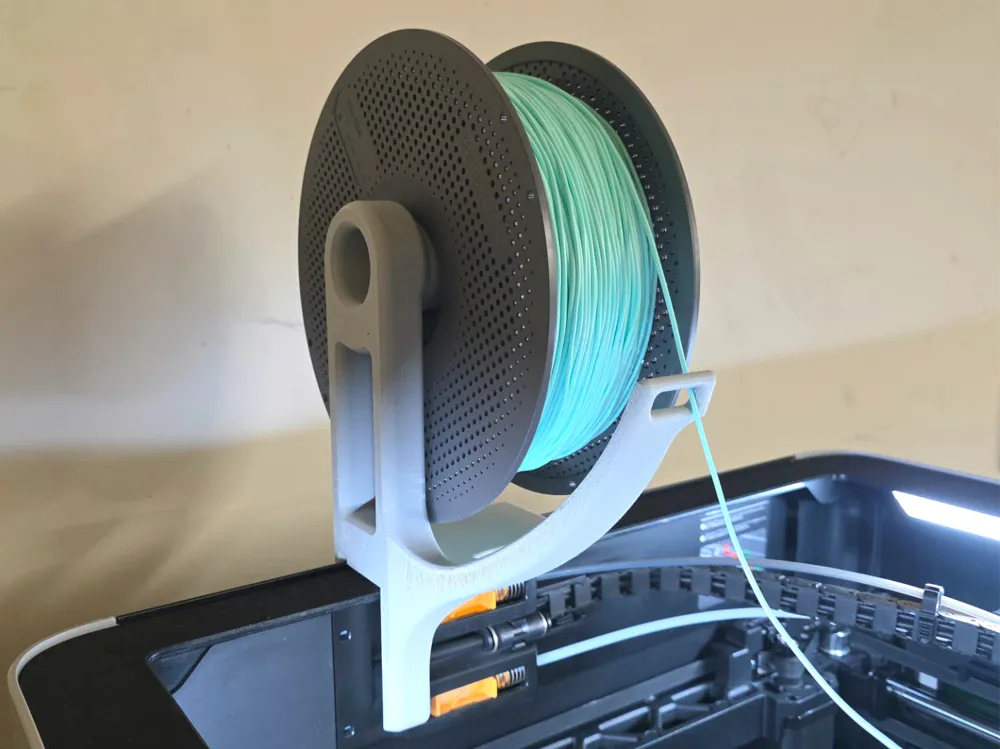

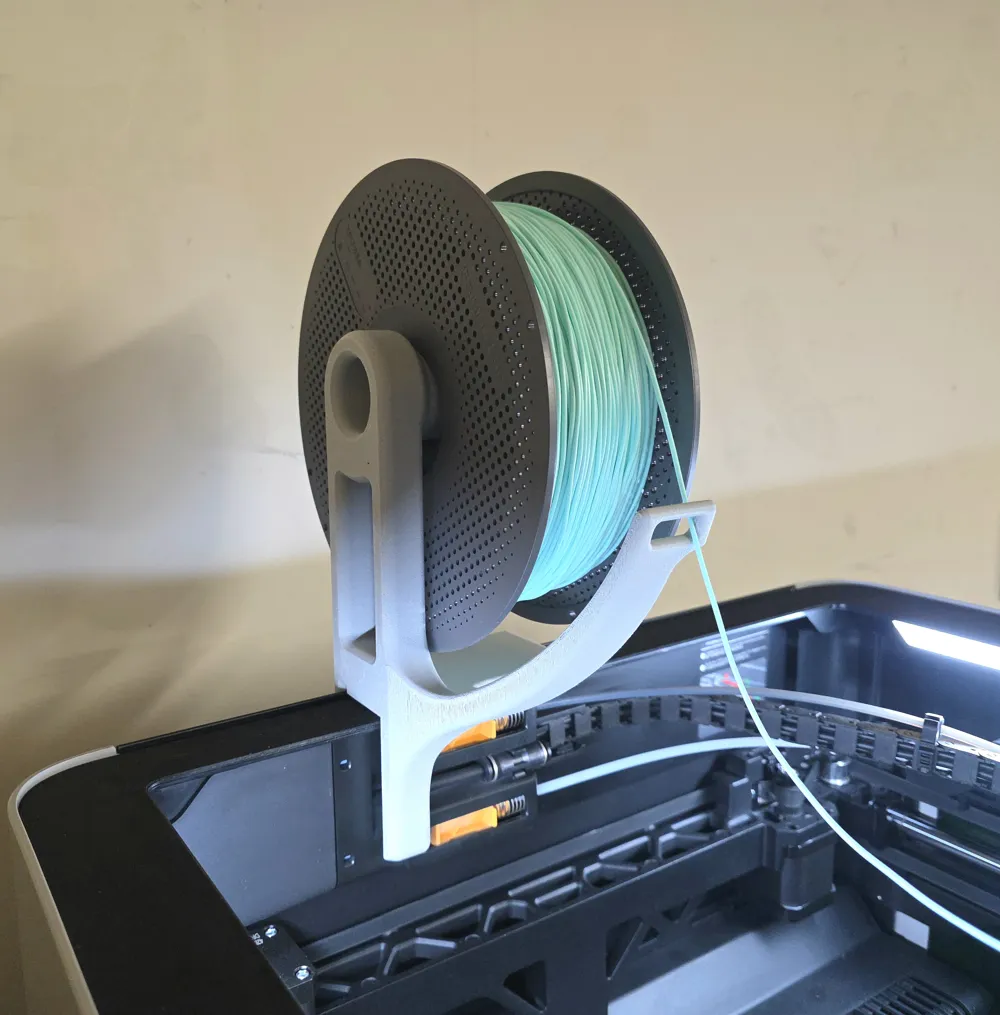

Simple single part design of a spool holder for low resistance feeding for soft TPU and PEBA. I used Rossero's Holder for a while but had a few issues and decided to design mine in a similar fashion. Mounting method is very similar with some added features. I added a feature that keeps the filament centered and pulling from a centralized point. This solves an issue I was having with when the toolhead would move and create slack, the tpu would fall off the spool and bind itself on the holder. This resolves the issue.

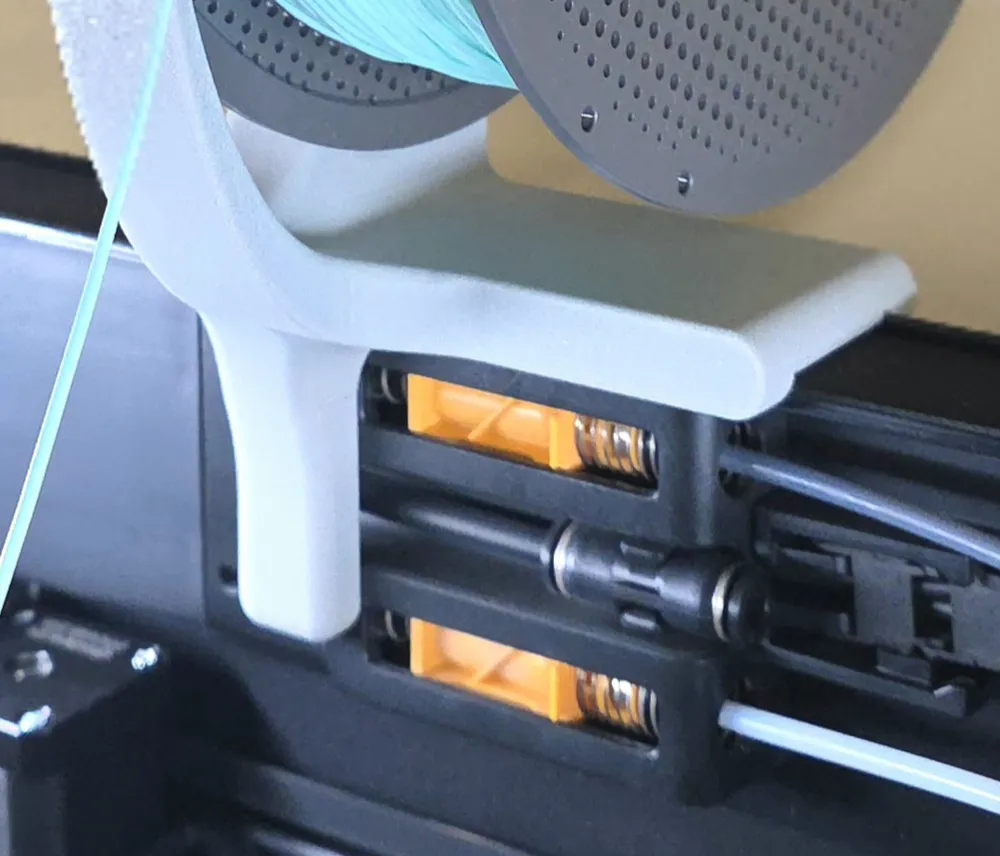

Installation: Slide the holder down onto the back edge of the printer to the left of the buffer (orange things, see photo) Once seated down. Slide it to the right just before the buffer windows. This will tighten it's grip on the printer.
I'm sure there are better solutions than this one, but this is effective, efficient, lightweight, and easy to store. Enjoy
