0.2mm layer, 2 walls, 15% infill

Designer

2.2 h

1 plate

Open in Bambu Studio

Boost

Released

Description

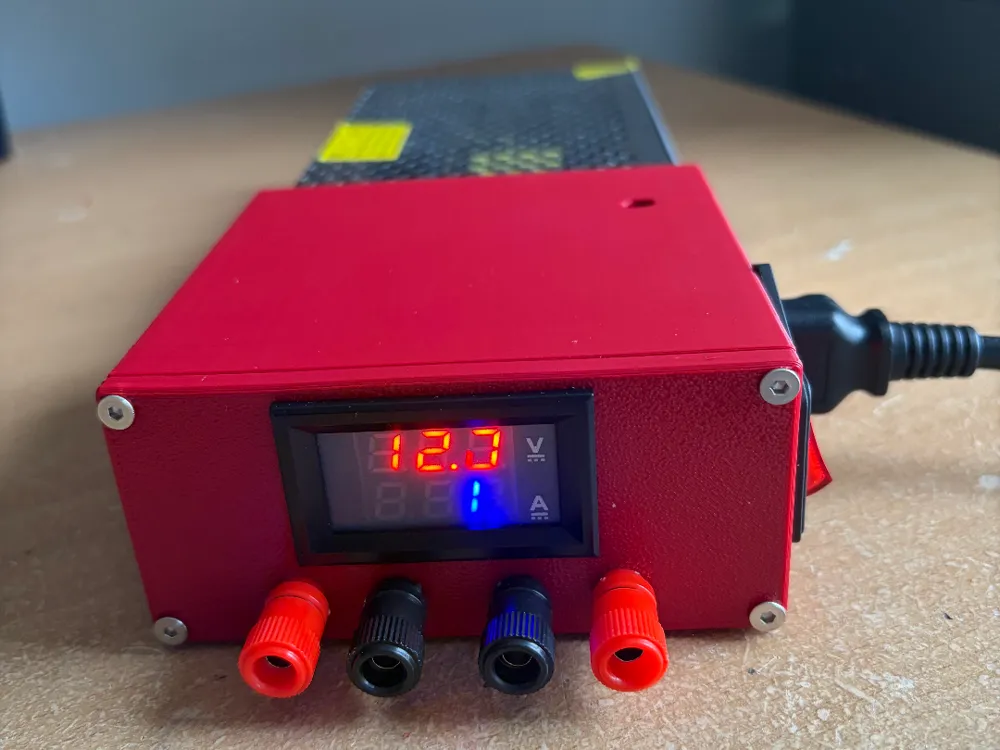

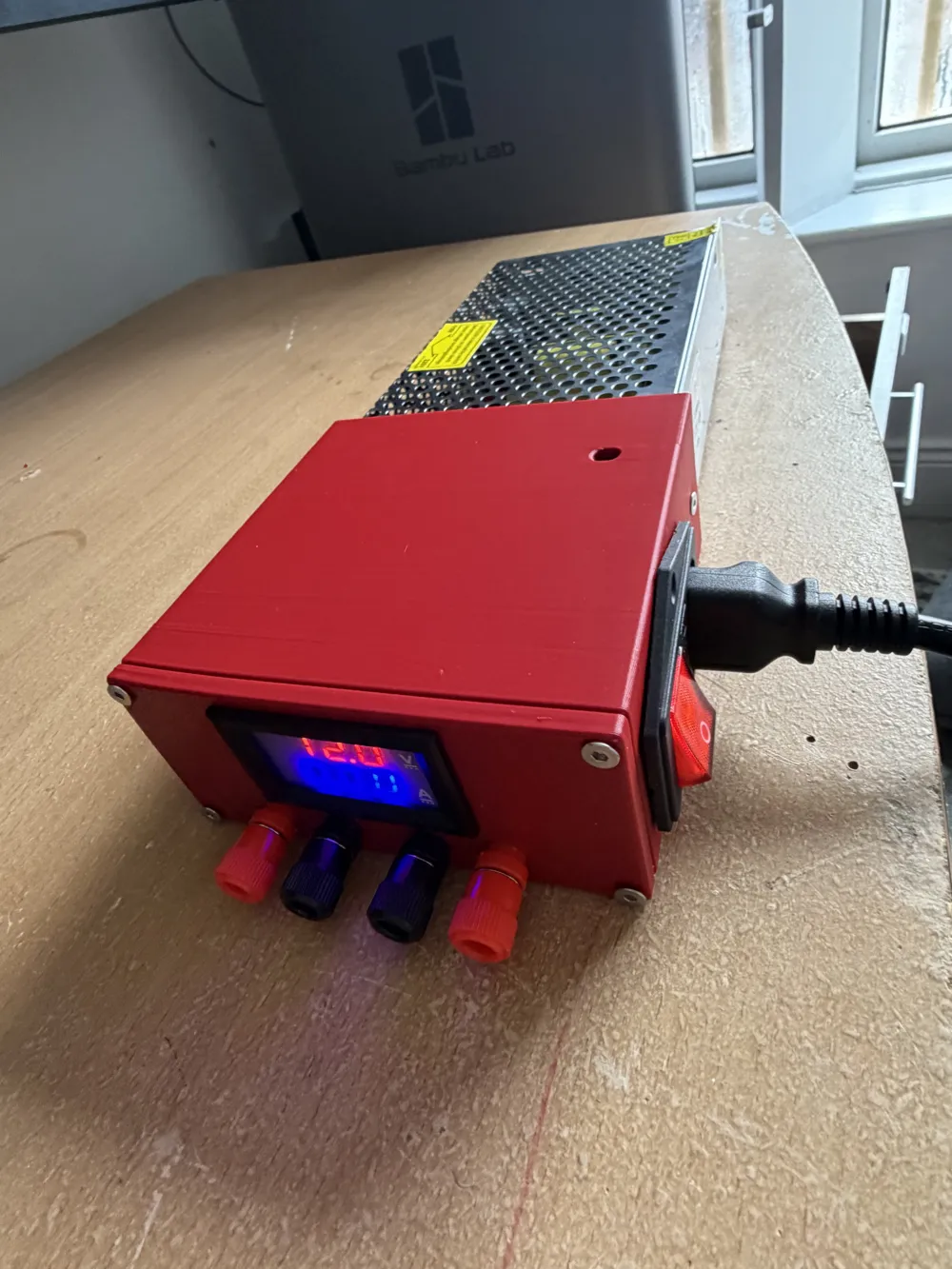

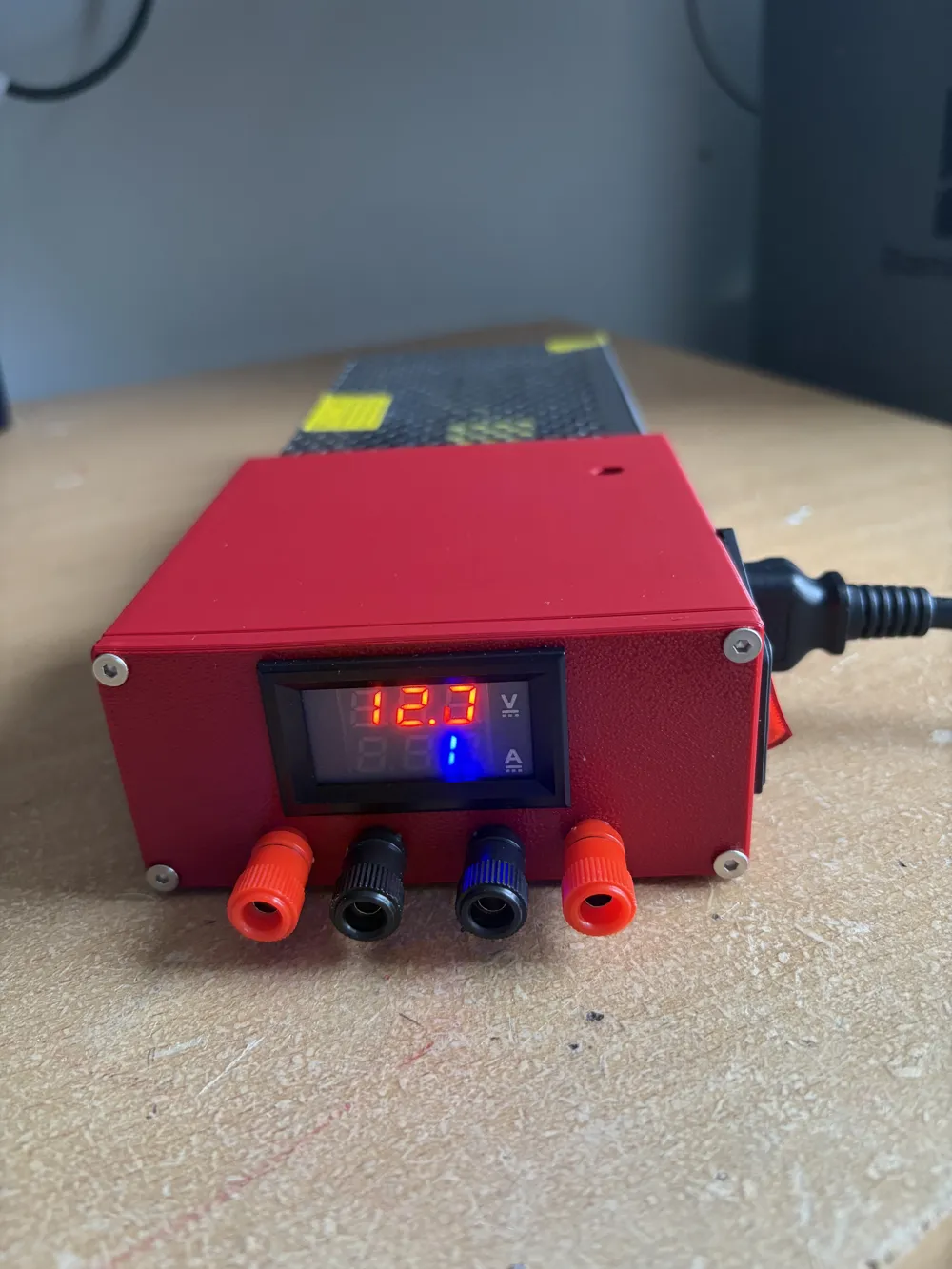

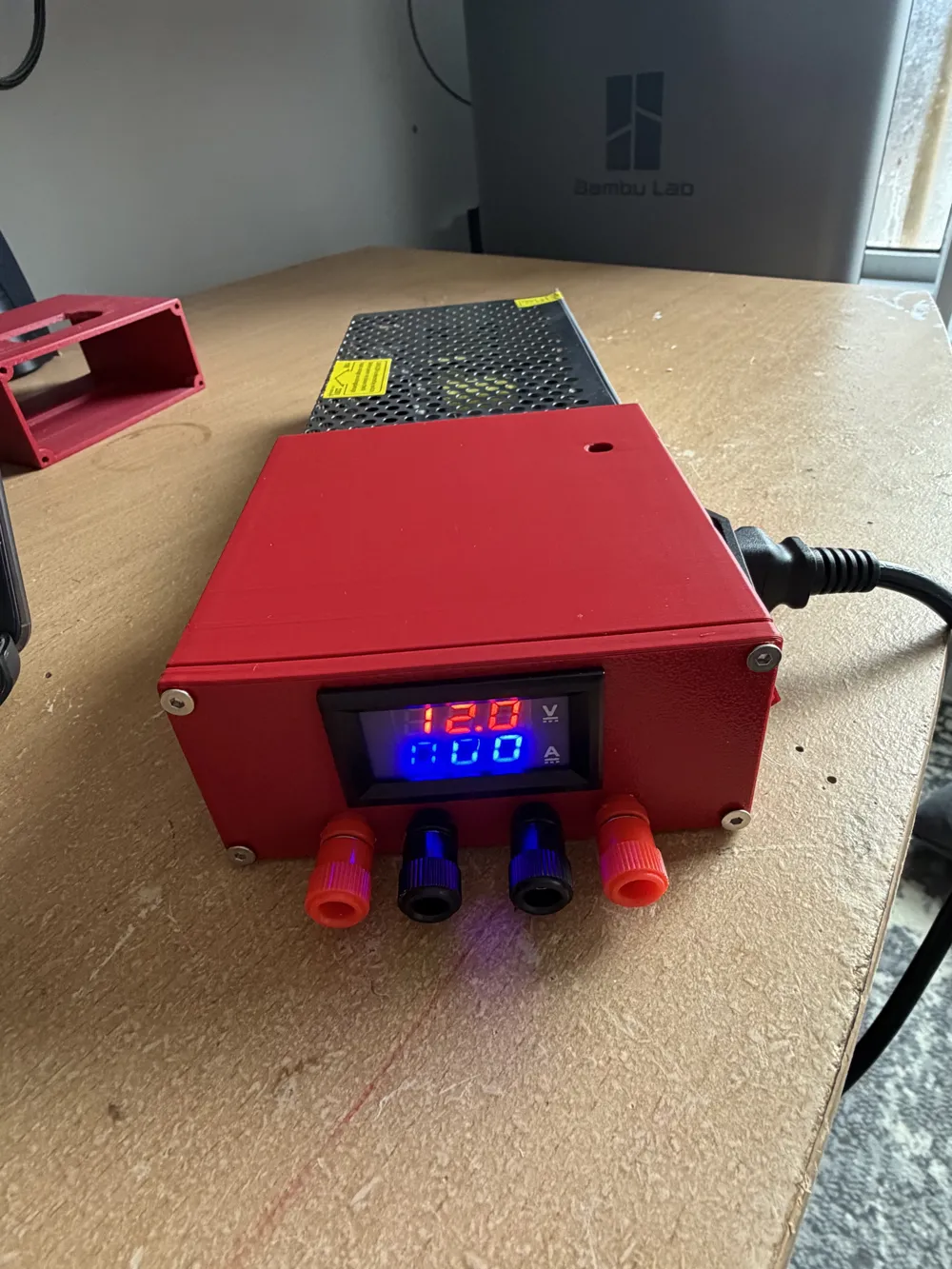

This power supply mount fits the 250-12 volt common power supply you can buy from Amazon or Aliexpress.

It takes 4 M3 counterstrike screws to fix the front to the main body. the parts used in this model are listed below.

1: 220-250 V/10 A IEC320 C14 Recessed Connector
https://www.amazon.ie/dp/B094ZH62PR?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

2: Volt and Amp meter
https://www.amazon.ie/VooGenzek-Voltmeter-Detector-Multimeter-Amperage/dp/B0CHVKCSTY/ref=sr_1_20?crid=3J3KQZCNKF6IX&dib=eyJ2IjoiMSJ9.Qd-JwEWA_bCJc_uNFiA3J_cbawOUfhM8Dqu2UtmNeKVcYeE6bVOnuKvv0DD9mD8tiLRQIxsMgyz6B_IHUBZIXpwFdYG-Jon5R4uUVBEfsuTDBZ92mRSfuDN-LaxLIJ4IthBsBOSmTUQwB5Dk9XbYGCdkdB_mDboPm8pyW0NHHhBMnuK8sPQkqhZM42y03cEenrAy9O187Ug1KJAfWL2eY0s_Zt9cPJLBAMI5RGMB0CI.8x36Ut4cO7AcVdS0XISncFzag_te_3tViYH0iMOytwQ&dib_tag=se&keywords=volt+and+amp+meter&qid=1770462303&s=home-improvement&sprefix=volt+and+amp+meter%2Chome-improvement%2C111&sr=1-20

3: 4mm Banana Connector

https://www.amazon.ie/Binding-Connector-Alligator-Receiver-Amplifiers/dp/B07SJ42DX3/ref=sr_1_4?crid=13ZBW9Z9K27P7&dib=eyJ2IjoiMSJ9.nhcBuezEfcX23q2rcyAJH8nMroWKb3ZWDwVE5-671_yCdXBh8WlgbsWapjfSt4yANr-7o9S7UdHTIgmU50zwb4XdsXPQZyn-QVSy8R58bXr7Y_QKEyDqBsbmg9f6f31ykmG-WfwRfU5gf2cHqss3-JdsoS4Mysqhqgm18SXEjjtpaZaiWzlN20gM5me0b8w4fpLfwZ1oqSGt382juf2DV9KG6TVov6ceRlVdKIIsado.EuND2OesWt22AuSw3_4YfpWXdVFGT4l3KAyAGw91hw8&dib_tag=se&keywords=banana+connector&qid=1770462352&s=home-improvement&sprefix=banana+connector%2Chome-improvement%2C135&sr=1-4

4: Power Supply 250V to 12V, 10A, 120W
https://www.amazon.ie/dp/B01MCZRG2N?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_3&th=1
