Templates for cutting perfect holes in wallboard or other wall coverings (shiplap, beadboard, etc.)
Follow these simple steps for a foolproof perfect hole every time:
- Print the needed template

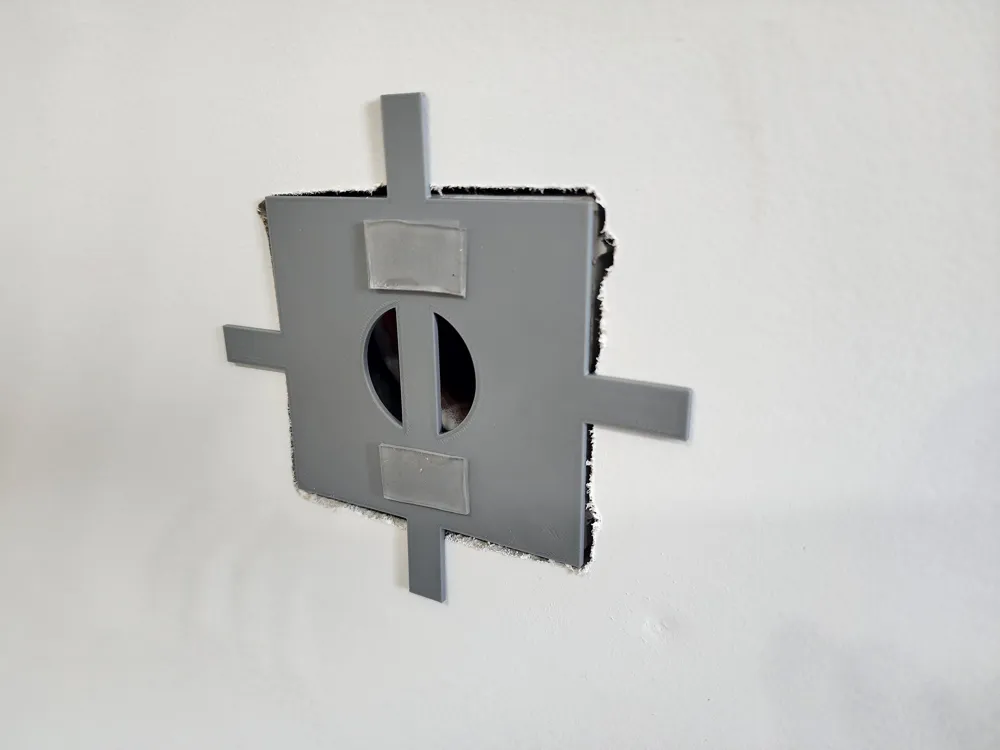

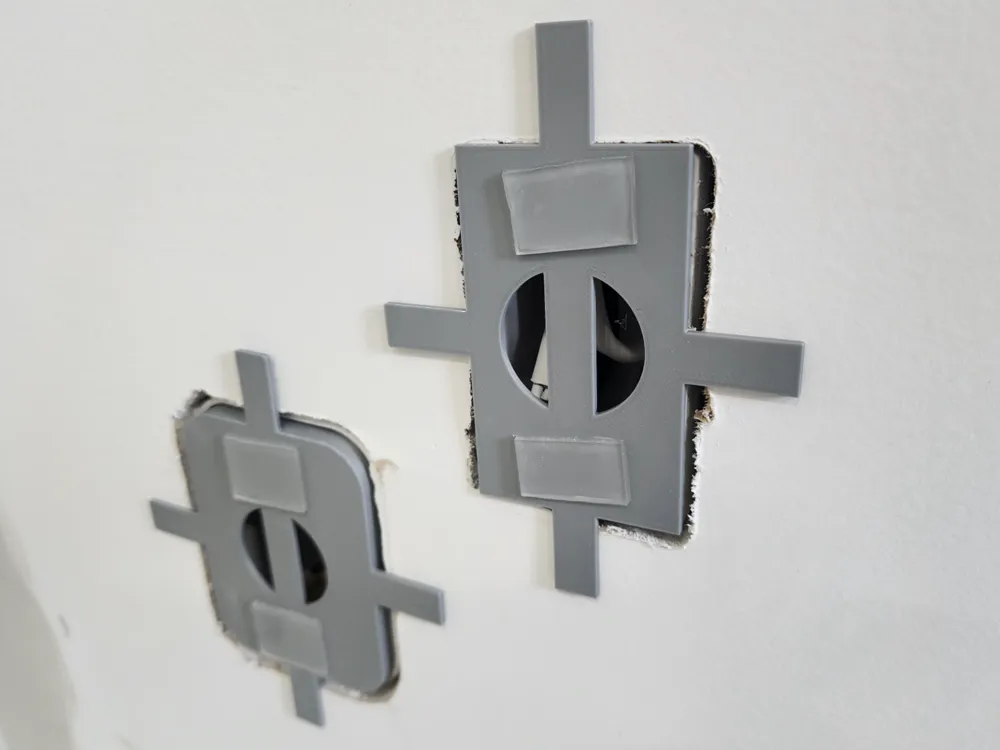

- Insert appropriate template into wall box (flat side out)
- Add double-sided tape to smooth face of template (thicker gel-like tape works great)
- Place your drywall, beadboard, or other wall covering in its final place
- Press firmly in the area(s) of the templates, to make sure the tape adheres
- Carefully pull the board away from the wall (straight, with no tilting)
- Template(s) should still be attached to backside of board

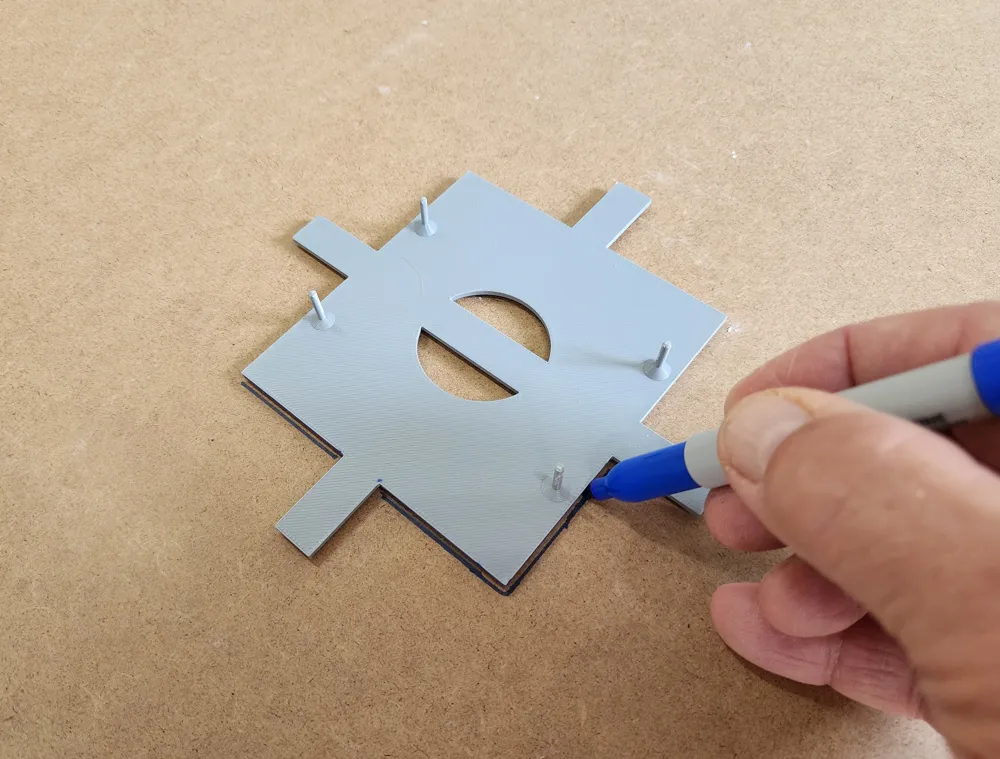

- Trace around template (skipping the “ears”)
- Pull the templates away from the board
- Use a jig saw or other means to cut the hole along the lines drawn in step 8
- Place board back on wall and behold the perfect hole alignment!
Includes templates for

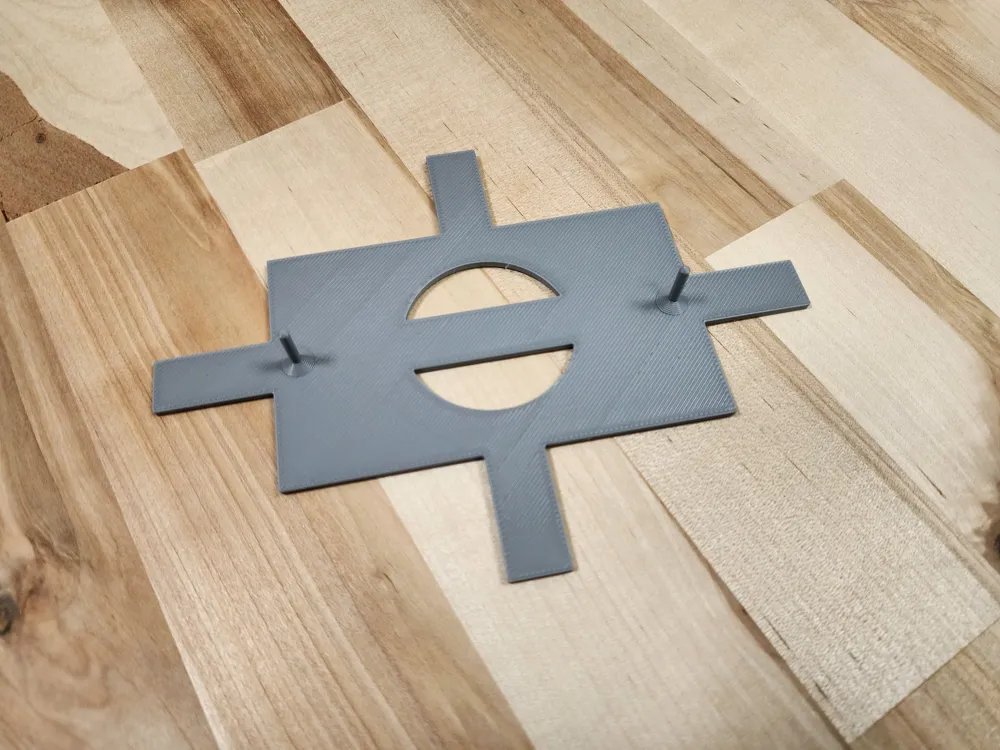

- Single gang electrical box

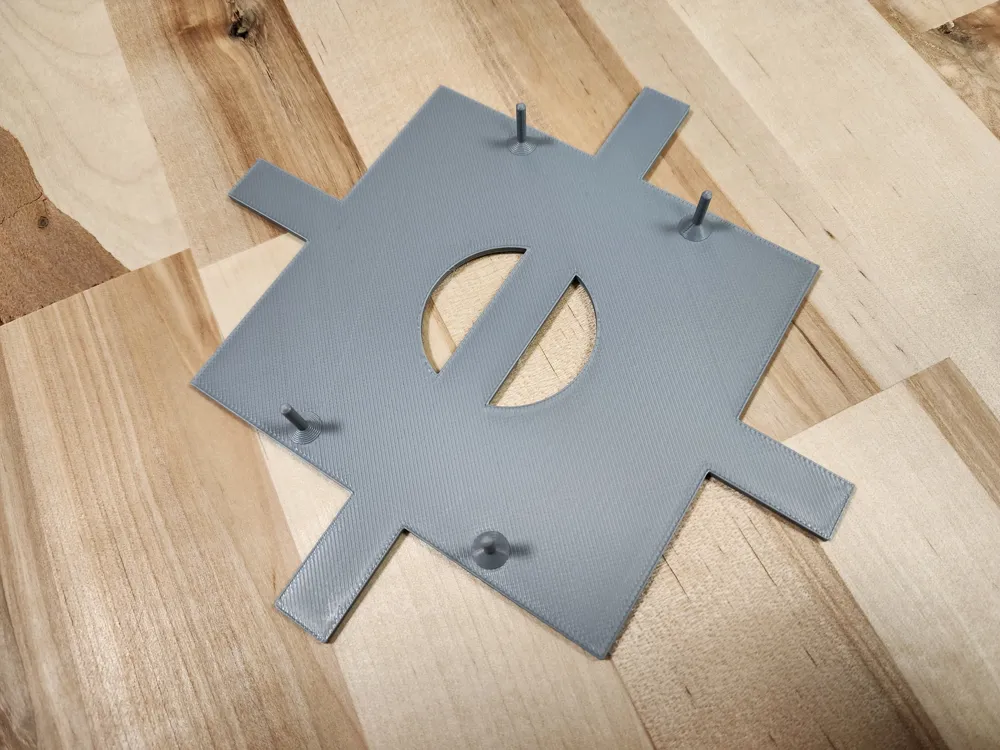

- Double gang electrical box

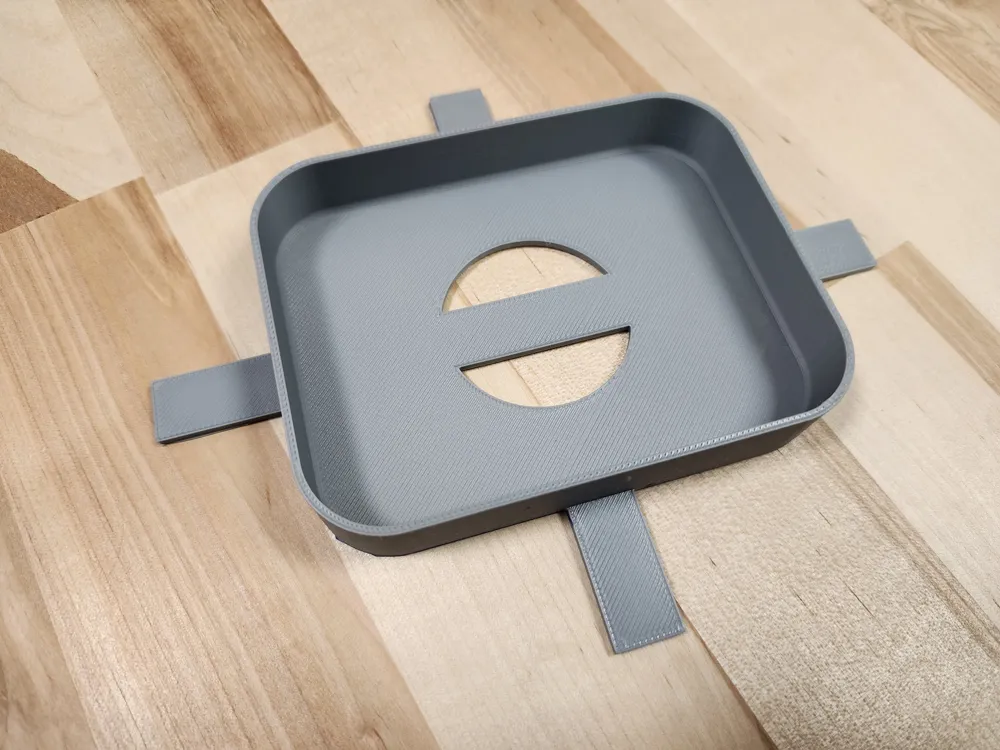

- Oatey I2K recessed water shutoff
