Bambu LED 001 Lockable Wall Lamp Mount

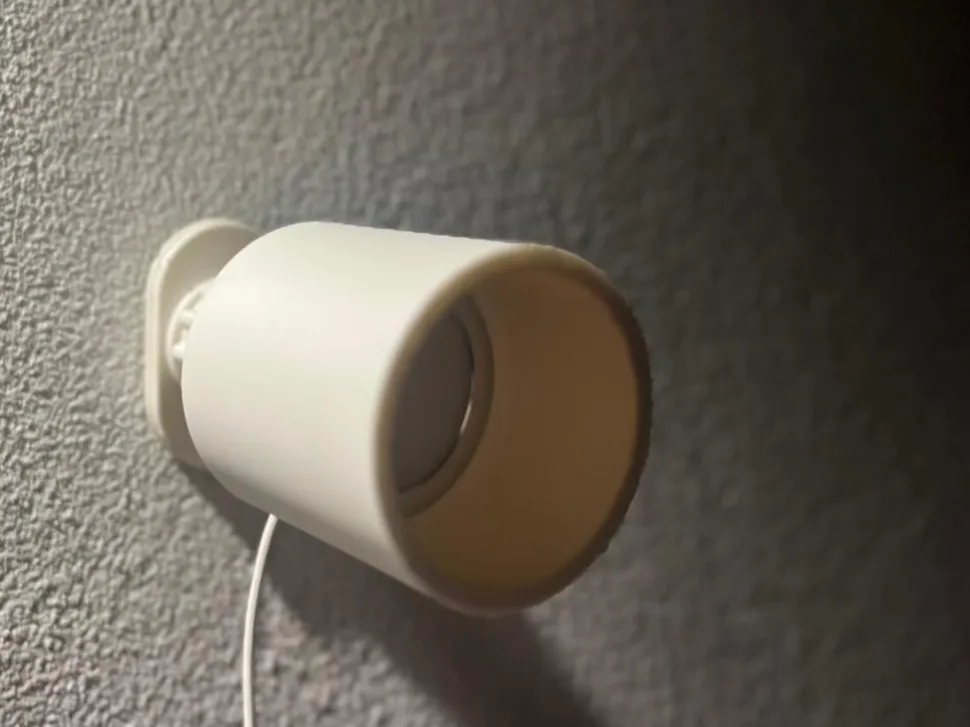

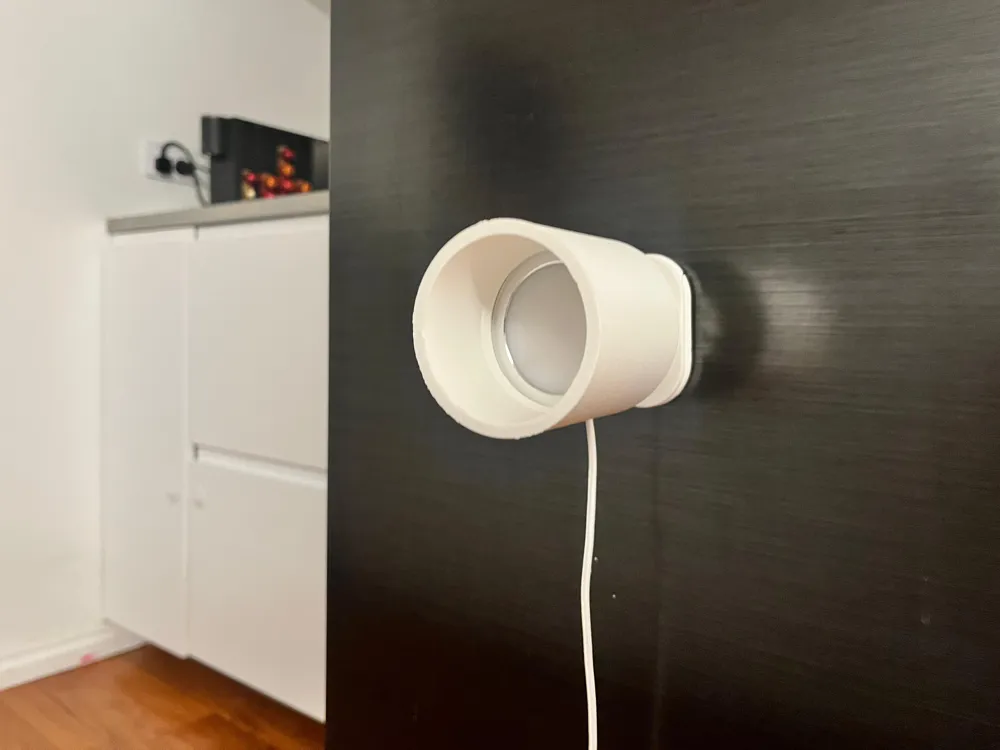

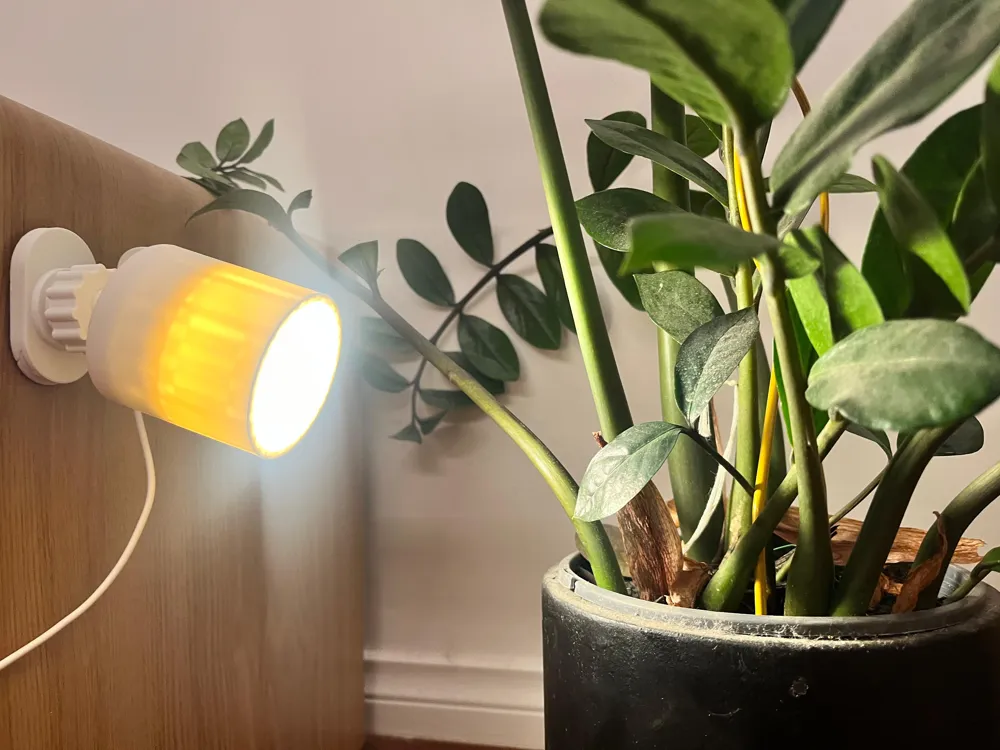

A wall-mounted swivel spotlight designed specifically for the Bambu Lab LED Lamp Kit 001.
This version features a lockable ball joint for precise positioning, allowing focused bedside lighting without disturbing others. All components have been redesigned and re-prototyped to improve strength, appearance, and functionality.
Features

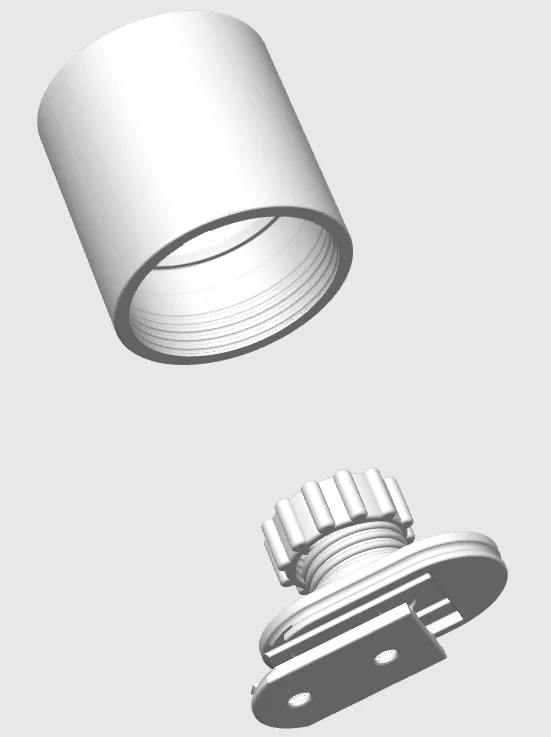

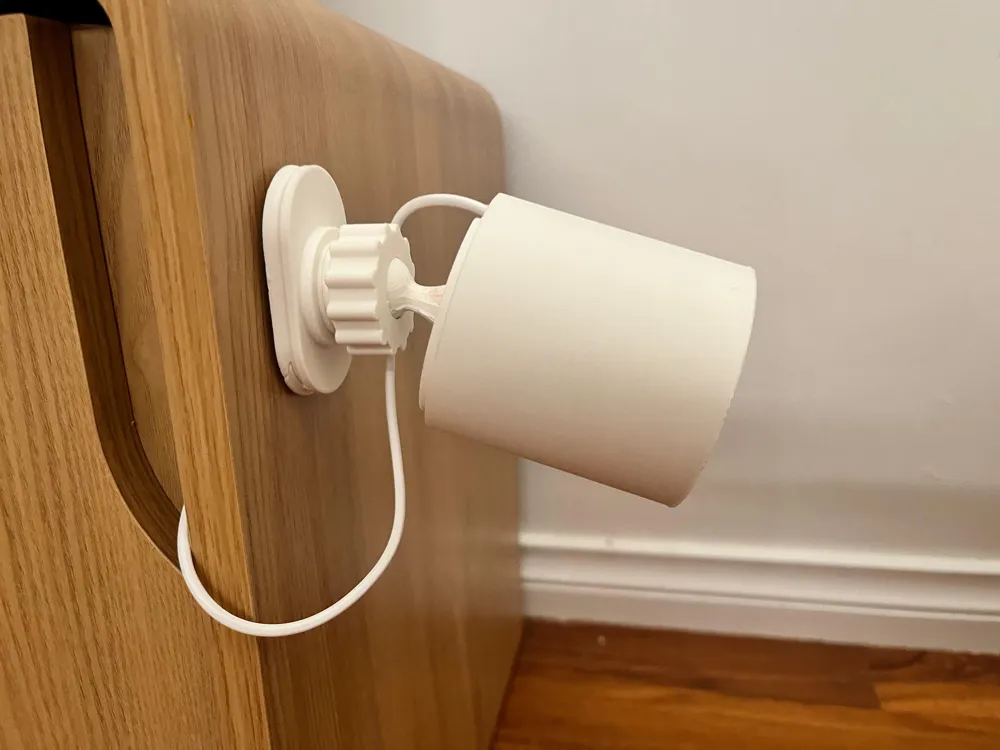

Lockable Ball Joint (100° Rotation)

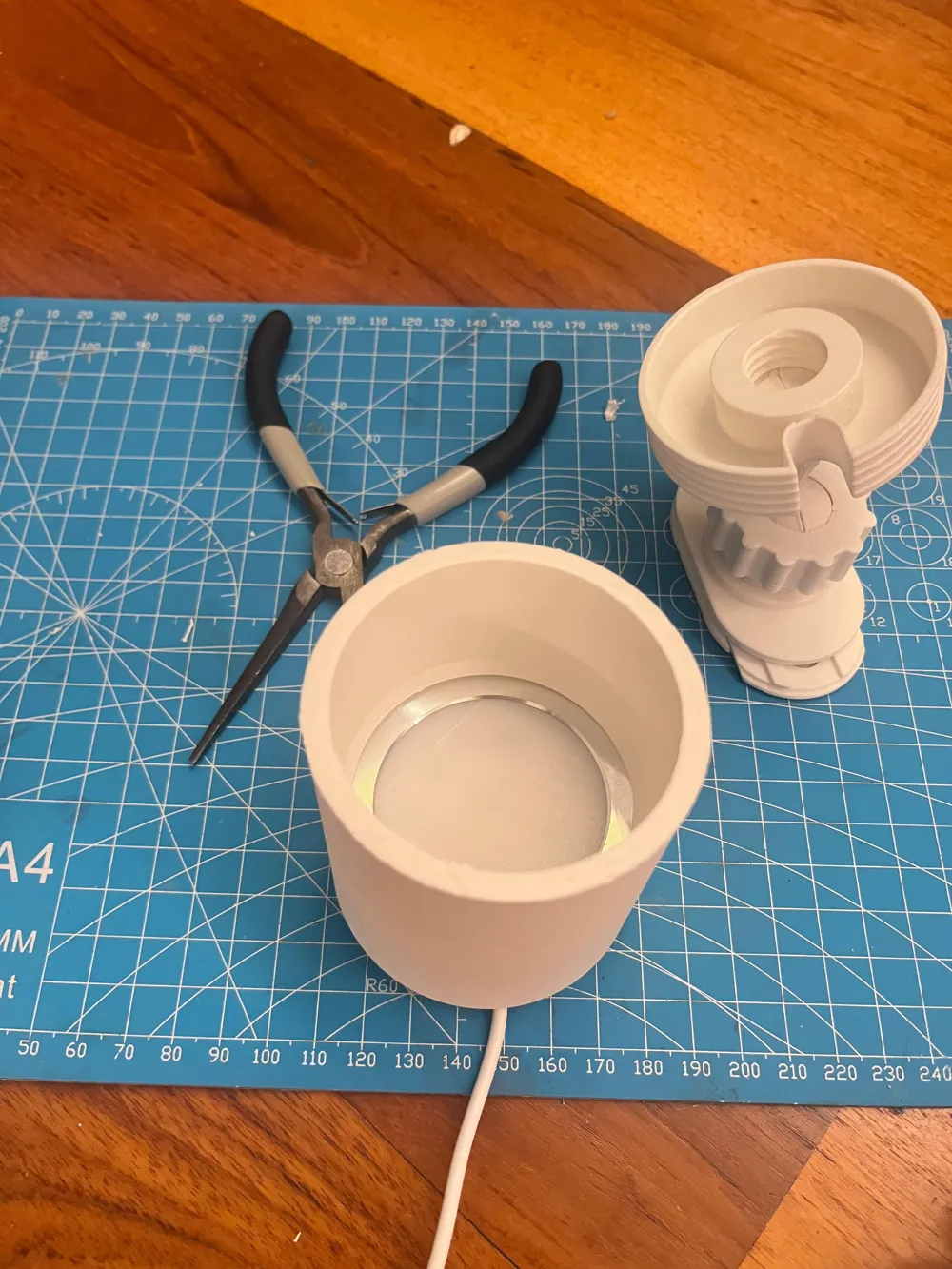

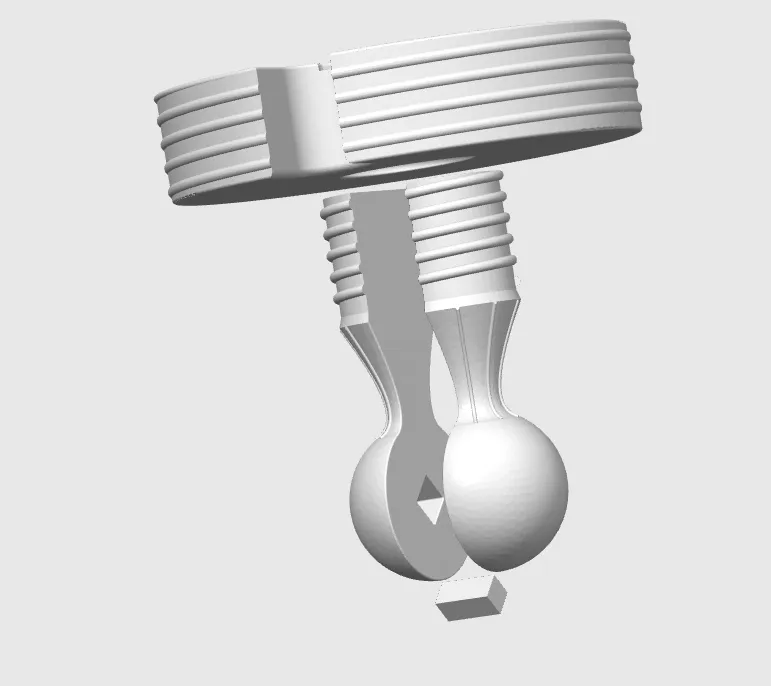

Integrated “screwball” joint allows smooth multi-directional aiming. Tighten the cover nut to adjust joint stiffness and lock the light exactly where you want it.
Concealed Wall Mount
The mounting plate hides two M5 screw holes for a clean installation. The bracket slides over the plate to fully conceal hardware.

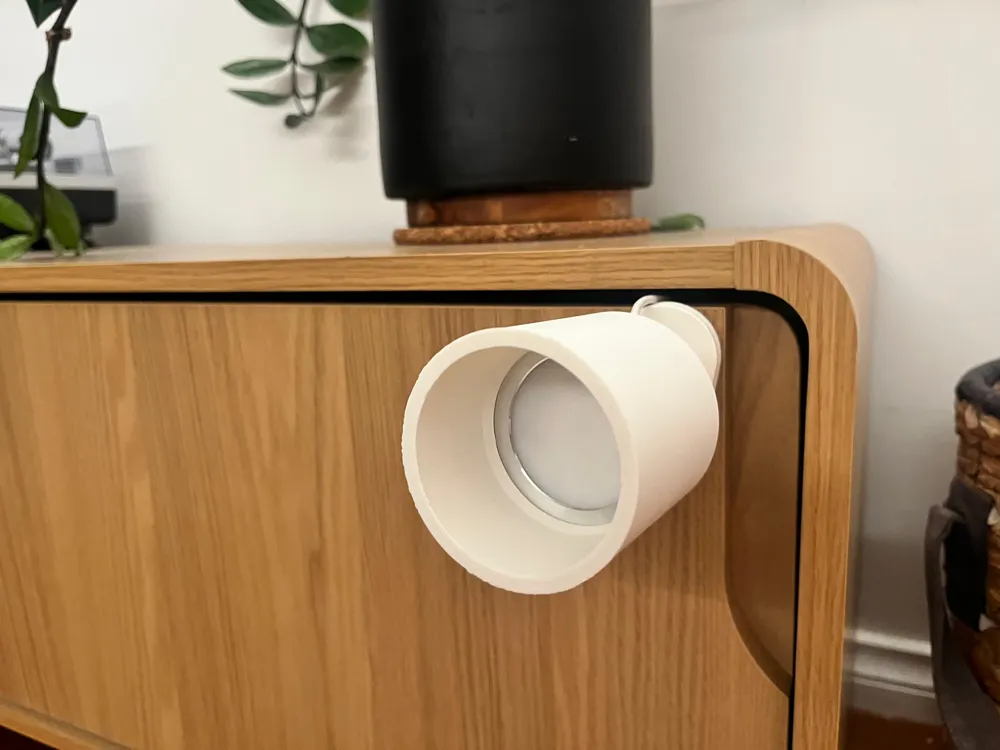

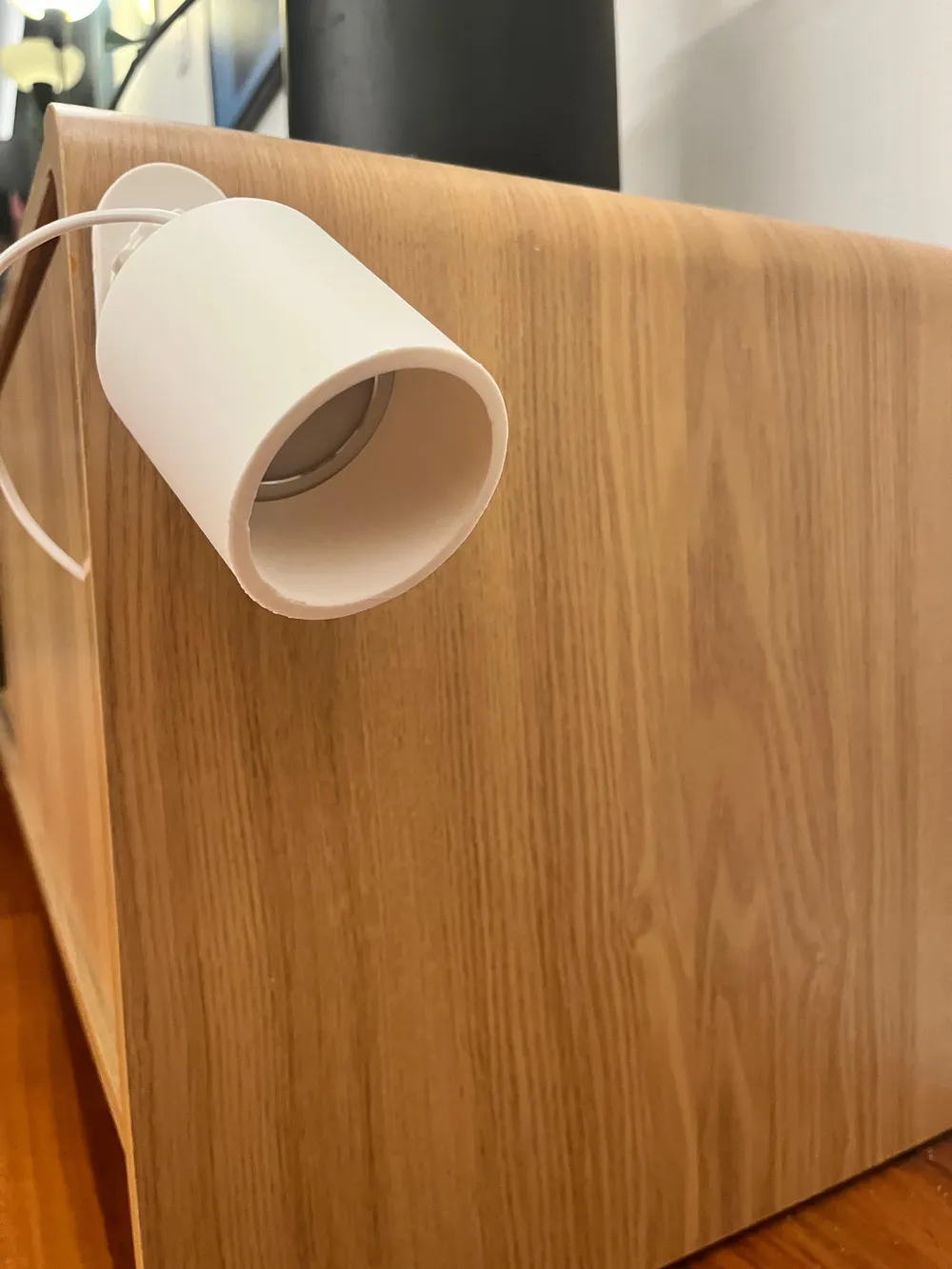

Directional Shade
Funnels light precisely where needed — ideal for bedside reading or task lighting.
Cable Management Groove
Integrated channel allows excess cable to be neatly wound behind the bracket.
Refined Geometry
Rounded curves and subtle transitions for a clean, understated look.

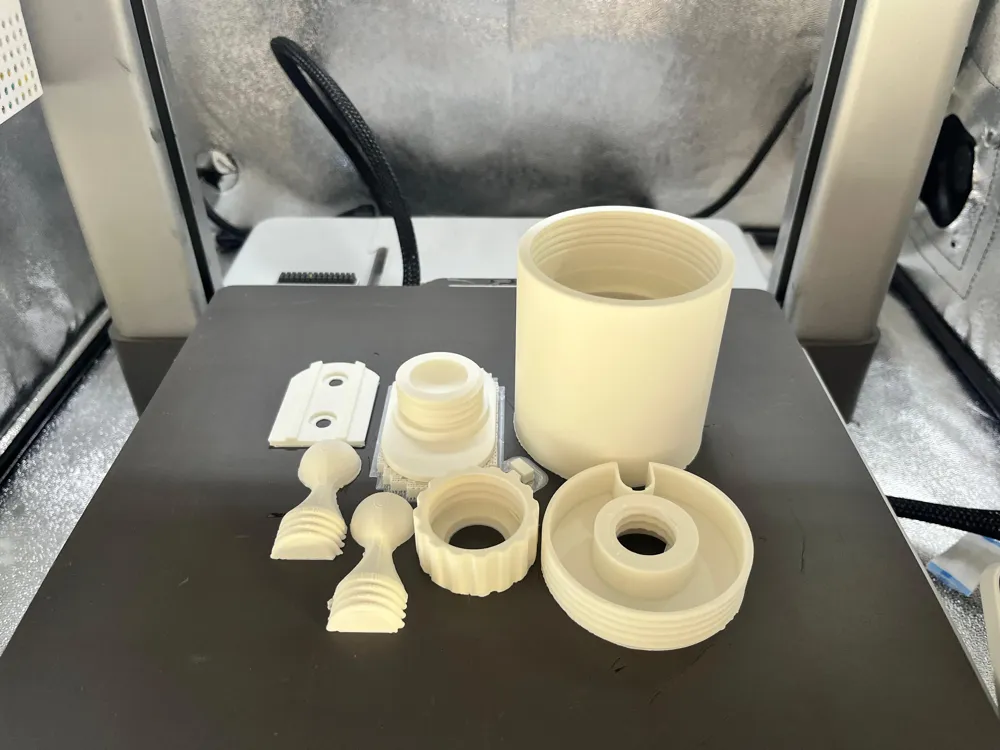

Material Efficient

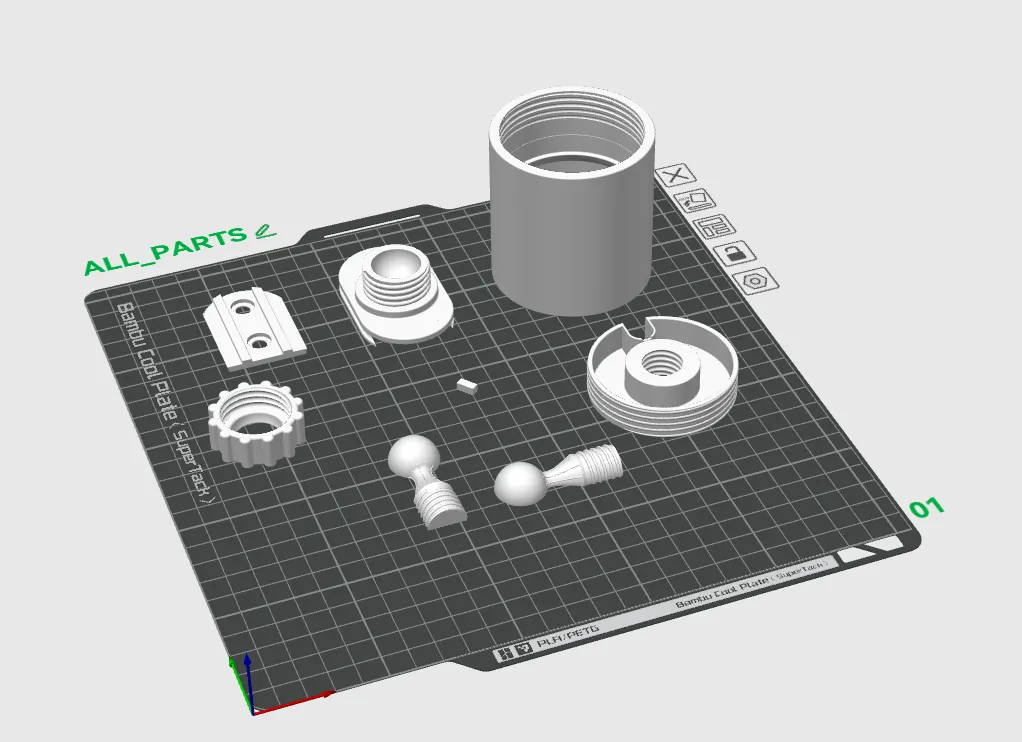

Prints in under 100g of PLA.
Customizable Diffusion
Adjust wall thickness and infill settings of the shade to experiment with light diffusion effects.
Mounting
Surface mount using two M5 screws (or similar).
See the attached Assembly Guide for full installation details.
Support
If this model improves your lighting setup, a boost helps support further refinement and new designs.
Photos and feedback are always appreciated.
