DeWALT 18V USB C Attachment

Lithium batteries are dangerous and should be handled with caution.

Please be aware of the risks of this project.

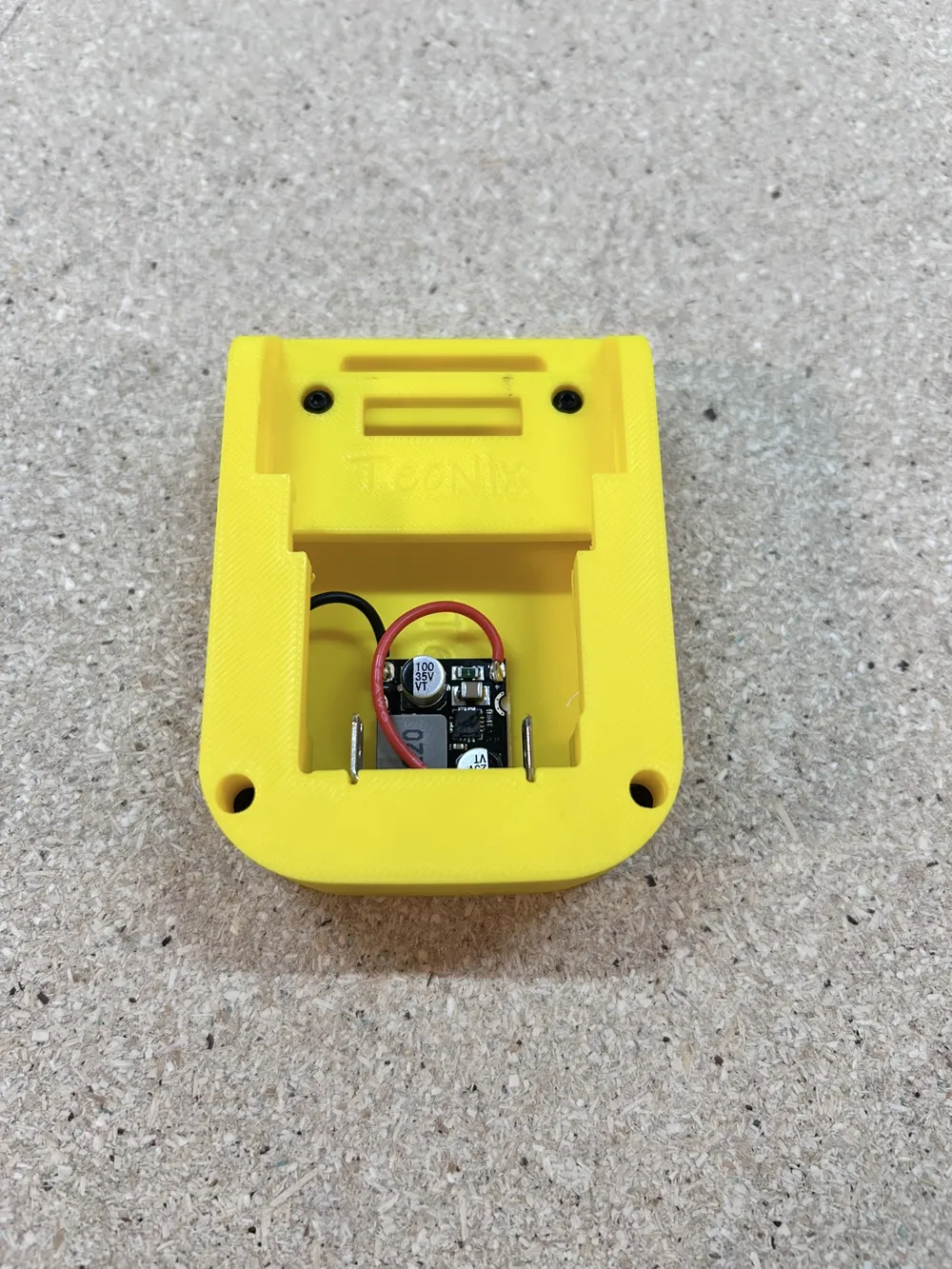

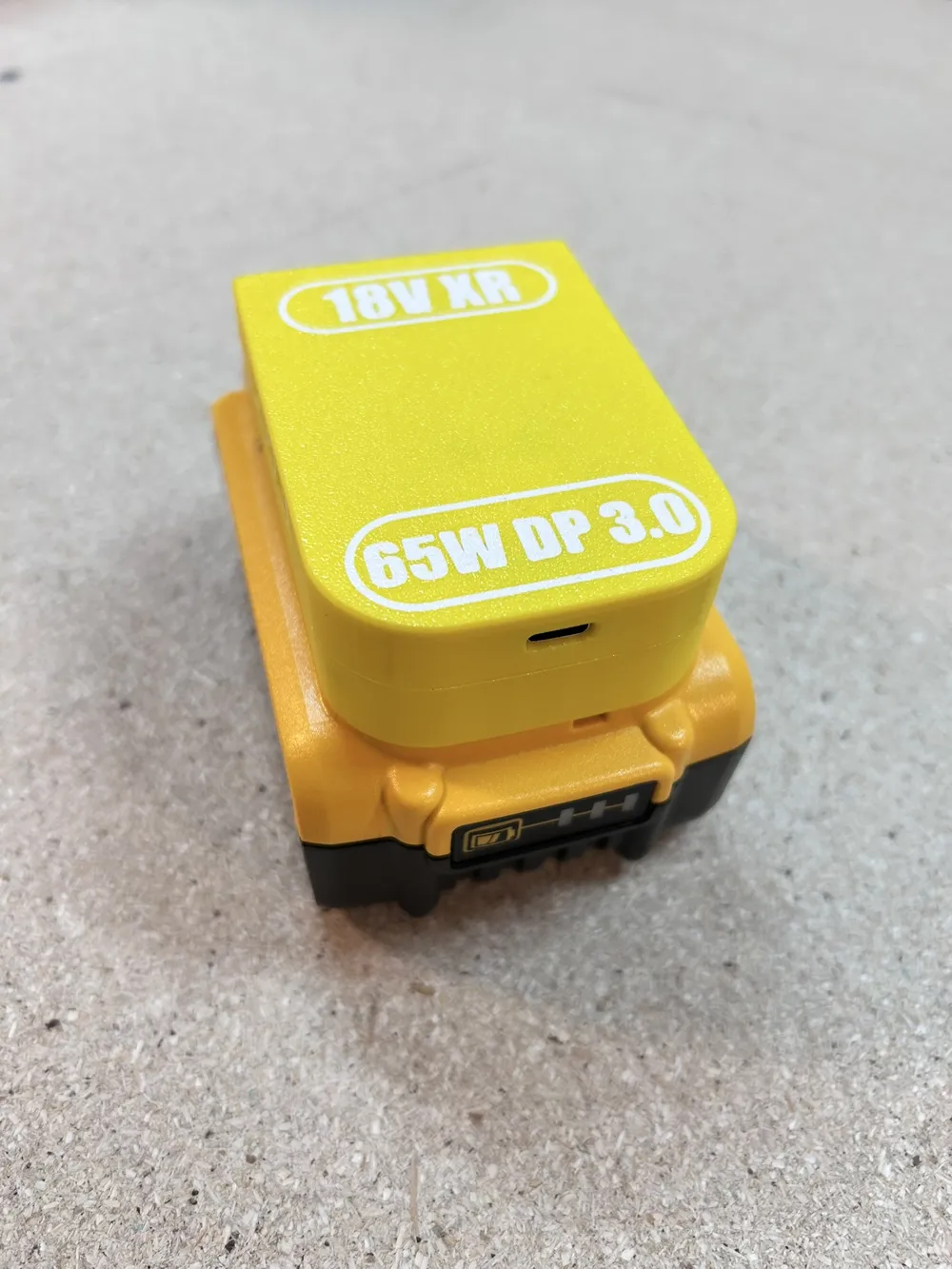

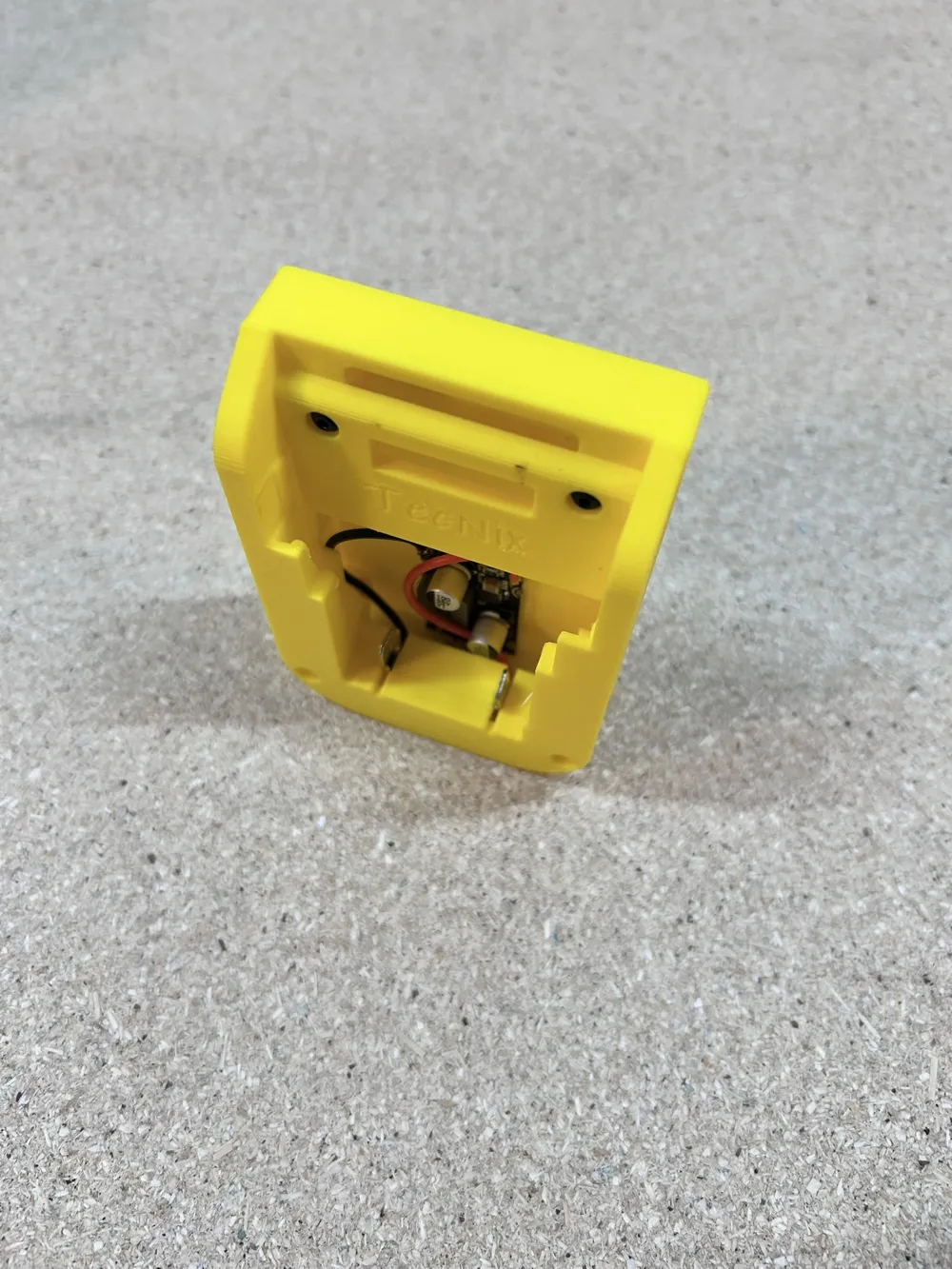

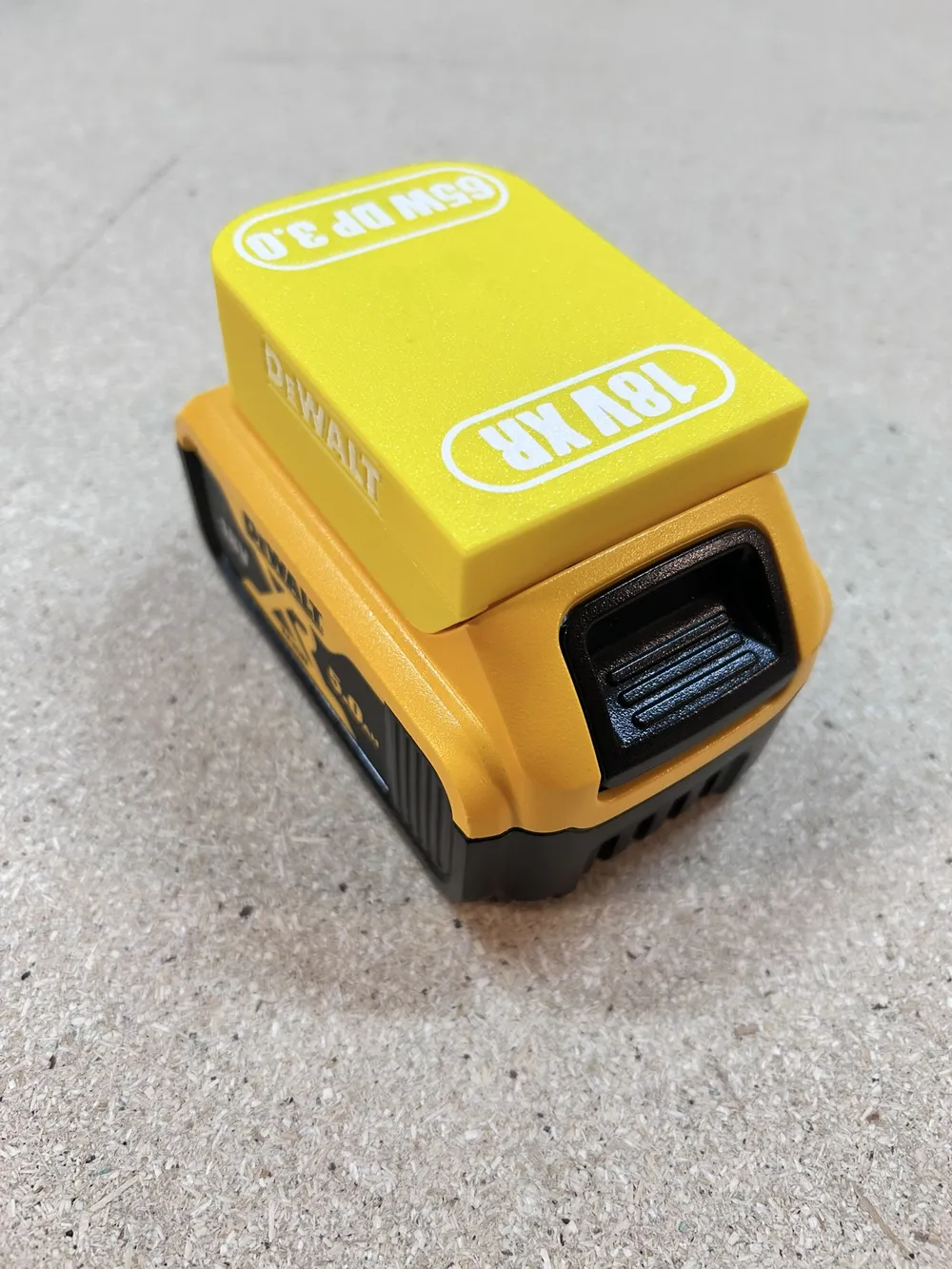

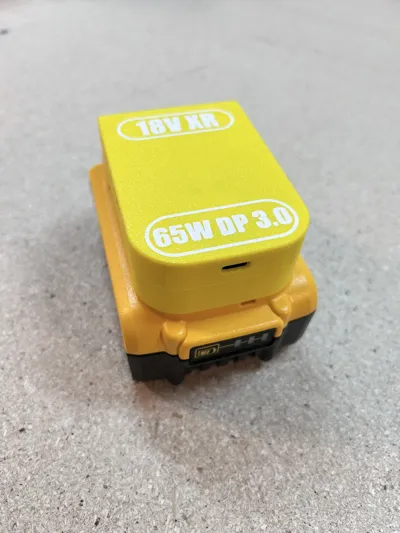

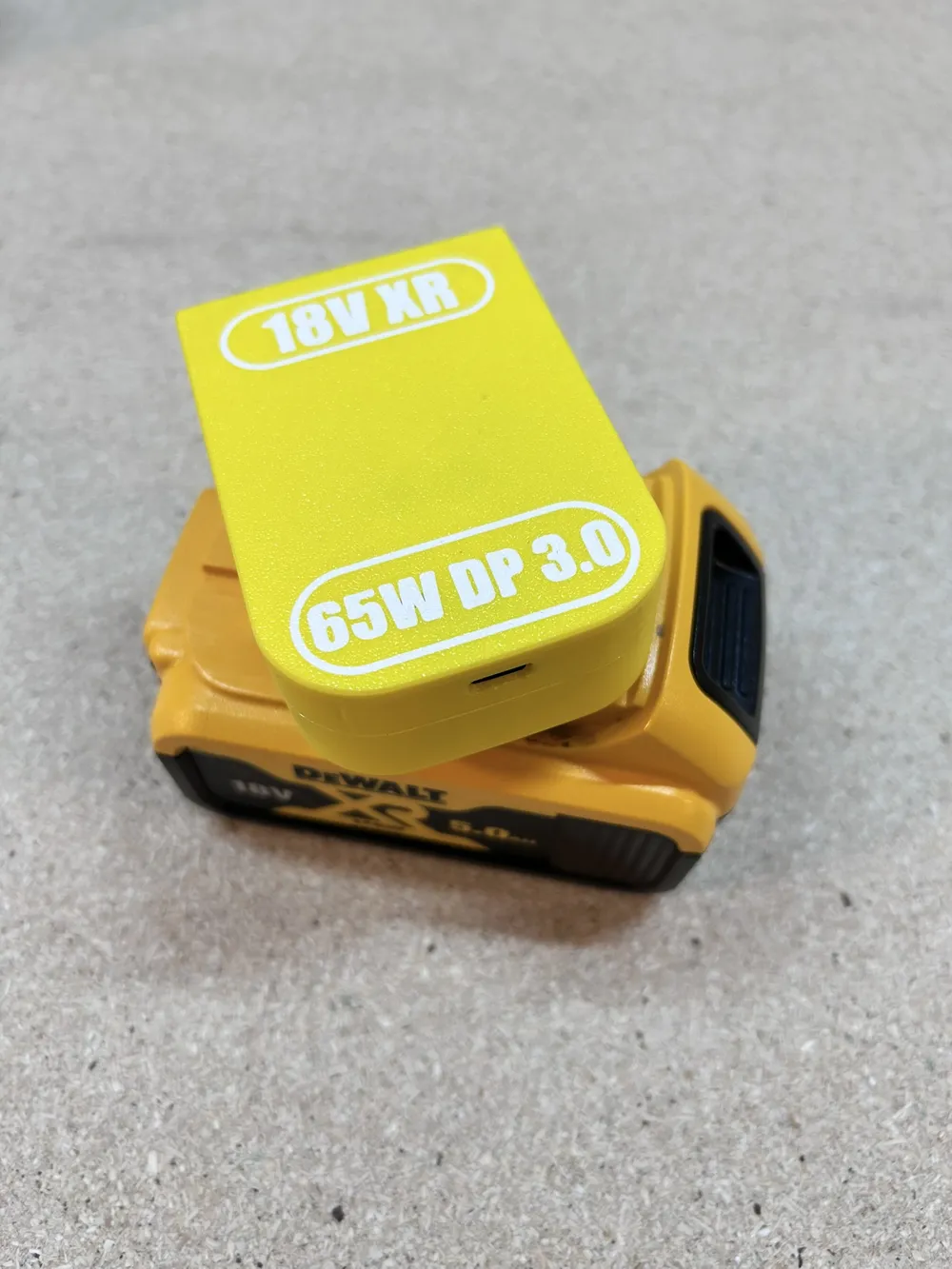

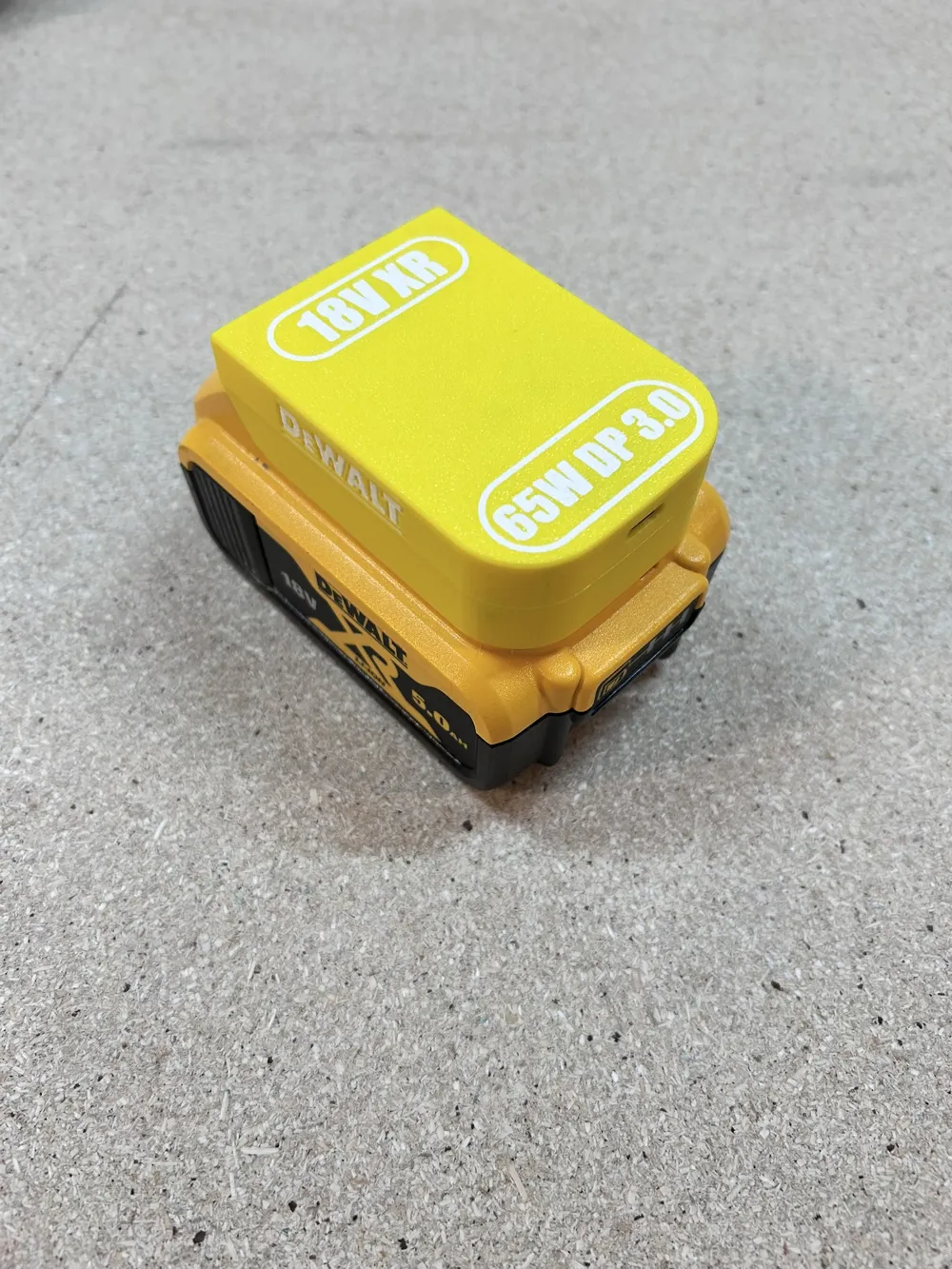

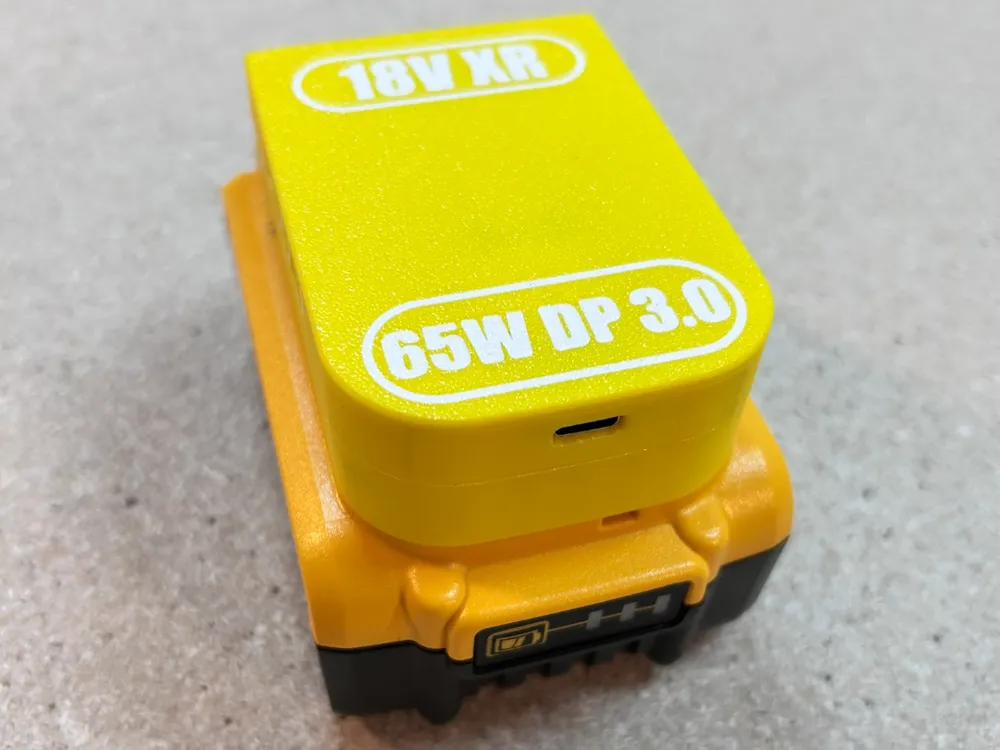

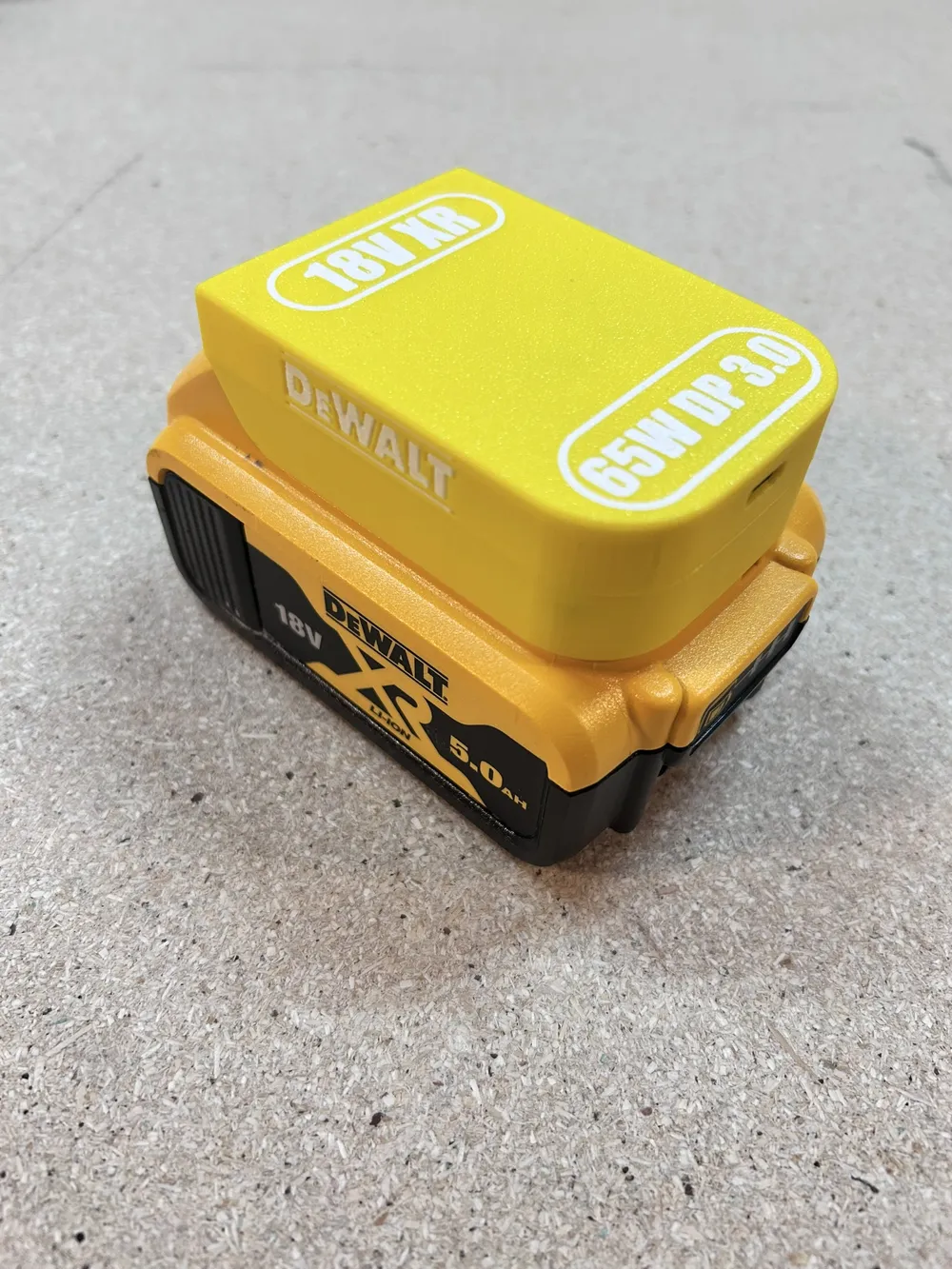

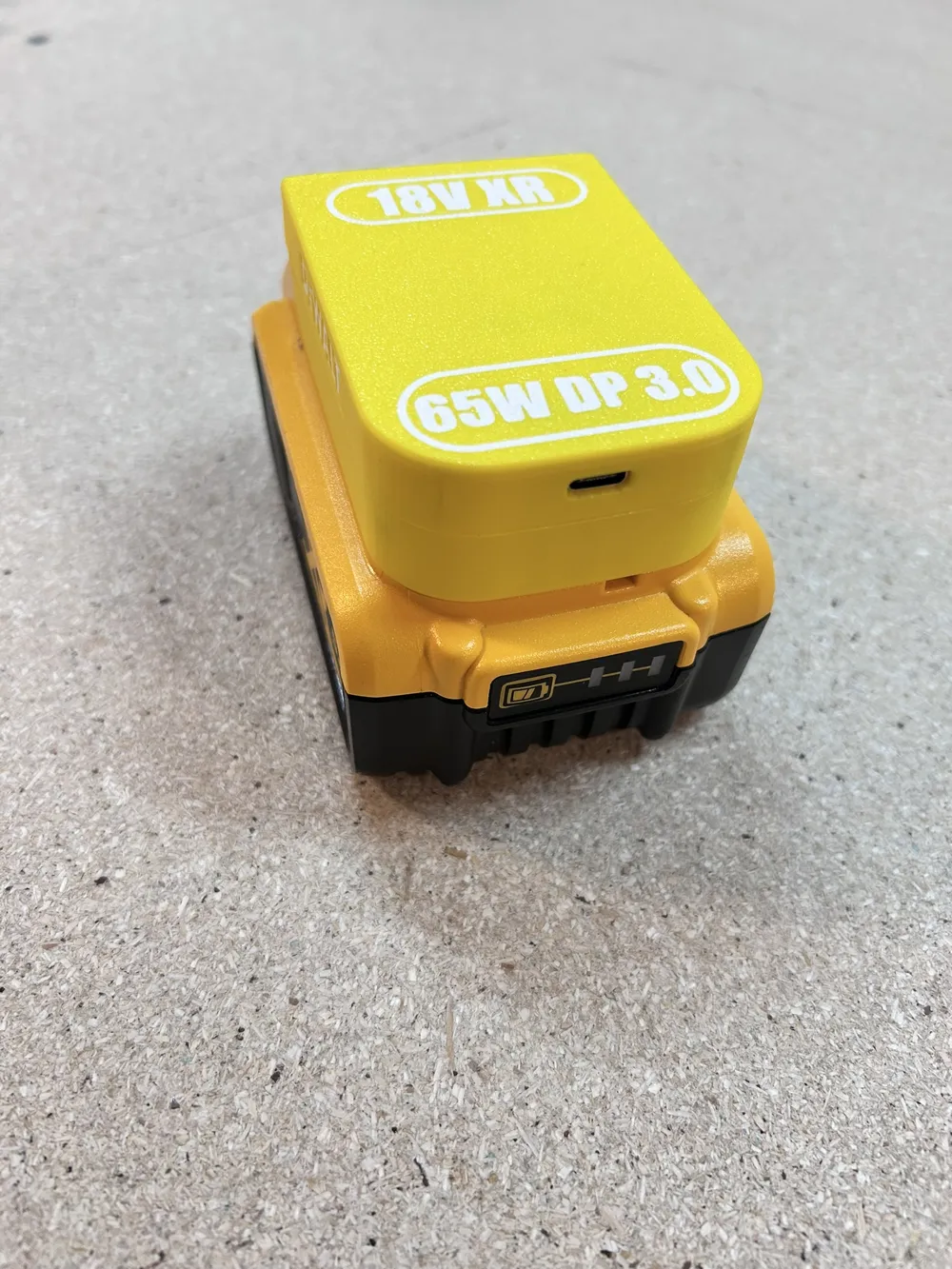

I made this adapter for the DeWalt 18V battery as a portable, light and powerful source.

The USB C module can deliver 65W of power and its use range is very wide.

V.1.1 :

-Uppdated the text on the top cover to be more minimal and correct. Thanks to @b2brawler

-Fixed weak spots in the model

-Please note that the printed model pictures are now diffrent from the model, yet the function is the same.

-Added link for the spade terminal connectors

 -------------------------------------------------------------

Print setting:

Print in PLA/PETG

3-4 Walls

5 Top layers

5 Bottom Layers

25% infil (more if you would like)

-------------------------------------------------------------

BOOM:

• USB C 65W 3.0 PD Module ( https://www.aliexpress.com/item/1005007016771773.html?spm=a2g0o.order_list.order_list_main.156.2b231802nOIKSU )
• 4x BT2.5x6 BHCS Self Tapping Screw
• 2x 22 awg cables - Aprox 5cm each
• 2x male spade terminal connectors 6.3mm ( https://www.aliexpress.com/item/1005007149421691.html?spm=a2g0o.productlist.main.6.18aa48f8kE35Tw&algo_pvid=f1a830c5-ed82-44e7-90bd-27ef5f723a60&pdp_ext_f=%7B%22order%22%3A%2219%22%2C%22eval%22%3A%221%22%2C%22fromPage%22%3A%22search%22%7D&utparam-url=scene%3Asearch%7Cquery_from%3A%7Cx_object_id%3A1005007149421691%7C_p_origin_prod%3A )

You will need to follow the assembly guide via the YouTube link.
