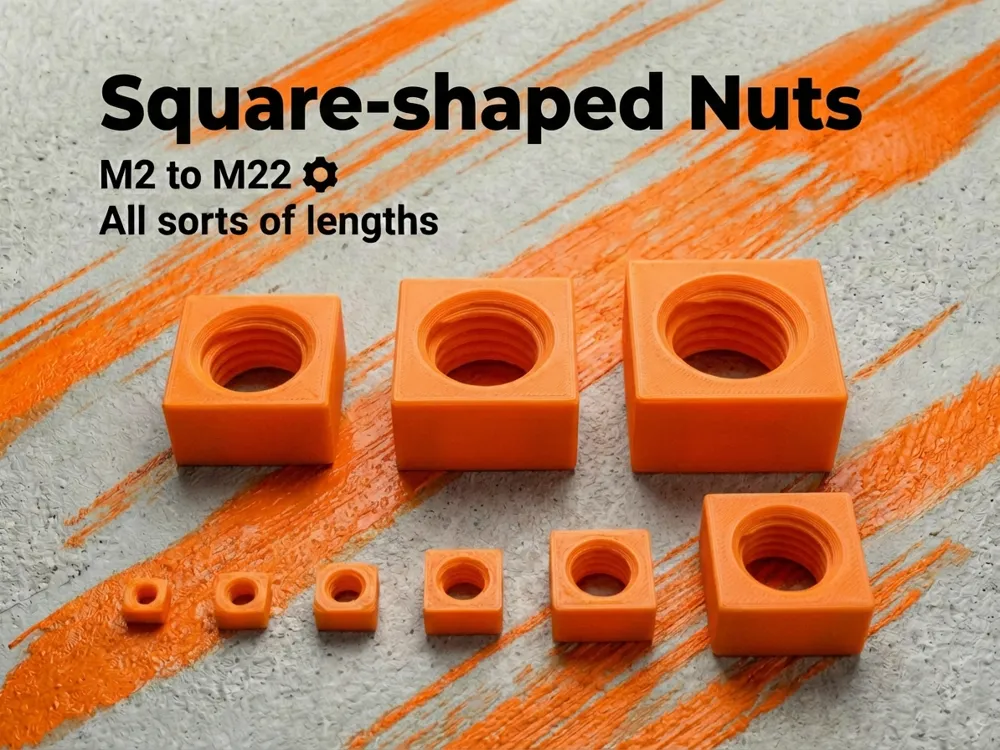

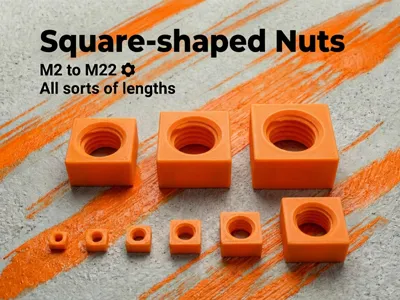

🟦 Square Nut Collection: M2 to M22 🔩
⭐ Hit Like and stash this in your collection – your future self will thank you! ❤️
Looking for a low-profile fit or a nut that locks perfectly into a channel? This collection of Square Nuts is a essential for any maker's hardware drawer. From tiny M2 electronics fasteners to massive M22 industrial nuts, they are precision-modeled and ready to print!
📐 Available Sizes
- Range: M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22
- Standard: ISO-compatible internal threading 🧵
- Design: Built in OpenSCAD with the BOSL2 library for maximum accuracy.
🖨️ MakerWorld Print Settings 🛠️
To ensure your screws glide in smoothly without getting stuck, use these tuned settings:
| Setting | Recommended Value | Why? |
|---|---|---|
| Layer Height | 0.10mm - 0.12mm | Crucial for internal thread definition. |
| Wall Loops | 3 - 5 | More walls provide better thread "grip" and strength. |
| Infill Density | 40% - 60% | Keeps the nut from deforming under torque. |
| Infill Pattern | Gyroid | High strength and prevents internal gaps. |
| Flow Ratio | 0.93 | Important! Prevents threads from being too tight. |
| Support | On Build Plate Only | Use Snug style with a 30° threshold. |
🧪 Material Guide
- PETG: 🥇 Top Choice! Durable, slightly flexible (prevents cracking), and great for repeated use.
- PLA+: Perfect for static displays or light-duty fixtures.
- ABS/Nylon: Best for high-heat or heavy-load industrial applications (Enclosure required!).
🔗 Build the Full Set
Don't stop at square nuts! Check out my profile for the rest of the hardware family:
- 🔩 Hex Nuts & Easy-Grip Nut Caps
- ➕ Phillips & Torx Screws (Pan & Countersunk)
- 📍 Dowel Pins & Alignment Tools
- Check my profile for the full growing hardware library!
- Or click this image here!
🙌 Show Me Your Makes!

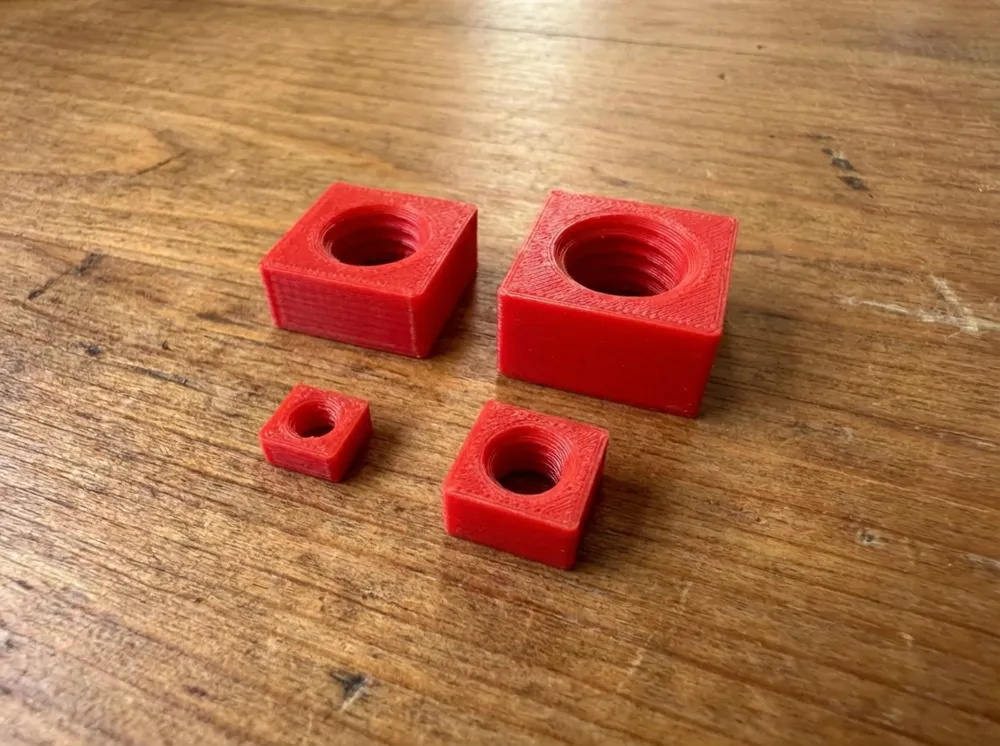

There is nothing better than seeing these nuts in a real project!
- 📸 Post a Make: Upload a photo and share your success.
- ⭐ Rate: If these saved your project, let the community know!
- 💬 Feedback: Missing a specific size? Drop a comment below.
Happy Printing! 🛠️✨
