Drill and Dust Extraction up to 110 V2
Print Profile(0)

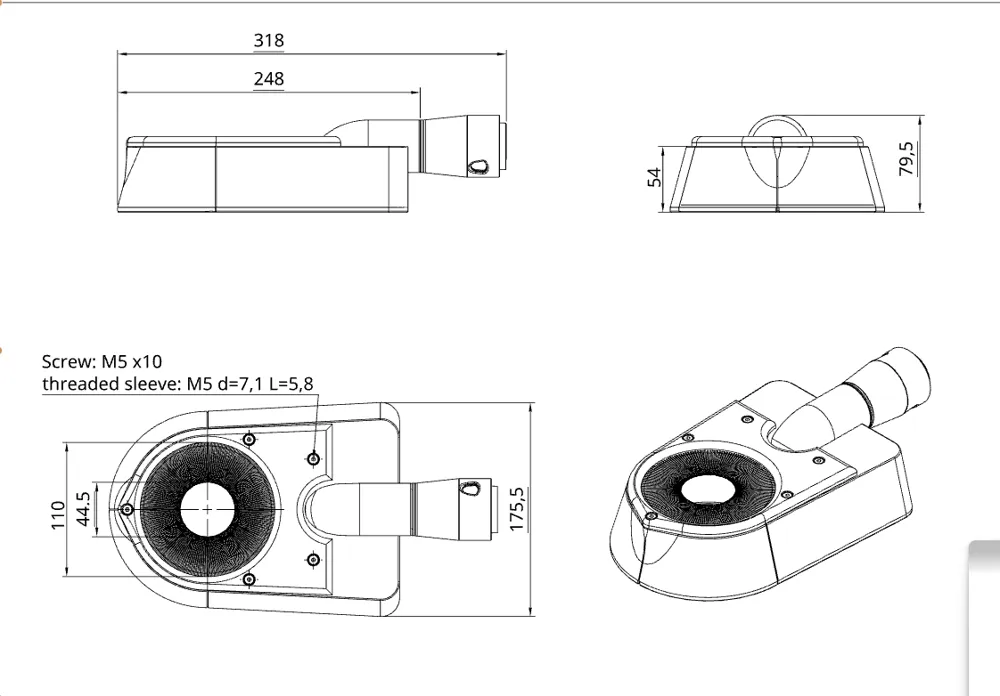

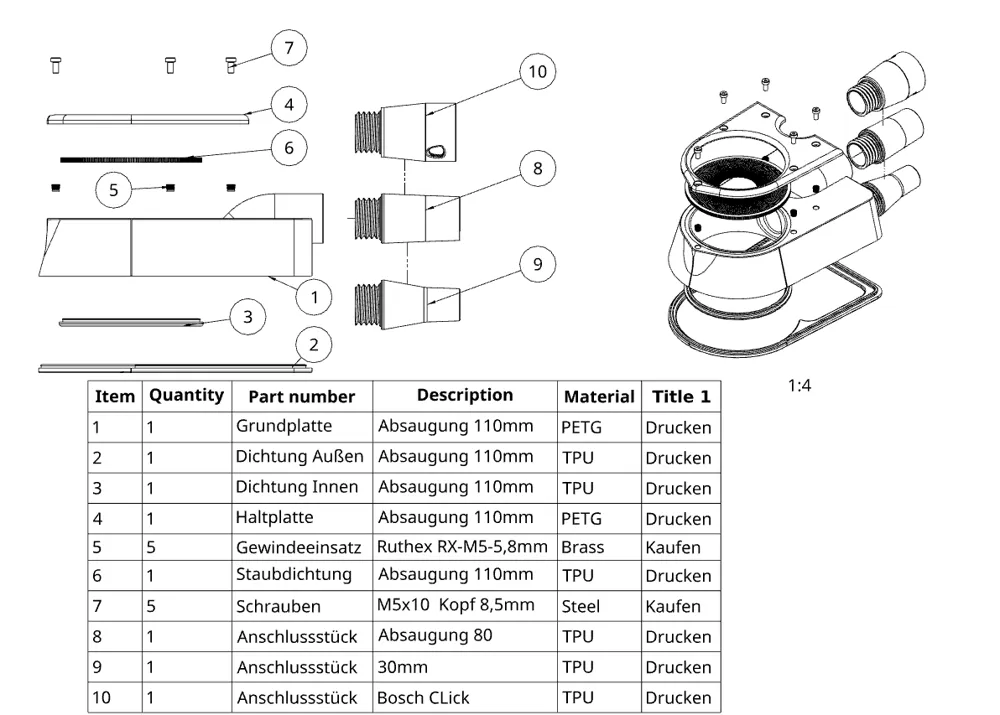

Bill of Materials
- Schrauben M5 x 10 x 5: https://www.amazon.de/Zylinderschrauben-Innensechskant-Imbusschraube-Zylinderkopf-M5x10/dp/B0BXSPSC8V/ref=asc_df_B0BXSQCRS1?mcid=d0e136fc91703f1498e0785e39a31f7d&th=1&tag=googshopde-21&linkCode=df0&hvadid=710196201786&hvpos=&hvnetw=g&hvrand=17874459553869139753&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=9043975&hvtargid=pla-2344678337949&hvocijid=17874459553869139753-B0BXSQCRS1-&hvexpln=0
- Gewindeeinsatz M5 x 5,8 x 5: https://www.amazon.de/ruthex-Gewindeeinsatz-SHORT-Gewindebuchsen-Kunststoffteile/dp/B09MTRT9T7/ref=asc_df_B09MTRT9T7?mcid=aaf5c3598e7c3fa8a92baf1e52a1f815&th=1&tag=googshopde-21&linkCode=df0&hvadid=696974613778&hvpos=&hvnetw=g&hvrand=2753369744695429560&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=9043975&hvtargid=pla-1579165715979&hvocijid=2753369744695429560-B09MTRT9T7-&hvexpln=0
Description

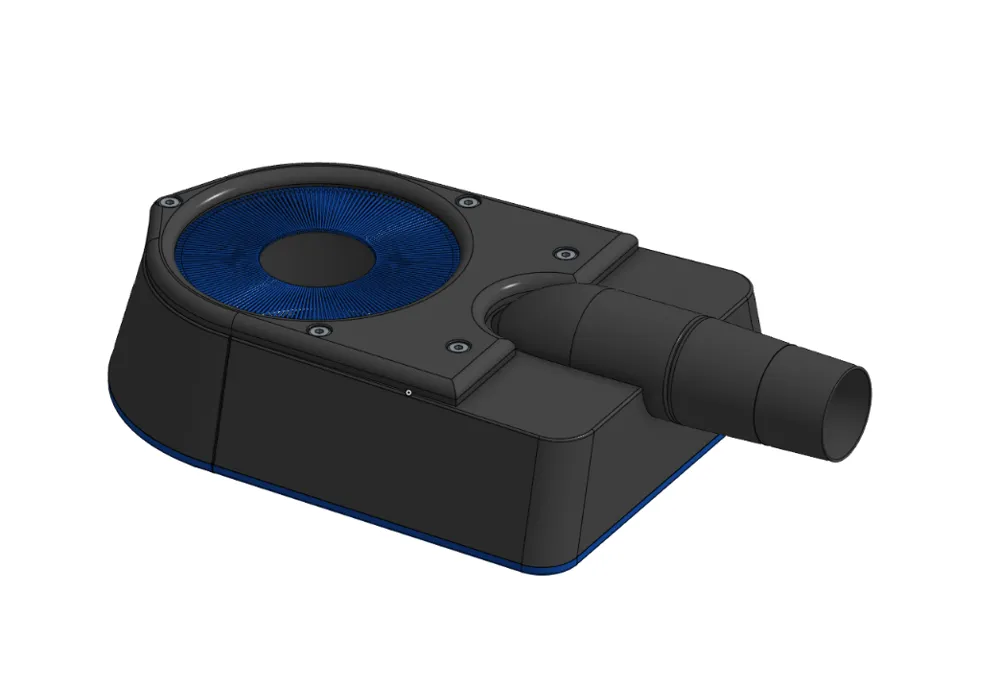

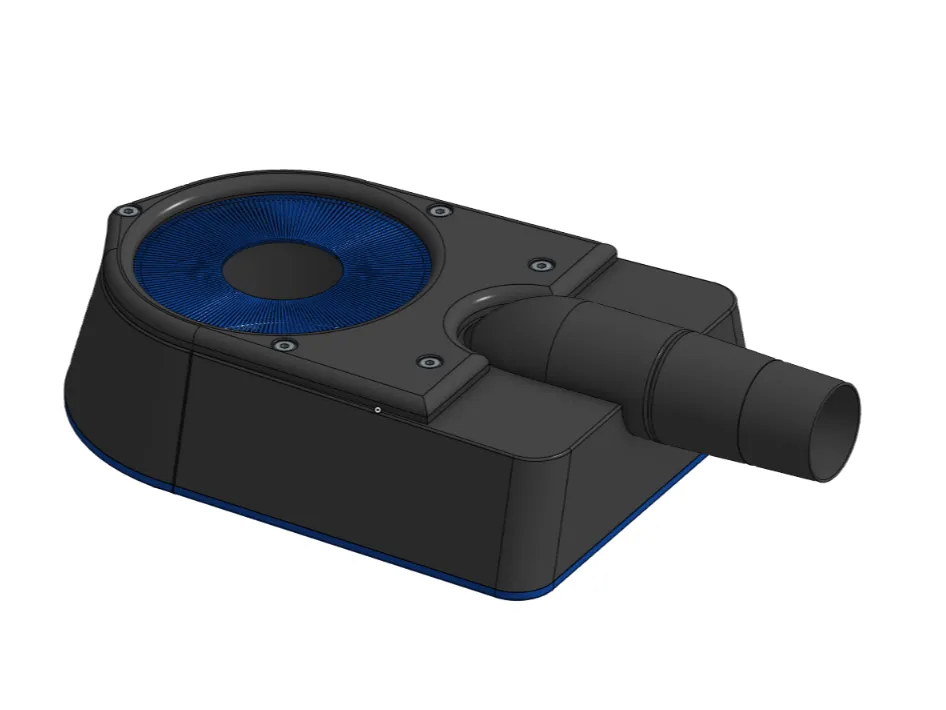

Drill Dust Extractor 110 mm
This drill dust extractor for 100 mm was developed for clean work on walls and ceilings.
As soon as a vacuum cleaner is connected and switched on, the extractor holds itself independently on the wall – without any additional fastening.
All components are fully 3D printable, with the exception of the threaded inserts and screws, which must be purchased separately.
Material & Print
- Housing & Retaining Plate: PETG
- Seals: TPU
- Retaining Ring: securely fixes the dust seal in the correct position

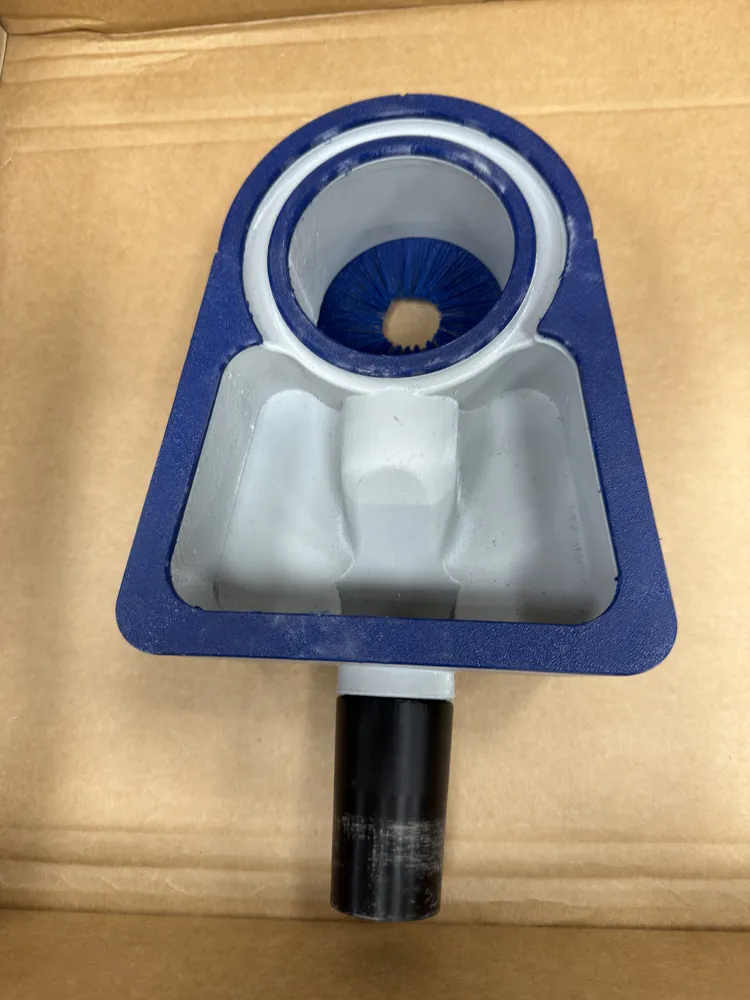

The inner and outer seals are clicked into a groove in the housing and held securely.

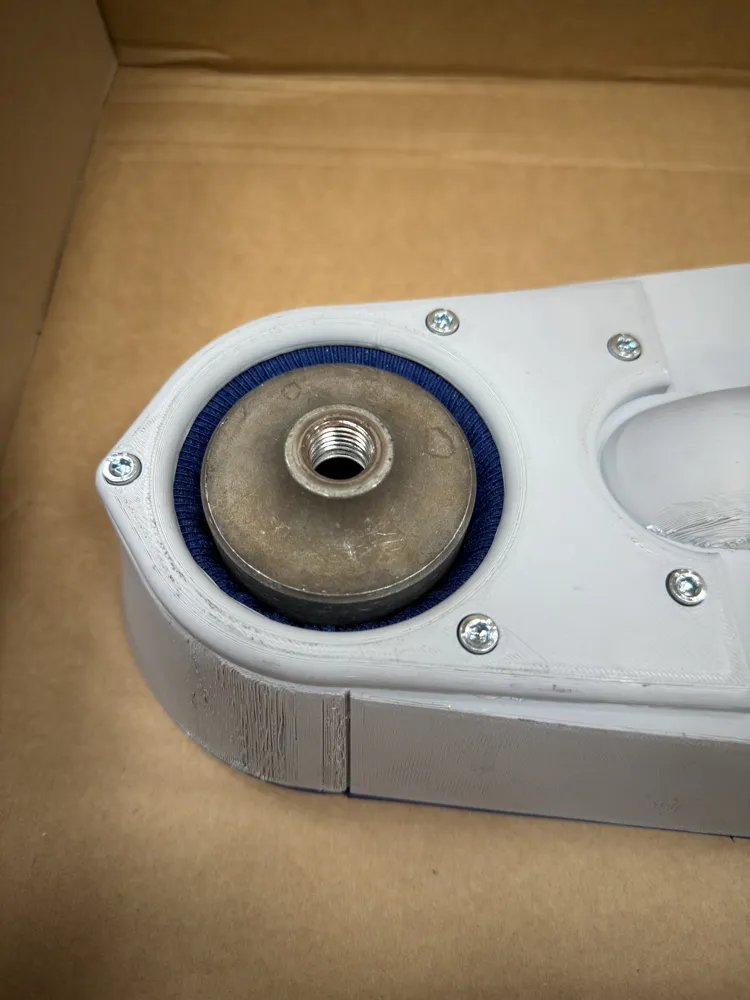

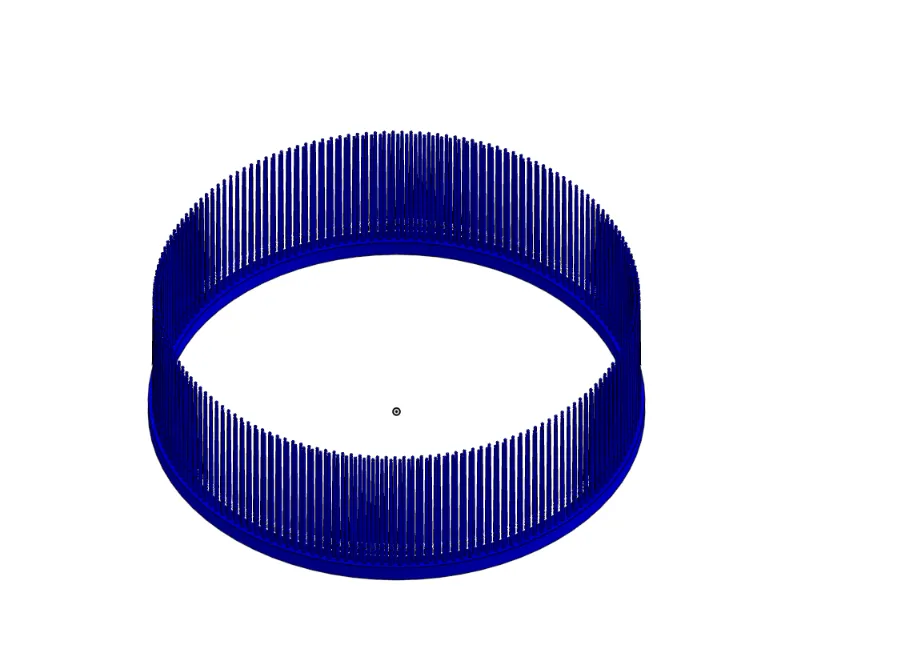

The dust seal is printed upright.

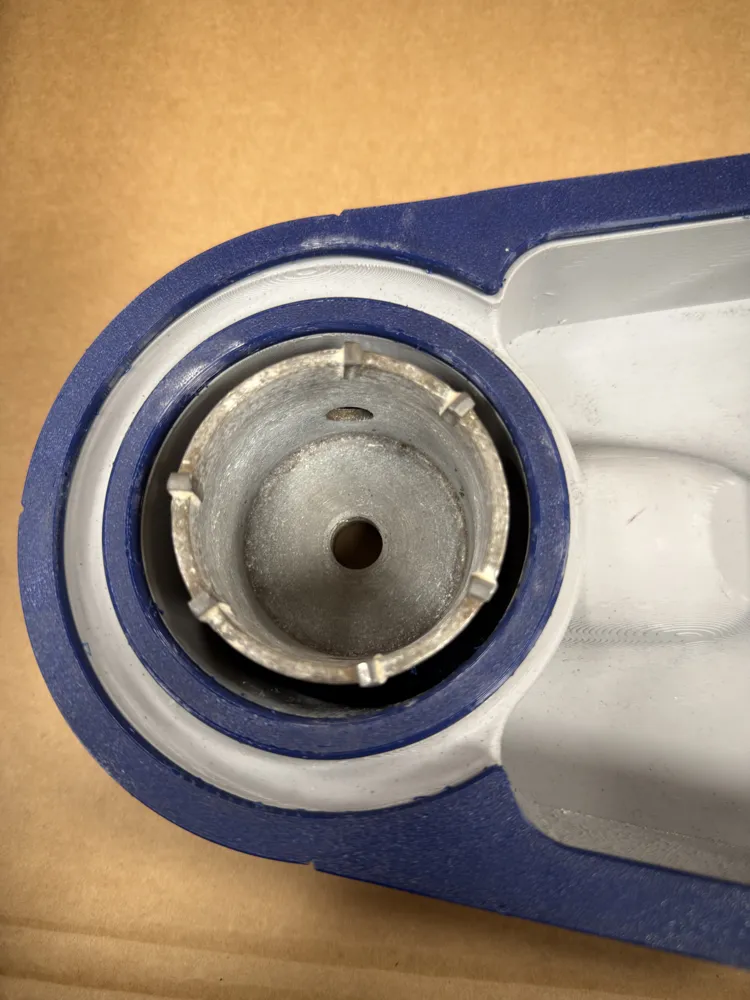

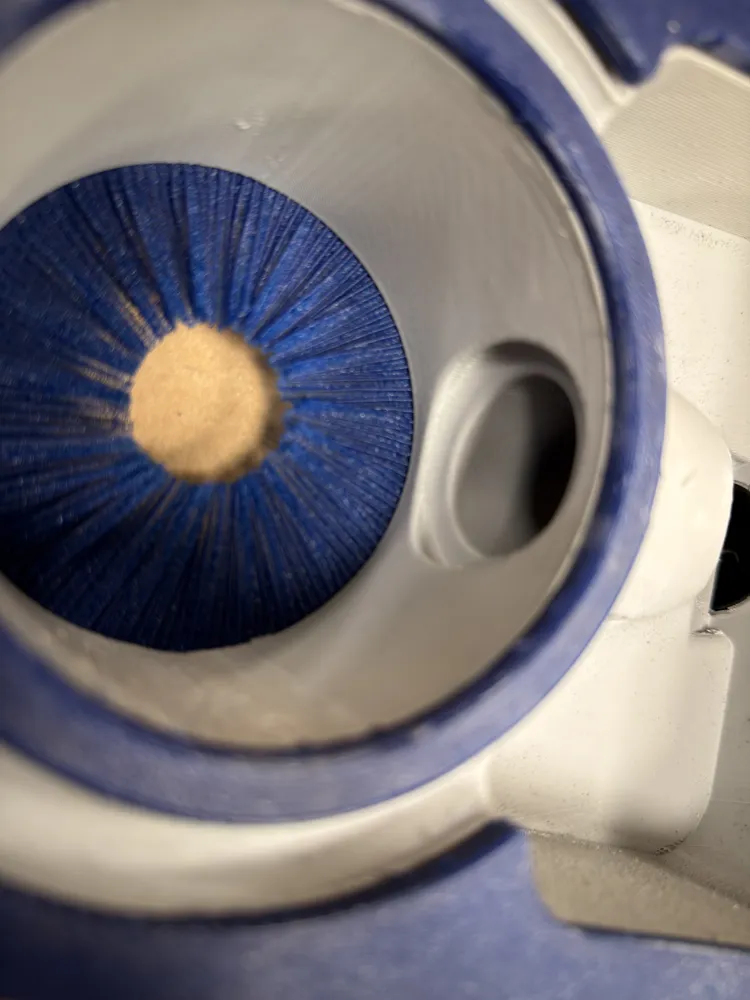

After printing, it can be slightly heated on the printer's heatbed and then – as shown in the pictures – brought into its final shape.

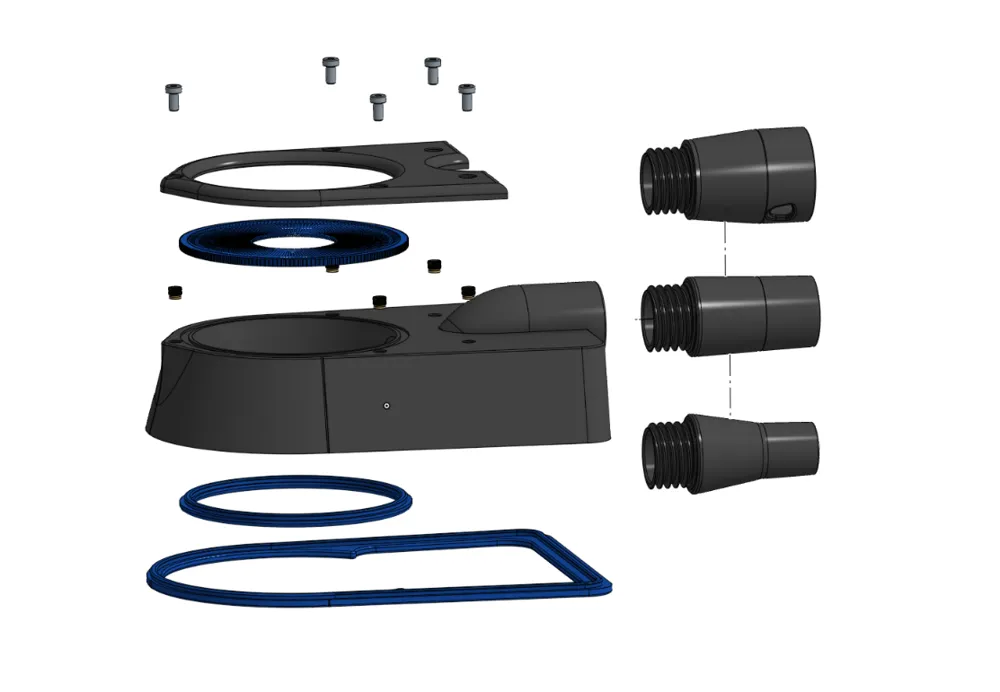

Adapter & Modularity

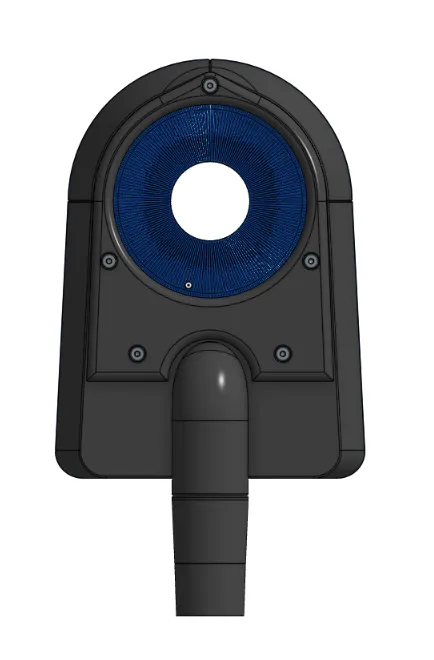

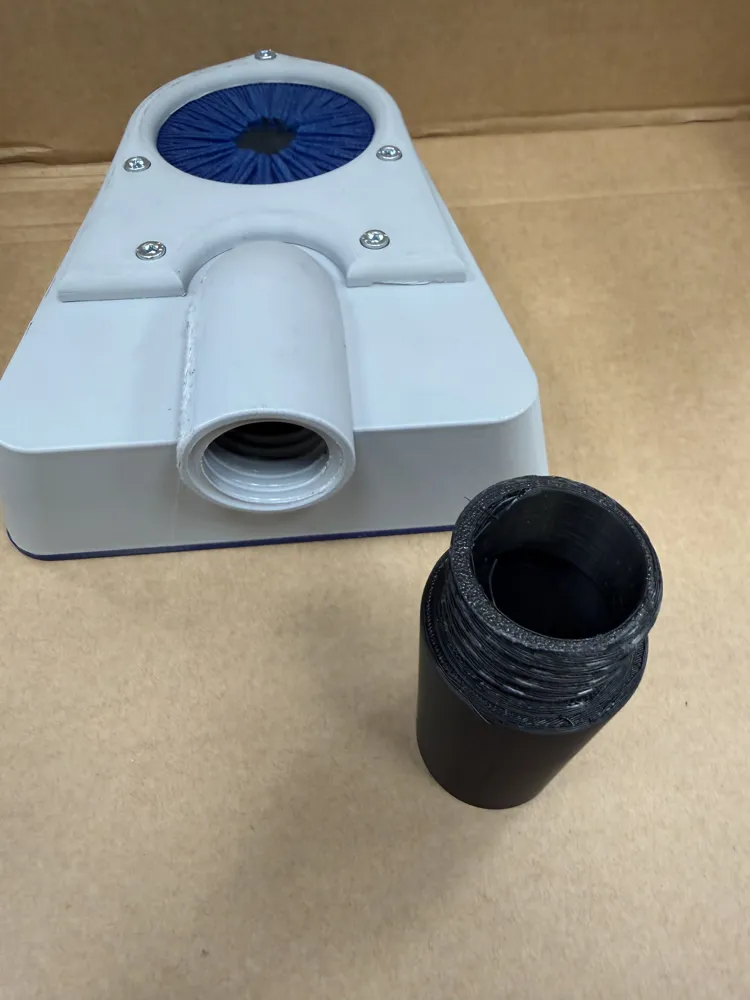

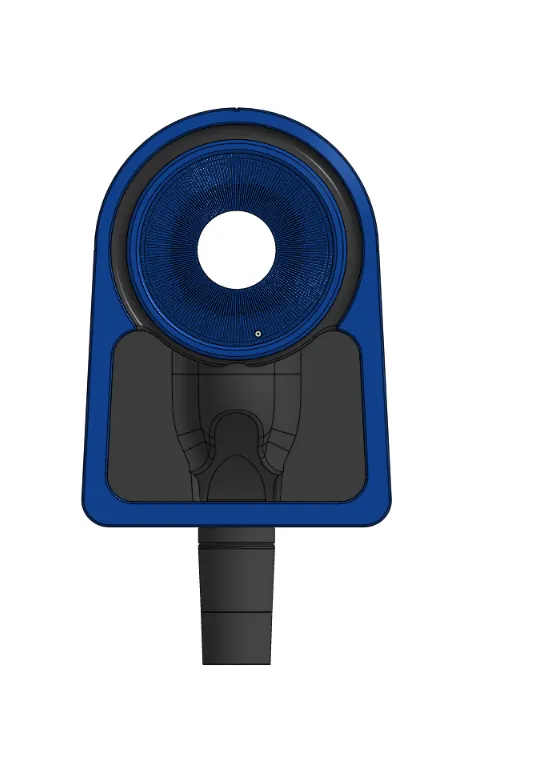

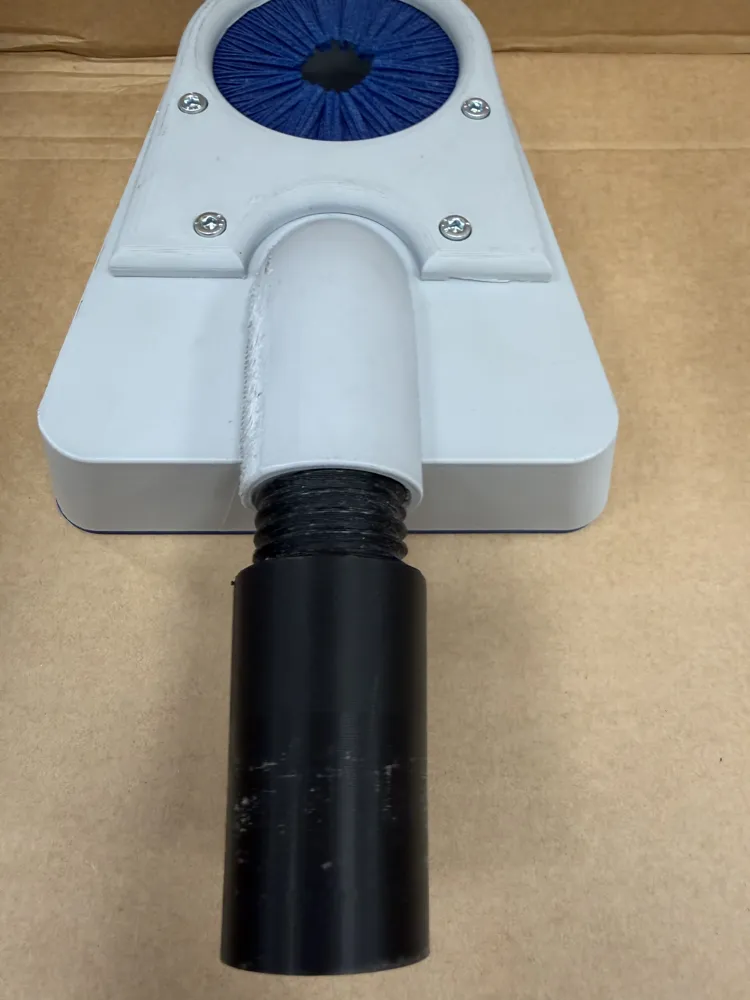

- The connection adapters are interchangeable via a thread
- The print files for the adapters can be found in my MakerWorld profile
- I can extend or redesign additional adapters upon request, to match your vacuum cleaner connection
Features at a glance
- For 100 mm drill holes
- Holds independently on the wall by vacuum
- Modular adapter connection (threaded)
- All parts 3D printable
- Inner & outer seals clickable
- Robust, workshop-compatible design
Note: Live images of the extractor are from the 80mm extractor
