ESP32-CAM Water Meter Housing AI on the Edge
Print Profile(2)
Bill of Materials
- ESP32 x 1:
- ESP32 CAM x 1:
Description
💧 ESP32-CAM Water Meter Housing 📷
Adjustable Mount for “AI-on-the-Edge Device”

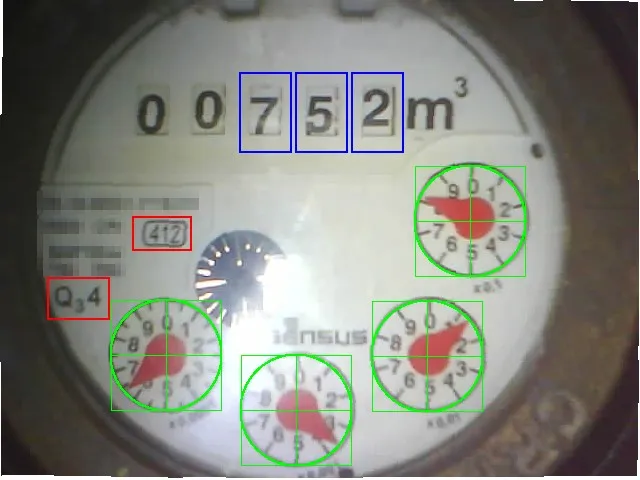

This project is a modular, adjustable ESP32-CAM housing designed specifically for the open-source project “AI-on-the-Edge Device”, which enables you to digitize analog water meters using computer vision.

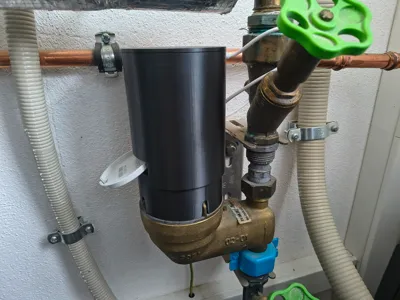

The housing is built for reliable alignment, easy installation, and precise camera positioning, making it ideal for quick installation on water meters.
✨ Key Features

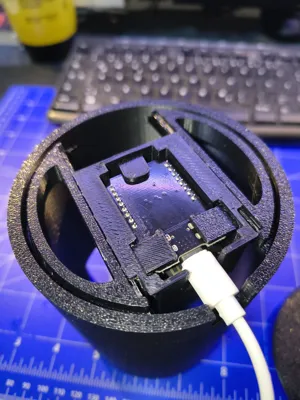

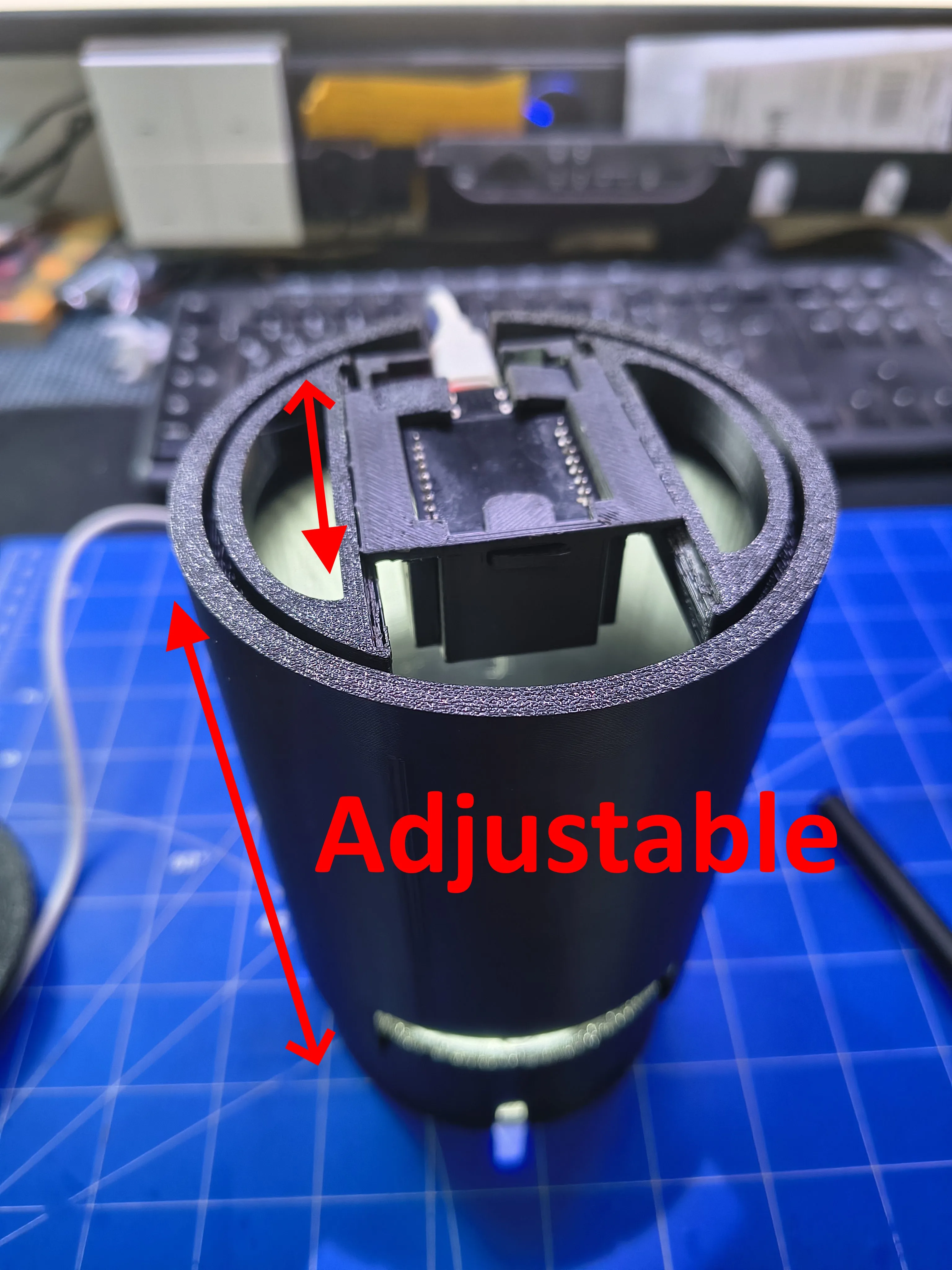

🔧 Adjustable camera alignment (Z & Y axis)
Easily center the ESP32-CAM perfectly over the water meter dial.

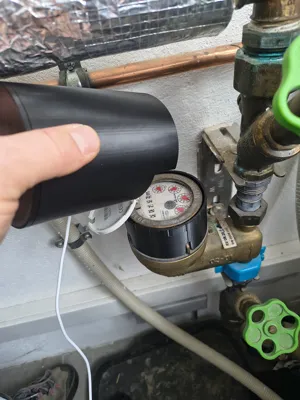

- 💧 Water meter–specific adapter

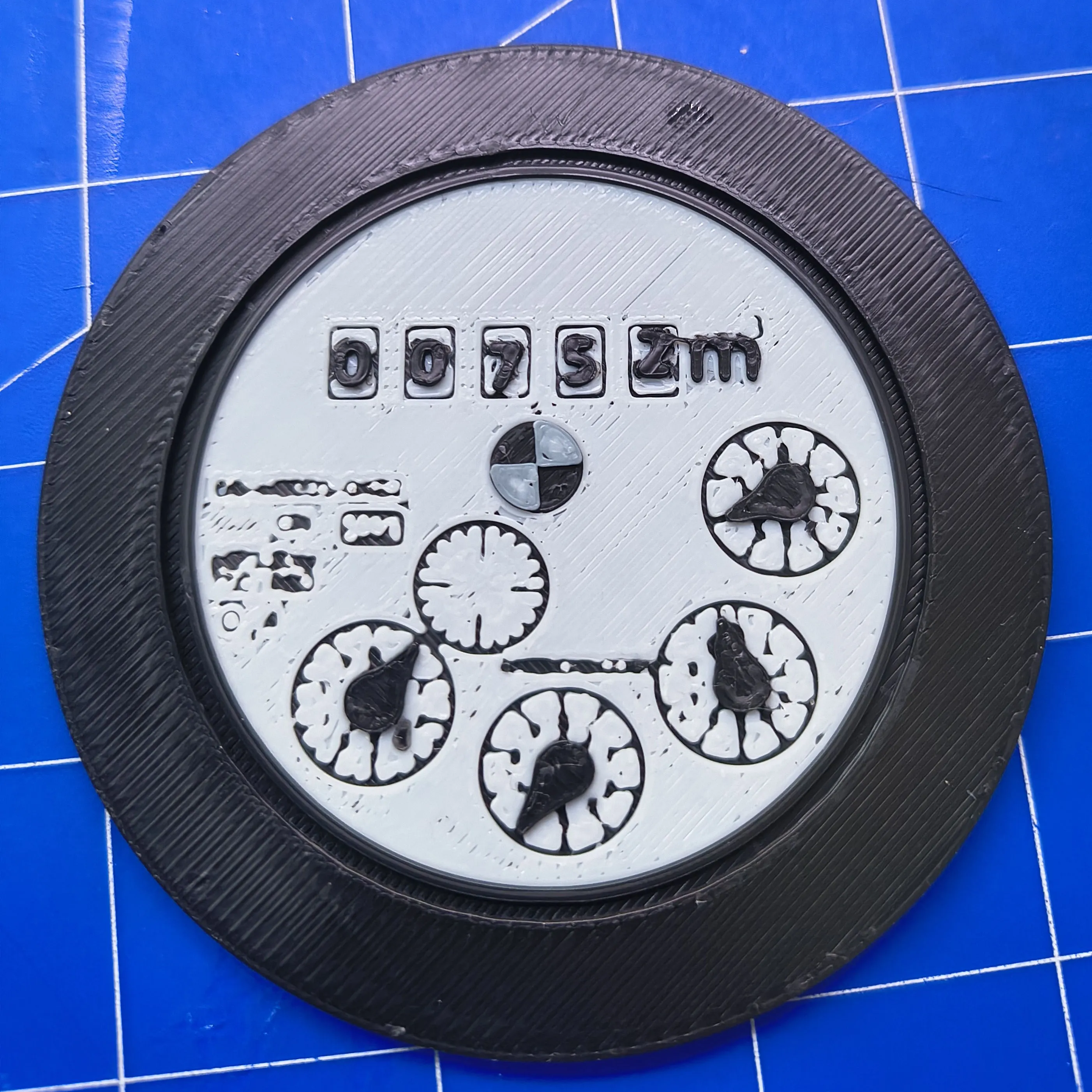

Designed to fit directly onto the meter for stable mounting. in sizes from 35 to 75 mm 🎯 Dial in alignment template included
Allows you to pre-align and focus the camera before installation, saving time and frustration.

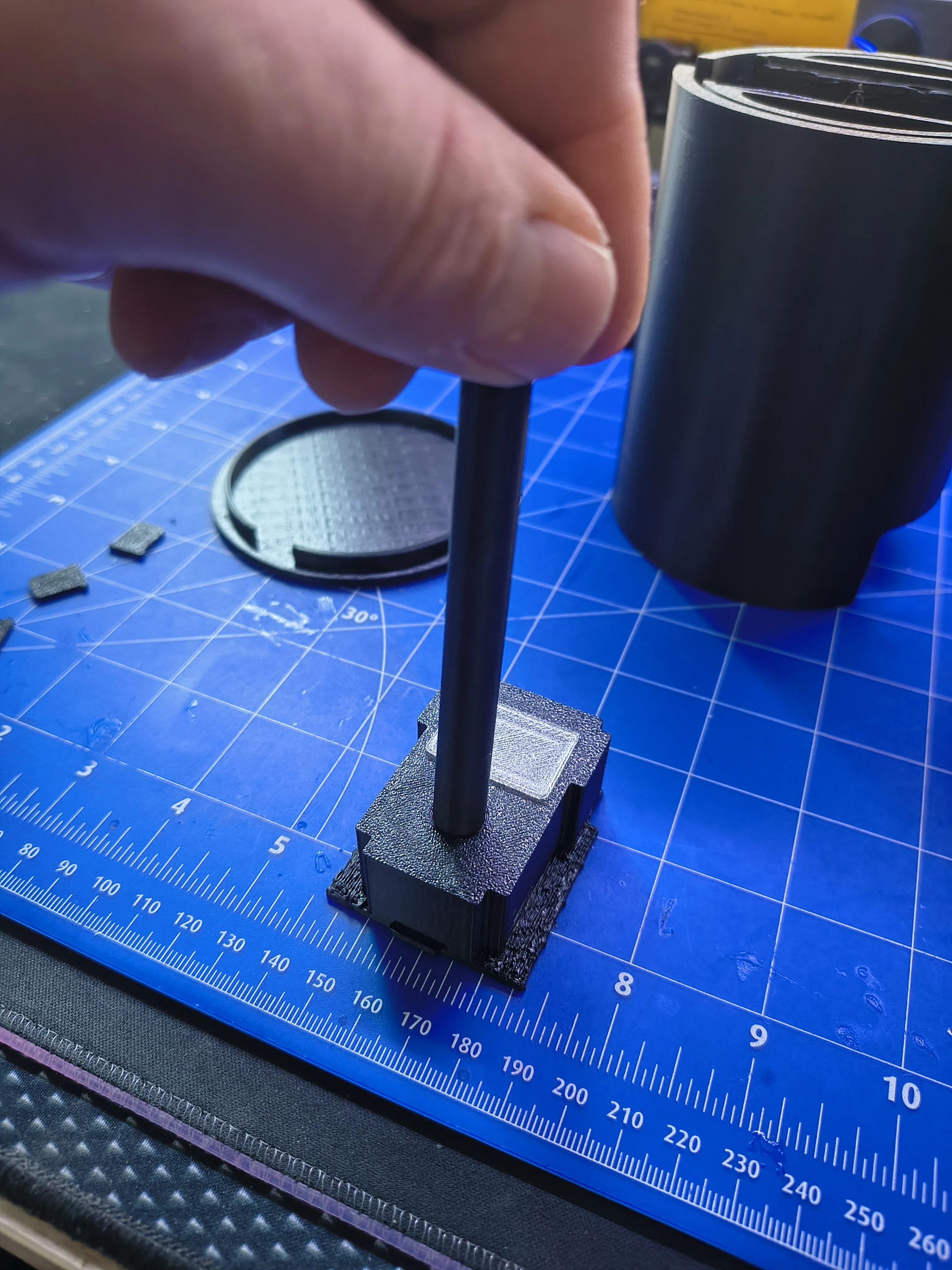

🔍 ESP32-CAM focus adjustment tool
Included tool makes fine focus adjustments simple and repeatable.

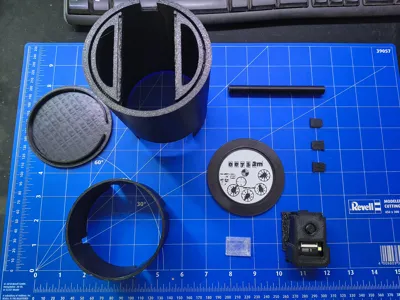

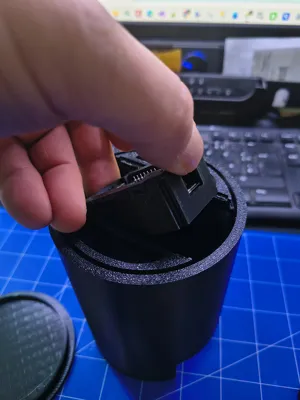

- 🧩 Modular design

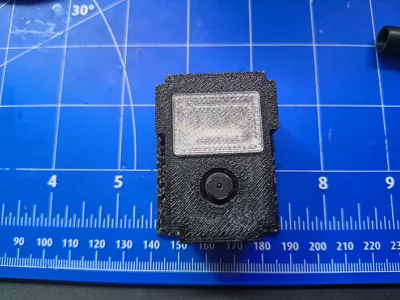

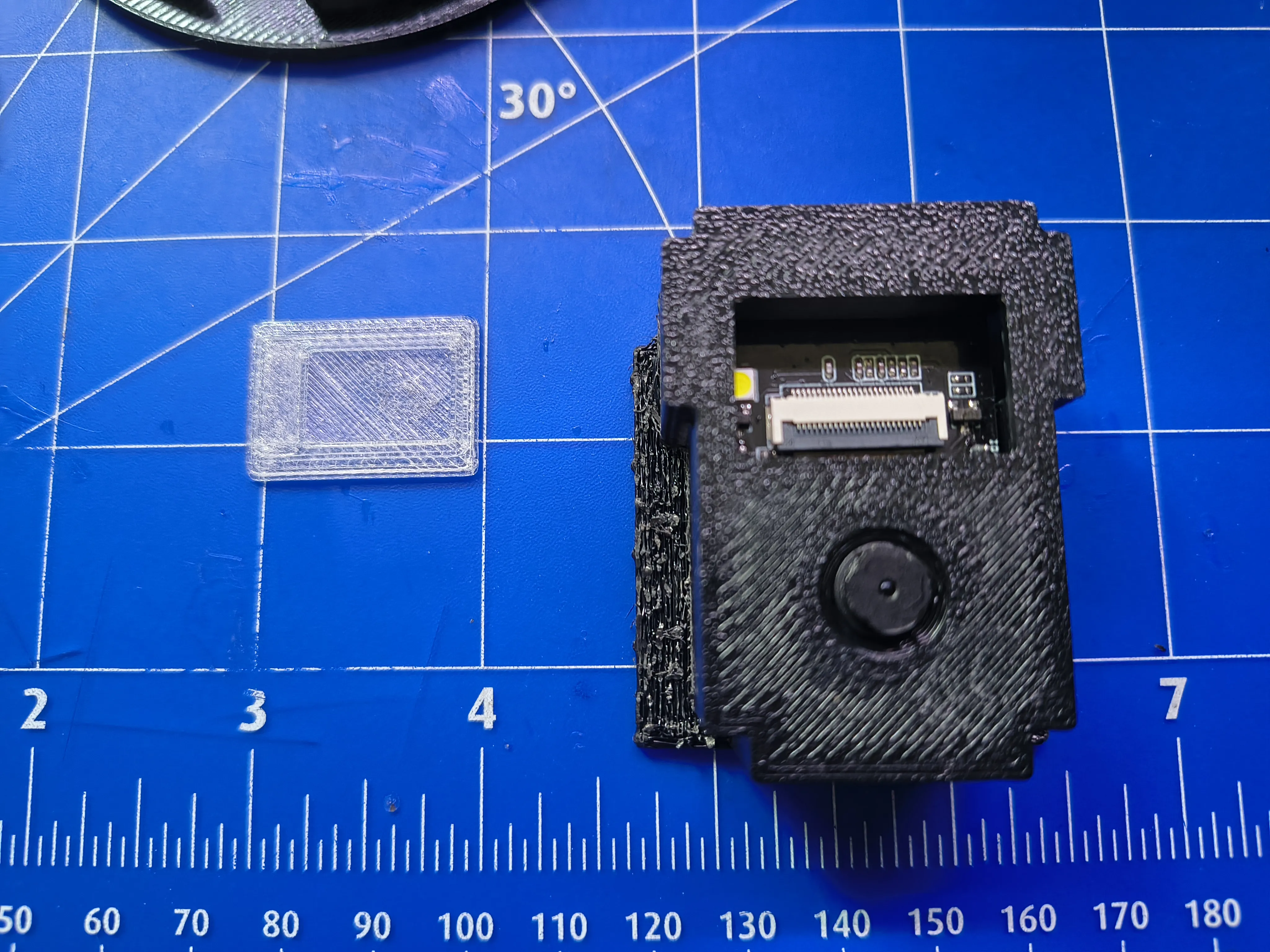

Different height adapters from 35 to 75mm mount Build in LED Diffuser, you can print it in white or transperant filament
🔌 What You Need
- ✅ ESP32 + ESP32-CAM module
- ✅ Micro-USB or FTDI programmer for flashing
- ✅ AI-on-the-Edge Device firmware
📖 Software & Project Info
This housing is made for the excellent open-source project:
You’ll find firmware, setup guides, and model training instructions there.
🎯 Use Cases
- Smart water meter monitoring
- Home automation & energy tracking
- DIY IoT projects
- Utility digitization without replacing meters
