Universal 2.5L Wall-Mount Water Tank
Print Profile(1)
Description
Overview This is a versatile and durable 2.5-liter liquid storage tank designed specifically for 3D printing. It is an ideal solution for various DIY projects, including automatic plant watering systems, hydroponics, or organizing liquid storage in a workshop or garage.
Key Features
- Optimal Capacity: 2.5 liters — perfect balance between size and volume.
- Standard 1/2" Thread: The outlet features a standard G1/2 (BSP) thread, allowing you to connect standard taps, valves, or hose fittings directly without adapters.

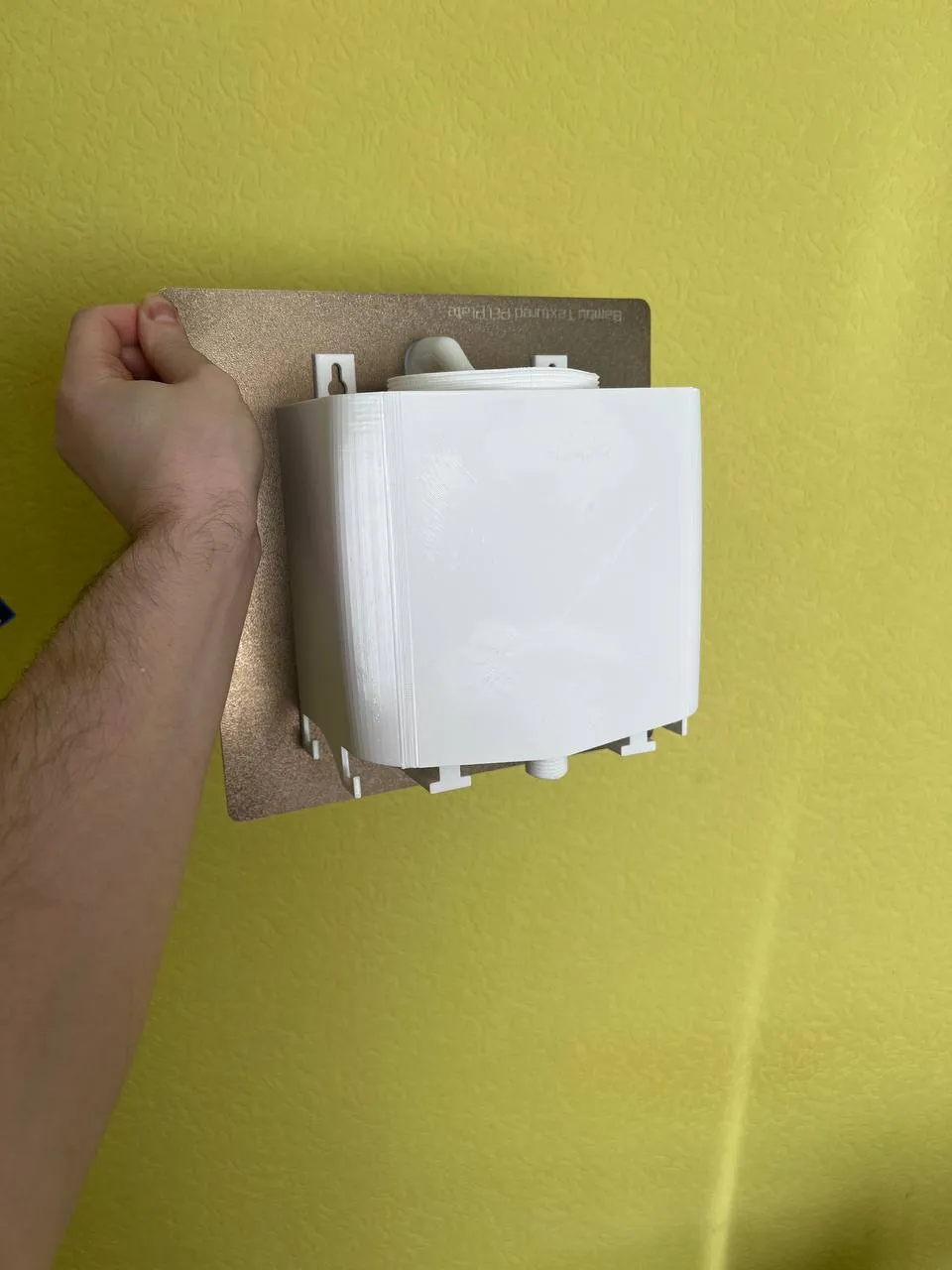

- Integrated Mounting: Equipped with sturdy upper mounting tabs for easy wall installation using screws or hooks.
- Durable Design: Reinforced walls designed for reliability and leak resistance (when printed with appropriate settings).
Technical Specifications
- Capacity: ~ 2.5 Liters
- Width: 180 mm
- Length (Depth): 110 mm
- Tank Body Height: 152 mm
- Total Height (including mounts and outlet): 172.50 mm
- Outlet Thread: Standard 1/2" (G1/2 BSP)
Printing Recommendations
- Walls: Use at least 3-4 wall loops (perimeters) to ensure the tank is watertight.
- Infill: 15-20% (Gyroid recommended) or 100% for maximum durability.
- Material: PETG, ABS, or ASA are highly recommended for water resistance and durability. PLA can be used for indoor, non-critical applications.
- Calibration: Ensure your flow rate is well-calibrated for precise thread fitment.
