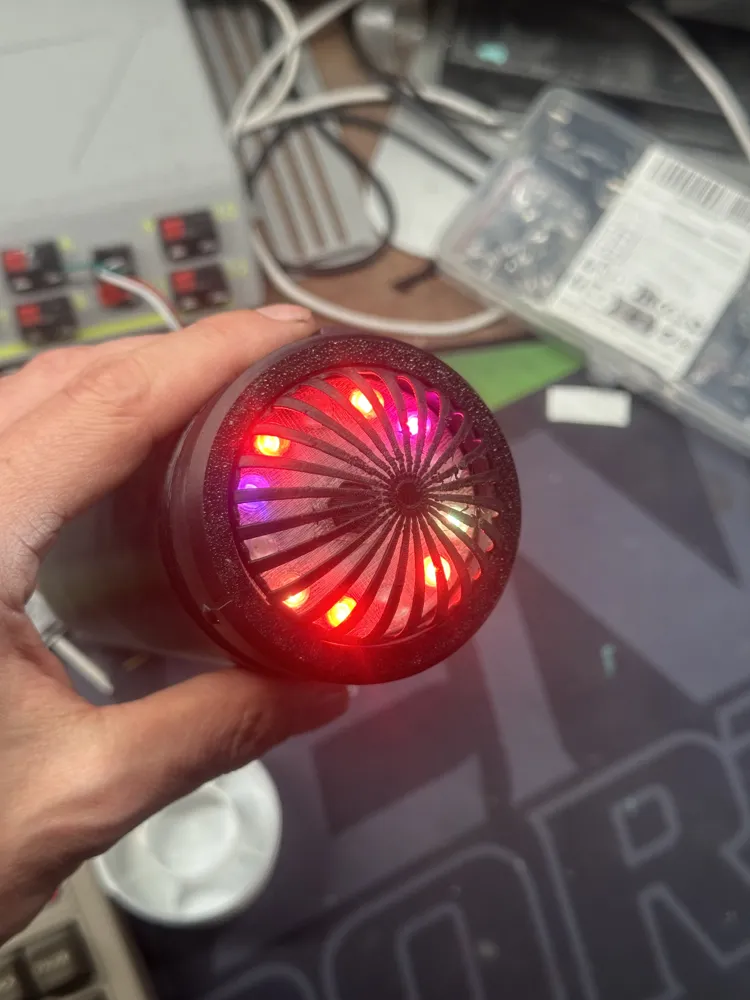

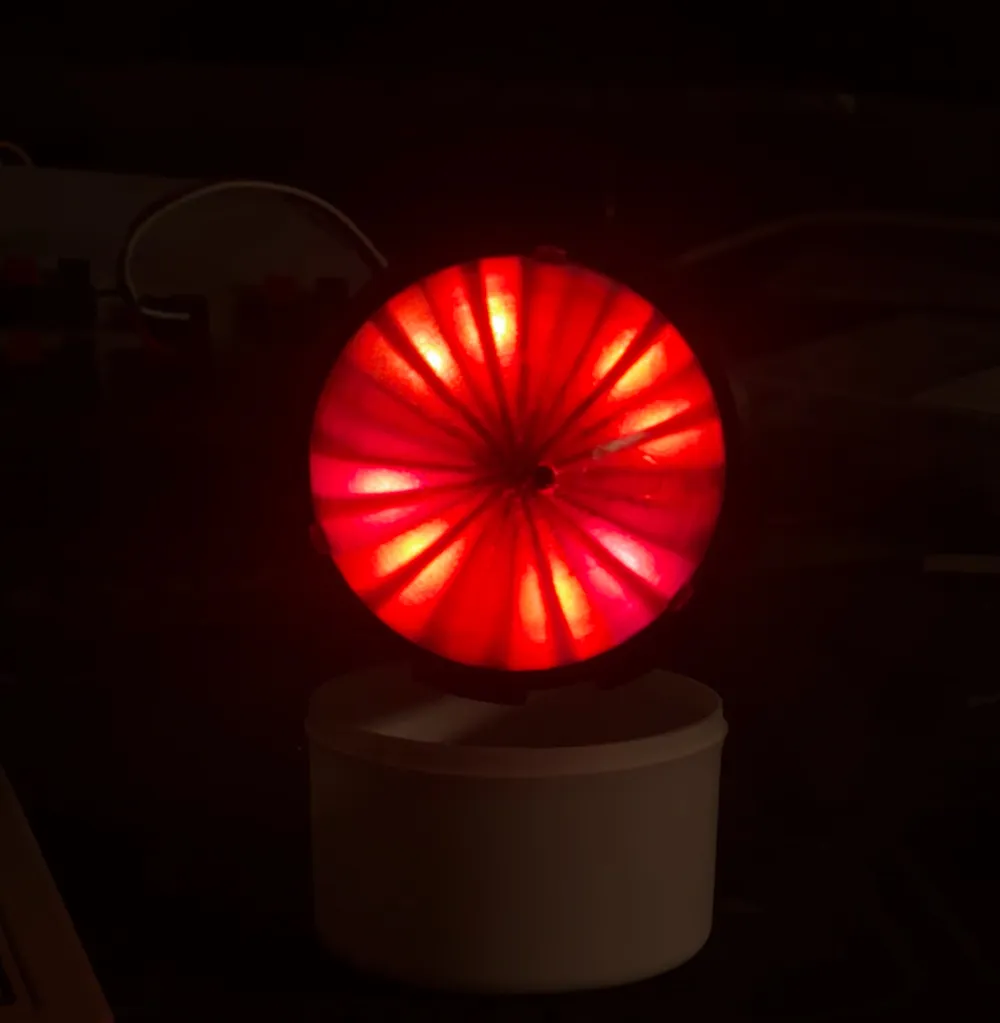

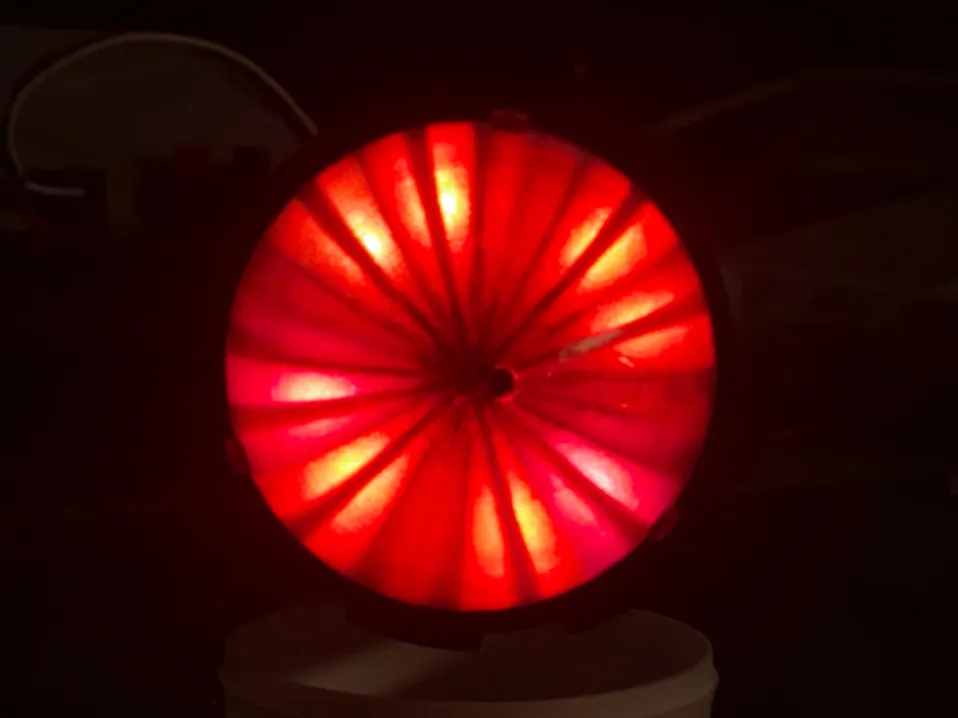

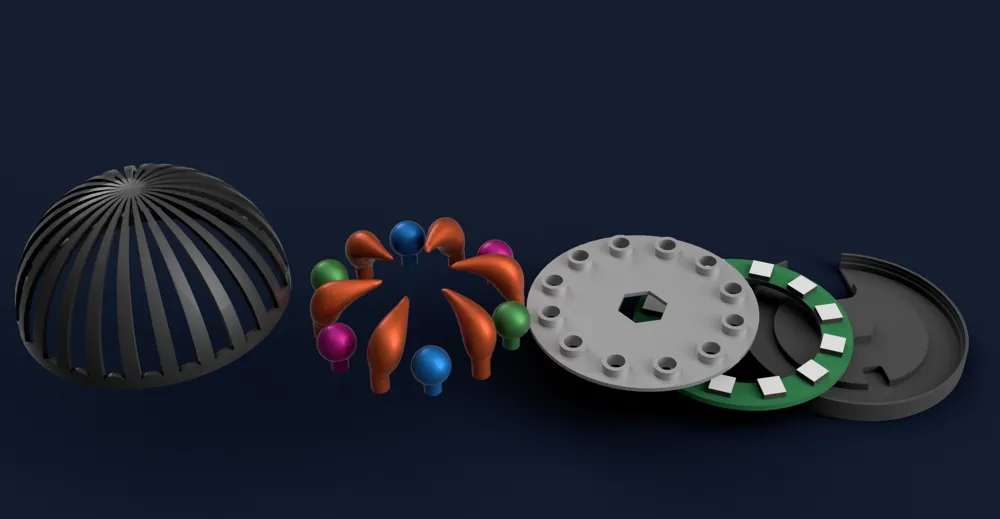

star strek tos enterprise Bussard parts

this is designed for the gambody enterprise model at 150%

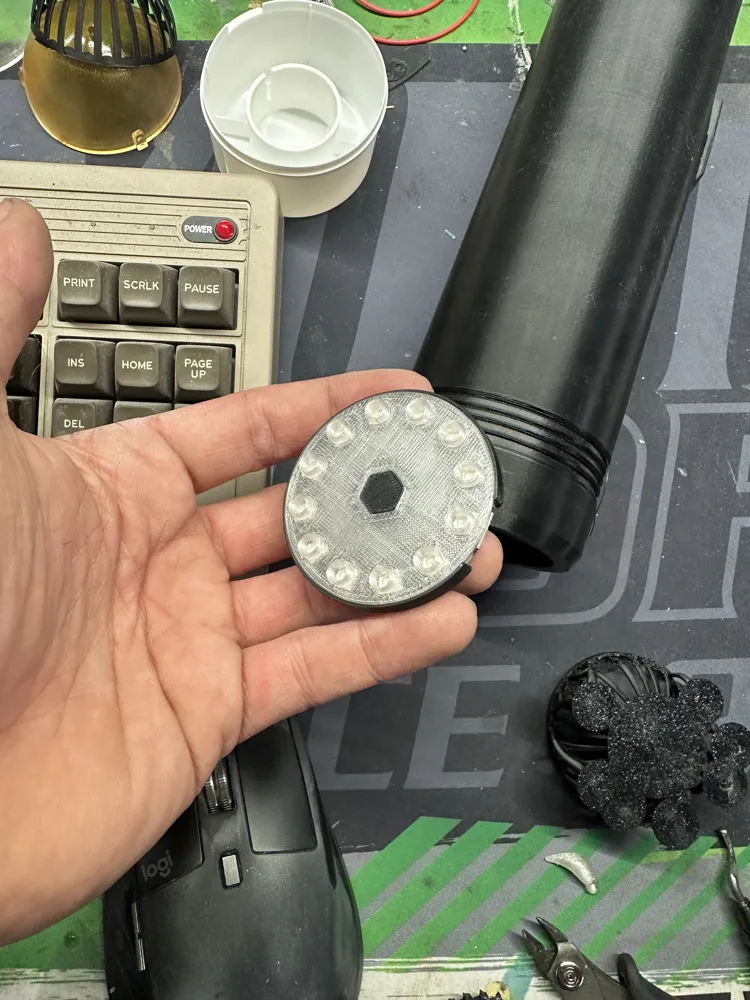

the led ring is a ws2812 ring with 12 leds. easy to find on amazon etc. outer 50mm inner 36mm.

the arduino sketch i use is:

#include <FastLED.h>

// ---------- CONFIG ----------

#define LED_PIN 6

#define NUM_LEDS 12

#define LED_TYPE WS2812

#define COLOR_ORDER GRB // change to RGB if green looks wrong

// Global breathing brightness (applies to everything)

#define BRIGHT_MIN 150

#define BRIGHT_MAX 200

#define PULSE_MS 24

// Smooth rotation speed (higher = faster)

#define SPEED_LEDS_PER_SEC 12.0f // try 2.0..8.0 for slower/faster

// Frame rate control (how often we redraw). Lower = smoother (but more CPU)

#define FRAME_MS 15 // ~66 FPS

// -------- Per-color brightness (0-255) --------

#define CORE_BASE_SCALE 255

#define HOTSPOT_SCALE 255

#define GAP_SCALE 0 // 0 = OFF, >0 = faint ember glow

#define BLUE_SCALE 5

#define GREEN_SCALE 10

#define PINK_SCALE 20

#define CYAN_SCALE 5

#define PURPLE_SCALE 10

#define AMBER_SCALE 20

// ---------------------------------------------

// ---------------------------

CRGB leds[NUM_LEDS];

const CRGB coreRedOrange[6] = {

CRGB(255, 8, 0), // very hot red

CRGB(255, 3, 0), // deep red-orange

CRGB(235, 6, 0), // ember red

CRGB(220, 0, 0), // deep red glow

CRGB(255, 10, 1), // warm red ember

CRGB(200, 0, 0) // dark red

};

// Fixed accents for LEDs 1,3,5,7,9,11 (in order)

const CRGB accentFixed[6] = {

CRGB(0, 120, 255), // blue

CRGB(0, 255, 0), // green

CRGB(255, 0, 140), // pink

CRGB(0, 180, 255), // cyan

CRGB(180, 0, 255), // purple

CRGB(255, 190, 0) // amber

};

int bright = BRIGHT_MIN;

int brightStep = 1;

uint32_t lastPulse = 0;

uint32_t lastFrame = 0;

float hotspotPosF = 0.0f; // smooth position (0..NUM_LEDS)

uint8_t paletteOffset = 0;

static CRGB scale8(CRGB c, uint8_t s) {

c.nscale8_video(s);

return c;

}

void renderBasePattern() {

// Even LEDs = base orange/red (scaled)

for (uint8_t k = 0; k < 6; k++) {

leds[k * 2] = scale8(coreRedOrange[k], CORE_BASE_SCALE);

}

// Odd LEDs = fixed accents with individual scales

for (uint8_t k = 0; k < 6; k++) {

uint8_t ledIndex = (k * 2) + 1;

switch (k) {

case 0: leds[ledIndex] = scale8(accentFixed[k], BLUE_SCALE); break;

case 1: leds[ledIndex] = scale8(accentFixed[k], GREEN_SCALE); break;

case 2: leds[ledIndex] = scale8(accentFixed[k], PINK_SCALE); break;

case 3: leds[ledIndex] = scale8(accentFixed[k], CYAN_SCALE); break;

case 4: leds[ledIndex] = scale8(accentFixed[k], PURPLE_SCALE); break;

case 5: leds[ledIndex] = scale8(accentFixed[k], AMBER_SCALE); break;

}

}

}

void applyFourHotspotsWithSmoothGap(float posF) {

// We create 4 hotspots evenly spaced around the ring: +3, +6, +9

// Each hotspot is blended between two LEDs for smooth motion.

for (uint8_t i = 0; i < 4; i++) {

float p = posF + (float)(i * 3);

while (p >= NUM_LEDS) p -= NUM_LEDS;

uint8_t idxA = (uint8_t)p; // floor

uint8_t idxB = (idxA + 1) % NUM_LEDS; // next LED

float frac = p - (float)idxA; // 0..1

uint8_t wB = (uint8_t)(frac * 255.0f); // weight for B

uint8_t wA = 255 - wB; // weight for A

CRGB hot = scale8(coreRedOrange[(paletteOffset + i) % 6], HOTSPOT_SCALE);

// Add blended hotspot (overrides feel: we add strongly on top of base)

leds[idxA] += scale8(hot, wA);

leds[idxB] += scale8(hot, wB);

// Gap: one LED AFTER the hotspot direction. We approximate by forcing the

// nearest "after" LED to black (or ember) to keep the look.

// Choose the dominant LED (where hotspot mostly is).

uint8_t dom = (wA >= wB) ? idxA : idxB;

uint8_t gapIdx = (dom + 1) % NUM_LEDS;

if (GAP_SCALE == 0) {

leds[gapIdx] = CRGB::Black;

} else {

leds[gapIdx] = scale8(CRGB(80, 5, 0), GAP_SCALE);

}

}

}

void setup() {

FastLED.addLeds<LED_TYPE, LED_PIN, COLOR_ORDER>(leds, NUM_LEDS);

FastLED.setBrightness(bright);

FastLED.clear(true);

}

void loop() {

const uint32_t now = millis();

// Breathing brightness (global)

if (now - lastPulse >= PULSE_MS) {

lastPulse = now;

bright += brightStep;

if (bright >= BRIGHT_MAX) { bright = BRIGHT_MAX; brightStep = -1; }

if (bright <= BRIGHT_MIN) { bright = BRIGHT_MIN; brightStep = 1; }

FastLED.setBrightness(bright);

}

// Frame update for smooth motion

if (now - lastFrame >= FRAME_MS) {

float dt = (now - lastFrame) / 1000.0f;

lastFrame = now;

// Move smoothly

hotspotPosF += SPEED_LEDS_PER_SEC * dt;

while (hotspotPosF >= NUM_LEDS) {

hotspotPosF -= NUM_LEDS;

// Advance palette once per full revolution (optional but feels nice)

paletteOffset = (paletteOffset + 1) % 6;

}

// Render

renderBasePattern();

applyFourHotspotsWithSmoothGap(hotspotPosF);

FastLED.show();

}

}
