YunYing 16 YunYing 20pro 2.2-inch body frame 2-inch FPV drone 1102 1s
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
4.3 h
5 plates
Open in Bambu Studio
Boost
2
4
0
0
14
4
Released
Description
Content has been automatically translated.

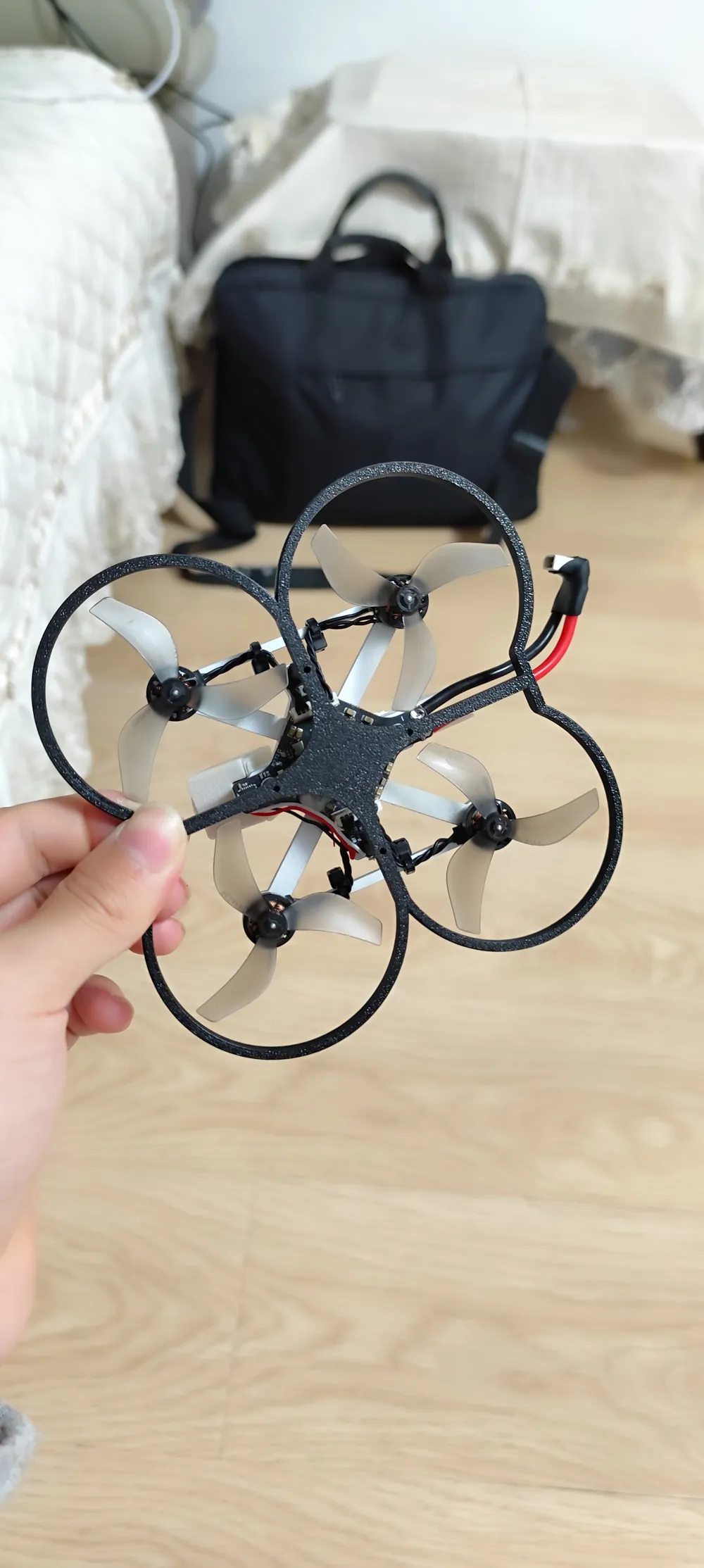

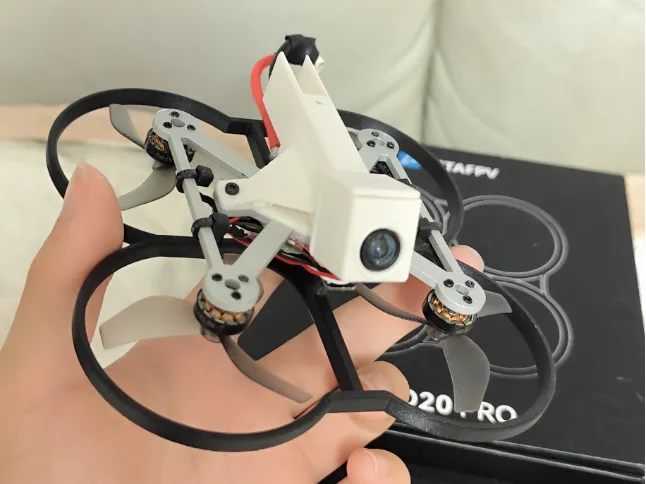

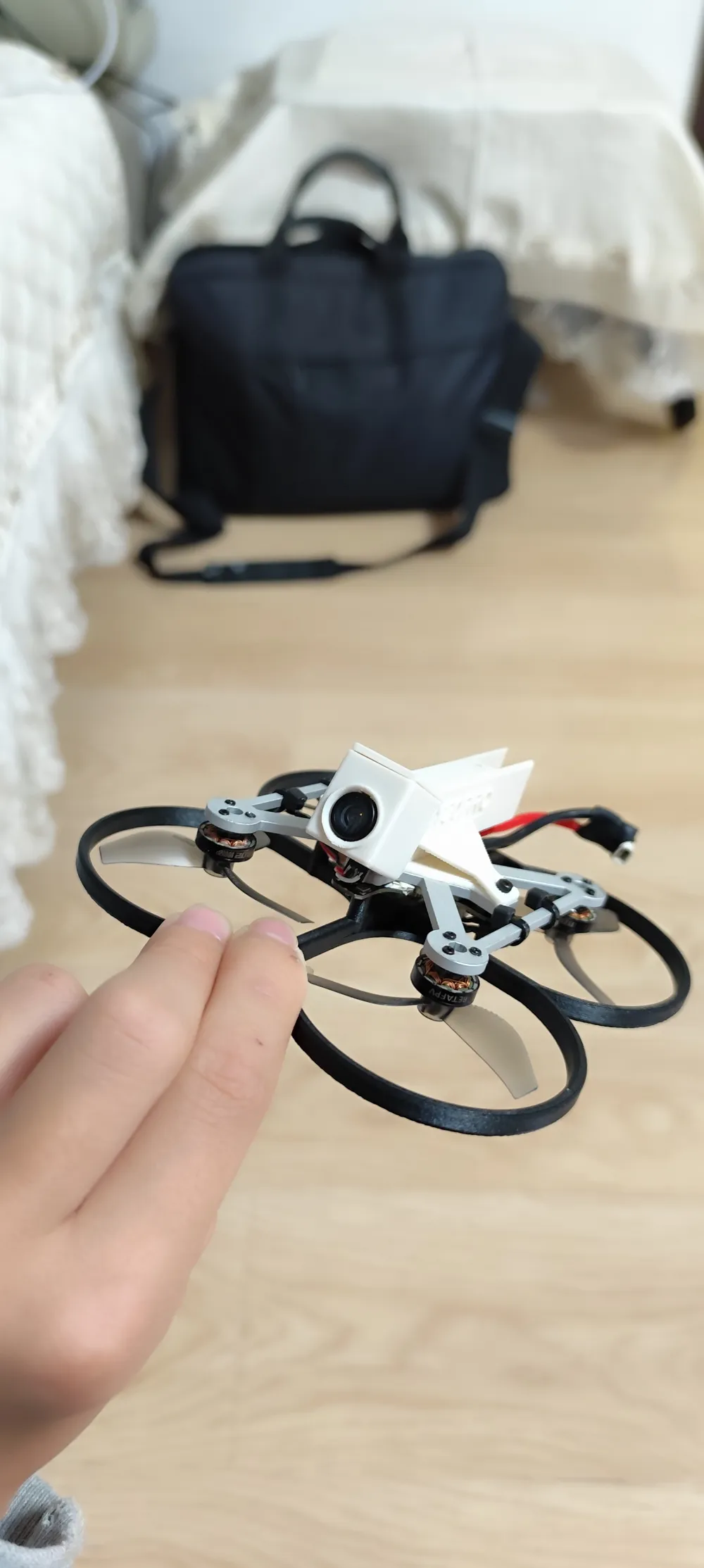

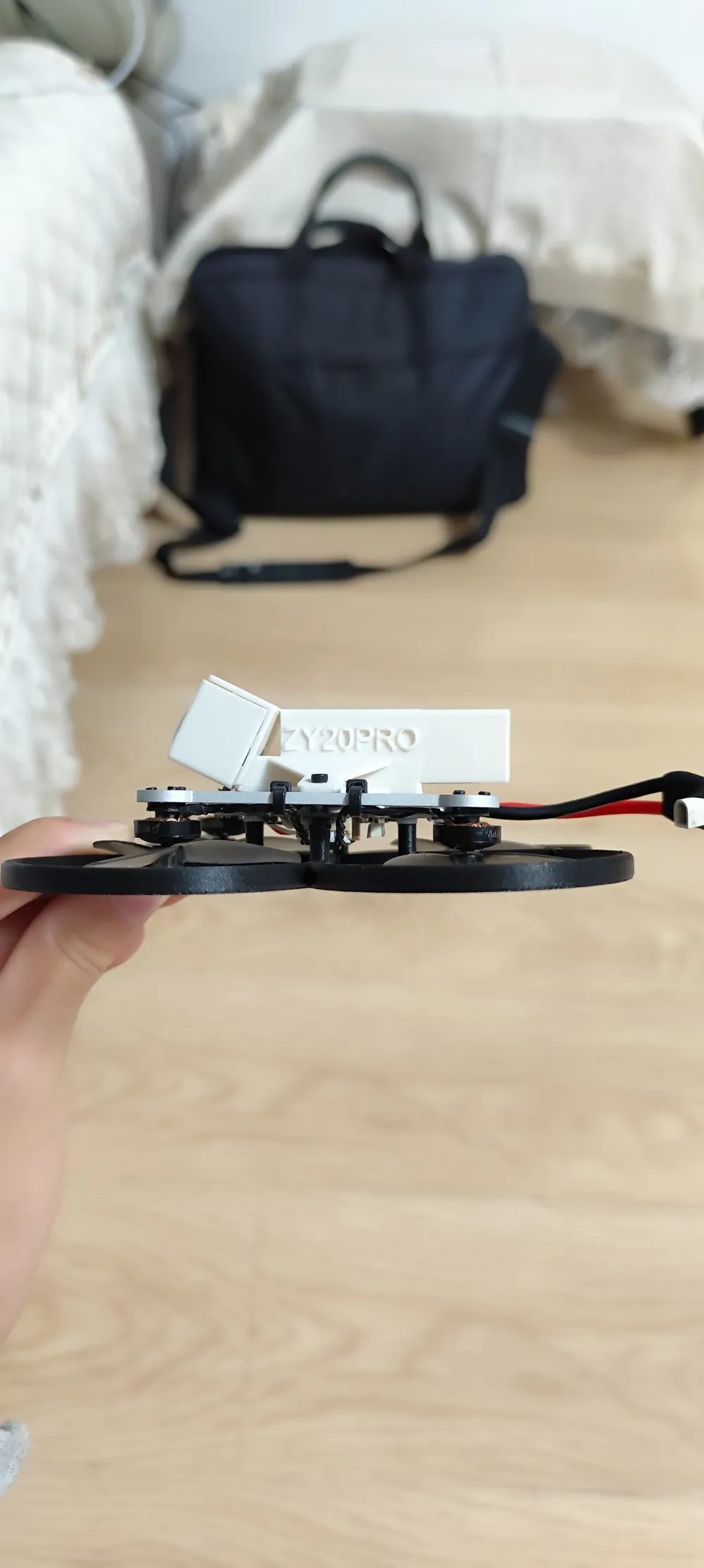

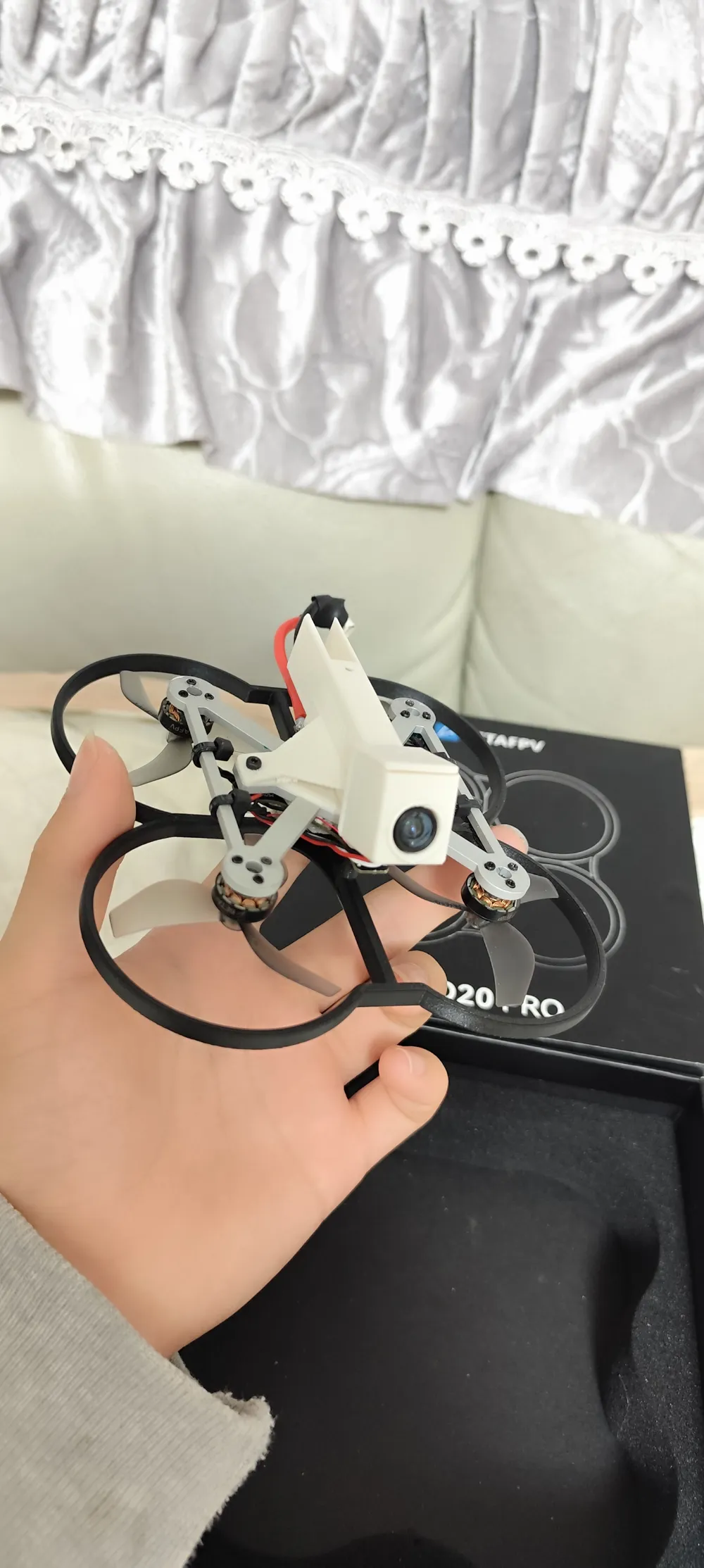

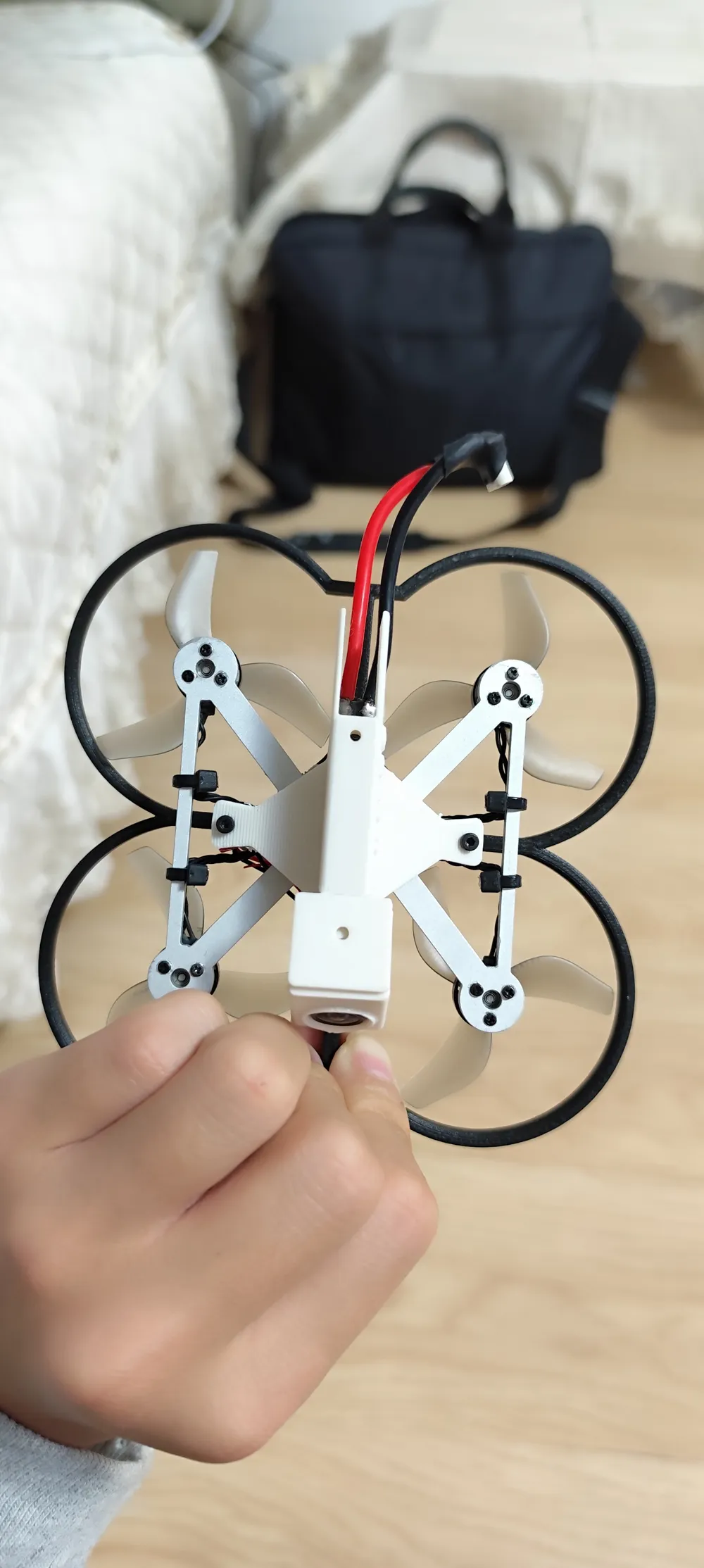

This is a modification part that supports the Betafpv Pavo16. It can also be used with all AIOs with 25.5 26mm mounting holes and 1102 motors
Have you also encountered issues with the original power being too weak and the battery voltage drop being too high
This frame can solve your problem

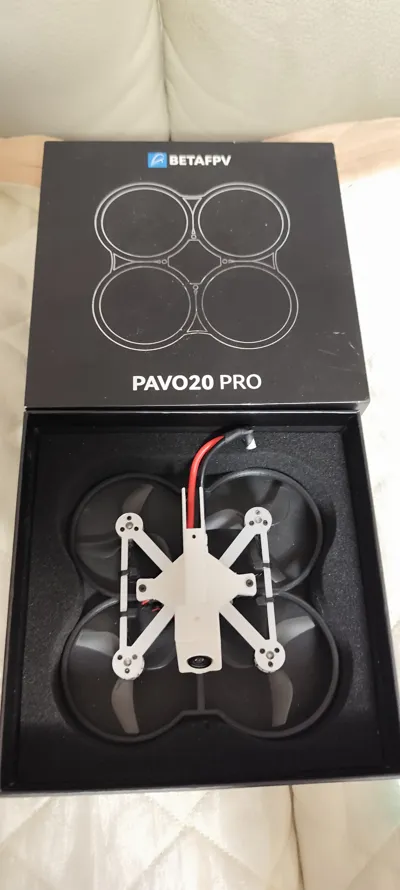

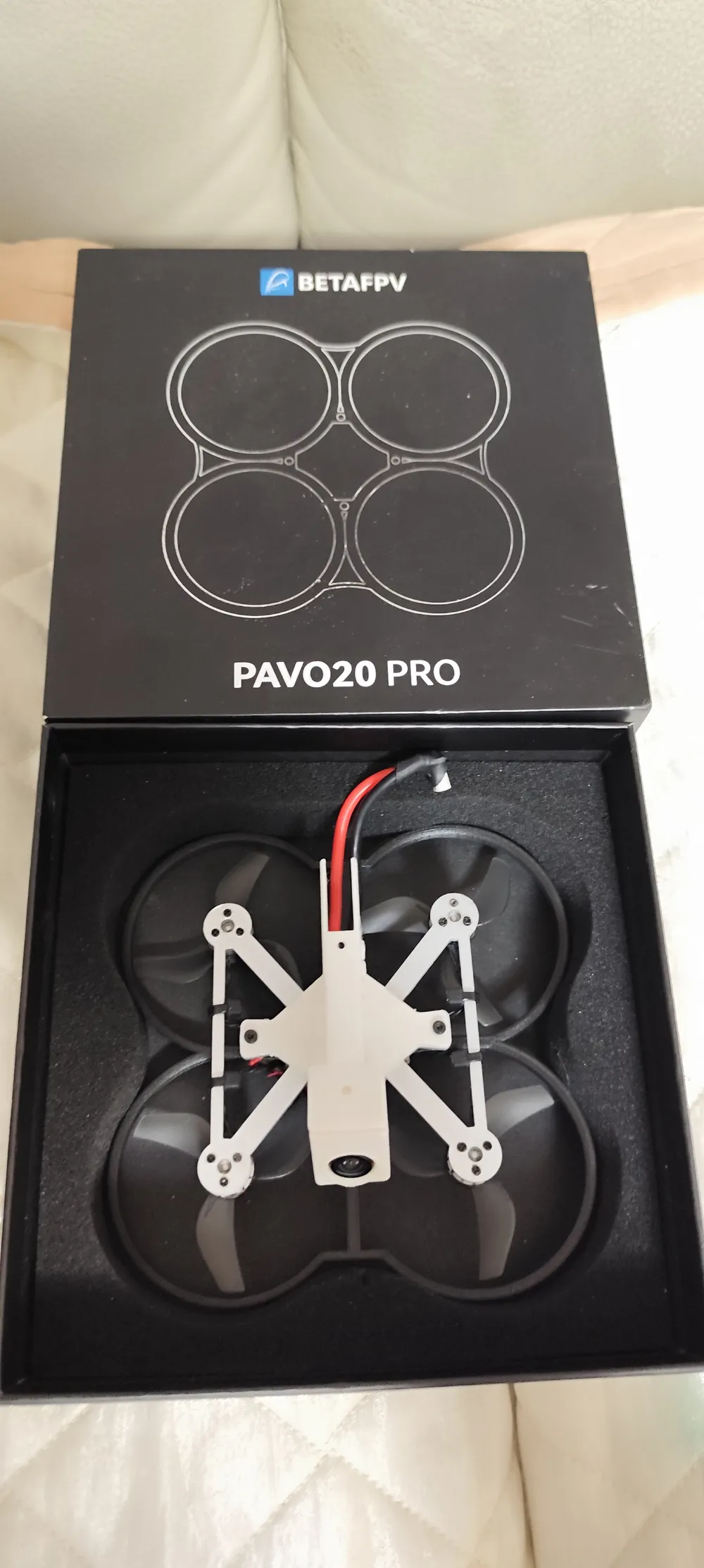

It uses the same 2.2-inch propeller blades as the Pavo20 Pro, with the same size and almost identical structure. It has a very simple structure with only 4 2*20 screws in addition to the motors
You can reuse the motors, flight controller, and VTX from the Pavo16
For the battery, I use Betafpv's 550 80C battery, and Lava batteries also work
I feel this frame is quite crash-resistant. The ducts can be made with PETG CF
Don't worry, this 18000kv motor with 2.2-inch props will have no problem and won't burn out
The frame can be CNC cut for free on JLCPCB's official website. The STEP files are available on my homepage
