Description

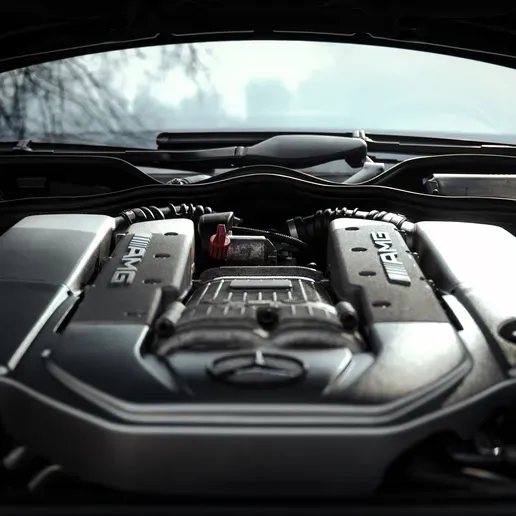

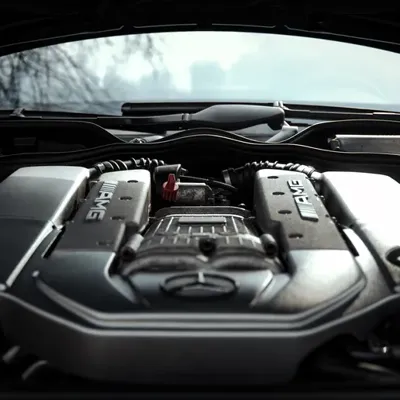

Airbox spacer for the M113K engine from Mercedes Benz
What do the spacers do?
They lift the air filter, allowing air to flow better into the air filter box. (Originally, the front corner of the air filter obstructs the intake channel)
This provides more volume and thus more cool air in the intake tract.
Various measurements showed that the spacers resulted in up to 0.5 seconds faster 100-200 km/h acceleration times.
My own measurement in 2022: previously 9 seconds 100-200 with 18-inch wheels
March 2, 2023: 8.6 seconds 100-200 with 19-inch wheels! Measured with a PGEAR P610
Up to 35 hp gain is even mentioned here http://tunedmercedes.com/performance/cold-intake-air-spacers/
How are they installed?

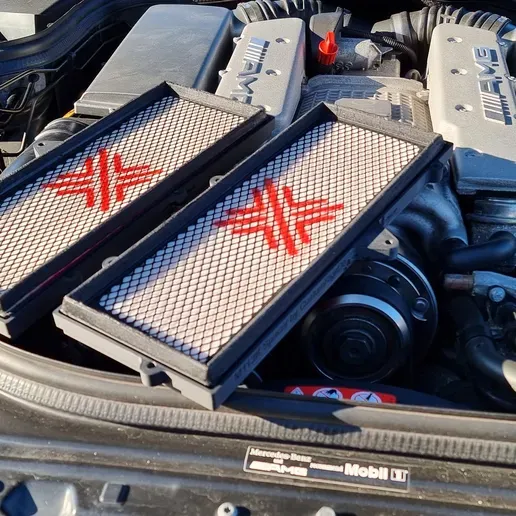

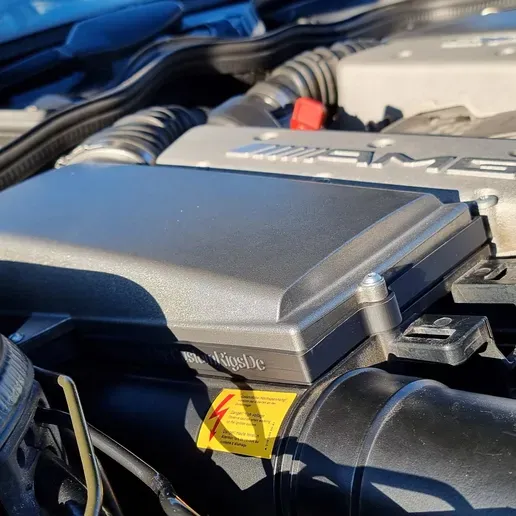

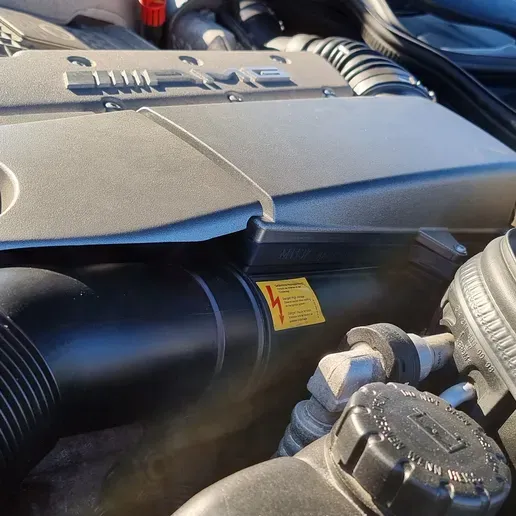

They simply go into your airbox: remove the air filter, insert the spacer, put the air filter back in. Screw the lid on.

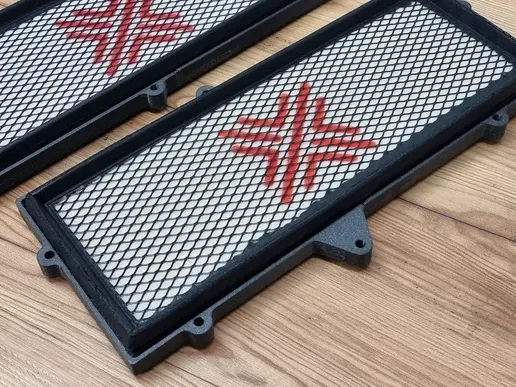

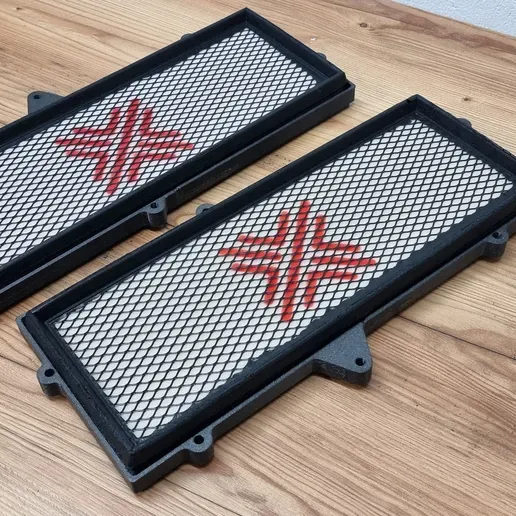

To be able to print them on smaller printers, I have split them into 2 parts; just glue them together, and you're done.
You will also need 15mm longer screws!
STS KN1038 5x50 - T20 https://amzn.to/4pIfsRw
Don't forget, this is a private license!
English Version ------------------------------------------------------------------
Airbox spacer for the M113K engine from Mercedes Benz
What do the spacers do?
They lift the air filter, ensuring that air can flow better into the air filter box. (Originally, the front corner of the air filter obstructs the inflow channel).
In addition, this provides more volume and thus cooler air in the intake tract.
Various measurements showed up to 0.5 seconds faster 100-200 km/h acceleration with the spacers installed.
My own measurement in 2022: previously 9 seconds 100-200 with 18-inch wheels
March 2, 2023: 8.6 seconds 100-200 with 19-inch wheels!
Here they mention up to 35 hp more power! http://tunedmercedes.com/performance/cold-intake-air-spacers/
How are they installed?
They simply go into your airbox: remove the air filter, insert the spacer, put the air filter back in. Screw the cover on.
Suitable for various models.
To be able to print them on smaller printers, I have divided them into 2 parts; just glue them together, and they're ready.
You will also need 15mm longer screws!
STS KN1038 5x50 - T20 https://amzn.to/4pIfsRw
Don't forget, it's a private license!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
