775/795 three-phase motor housing
Print Profile(1)
Description
Boost Me (for free)
I beg for a boost!

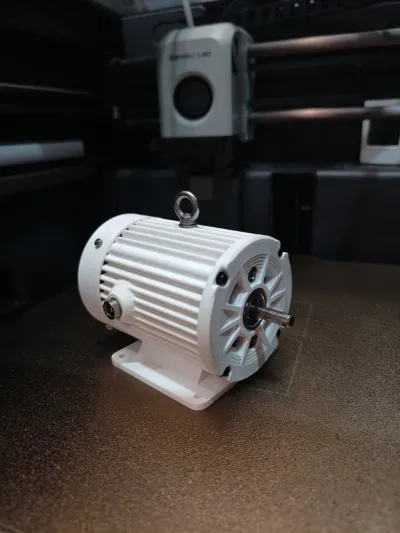

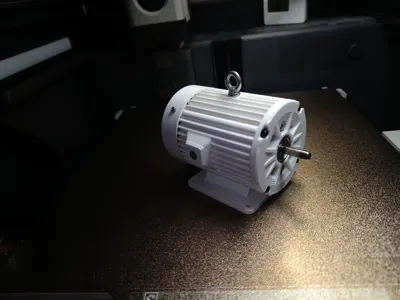

This is a motor mounting base designed based on the 975 motor, with its appearance referencing a three-phase motor
The cooling air duct of the original motor is retained
Two versions are designed

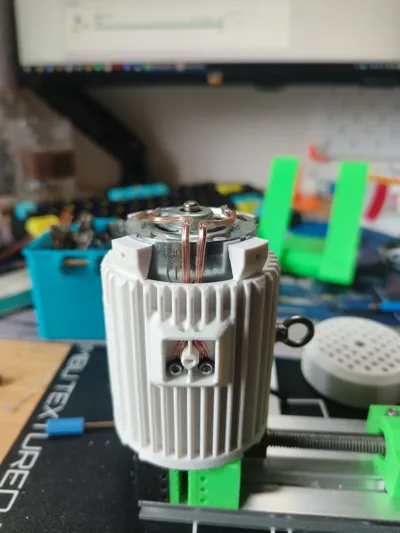

One version features wiring similar to a three-phase motor's junction box, for a more realistic appearance
The other version features a more convenient DC connector for easier use
Two points to note

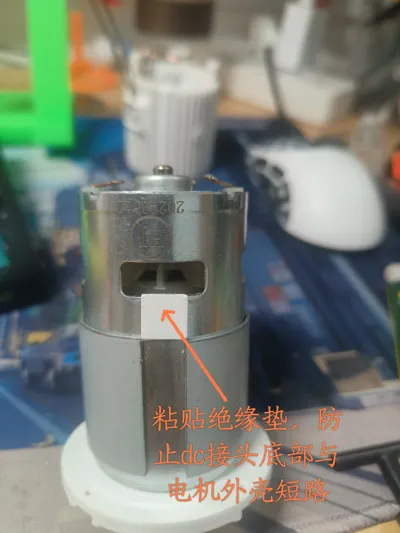

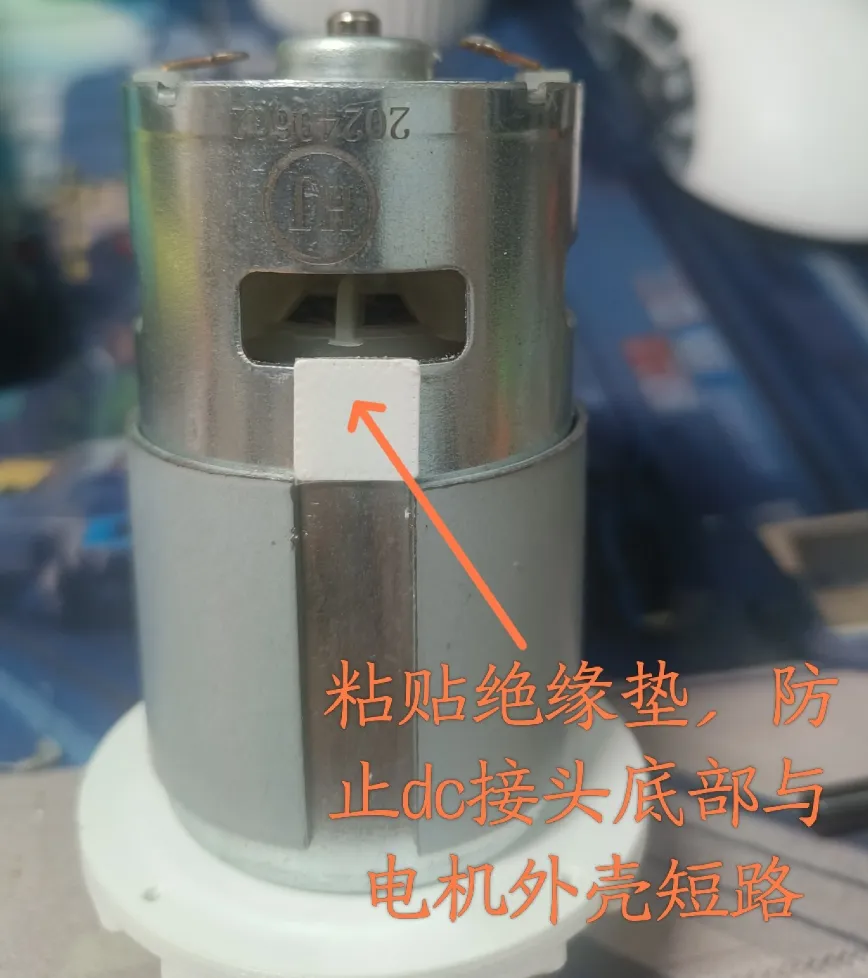

1. An insulating pad must be added to the back of the DC connector to prevent contact between the DC connector and the motor housing
2. Be careful not to use screws that are too long for the junction box, as this will cause the positive and negative wires inside the junction box to contact the motor housing, which can lead to a short circuit. M2×5 screws are used in the design

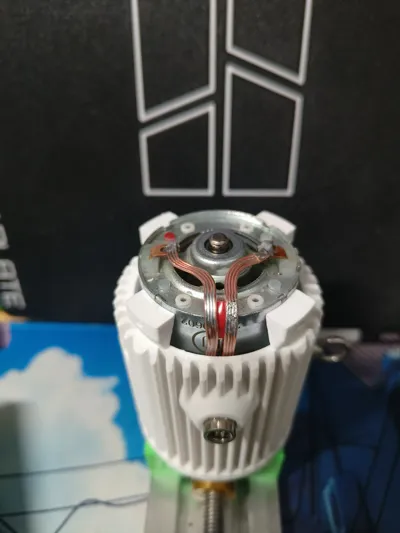

The copper wire I used in the pictures is covered with a layer of transparent heat shrink tubing
Pay attention to the positive and negative terminals of the motor when wiring

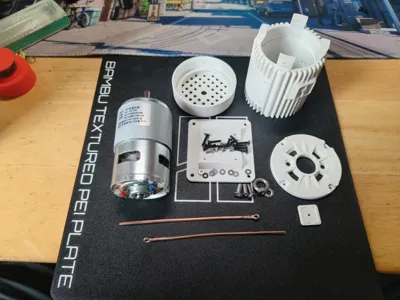

Complete accessories list (classified by use)
| Category | Name | Specifications | Quantity | Remarks |
| Core Components | Motor | 795 motor or 775 motor | 1 unit | 795 motor preferred |
| Mounting Screws | Countersunk screw | M4×8 | 2 pieces | for fixing the main base |
| Thin-head screw | M3×10 | 1 piece | Head thickness should not exceed 2MM | |
| Socket head screw | M2×12 | 8 pieces | ||
| Socket head screw | M2×5 | 9 pieces | ||
| Washer Accessories | Washer | Outer diameter 8, inner diameter 3, thickness 1 | 1 piece | |
| Washer | Outer diameter 5, inner diameter 2, thickness 0.5 | 8 pieces | Used with M2 screws for increased fixing stability | |

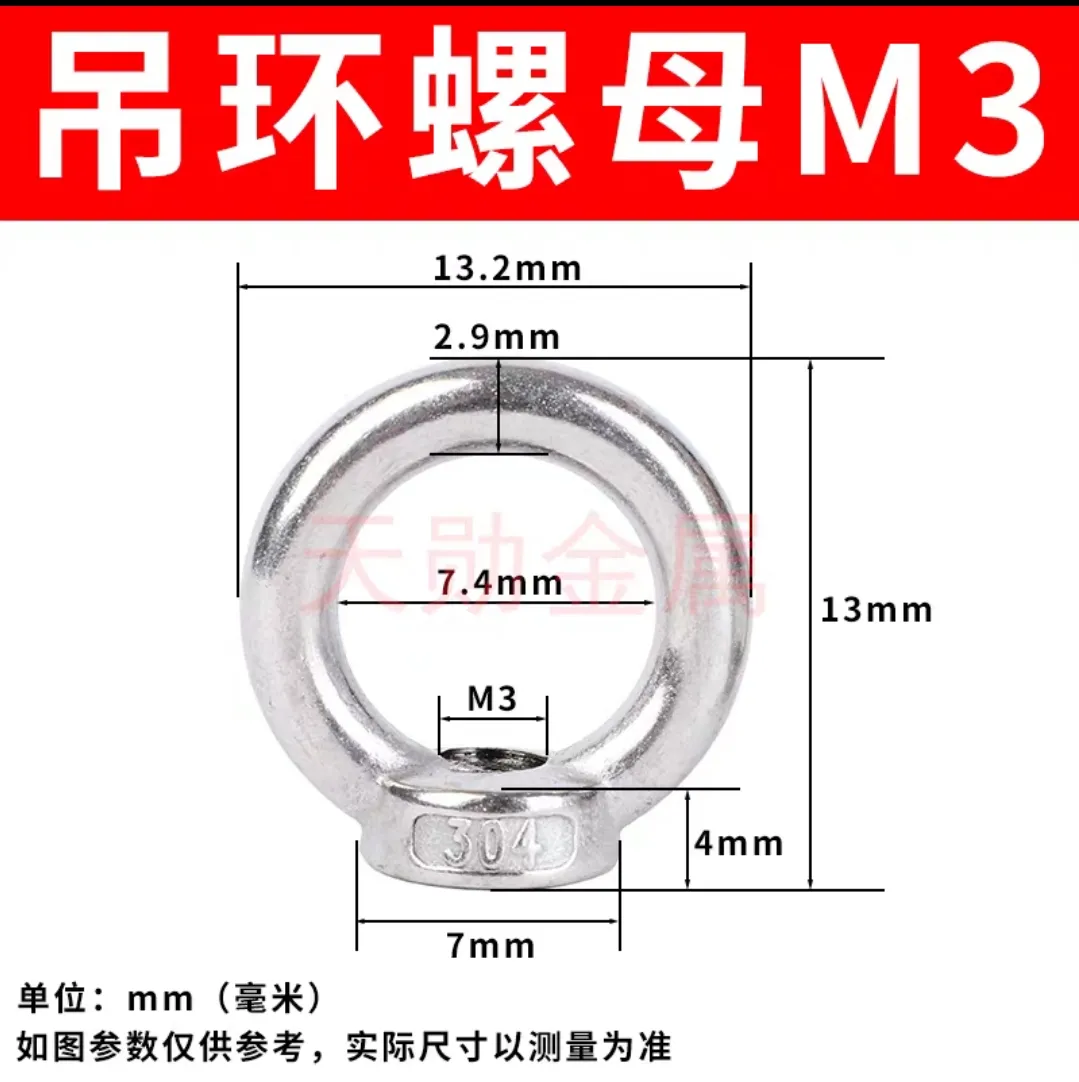

| Connectors | Eye nut | M3 specification | 1 piece | |
| Wiring Components | DC connector | Outer diameter 8mm | 1 piece | Used only for Version 2 |
| Copper wire | I used 4 strands of 0.5 copper wire | As needed | Transmits current, cut length as needed |

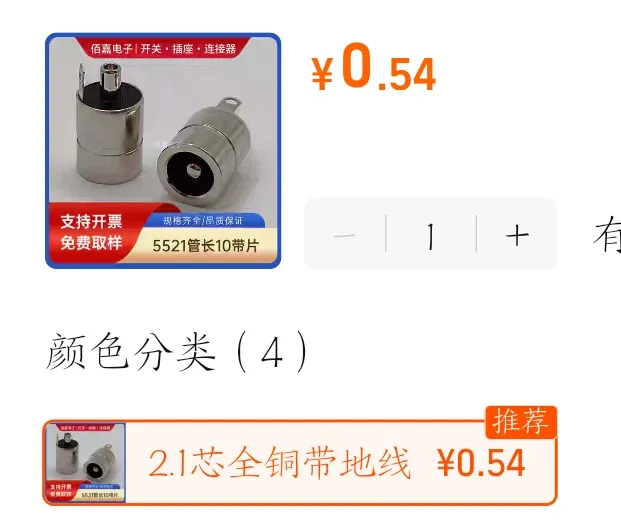

[Taobao] 7-day no-reason return https://e.tb.cn/h.7t8GHVWIa4lGam2?tk=4rKfU9bQcEW CA381 「DC-084金属插座5.5*2.1/2.5带地线DC083母座接口5521管长10带焊片」
