Replacement part for the Sigma 105mm F1.4 DG HSM lens PT-21 protective case
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
49 min
1 plate
Open in Bambu Studio
Boost
0
0
0
0
0
1
Released
Description
Content has been automatically translated.

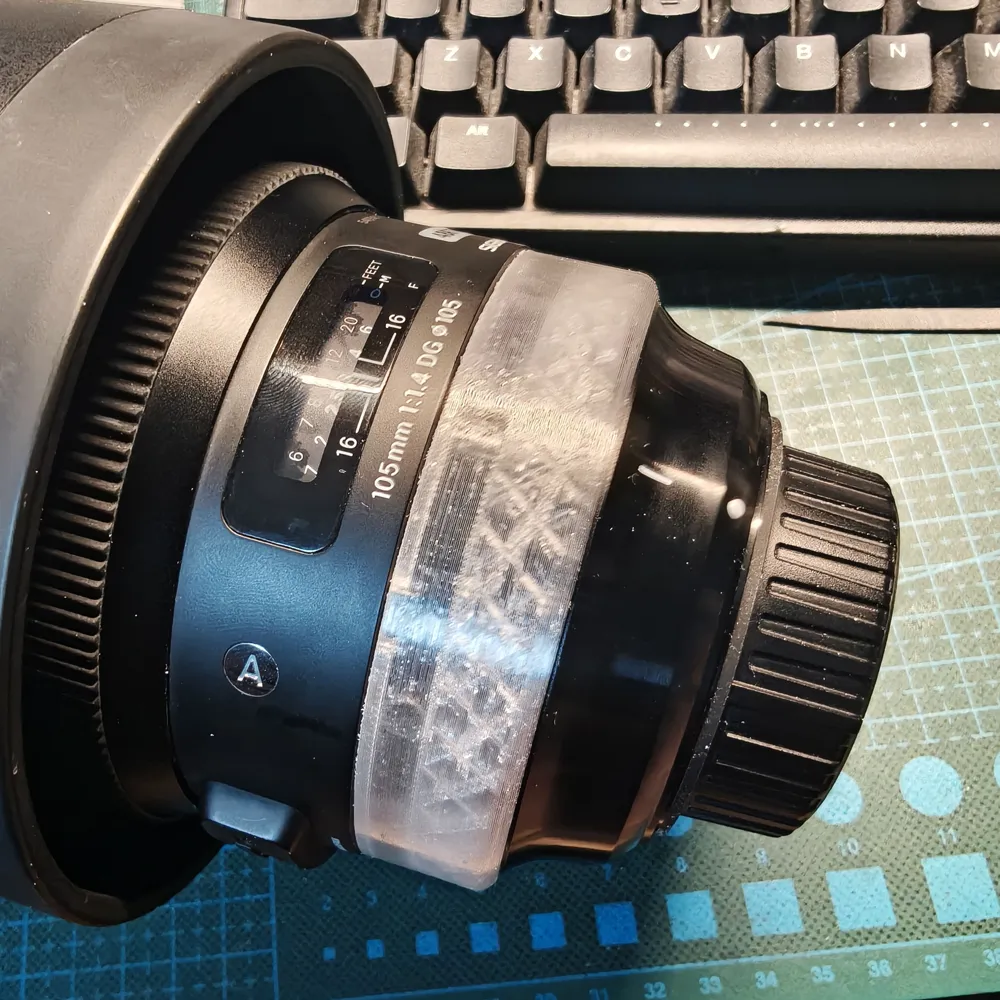

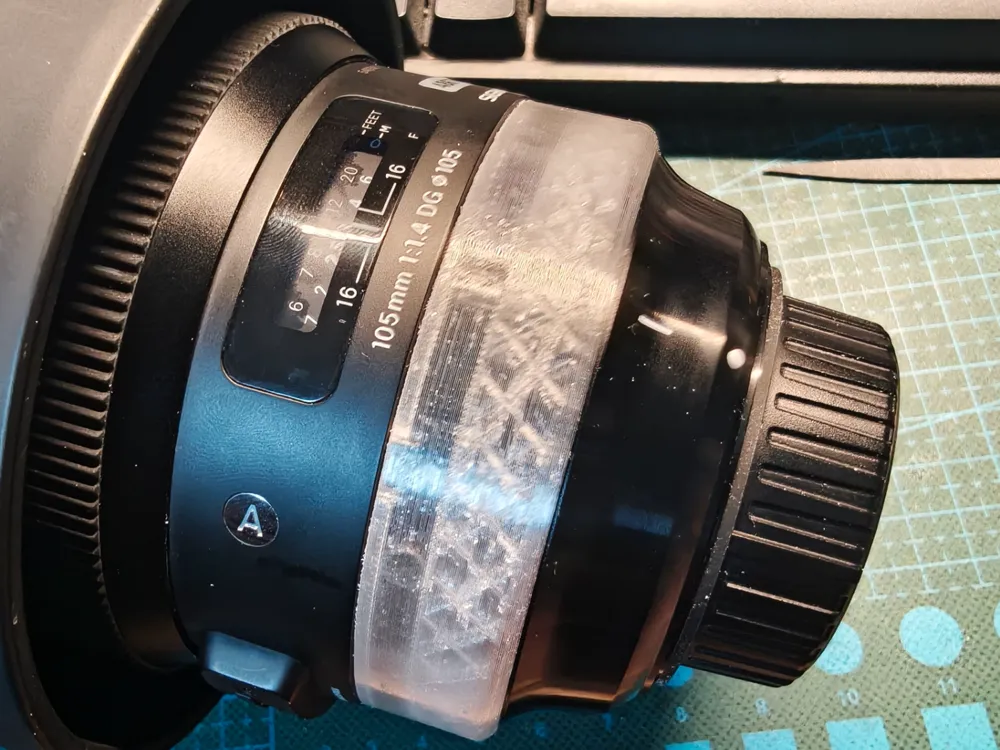

Replacement part for the Sigma 105mm F1.4 DG HSM lens PT-21 protective case, used to protect the connection lug after removing the tripod collar, slightly reducing the burden of street photography.
Compared to the original factory product, a rotational locking function has been added (there's a high probability that used lenses are missing this original component).
X-Y inner contour size compensation needs to be fine-tuned according to the material's cooling shrinkage rate; PETG requires approximately 0.2-0.3; TPU might better match the original factory feel, but it hasn't been tried due to lack of material.
You can change the color scheme according to your preference to get a gold ring/red ring/green ring/silver ring pro lens.
