Under-Table drawer 100x100x245

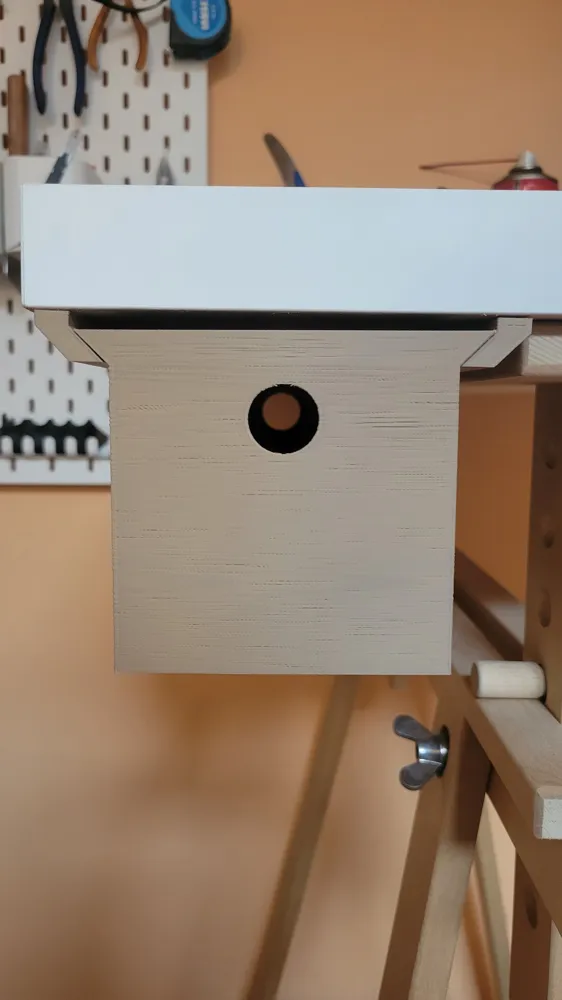

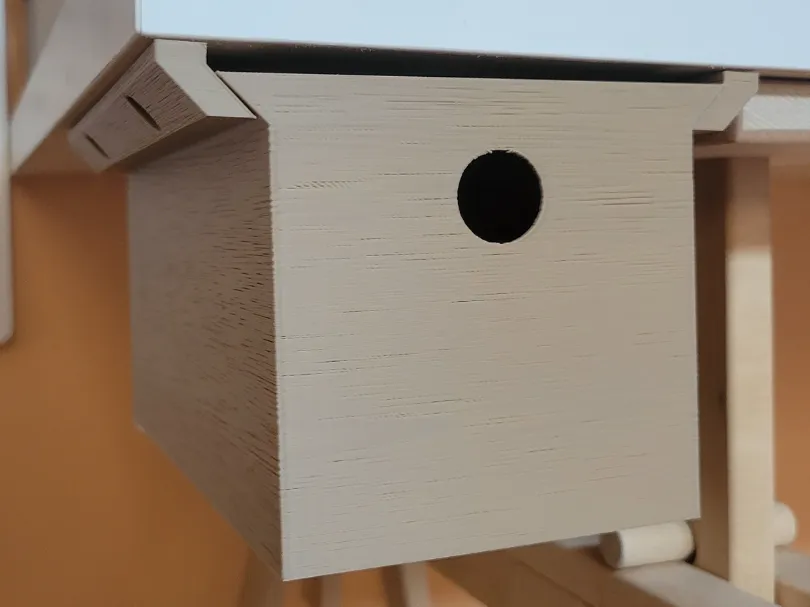

This is a simple and practical 3D printable drawer designed to be installed under any wooden table or desk that doesn’t already have a drawer.
It’s perfect for workshops, desks, workbenches, or any place where you want extra storage without modifying the furniture.

Design Overview

The system is made of two separate parts:

• Mounting guide – fixed under the table
• Drawer – slides into the guide after installation

The installation is very easy and requires only basic tools.

Installation

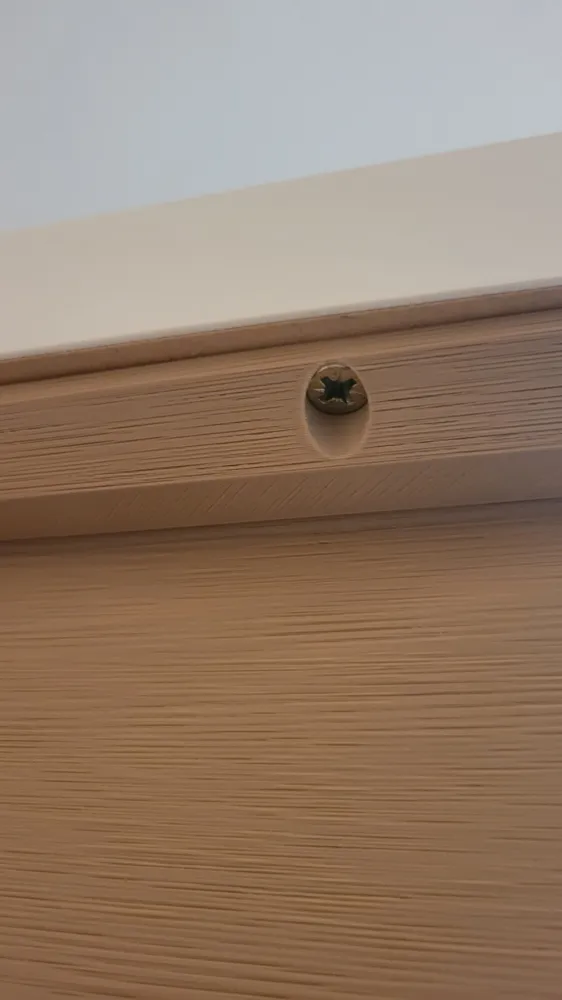

1. Screw the guide under the table using four 4.5 mm wood screws
2. Slide the printed drawer into the guide

That’s it.
No measuring systems, rails, or metal parts required.

Tools needed:

• Screwdriver or power driver

Drawer Dimensions

• Height: 100 mm
• Length: 245 mm
• Internal width: 95 mm

The drawer is compact but still very spacious and usable.

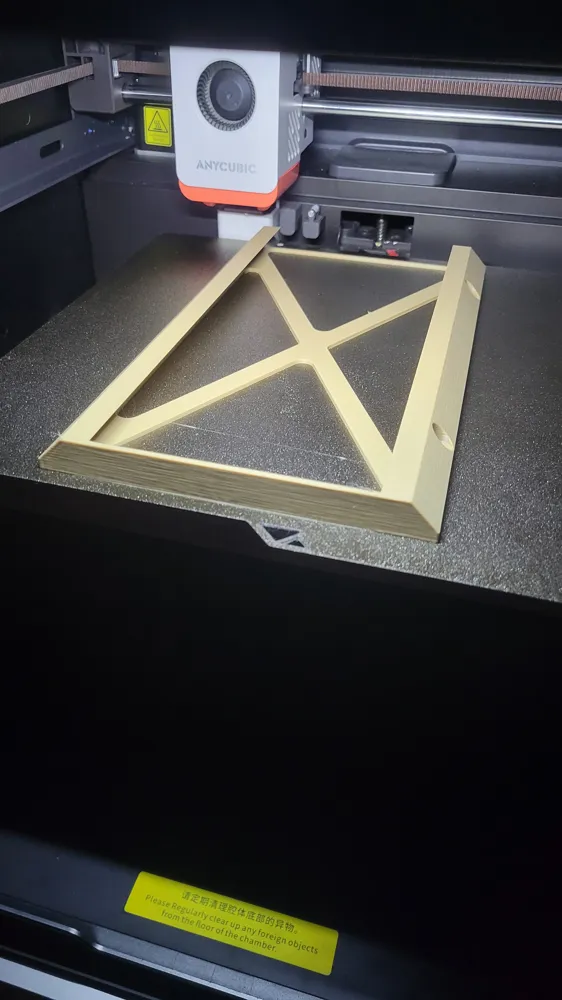

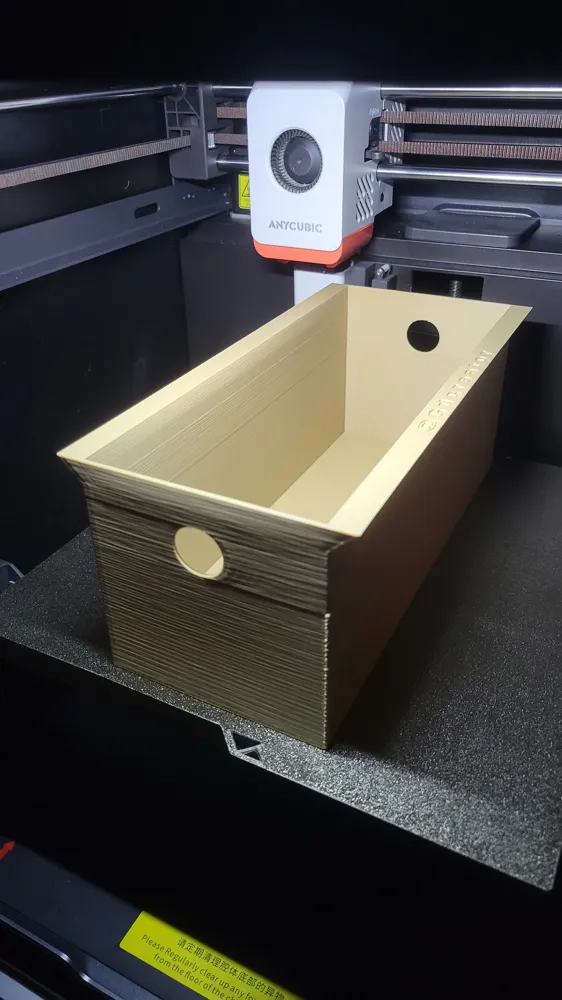

3D Printing Information

• No supports required
• Any material can be used (PLA, PETG, ABS, etc.)
• Any infill works for the drawer since it’s designed as an almost full-wall structure
• Recommended infill for the guide: ~30% (no high mechanical stress involved)

Notes

• Designed to be easy to print and easy to install
• Suitable for both beginners and experienced users
• Fully printable with standard desktop 3D printers
