Biltema 20-627 and 20-629 Organizer Bin Series

Description

This is a complete set of high-quality, 3D-printable organizer bins designed specifically for the Biltema 20-627 and 20-629 compartment boxes. These models have been meticulously measured to ensure a perfect fit.

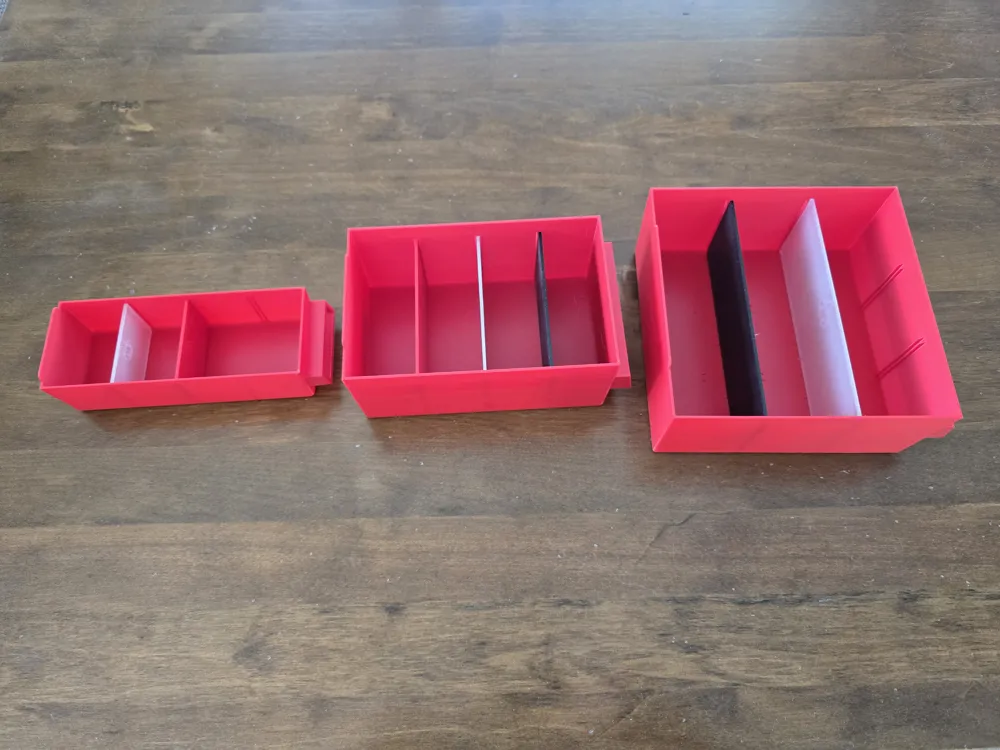

The series includes three sizes:

• Small: For tiny screws and components.
• Medium: The standard all-rounder.
• Large: Maximum capacity with flexible divider options.

Key Features:

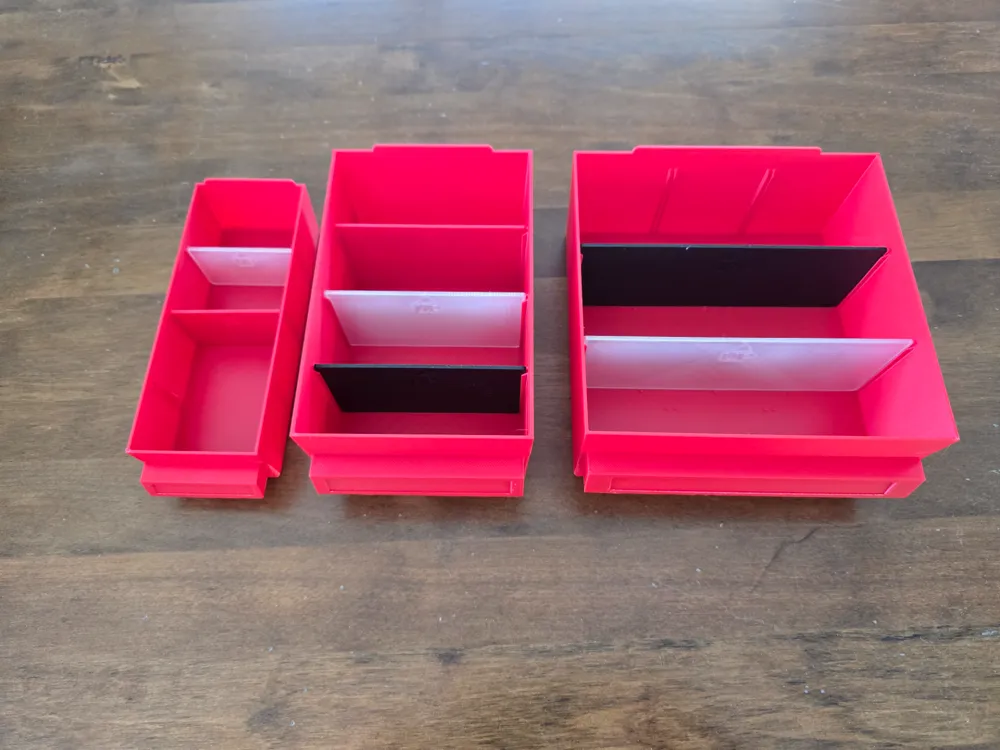

• Flexible Divider Placement: The Large bin features divider slots on all four walls. This allows you to choose the orientation of your dividers (either longitudinal or transverse) to fit your specific tools.
• Integrated Locking: Includes bottom rails and optional locking claws to keep the bins securely in place inside the suitcase.
• Divider Support: Special "stud" pairs on the floor to prevent dividers from bending or shifting at the bottom.
• Ergonomic Handles: Wide, easy-to-grip handles that span the full width of the bin.
• Optimized Walls: 1.25mm wall thickness for a balance of strength and print speed.

Print Settings (Recommended)

• Printer: Bambu Lab P1S / X1C / A1 / A1 mini
• Nozzle: 0.4 mm
• Layer Height: 0.2 mm
• Wall Loops: 3
• Supports: REQUIRED. Because of the integrated locking rails on the bottom, you must use supports for the base.
• Material: PLA, PETG, or ABS/ASA.

Assembly & Use

1. Print the desired size.
2. Carefully remove the supports from the bottom rails.
3. Choose your preferred divider orientation and slide them into the slots. Designed for ~1.65mm thick dividers. https://makerworld.com/en/models/2338618-biltema-20-627-and-20-629-compartment-box-dividers

Note: The Large bin has slots on all walls to allow for different setups, but please note that standard dividers cannot cross each other.
