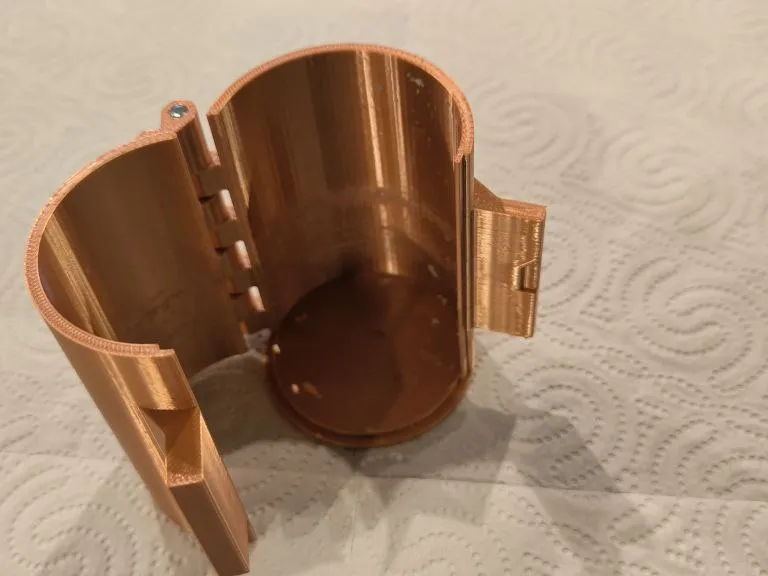

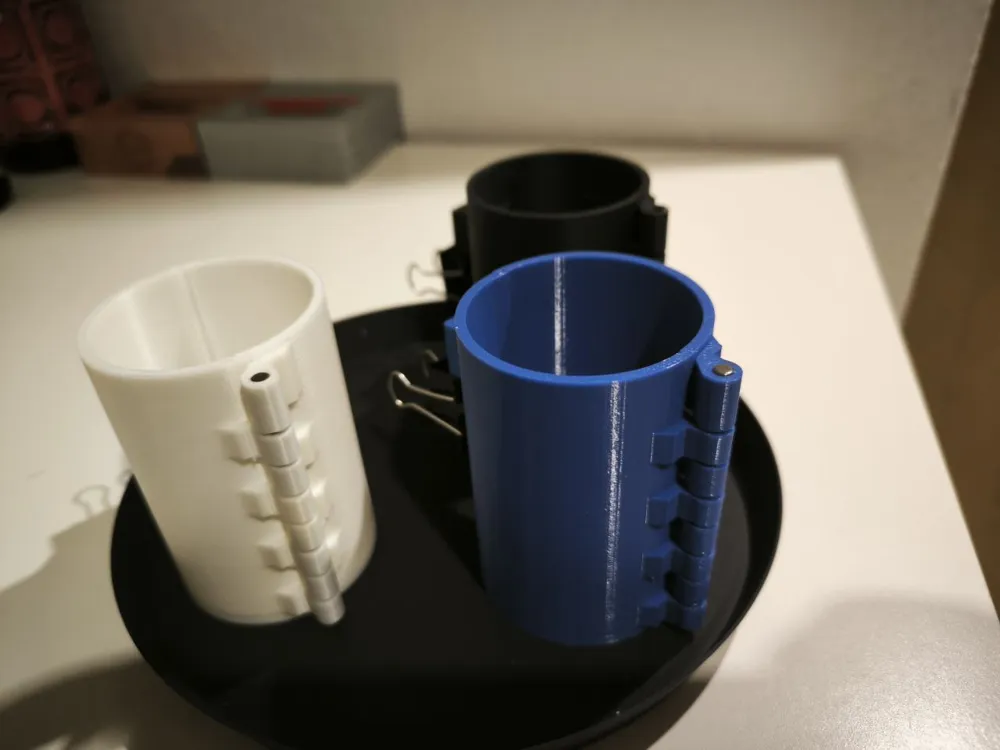

Candle mold for pillar candle enlarged version 50mm

Update:

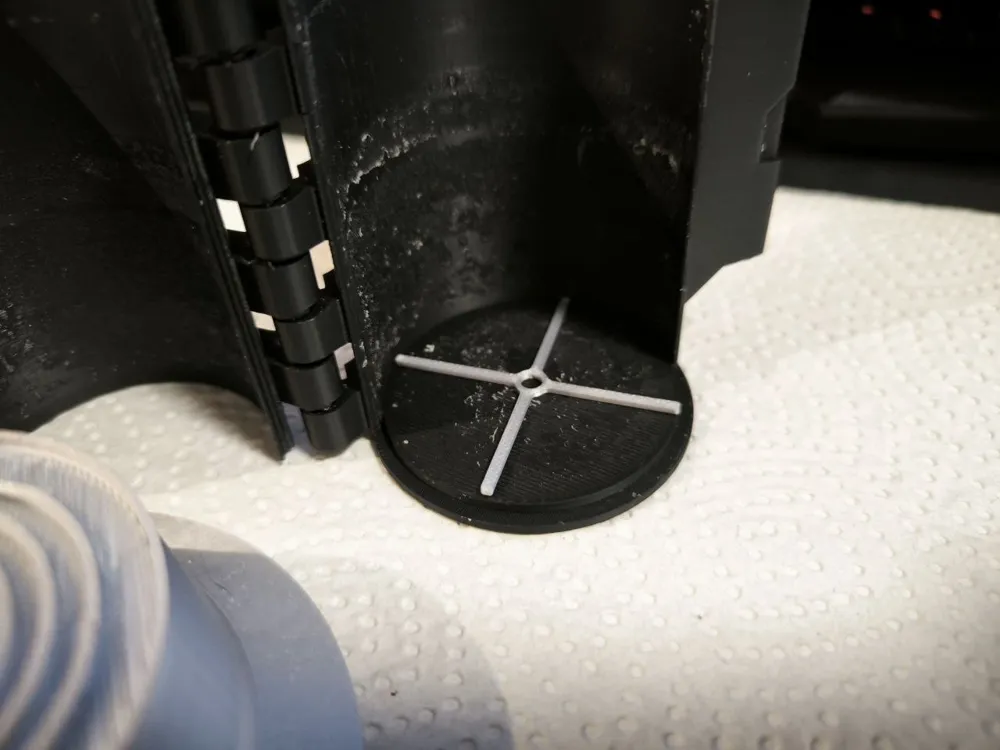

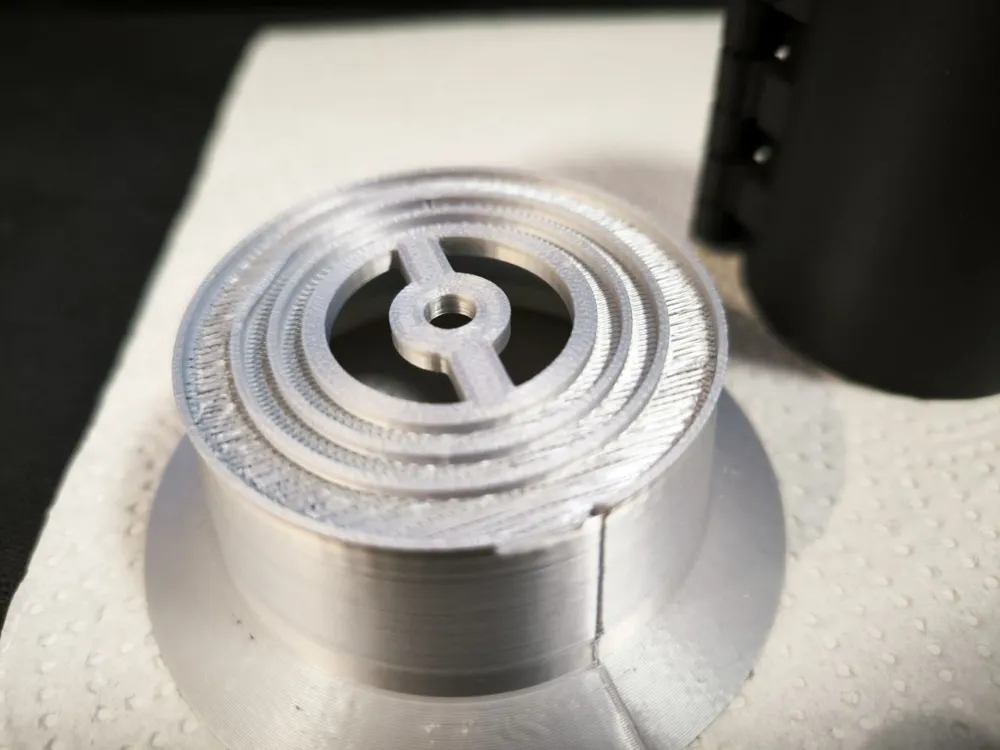

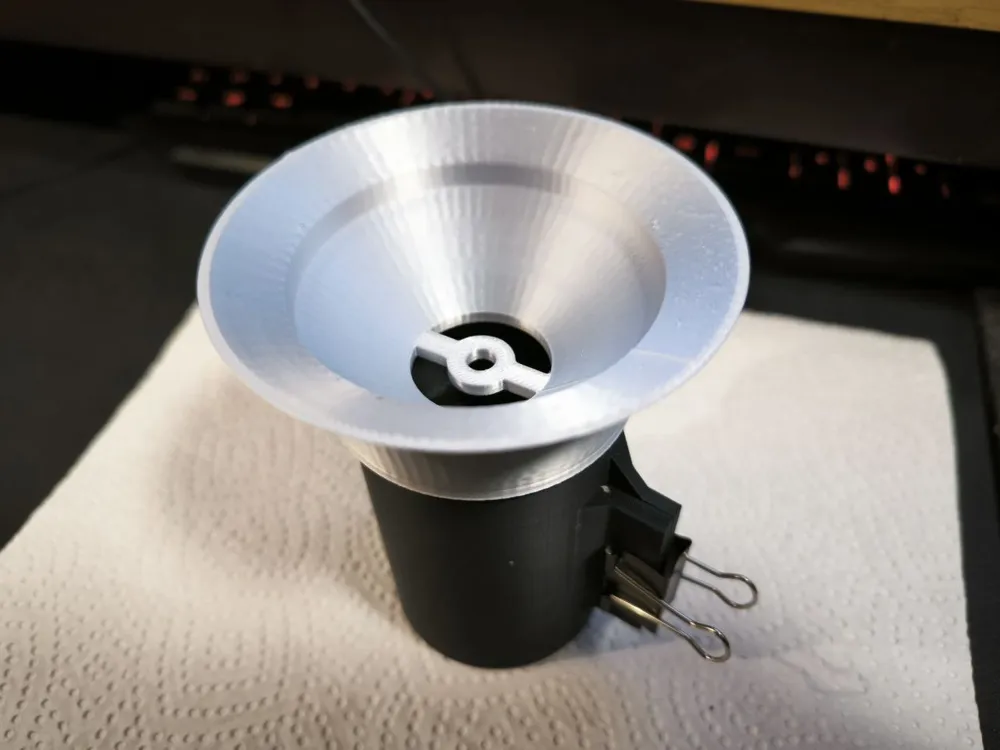

- added two special funnels and a wick centering tool as additional models

This is a mold for a 50mm thick candle It burns significantly longer than a 40mm candle

naturally more candle wax is needed
The candle height can be up to 8cm

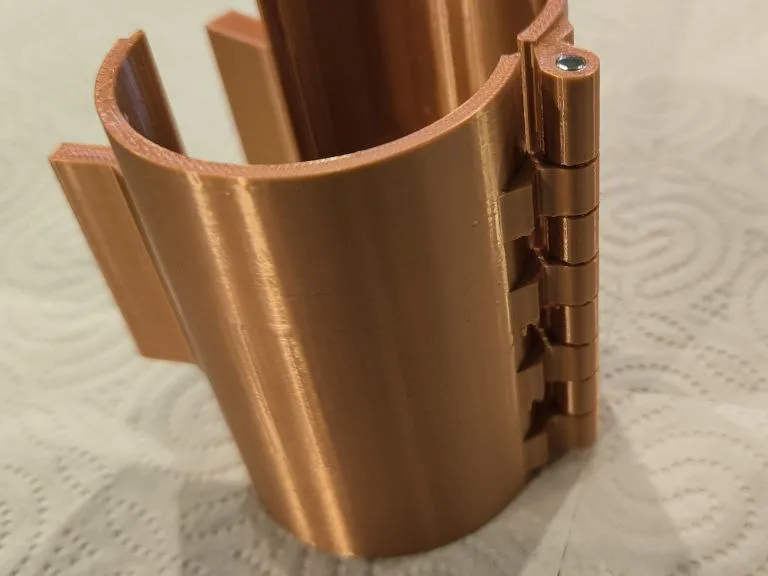

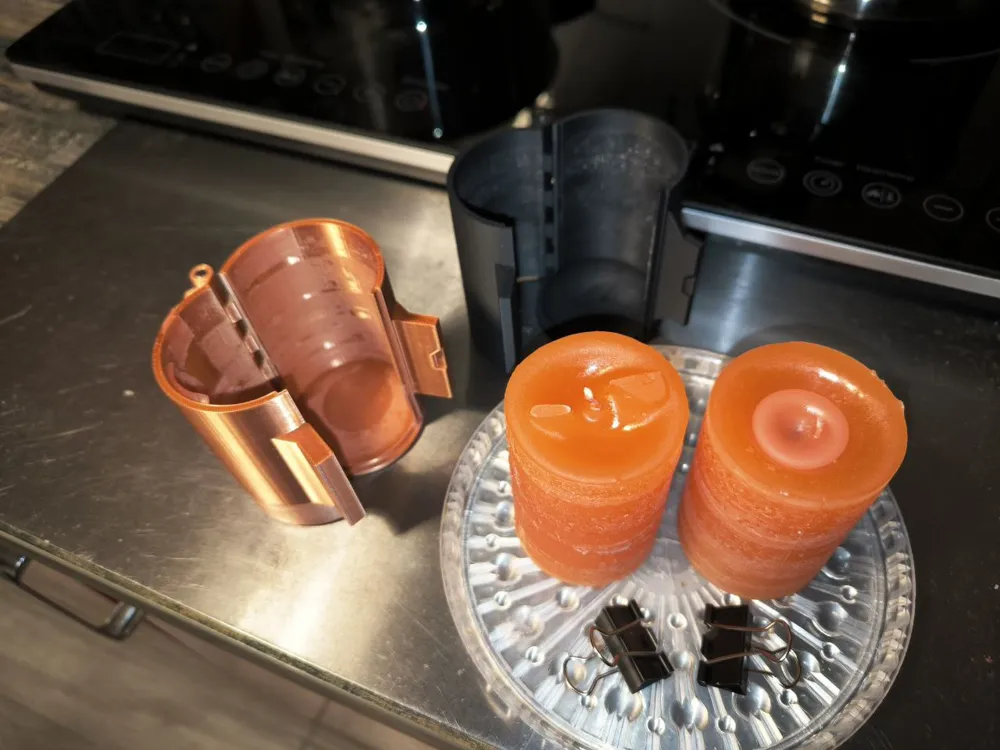

A clip is needed to keep the mold closed and a 4mm pin about 75mm long for the hinge

16mm layer height ... activate supports - tree - organic - on print plate only - top Z distance 0.25 - bottom Z distance 0.25 ... please adjust print bed and nozzle temperature to your filament ... printed with Bambu Lab A1S

After printing, it is recommended to remove any remaining burrs with a key file

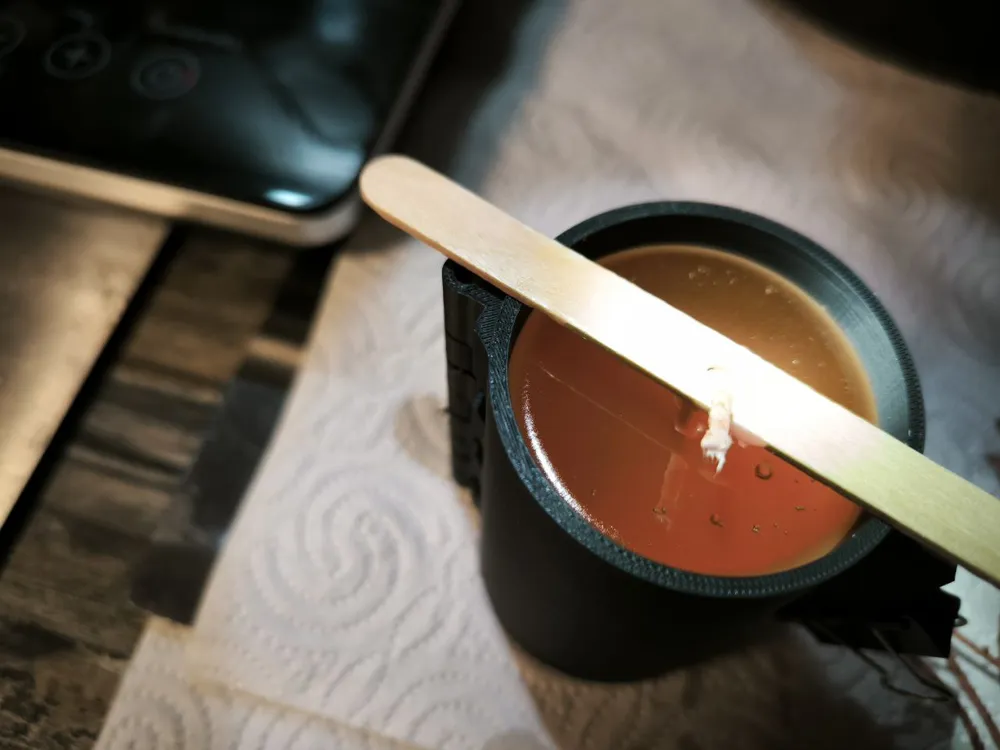

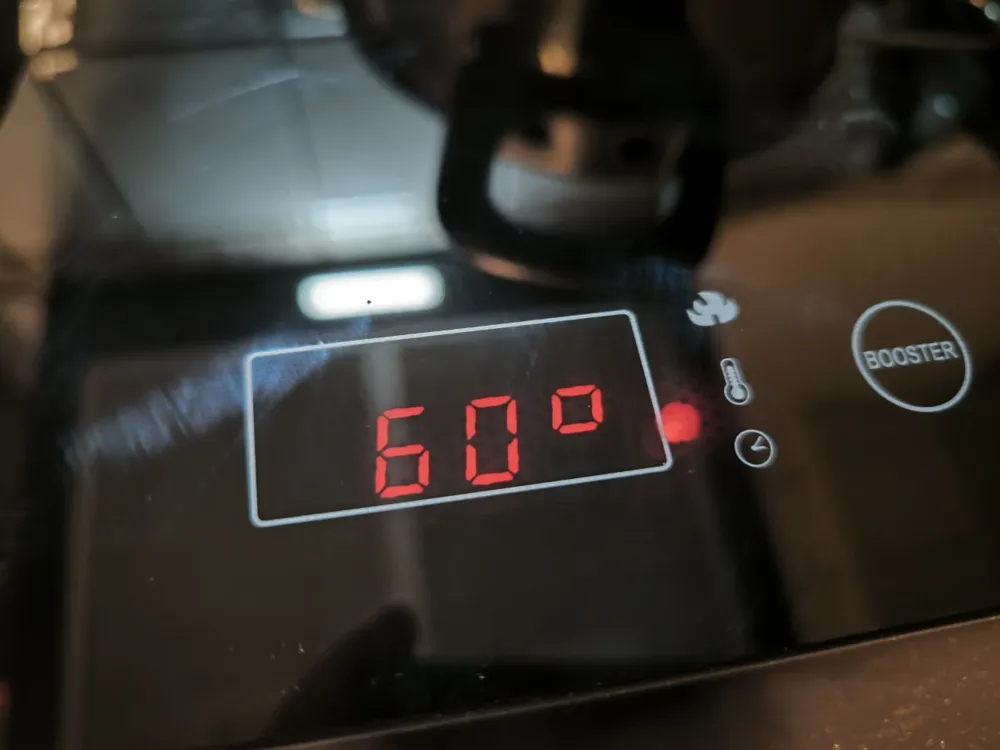

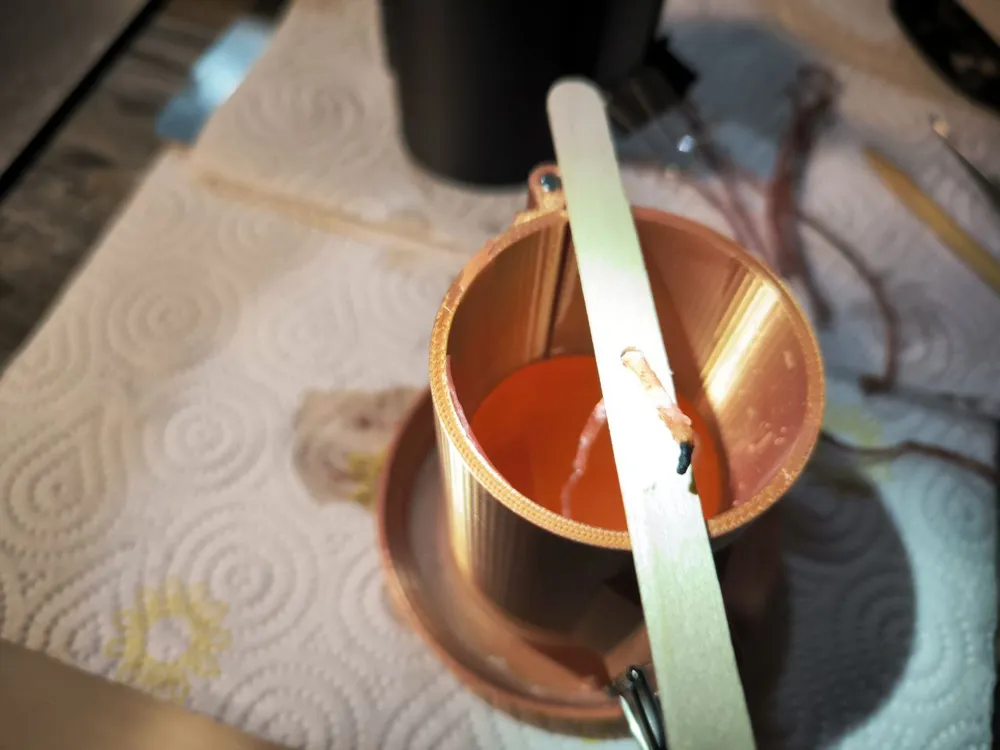

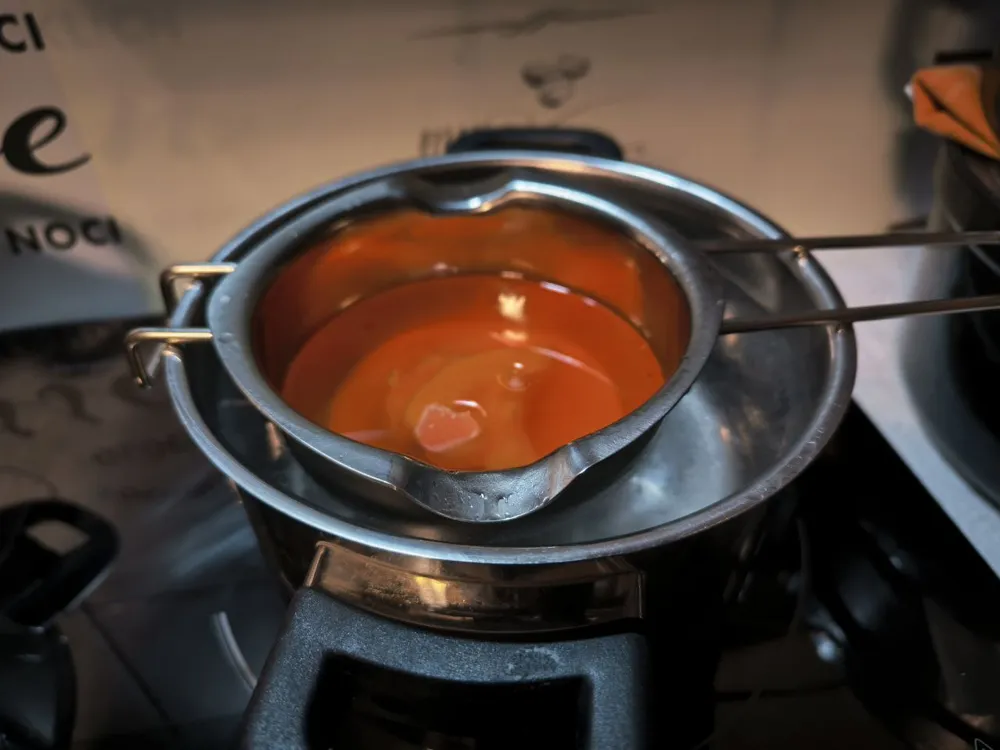

The wax must not be too hot when pouring, just hot enough to be liquid
The mold can warp if the wax is too hot
For me, the mold has always been tight, no wax leaked out

Disclaimer:
* - some external links contain affiliate data. If you order something through these links, I will receive a small commission to supplement my pension, it will cost you nothing extra.

Thank you very much.

Please note: The quality of the print has a lot to do with very well-dried filament and a very clean print plate. Please check your printing environment and adjust the print bed and nozzle temperature to your filament.
The models shown here are without exception printed with Bambu Lab P1S.
