Corner Radius Gauge R0-40mm / Corner Radius Gauge R0-40mm
Print Profile(1)
Description
Chinese Description
Corner Radius Gauge | 0-40mm Radius Measuring Tool

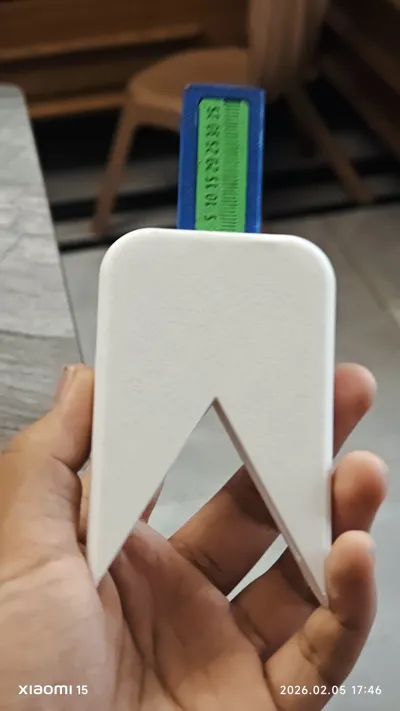

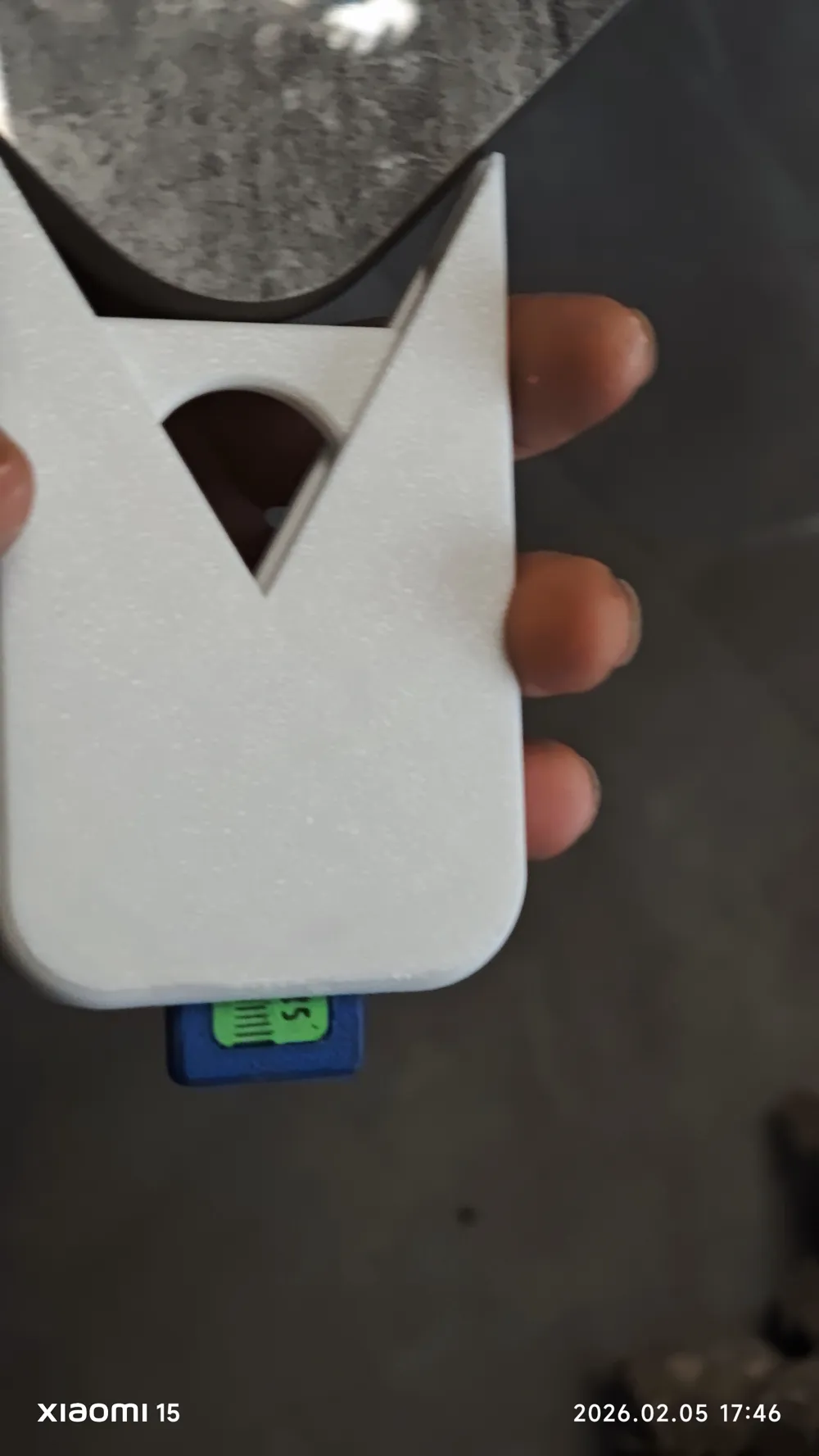

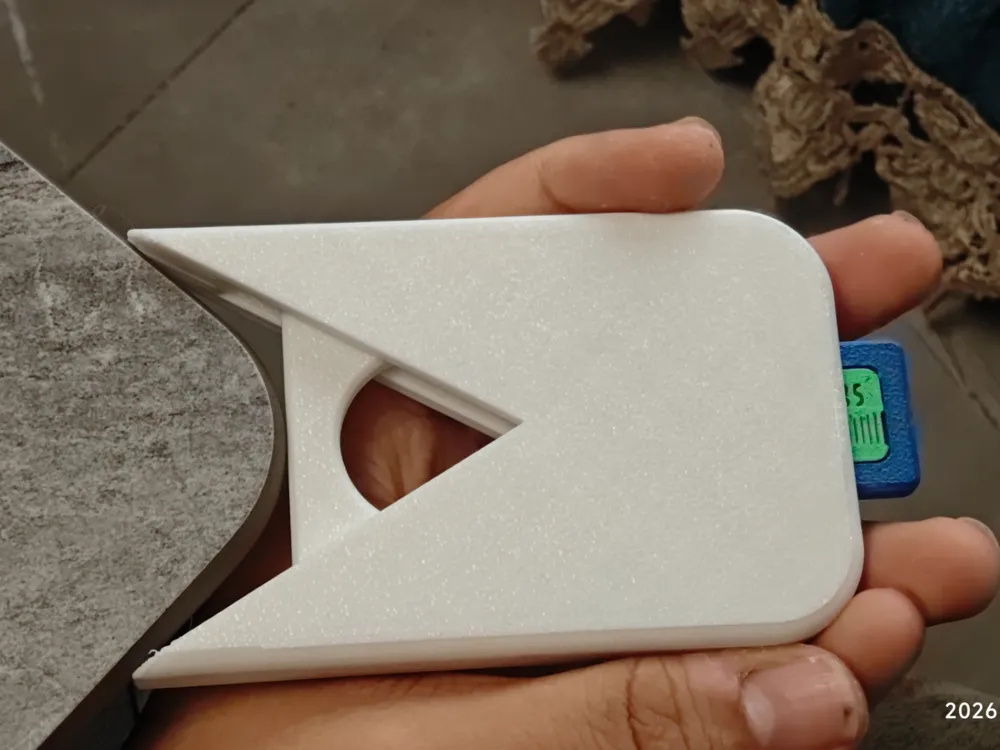

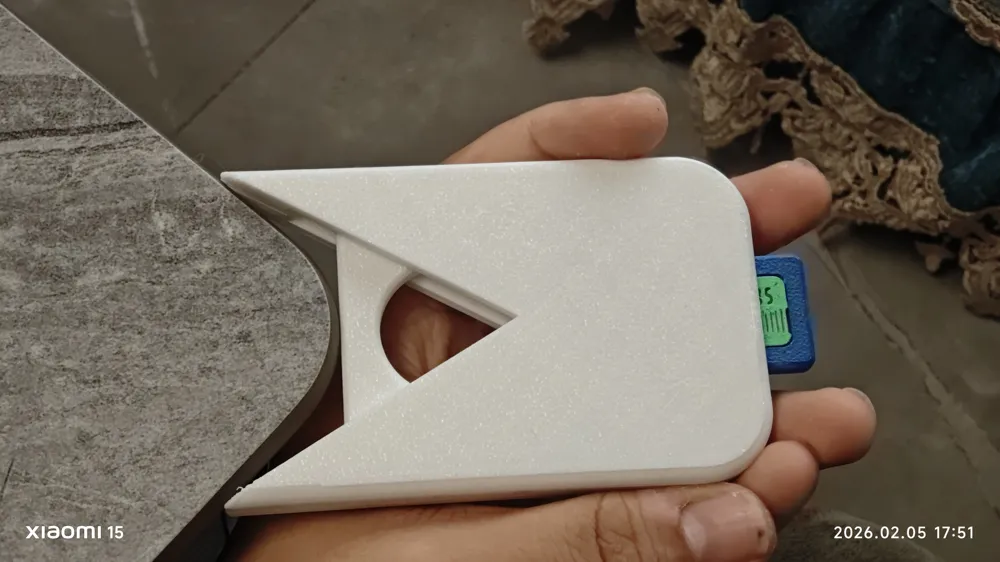

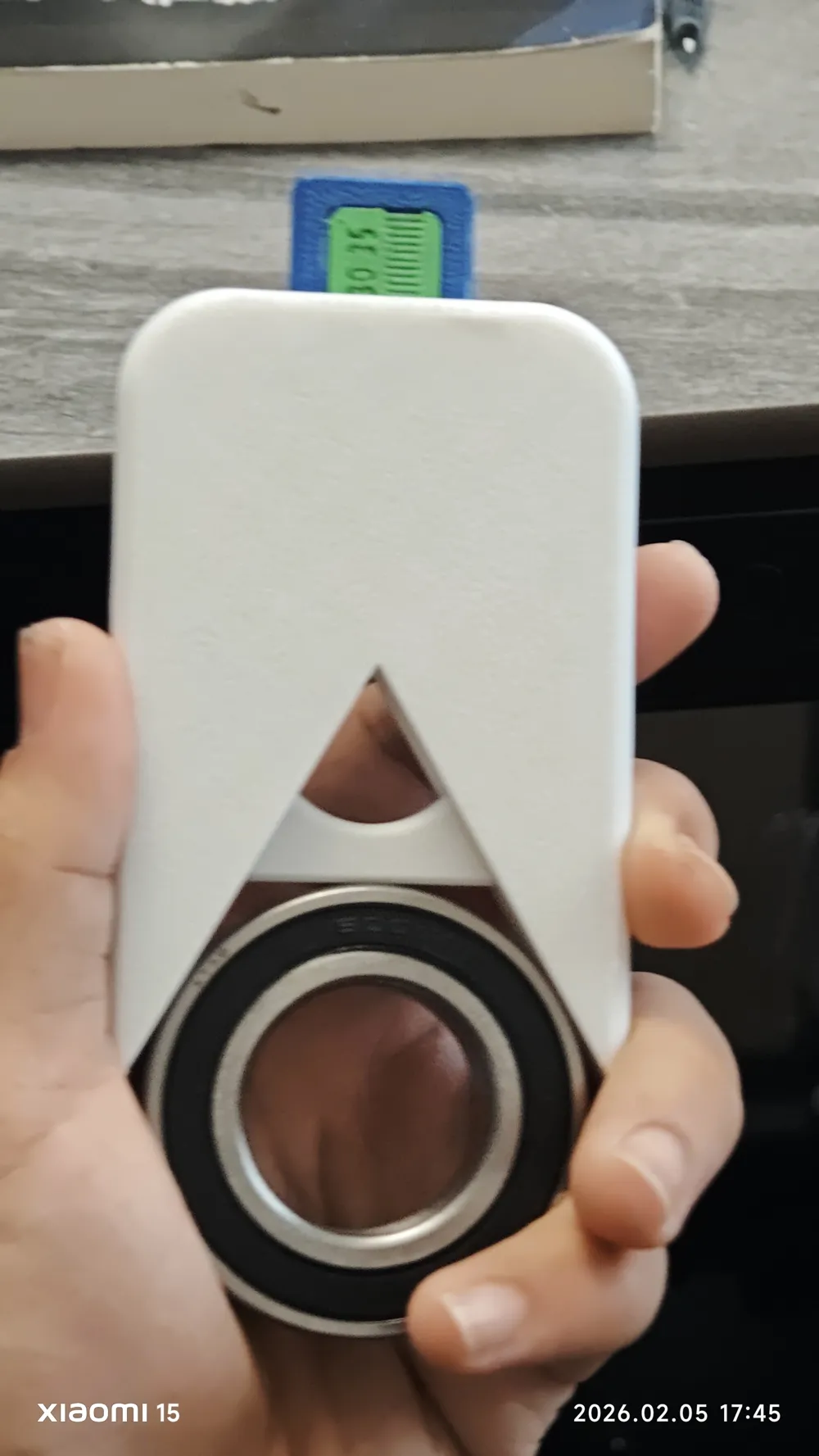

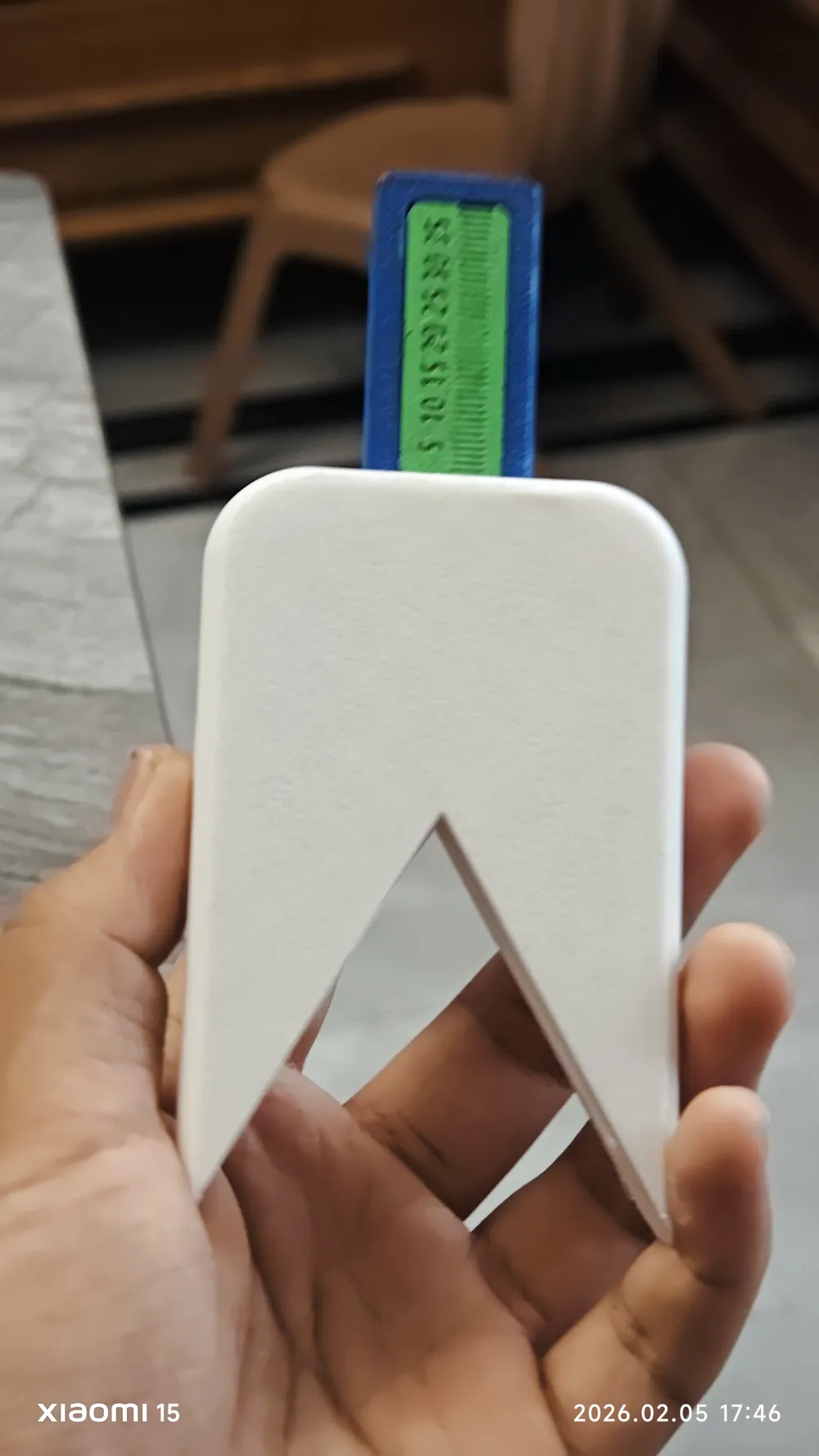

A practical 3D printed measuring tool for quickly measuring part corner radii. Adopting a classic R-gauge design, it covers the common radius range of 0-40mm, with a 1mm scale, meeting daily measurement needs.
Features:
📐 Measurement Range: R0 - R40mm
🎯 Precision: 1mm graduation
🔧 Print-and-use, no supports
🎨 Scales can be marked with stickers for easy identification
💪 Robust and durable, suitable for workshop use
Designed with AnyCAD, parametric modeling allows for adjustment of range and precision as needed. Recommended print layer height 0.2mm, infill 20-30%, use PETG or PLA+ for better strength.
English Description
Corner Radius Gauge | 0-40mm R-Tool
A practical 3D printed measuring tool for quickly checking corner radii. Classic radius gauge design covering 0-40mm range with 1mm increments.
Features:
📐 Range: R0 - R40mm
🎯 Precision: 1mm graduation
🔧 Print-in-place, no supports needed
🎨 Scale markings can be added with stickers
💪 Robust for workshop use
Designed with AnyCAD, parametric modeling allows customization. Recommended: 0.2mm layer height, 20-30% infill, PETG or PLA+ for durability.
