iPhone Air Lens Flush Protective Cover, NFC Chip Embeddable
IP Report
Print Profile(4)
NFC version, pause printing not added, 0.2mm nozzle, 0.1mm layer height, 4 walls, 15% infill
Designer
34 min
1 plate
Added pause printing instruction, top surface pattern changed to concentric to make the top edge smoother. 0.2mm nozzle, 0.1mm layer height, 4 walls, 15% infill
Designer
34 min
1 plate
Non-NFC version, 0.2mm nozzle, 0.1mm layer height, 4 walls, 15% infill
Designer
32 min
1 plate
compatible with 25mm NFC stickers, 0.16mm layer height smooth build plate, 2 walls, 15% infill
Designer
33 min
2 plates
Open in Bambu Studio
Boost
1
8
0
0
9
3
Released
Description
Content has been automatically translated.

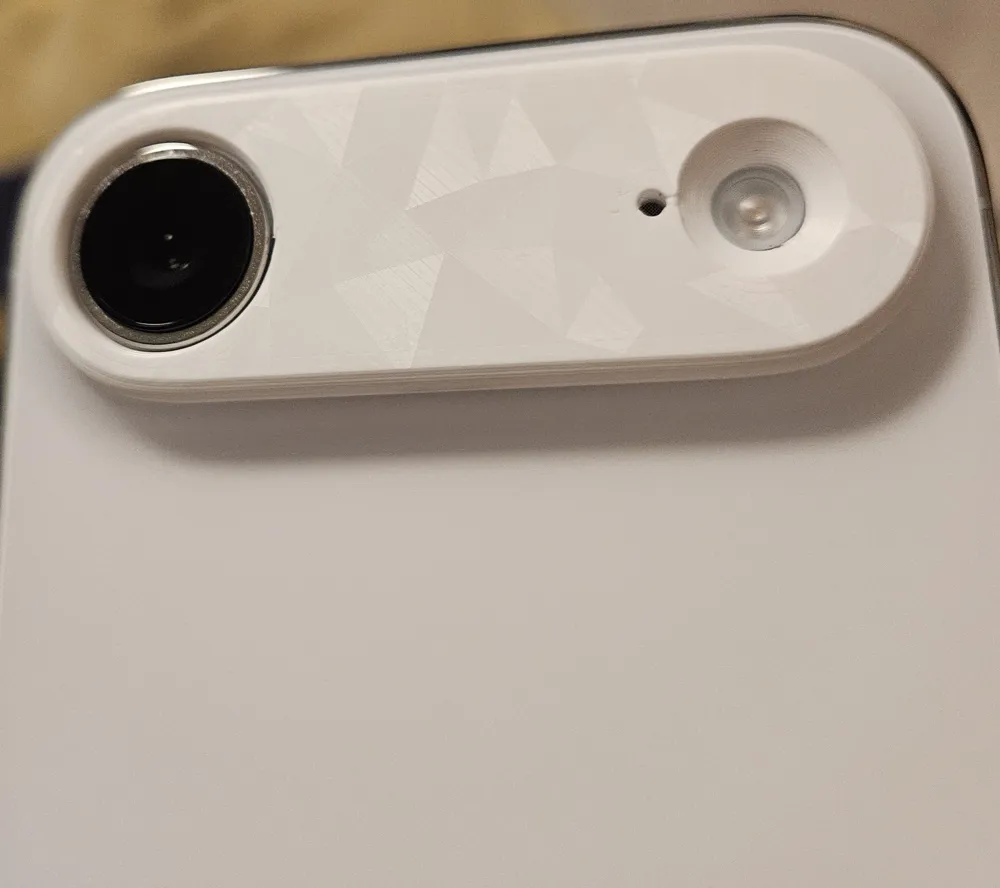

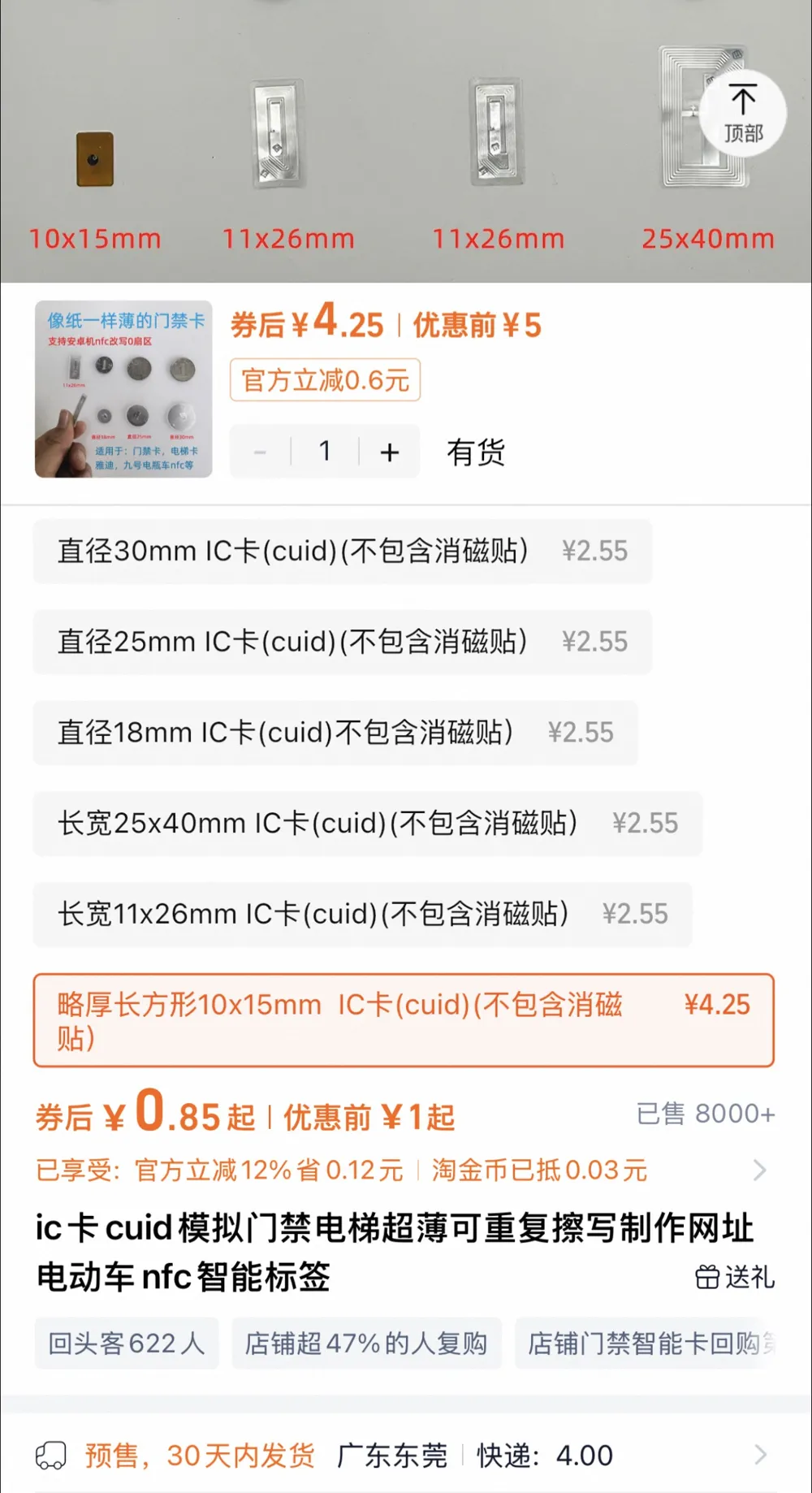

3.3 update print with the transfer build plate inverted using a 0.4mm nozzle with 0.16mm layer height to improve the top layer texture Compatible with 25mm NFC tags (requires trimming the edge without the metal coil with scissors) which has improved recognition rate to some extent and is lower in price compared to the previous version Added two 0.3mm deep grooves for nano tape adhesion

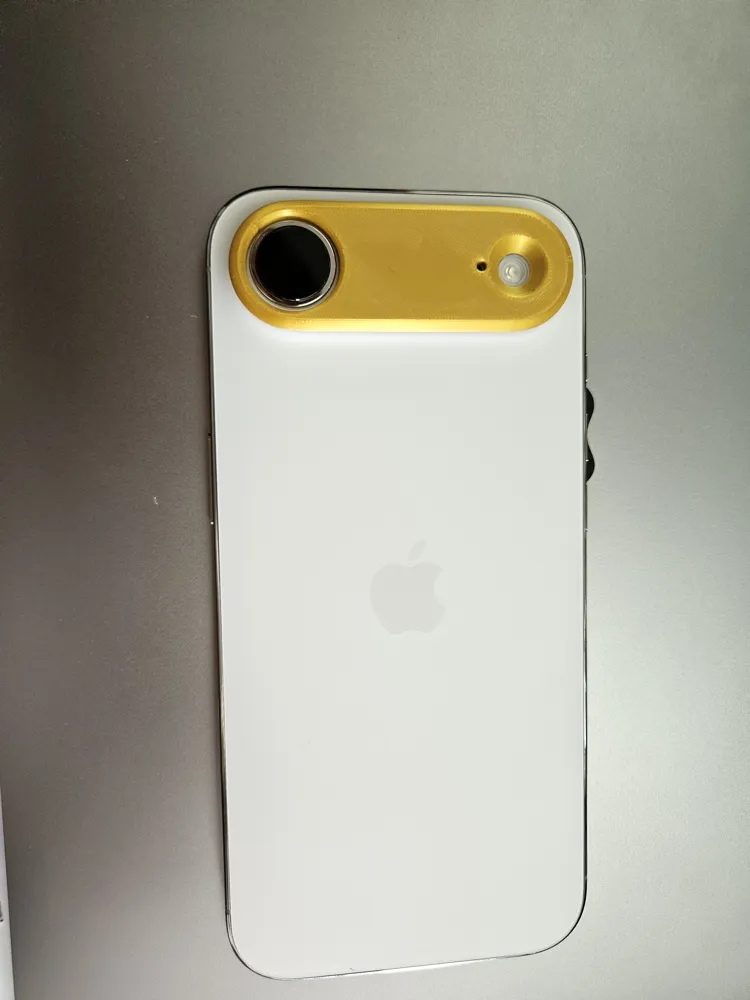

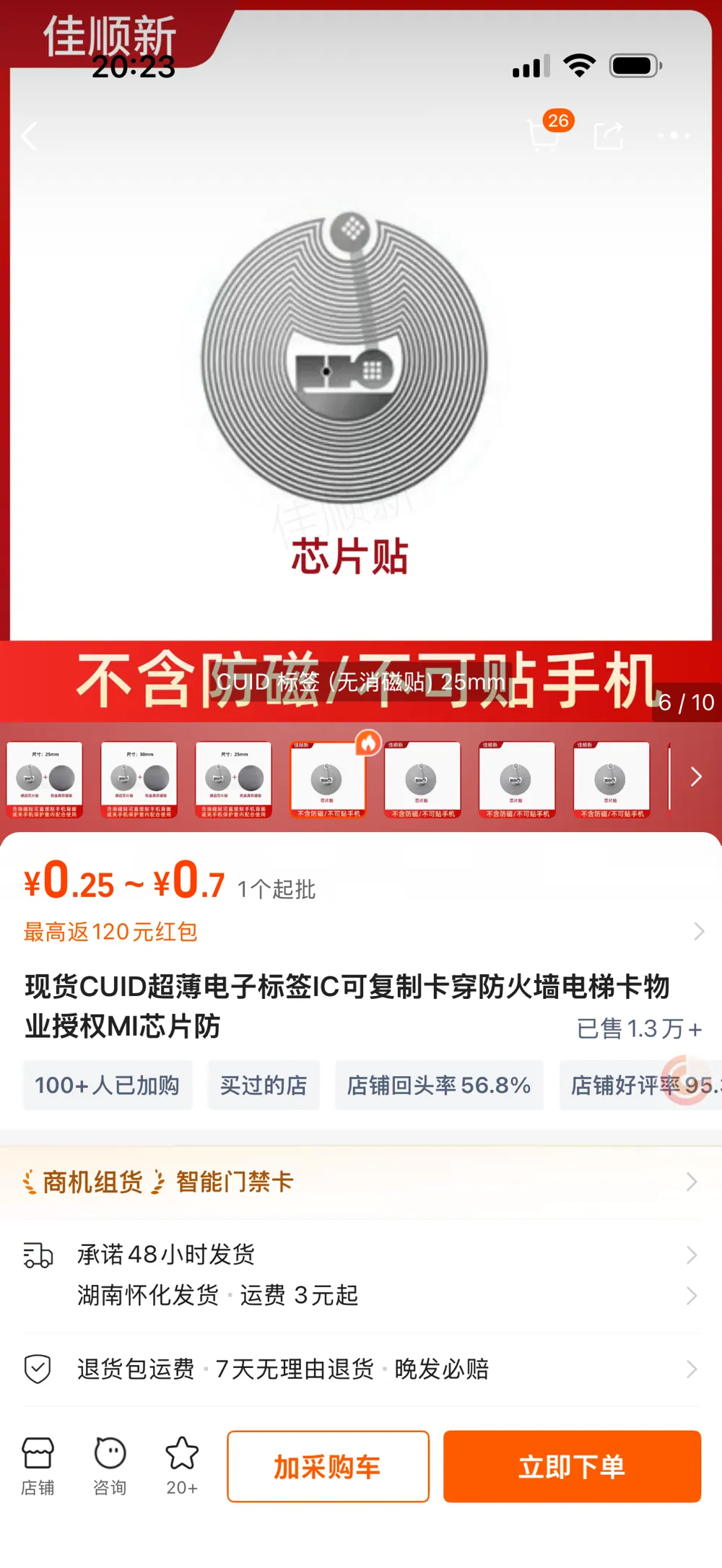

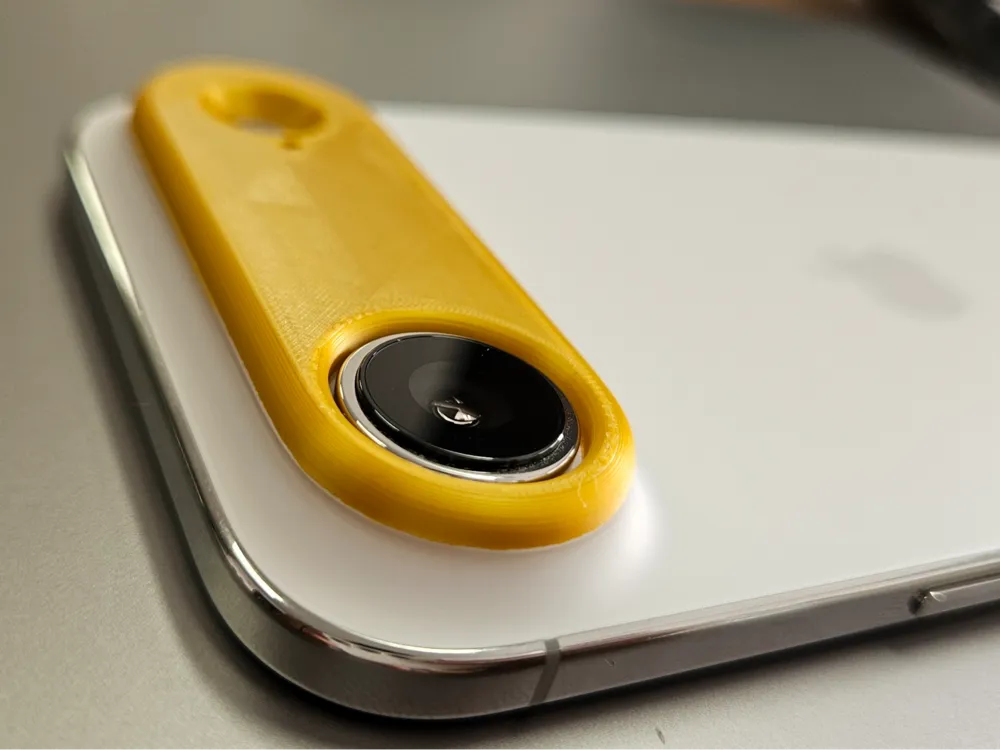

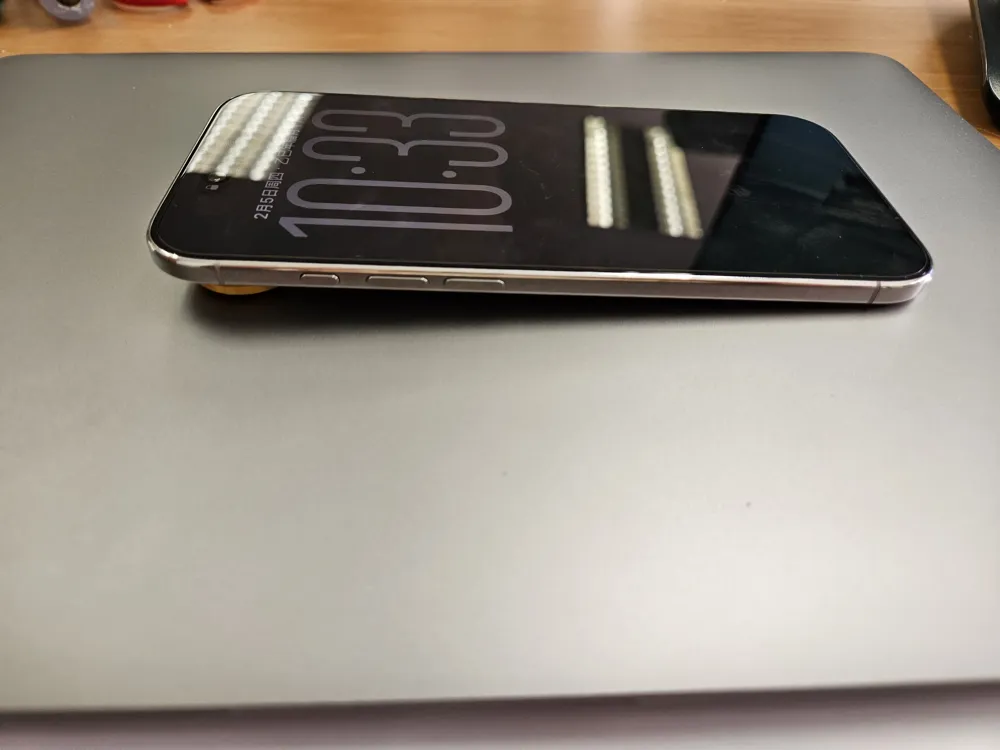

Uses only 2.7g filament perfectly transitions with the Air lens platform no wobbling at all when used with the bare device after installation it is recommended to use double-sided tape for adhesion If you need to add an NFC coil please print the NFC version no demagnetizing sticker needed (NFC needs to be written by yourself using a tool or an Android phone) Tested and confirmed that it works normally with express transit cards disabled Alipay Tap & Go function may be affected requiring the Alipay app to be open for use Only tested with a 0.2mm nozzle and 0.1mm layer height no obvious layer lines
