Description

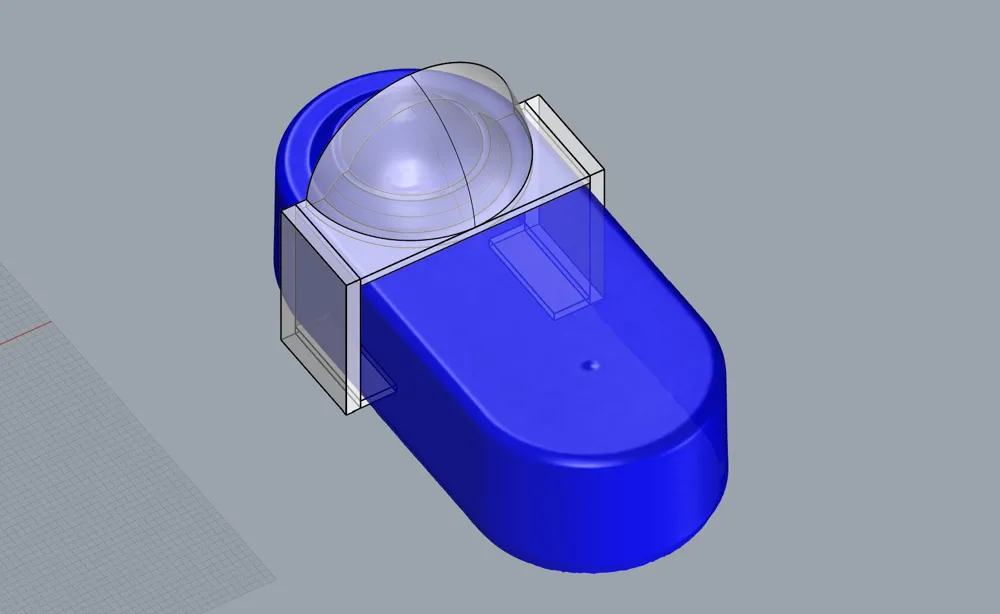

Half blinder for the Tuya zg-204M (mmwave + PIR) or Tuya zg-204ZS (PIR only). I tested it on the PIR only model, but according to photos of the circuit board, it should not be in front of the mmwave radar in the combo unit.

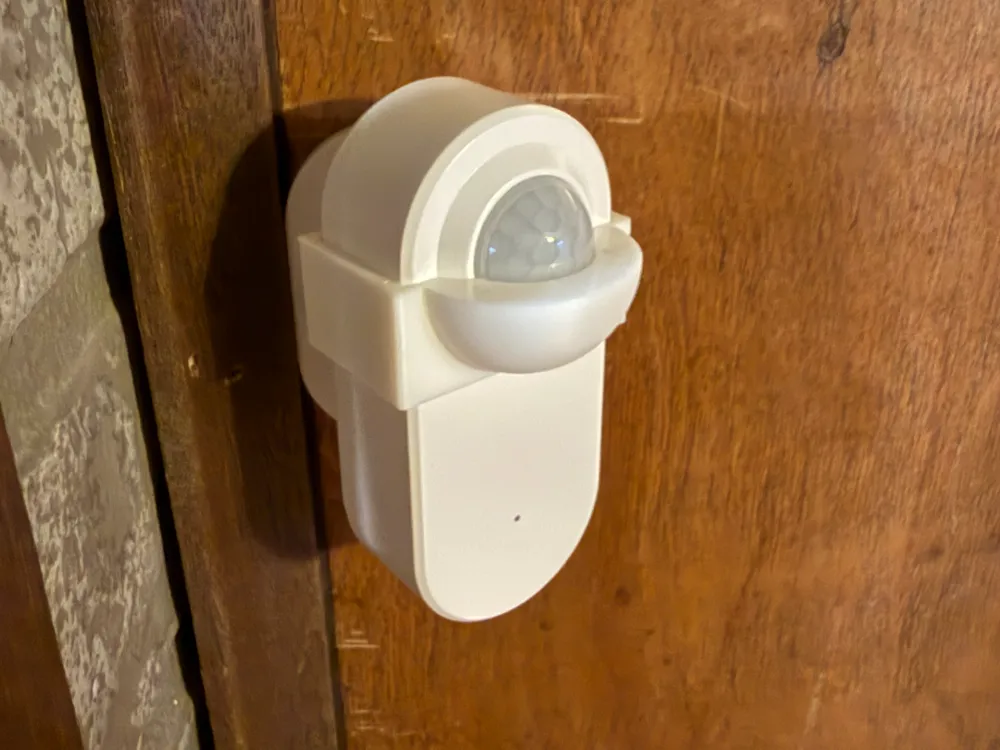

I installed my at about shoulder height and it does a great job of triggering with a human, but my 100lb dog does not set it off. You can tilt the unit or slide the blinder up and down for fine tuning.

Since the radar is not active until woken up by the PIR, you should not get dog alerts even with the combo unit.
