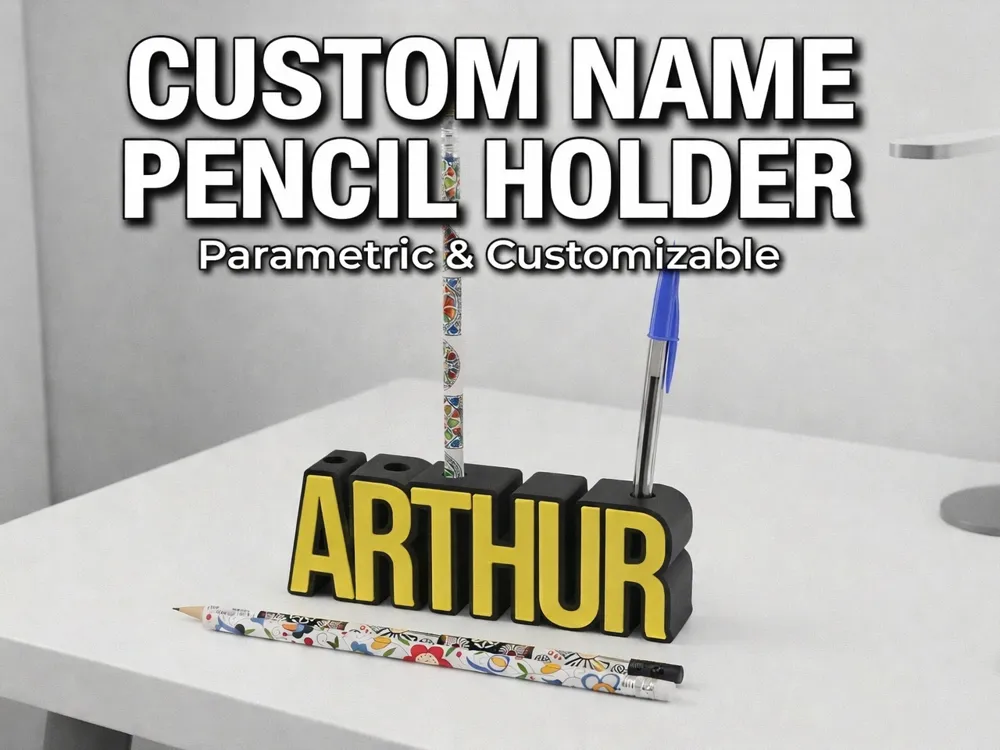

🔗 CUSTOM NAME PENCIL HOLDER - PARAMETRIC & CUSTOMIZABLE
Create your own personalized pencil holder with this beautiful model! This OpenSCAD model generates a stand with functional holes to organize your desk and requires no supports to print. Fully parametric and optimized for bicolor printing with filament swap.
━━━━━━━━━━━━━━━━━━━━
KEY FEATURES:
- Horizontal Design – Printed "lying down" for superior strength and smooth surface finish.

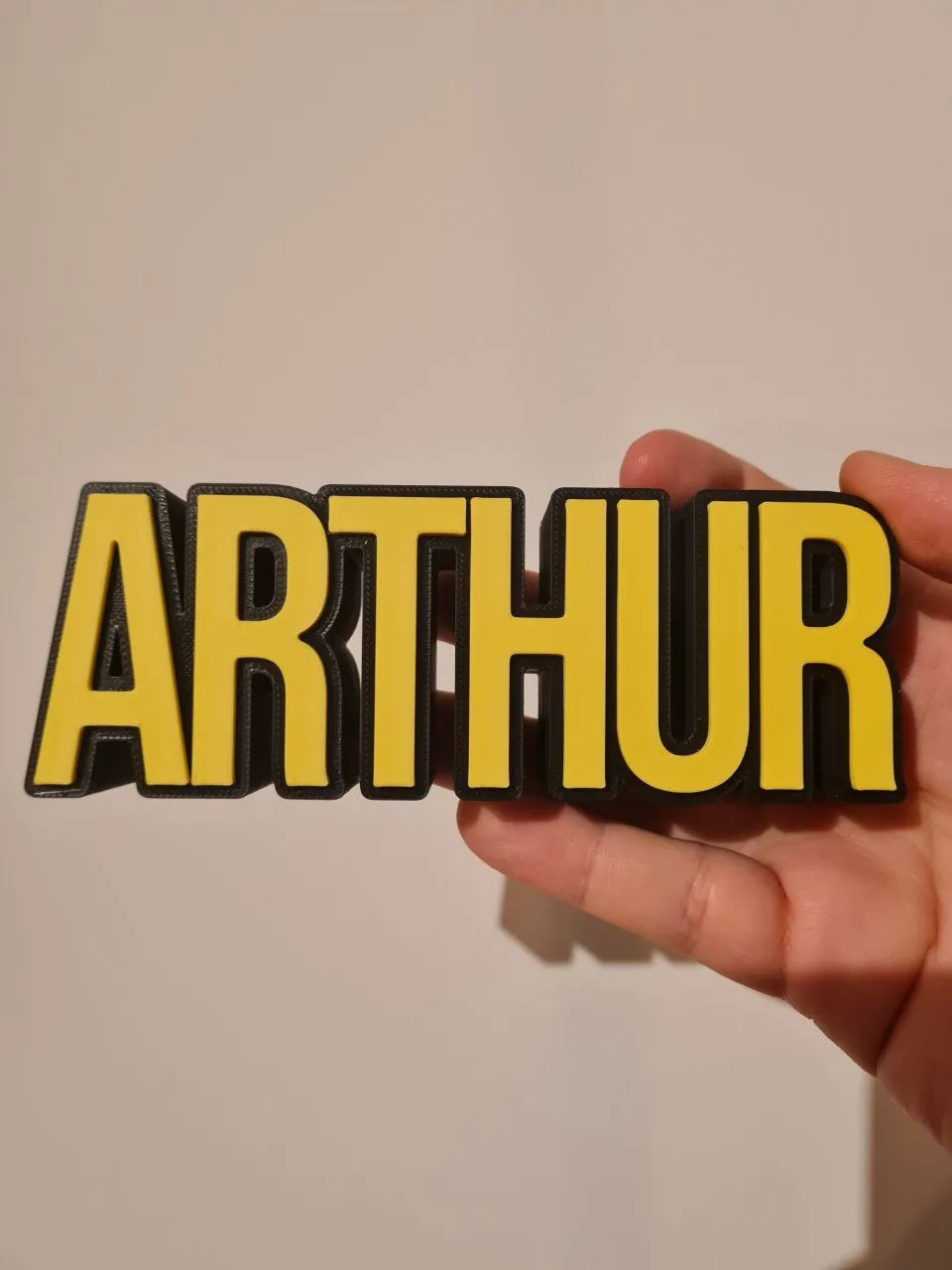

- Bicolor Style – Embossed letters with a distinct color from the base, ideal for high-contrast combinations (e.g., Pink/White).

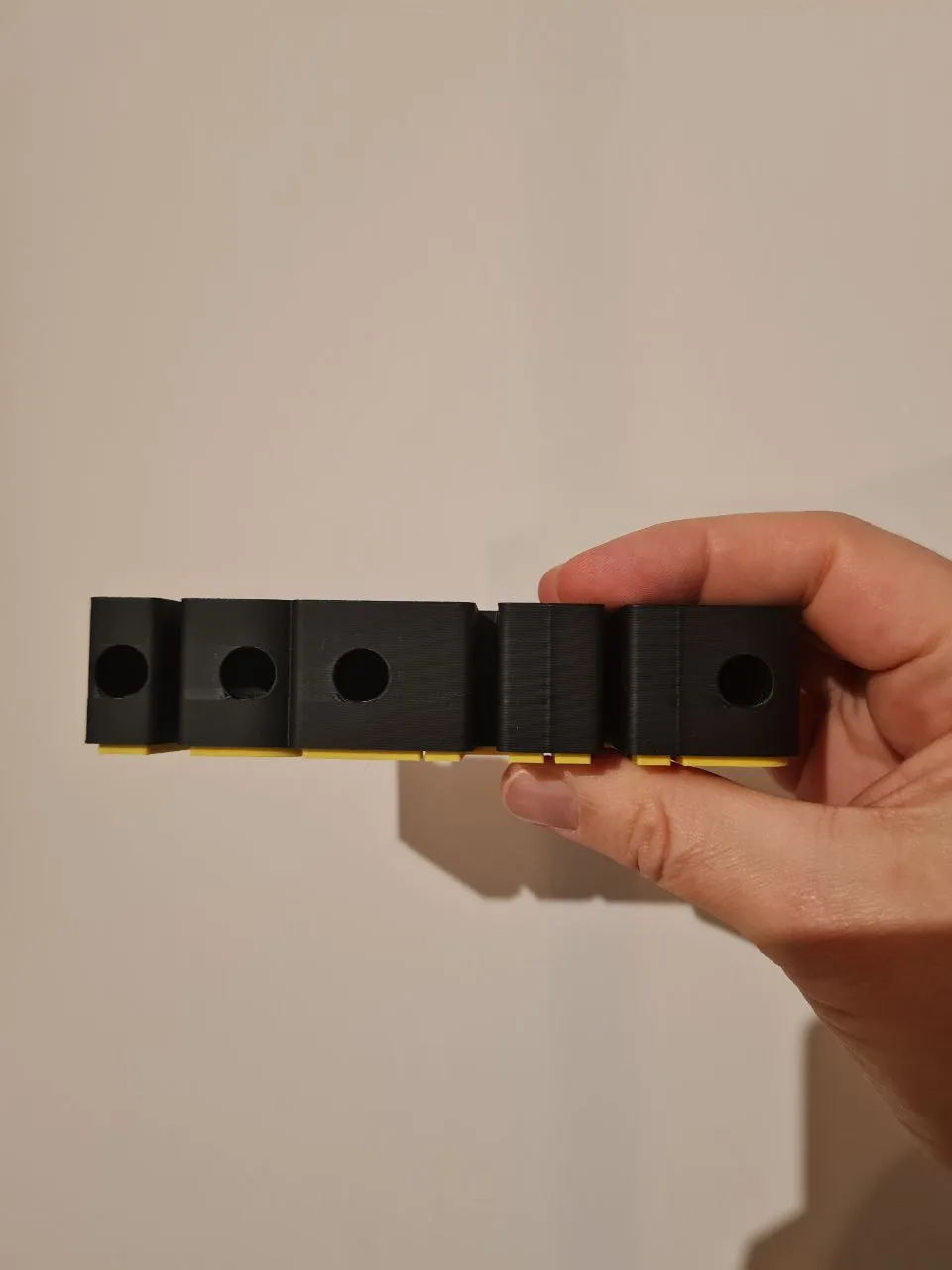

- Precise Functional Holes – Holes are visually centered on the "mass" of each letter, ensuring aesthetic balance.
- Versatile Usage – Options for Pencils/Pens (10mm) or Highlighters (12mm).
- Smart Design – Very thin letters (like I, J, L) are automatically detected and printed without holes to maintain visual integrity.
━━━━━━━━━━━━━━━━━━━━
CUSTOMIZABLE PARAMETERS:
Simple and Fast! Only 3 options to configure:
1. Name – Enter the name or word.
2. Enable Holes – Turn pencil holes On or Off.
3. Hole Diameter – Choose between 10mm (Pencil/Pen) or 12mm (Highlighter).
(Font Size options are now under "Advanced Settings" to keep it simple).
━━━━━━━━━━━━━━━━━━━━
⚠️ IMPORTANT TIPS:
FILE FORMAT: To preserve editable parameters, use the MakerWorld Customizer
BICOLOR PRINTING: The model is designed for a simple color change based on layer height (Z-hop).
1. Print the base (Color 1).
2. Add a pause or filament change at the indicated height (e.g., 28mm).
3. Print the top layer (Color 2).
THIN LETTERS: Letters I, J, and L do not receive holes as they are too narrow. All other letters have holes .
━━━━━━━━━━━━━━━━━━━━
PRINT SETTINGS:

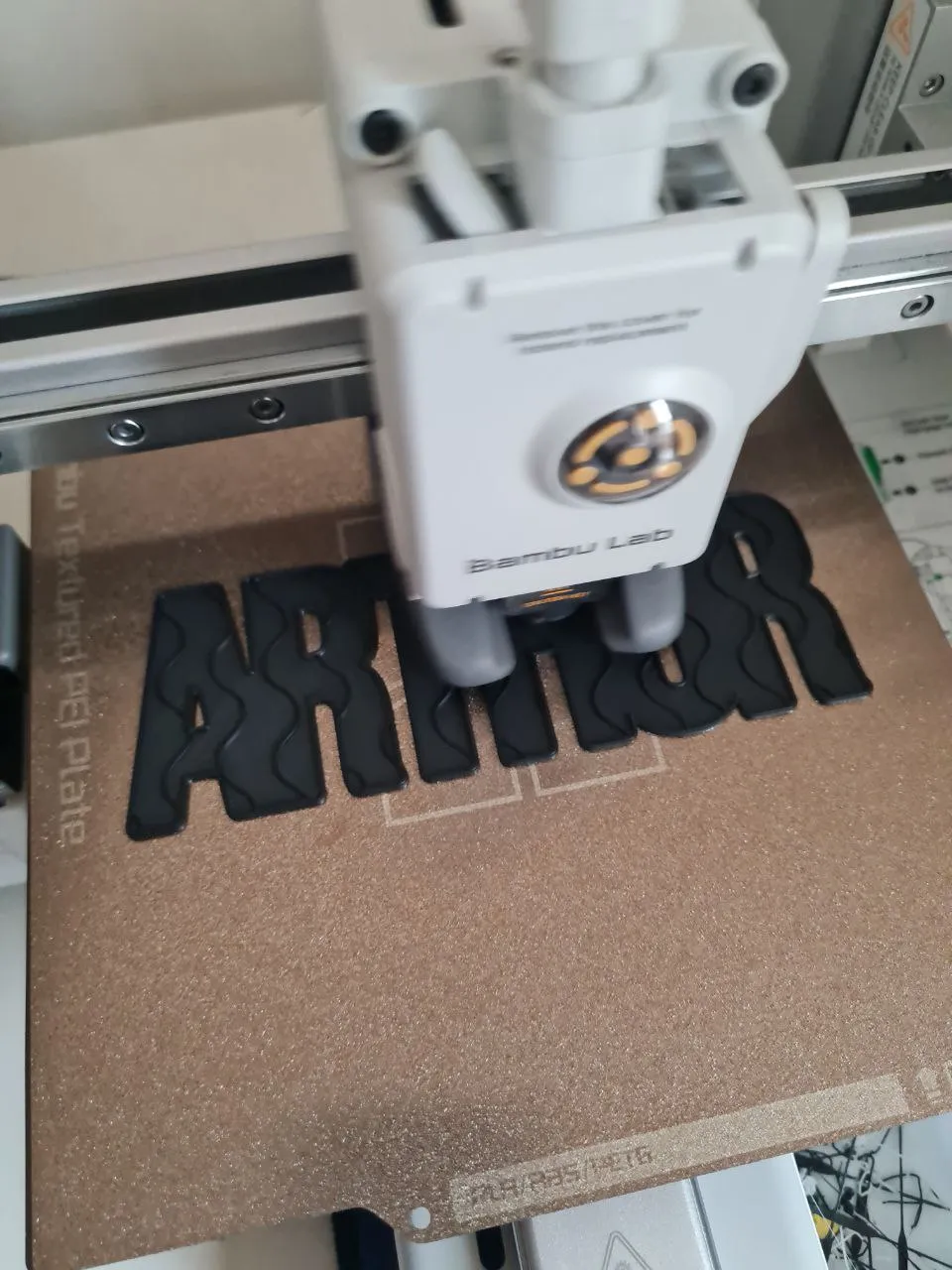

- Orientation: Lying Down (Horizontal) - The model comes in the correct orientation.
- Material: PLA, PETG, or Silk.

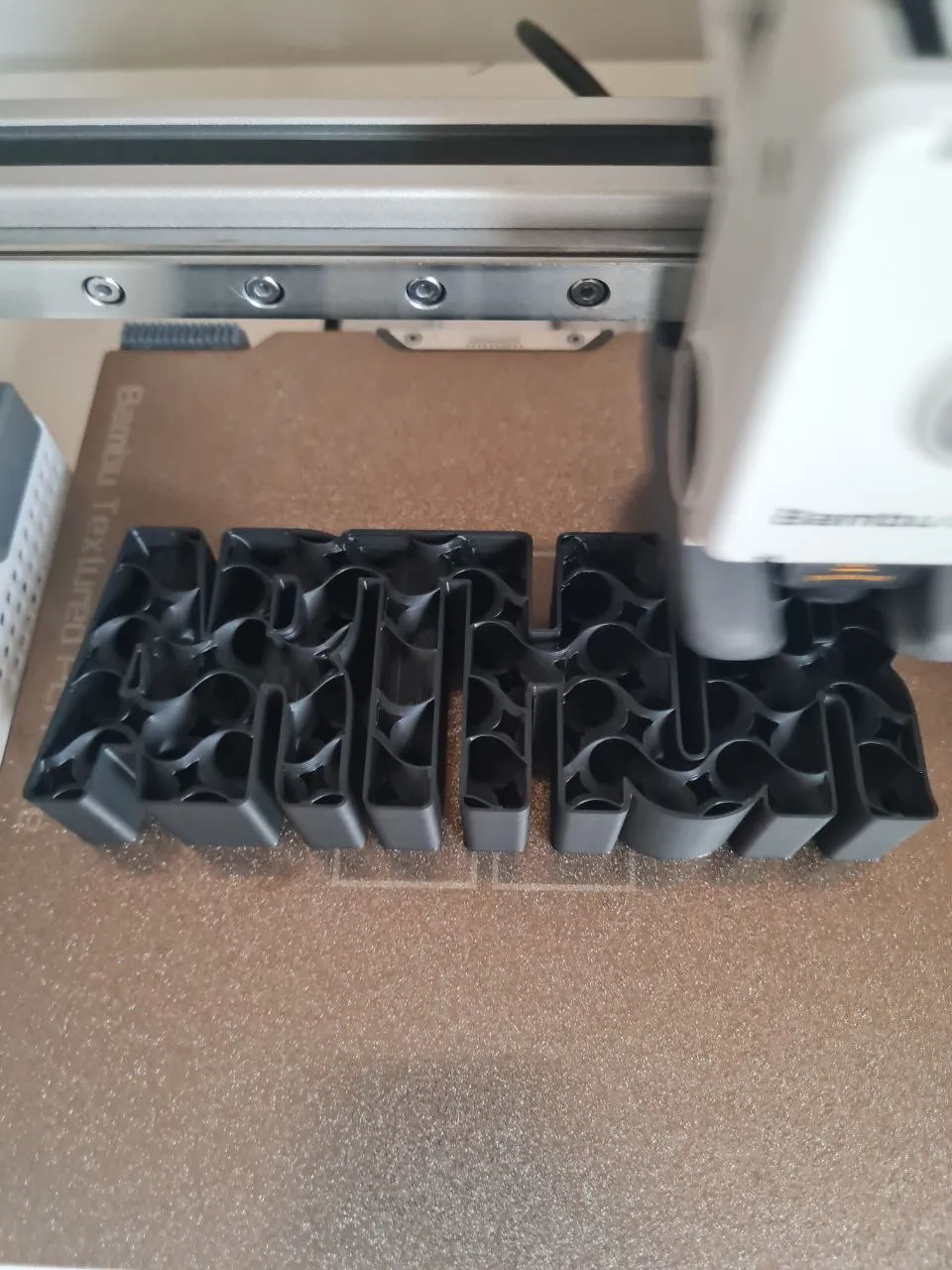

- Infill: 5% (Gyroid).
- Walls: 2 or 3 perimeters.
- Prime Tower: Enable (if using AMS).
- Print Profile: Optimized settings are included in the "Example File" (Print Profile). You can use this same profile to print your customized model!
- Prime Tower (Advanced):
- Prime Tower Line Infill Gap: 100%
- Rib Wall: Unchecked
- Color Change: Layer #141 (approx. 28.2mm). Check slice preview.
━━━━━━━━━━━━━━━━━━━━
NOTES:
- Functional only for LETTERS A-Z (Except the letter 'Q' and special chars like 'Ç').
- DO NOT RESIZE the model in the slicer, as hole dimensions will be incorrect.
COMING SOON (Updates):
- 3 Letter Sizes.
- Accent Support.
- Support for letter 'Q' and 'Ç'.
- Number Support.
━━━━━━━━━━━━━━━━━━━━
Organize in style! ✏️✨
