Ikea ENKÖPING Door Handle Drilling Jig
Print Profile(1)
Description

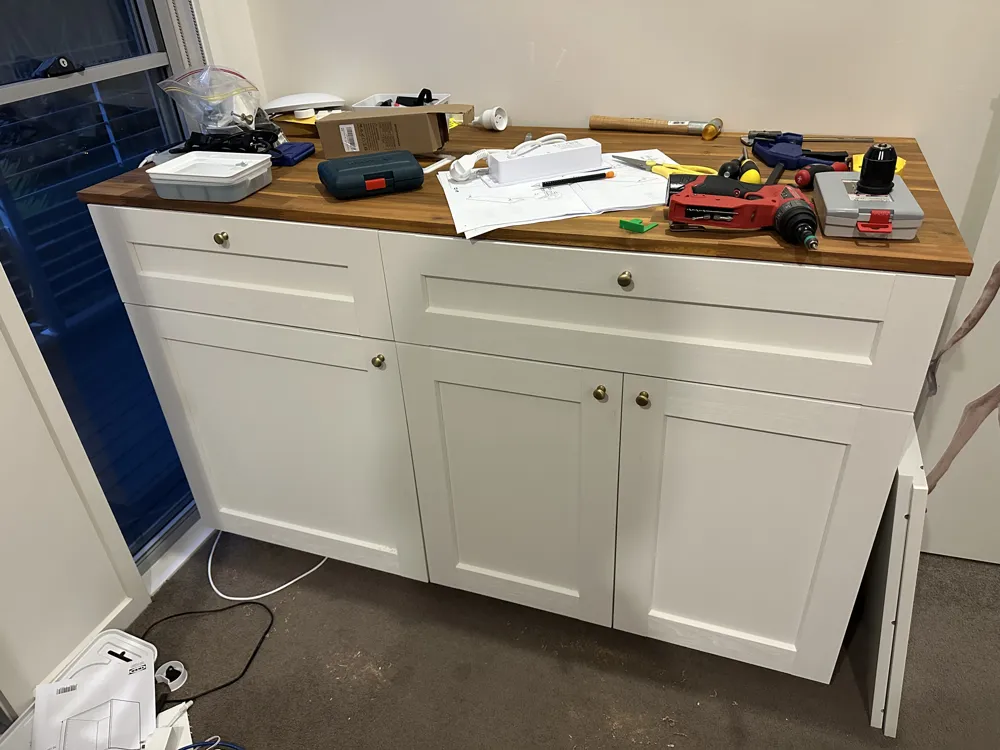

A pretty simple jig to help align single knobs on the ENKÖPING drawer and door fronts. More complicated jigs exist but this one is perfect if you have a lot of cupboards to do and you want them all consistently in the same place without much measuring.

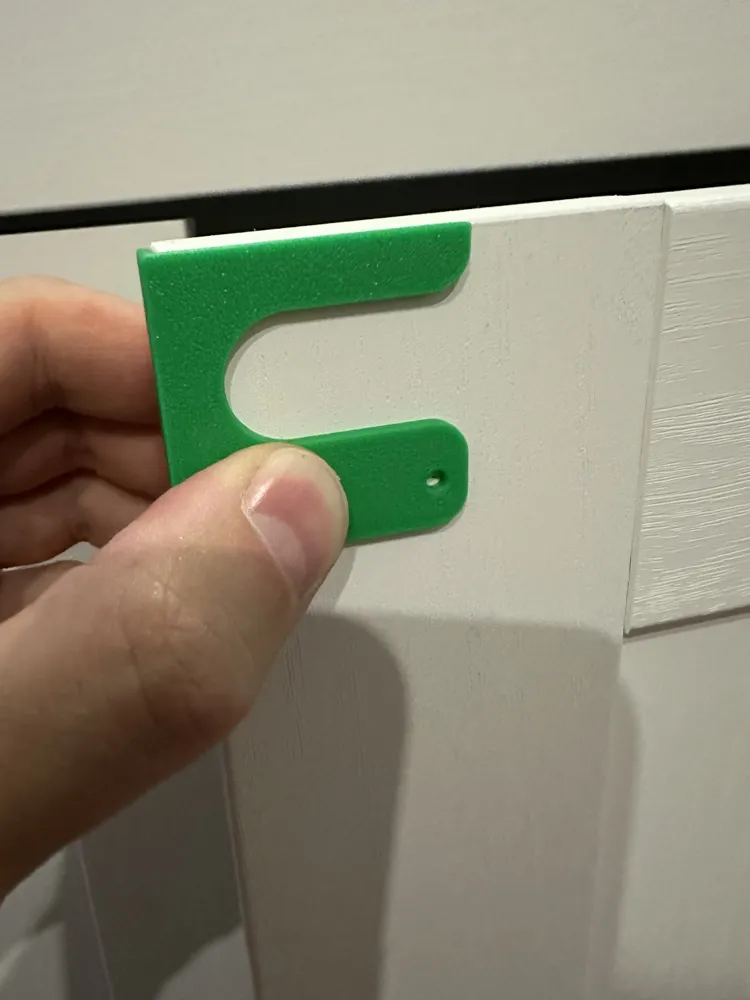

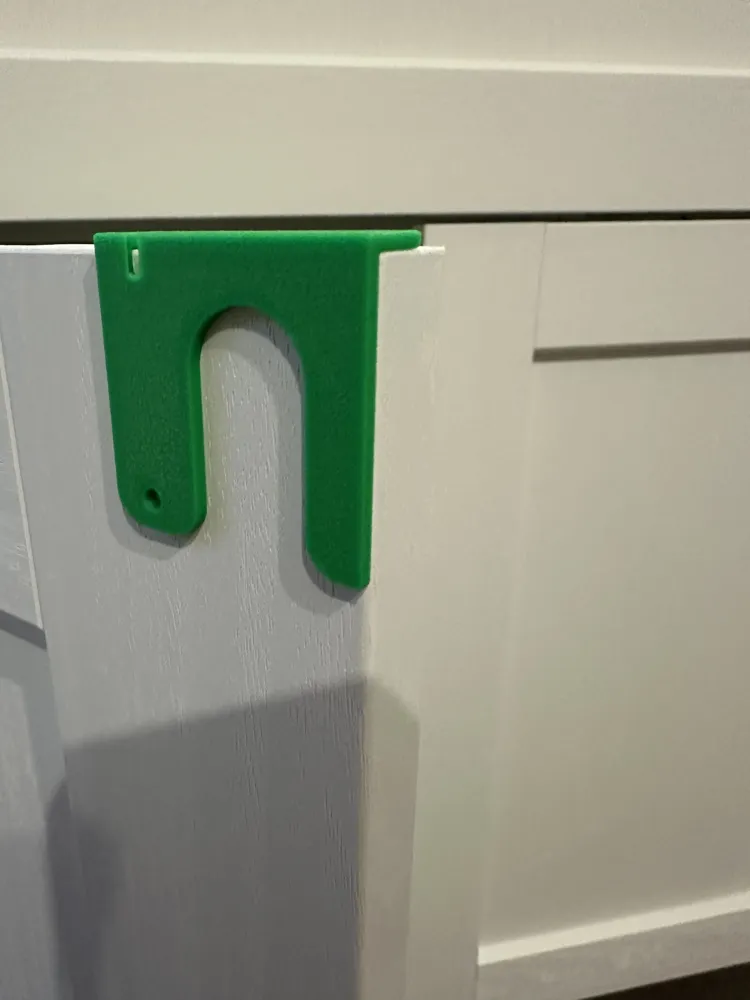

For doors, it is perfectly square on both edges to place the knob in the centre of the raised portion of the door (33mm x 33mm). Line up the jig against the edges of the door and mark in the hole provided using a pencil or awl.

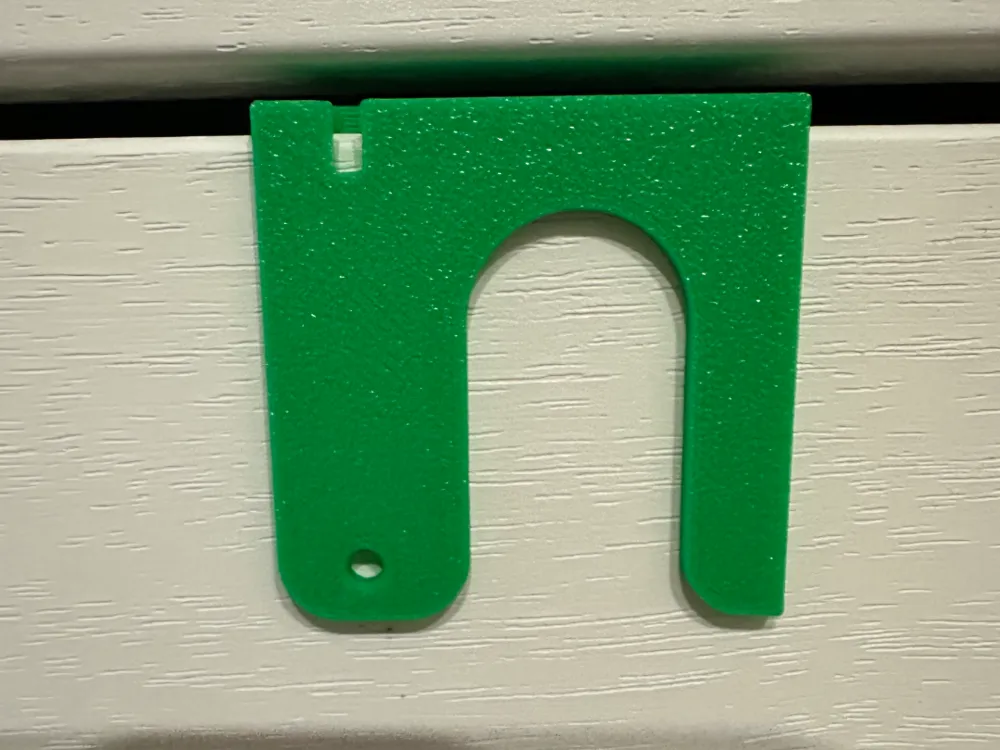

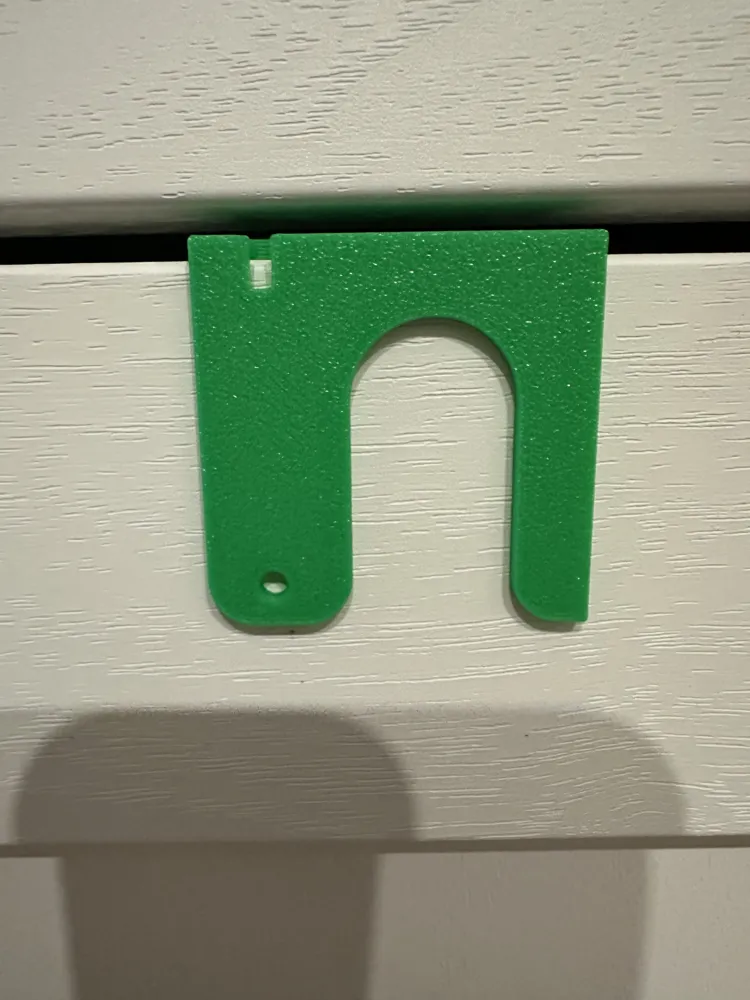

To use on a drawer front, you just need to mark the centre point of the width of drawer and line up the center line mark on the jig and mark the hole to be drilled. (will place the hole 33mm from the top edge of the drawer)
Simple print in PLA.
