V1.3 Automatic Door Closer Easy Print
Print Profile(5)
Description

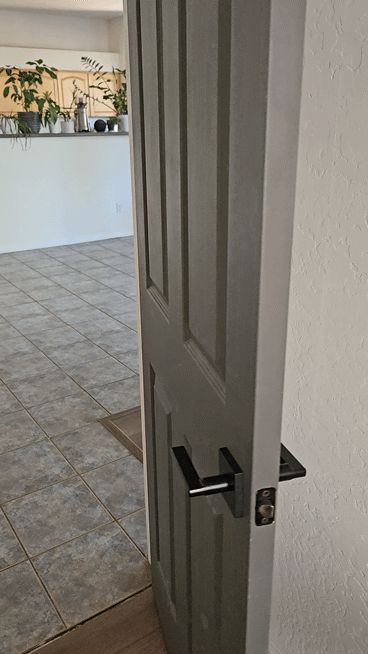

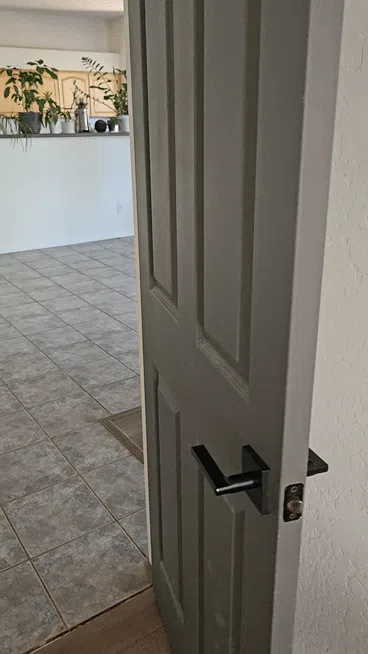

Print it, attach it to your door hinge, and it will close your doors automatically!
Boost Me (for free)
Consider boosting if you find this useful!

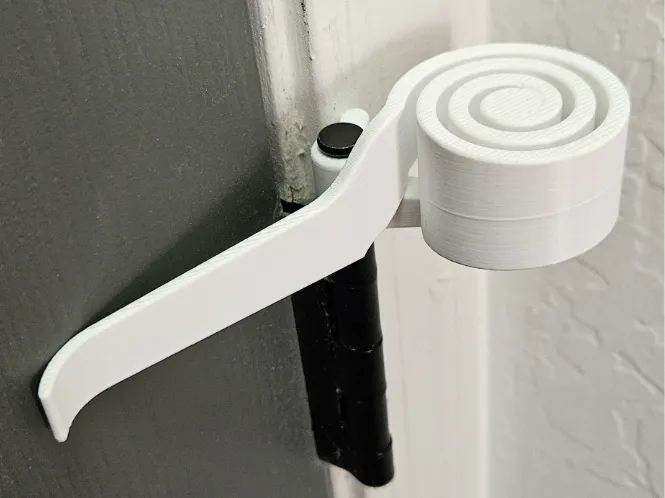

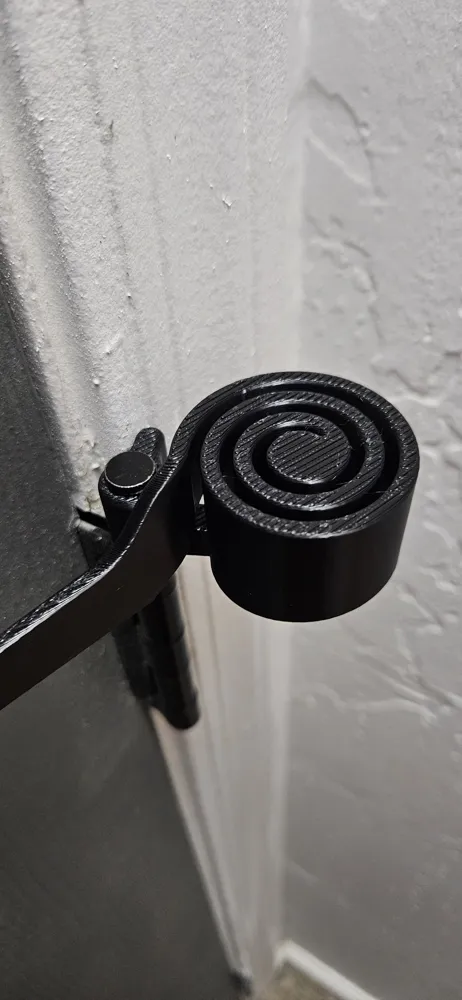

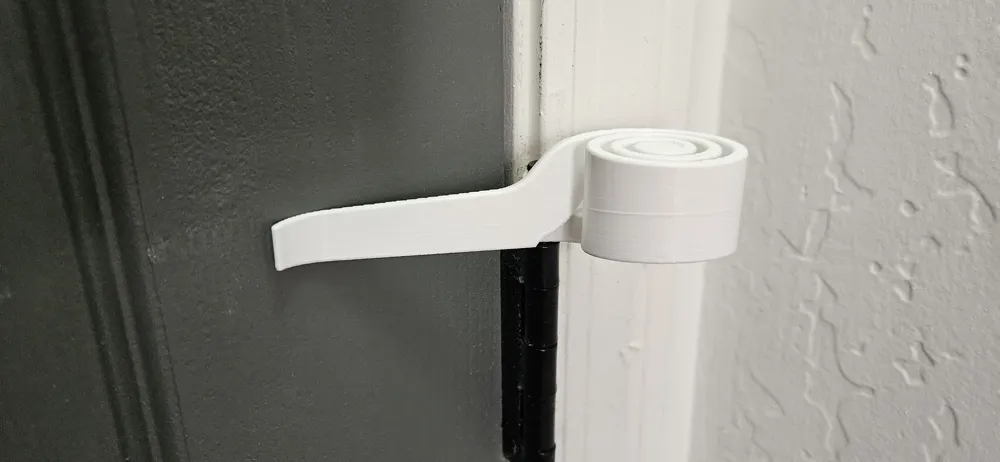

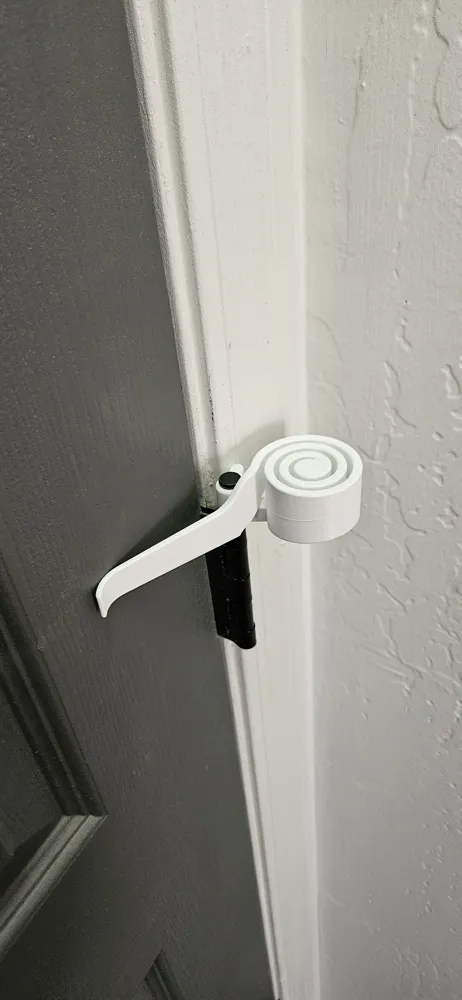

Automatic door closer v1.3:
- Prints much easier after some improvements
- Only ~40g, and can print in a little over an hour
- PETG is required. I've used Bambu PETG basic with success.
- Designed for standard American door hinges with pins of ¼" (6.35mm) diameter
- Most interior, residential doors in the USA are hollow core, in which case this should work fine. For heavier it might not work
Installation:
- Use a screwdriver or something narrow to push the hinge pin out from the bottom. It might be stuck and you can use something as a hammer to push it out with a little more force
- Use the pin you just took out and put it through the 3d printed part
- Put the whole thing back on the hinge and stop being unhinged
June 2026
v1.3 improvements:
- Made the arm shorter, making it significantly easier to print
- Default profile includes supports
- Taller, thicker arm for strength
March 2026
v1.2 improvements:
- Completely eliminated creaking noises
- Tilted print orientation for strength
- tapered arm
- print profile optimizations
February 2026
v1.1 improvements:
- Stronger arm design
- More space in between spring windings to reduce creaking
- New arm profile to reduce contact with the door
- Thinner central hub to save filament
