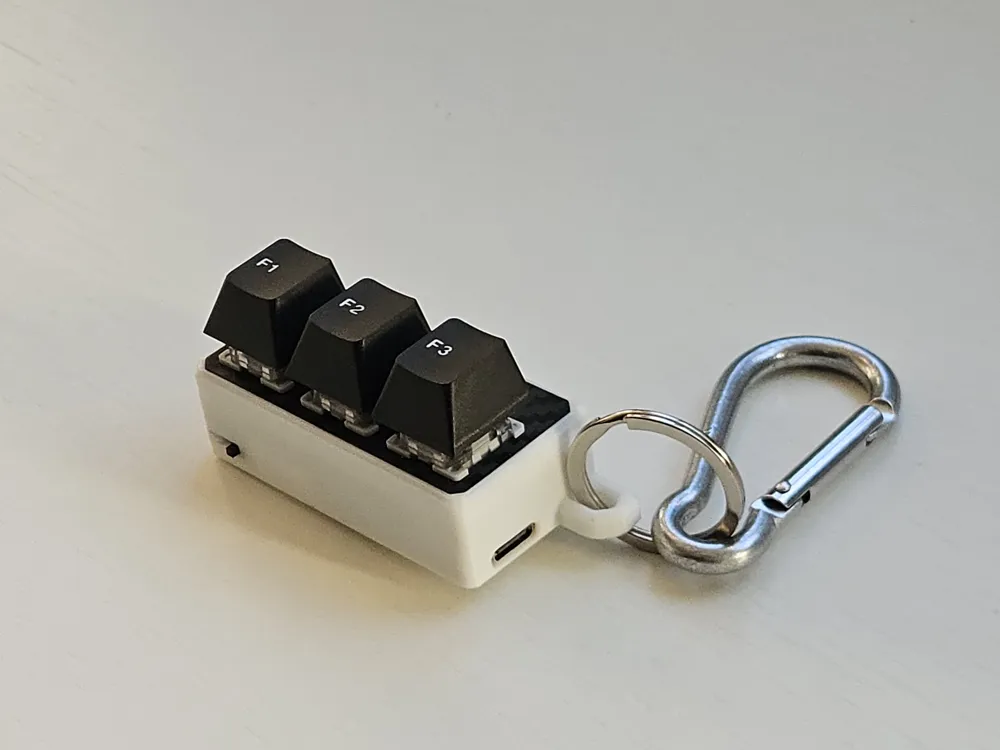

Customizable Bluetooth Macro Pad

A handwired, wireless 3-key Bluetooth macro pad built around a Nice!Nano clone and ZMK firmware. Compact, fully customizable, and easy to build, this mini pad is perfect for media controls, hotkeys, or as an E-ink page turner.

Features

Bluetooth (Wireless)
Powered by ZMK firmware with stable BLE connection
Fully Customizable
Remap keys easily using ZMK Studio

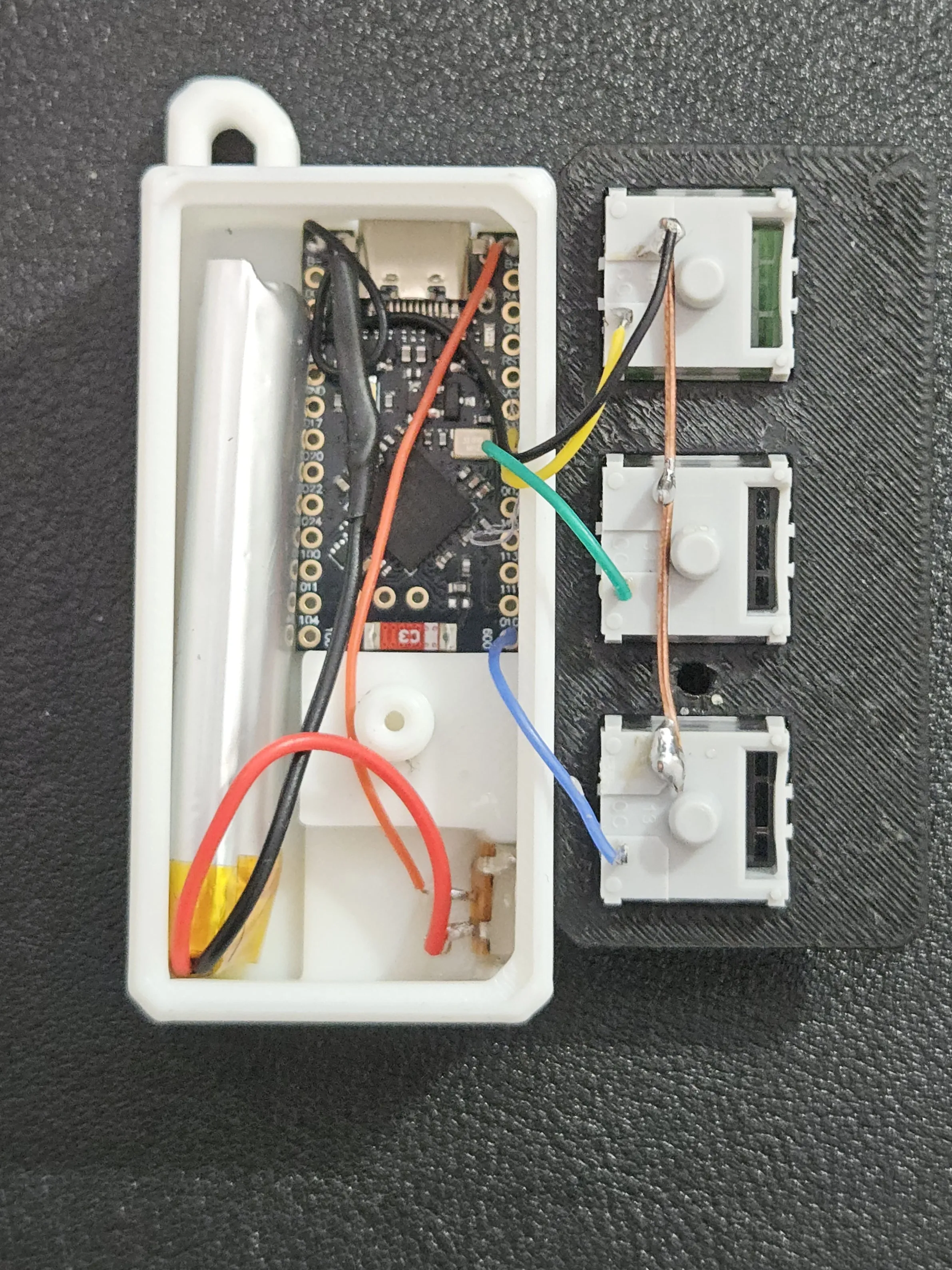

Handwired Design
Multiple Ready-to-Use Firmwares

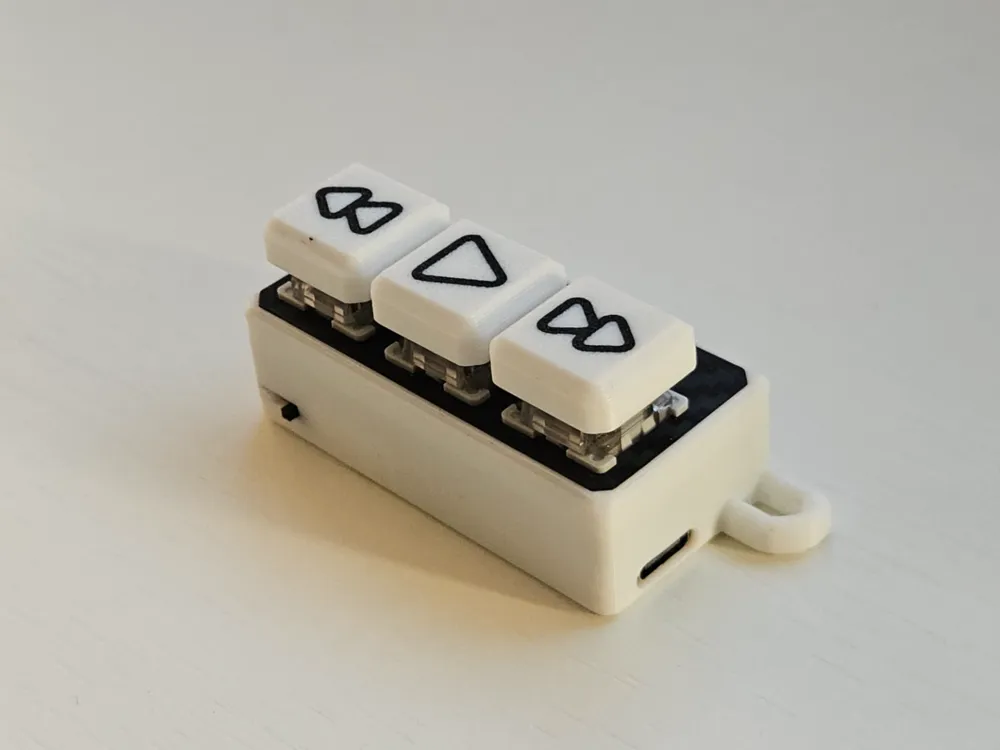

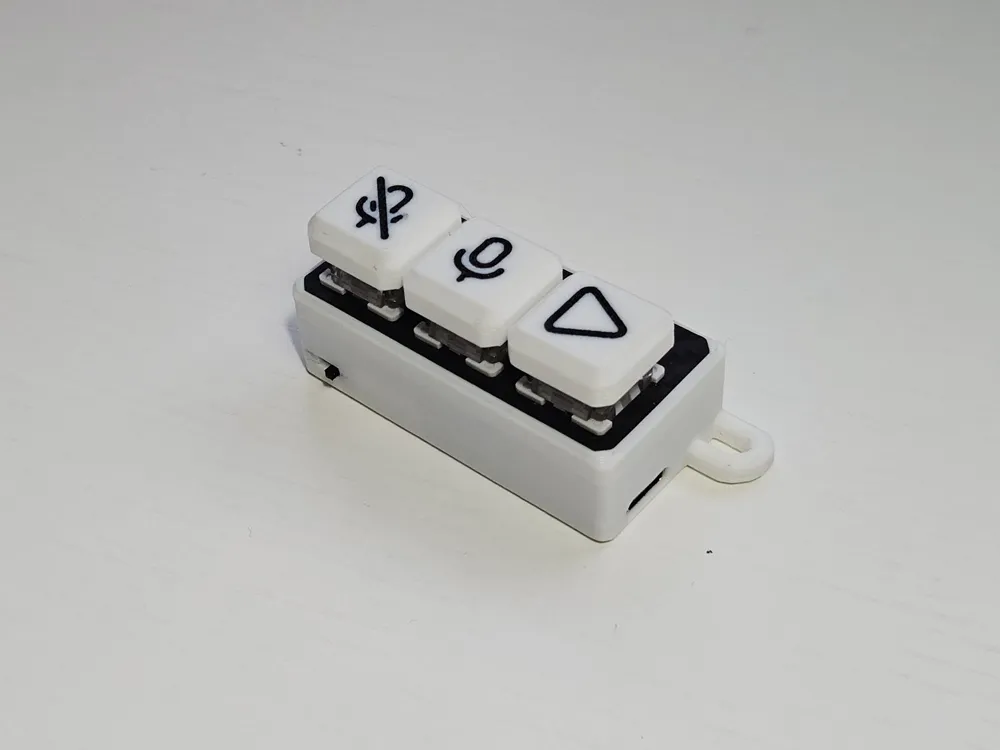

- Media controls

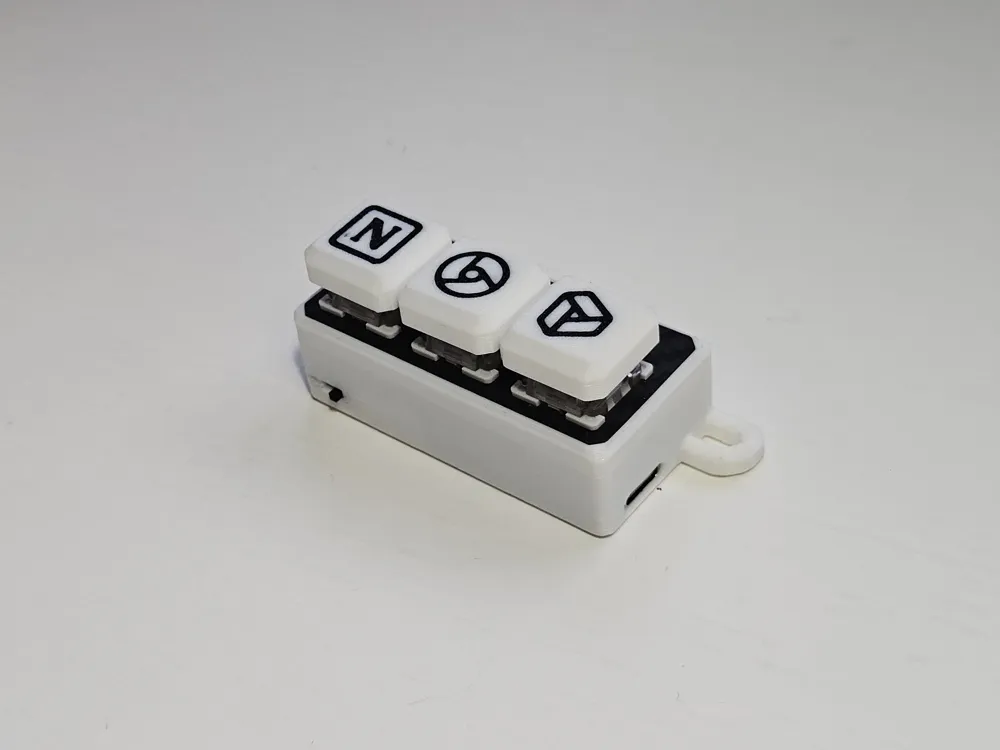

- Hotkeys
- E-ink page turner

What’s Included

3D-printable case and plate files
3 Ready-to-Use Firmwares
Manual and Wiring instructions

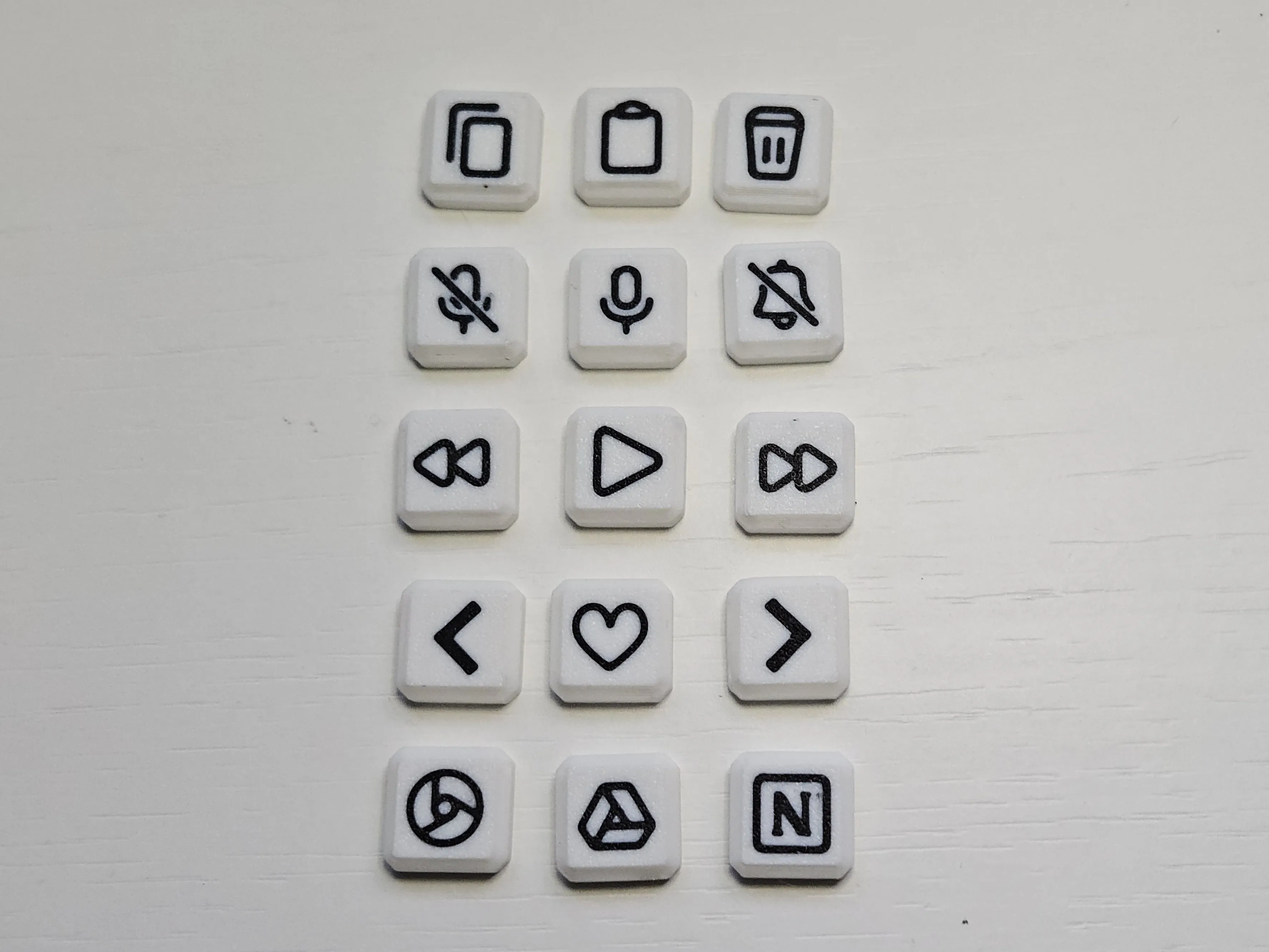

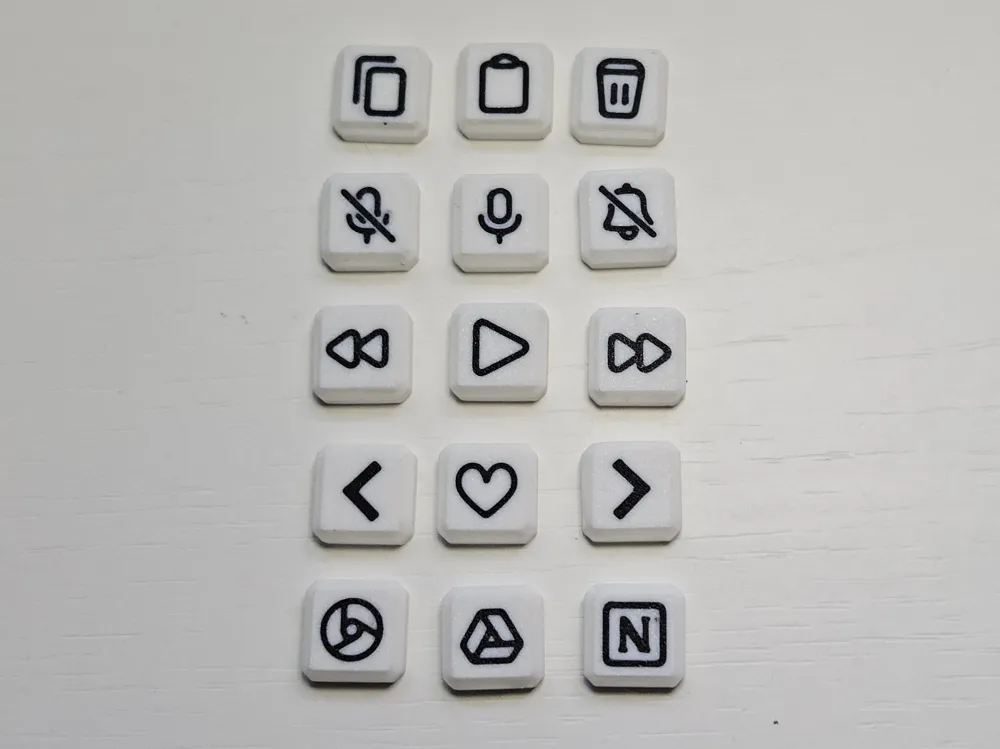

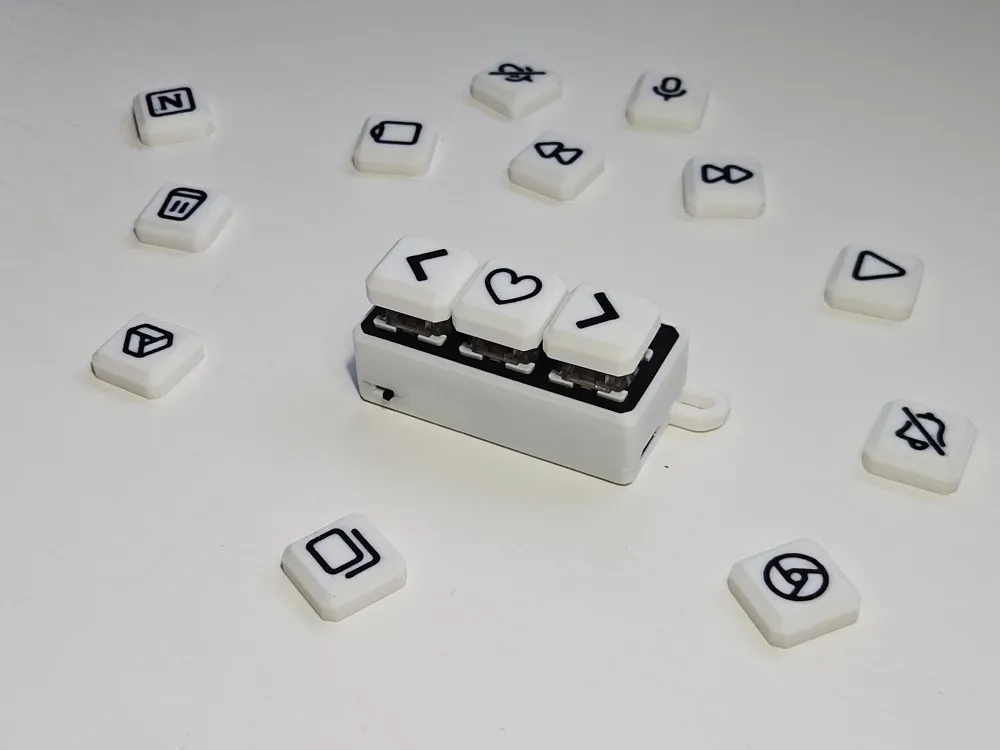

3D Printed keycap set

If you want to save on keycaps, I have a model of FDM optimized keycap set with letters, symbols, and many different custom icons available here

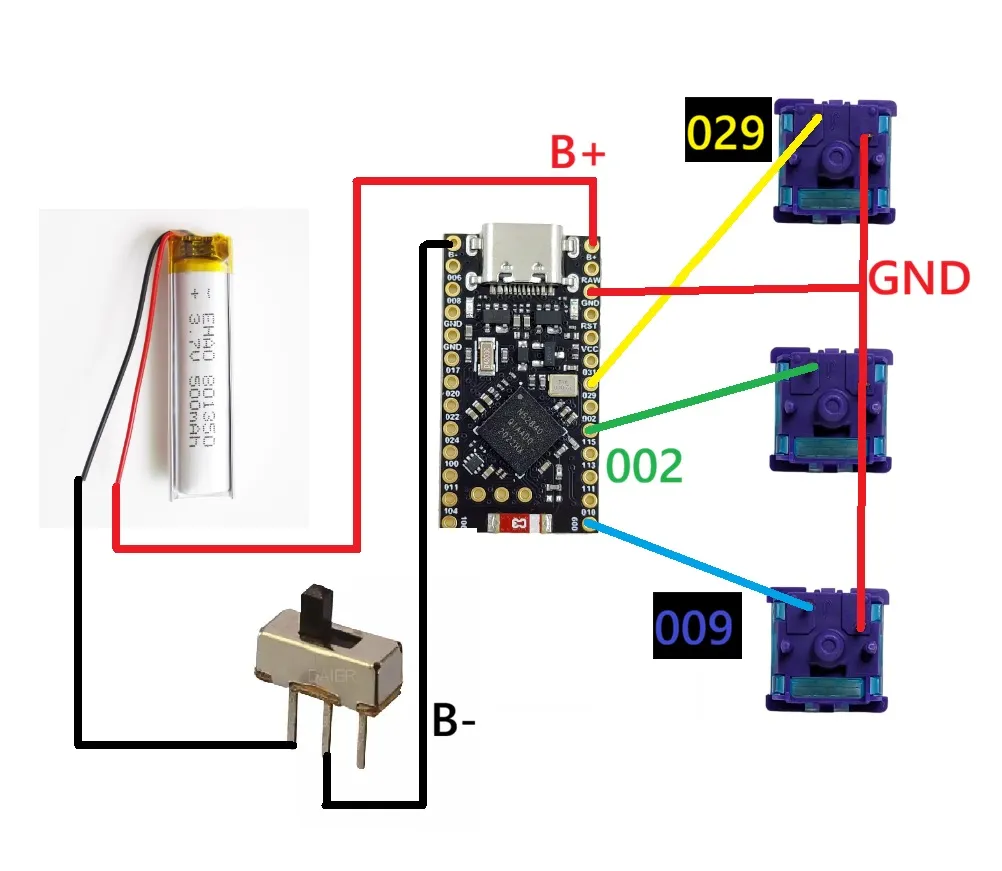

Wiring Diagramm

Firmware & Customization

This project built using ZMK firmware and supports customization via ZMK Studio.

Important: premade firmware works only if wired according to the provided wiring diagram.

GitHub Repository

Full documentation, wiring diagrams, firmware files, and build instructions are available here:
https://github.com/vostoklabs/Mini-numpad-3key

Enjoy printing!
