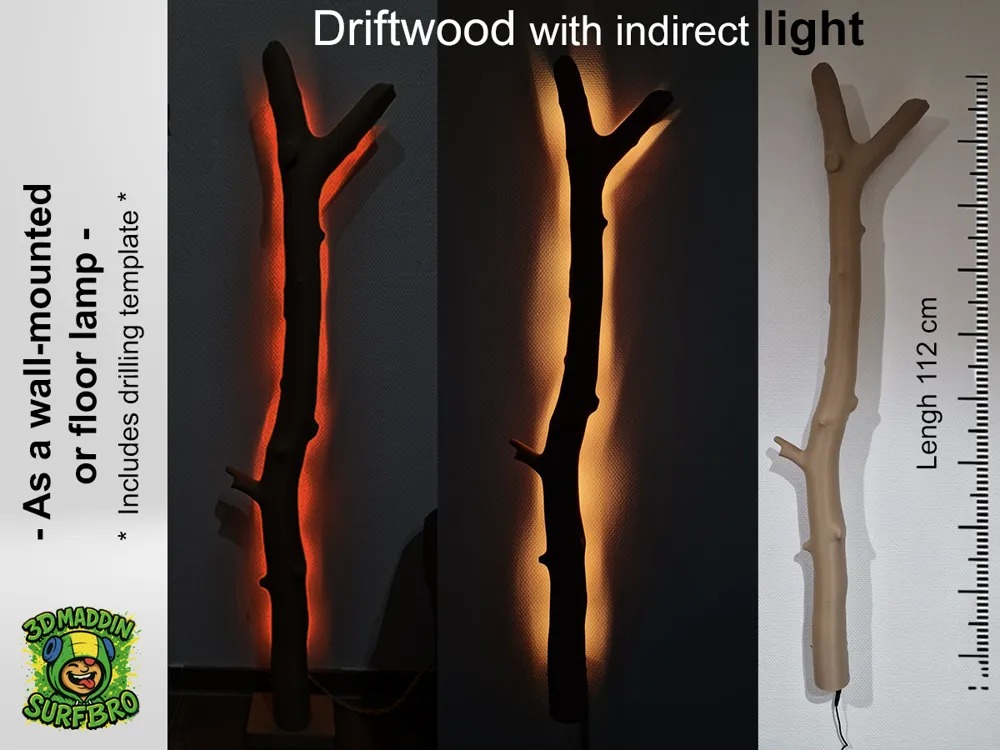

Driftwood Branch with Indirect Backlighting 🌿💡
This decorative driftwood-inspired branch is designed as a wall-mounted piece with indirect backlighting, creating a soft, ambient glow behind the object. The organic branch shape combined with hidden LED lighting produces a calm, elegant lighting effect—perfect for cozy living spaces and modern interiors.
The model is optimized for 3D printing and allows easy integration of LED strips behind the branch for indirect illumination.
⭐ Features:
- Organic driftwood / branch-inspired design

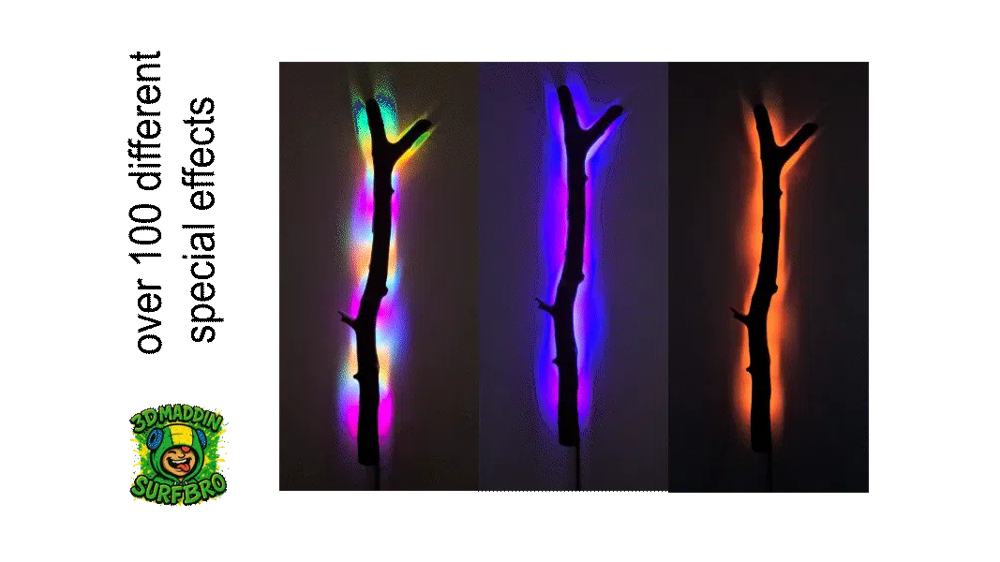

- Indirect backlighting for soft ambient light
- Designed for wall mounting and floor lamp

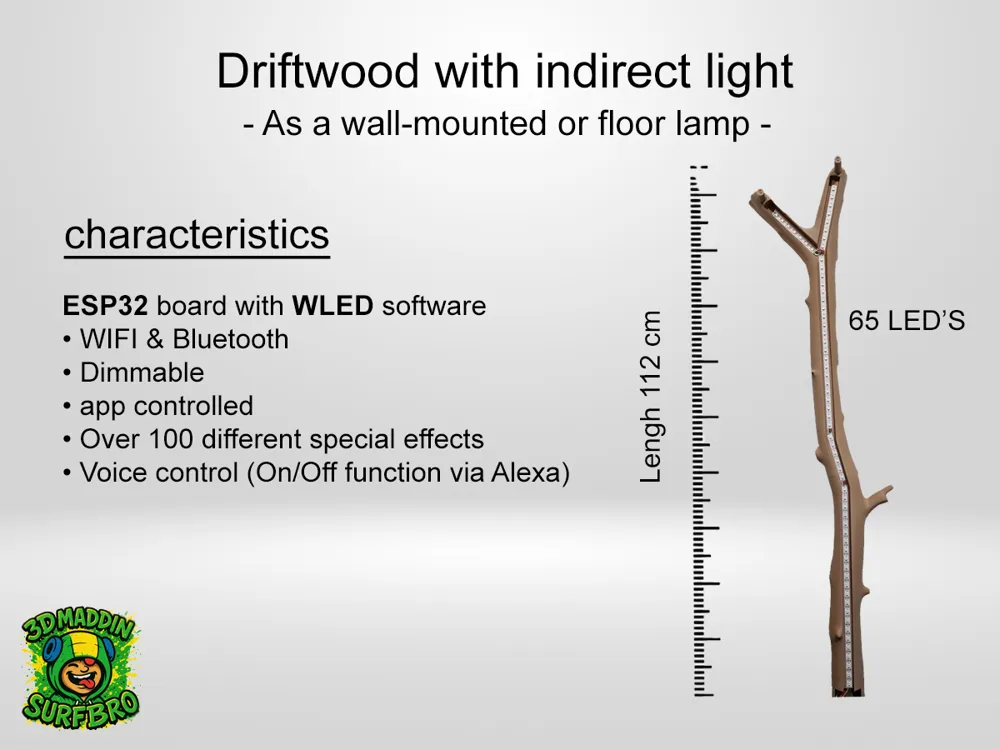

- Hidden space for LED strips and ESP32 module
🏡 Great for:
- Ambient wall lighting
- Living room, bedroom, or hallway decor
- Modern, rustic, or nature-inspired interiors
- Cozy indirect lighting setups
📝 Note and Tipps:
- For older 3D printers please use a border (print adhesion).
- This model is designed for decorative use – not a toy
- Please remove the supports carefully.
- Use dry filament and a clean print bed; it's best to clean the print bed with Isopropanol
- I use also the cool plate (superTack)
- Print multiple copies at once to reduce waste.
The complete assembly instructions can be found in the attachment.
1. Description.with.partlist.and.links.pdf
2. Printout.and.assembly.pdf
3. Electronic.and.software.pdf
4. Wall.mounting.and.floor.lamp.pdf

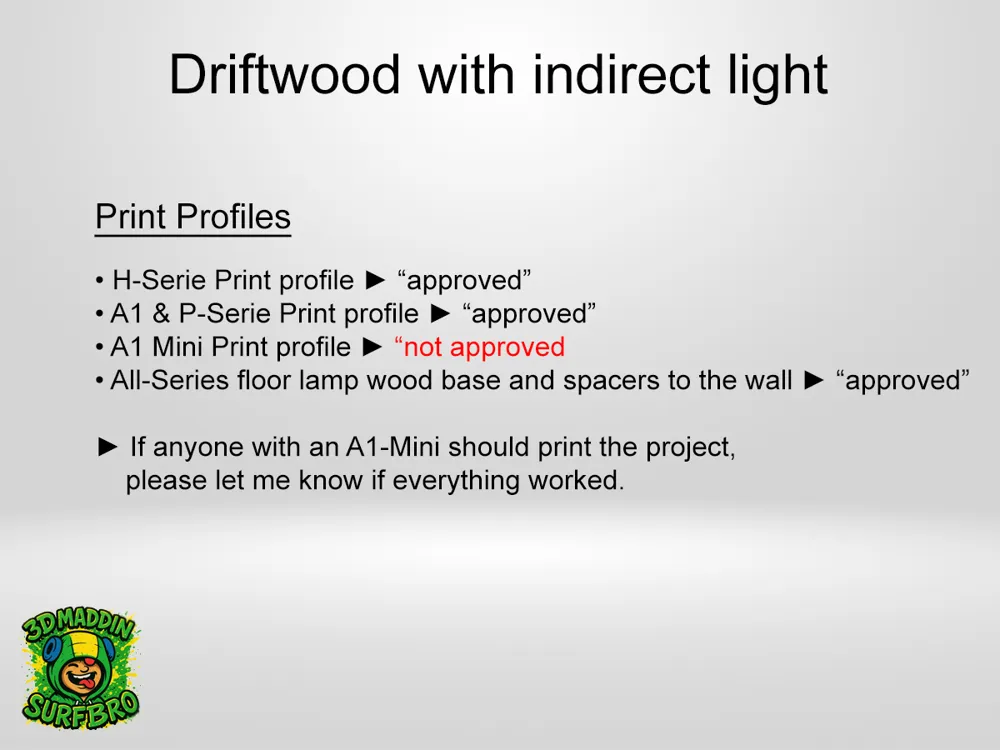

🚀 I have uploaded the following printer profiles:
- H-Serie Print profile ► “approved”
- A1 & P-Serie Print profile ► “approved”
- A1 Mini Print profile ► “Not yet tested”
► If anyone with an A1-Mini should print the project, please let me know if everything worked. - All-Series floor lamp wood base and spacers to the wall ► “approved”
I would be happy if I get your feedback!
Let me know which printer, nozzle, and filament you used—and feel free to share a photo!
🔔 Caution:
I printed it myself with a Bambu A1 AMS-Lite and H2C and I used the following filaments and the published print profiles. I had no problems during printing. Minor adjustments such as scaling, wall thickness, or support settings may be required depending on your printer and material.
🌀Used Filaments:
- Eryone Mixed PLA/ Wood Filament (5-15% real Wood)
🔩 Part List
(Parts list for the branch and for attaching it to the wall)
- 🌀 Eryone Mixed PLA/ Wood Filament (5-15% real Wood) - About 700g Filament.
Reference: ERYONE Mixed Material PLA/Wood Filament – color light wood or dark wood) - 3 pieces dowel 6x30
- 3 pieces 4 x 40 screw
- 1-piece Torx TX20 screwdriver or a TX20 bit
Remark: The links are from the EU Amazon
🔩 Part List
(Parts list for the electronics)
- 1-piece 22AWG DC plug 5,5x2,1mm Female
- 1-piece AC 220V to 5V/5A power supply (EU)
- 5 meter cable 22 AWG 3 pin
- WS2812B White PCB, 3m 60 IP30
- ESP32 BT WiFi Modul CH9102F Type-C
- Heat shrink tubing
Remark: The links are from Aliexpress, but the parts have to be selected manually.
I'll be releasing more models in the future! If you don't want to miss anything
I would be very happy about a comment or a "thumbs up"!
