Any Angle Customizable Pipe/Rod 4-Way Connectors
Print Profile(2)
Description
Build modular frames fast with these parametric 4-way rod/tube connectors. This set generates STL files for multiple rod diameters (e.g., 6–25mm) with reasonable socket depth and hub length for strong, clean joints—great for DIY frames, rigs, stands, enclosures, and lightweight structures.
What’s included
- 4-way connectors with multiple angle presets (including a vertical/up arm option)
- Multiple rod diameters (edit the list to match your rods/tubes)
- Slip-fit socket clearance (tunable for your printer/material)

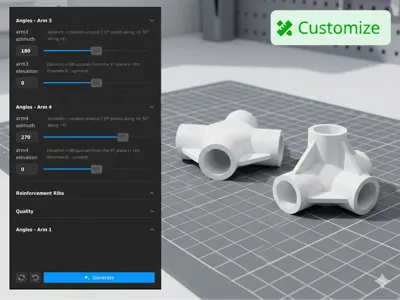

Customization
These models are OpenSCAD parametric:
- rod diameter
- clearance (fit)
- socket depth
- hub length
- arm angles (azimuth + elevation)
Printing tips
- For stronger parts: use more perimeters and higher infill, and consider PETG/ABS/ASA if the joint will see load.
- Dial in clearance for your printer tolerance (tight press fit vs easy slip fit).
Boost Me (for free)
If this model helps your project, please give it a boost!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
