ASIAIR Adapter for the ZWO Pier Extension
Print Profile(1)
Description

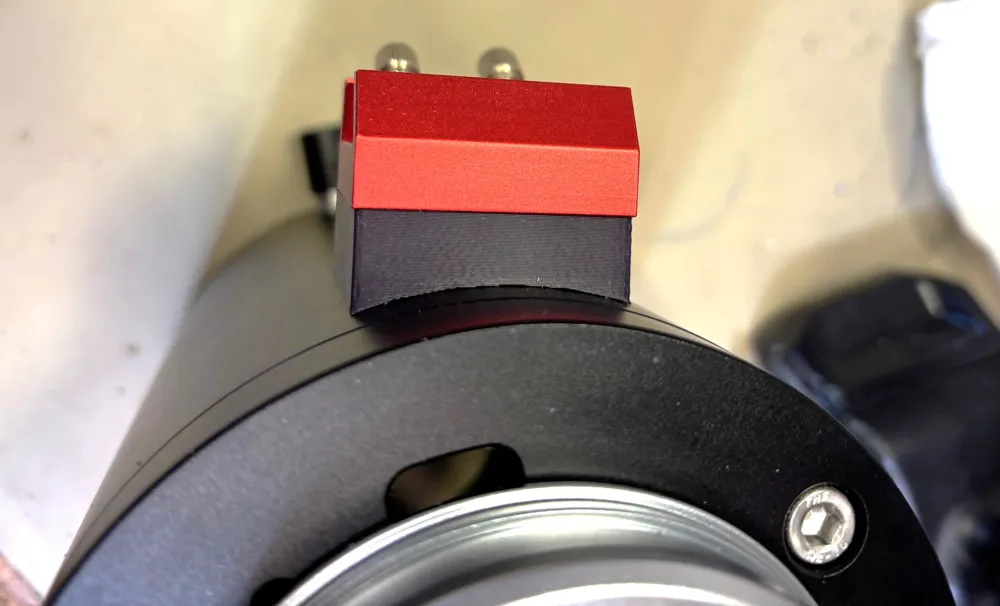

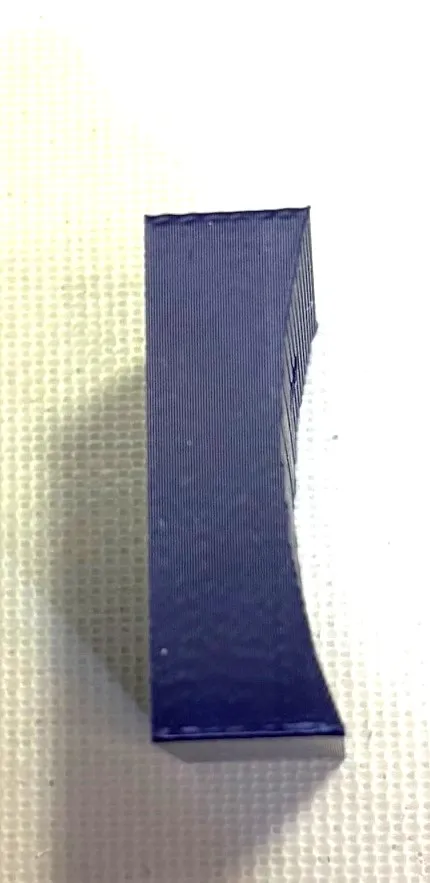

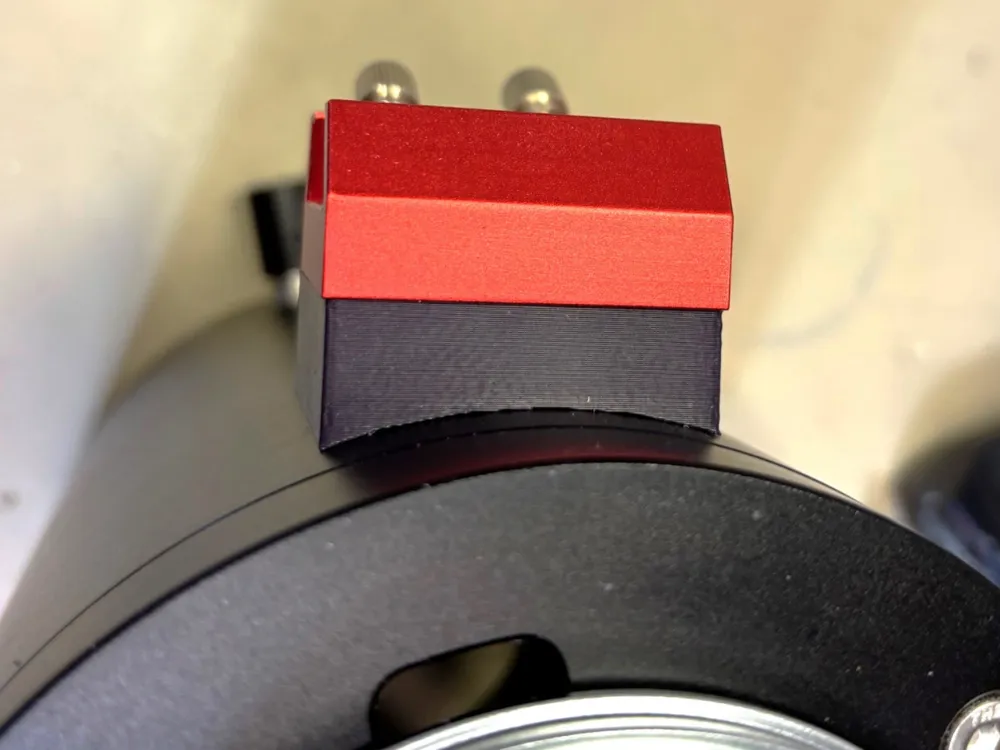

The adapter allows a dovetail saddle with a flat bottom to be mounted to the curved pier extension used for the AM5.

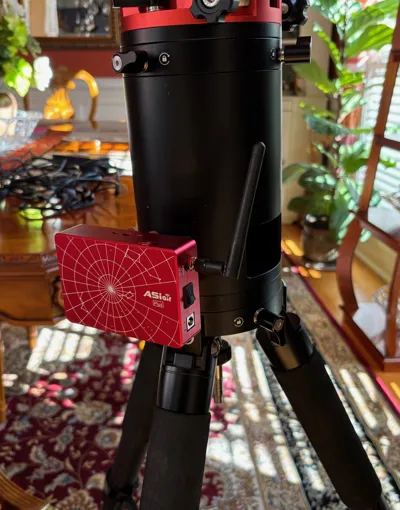

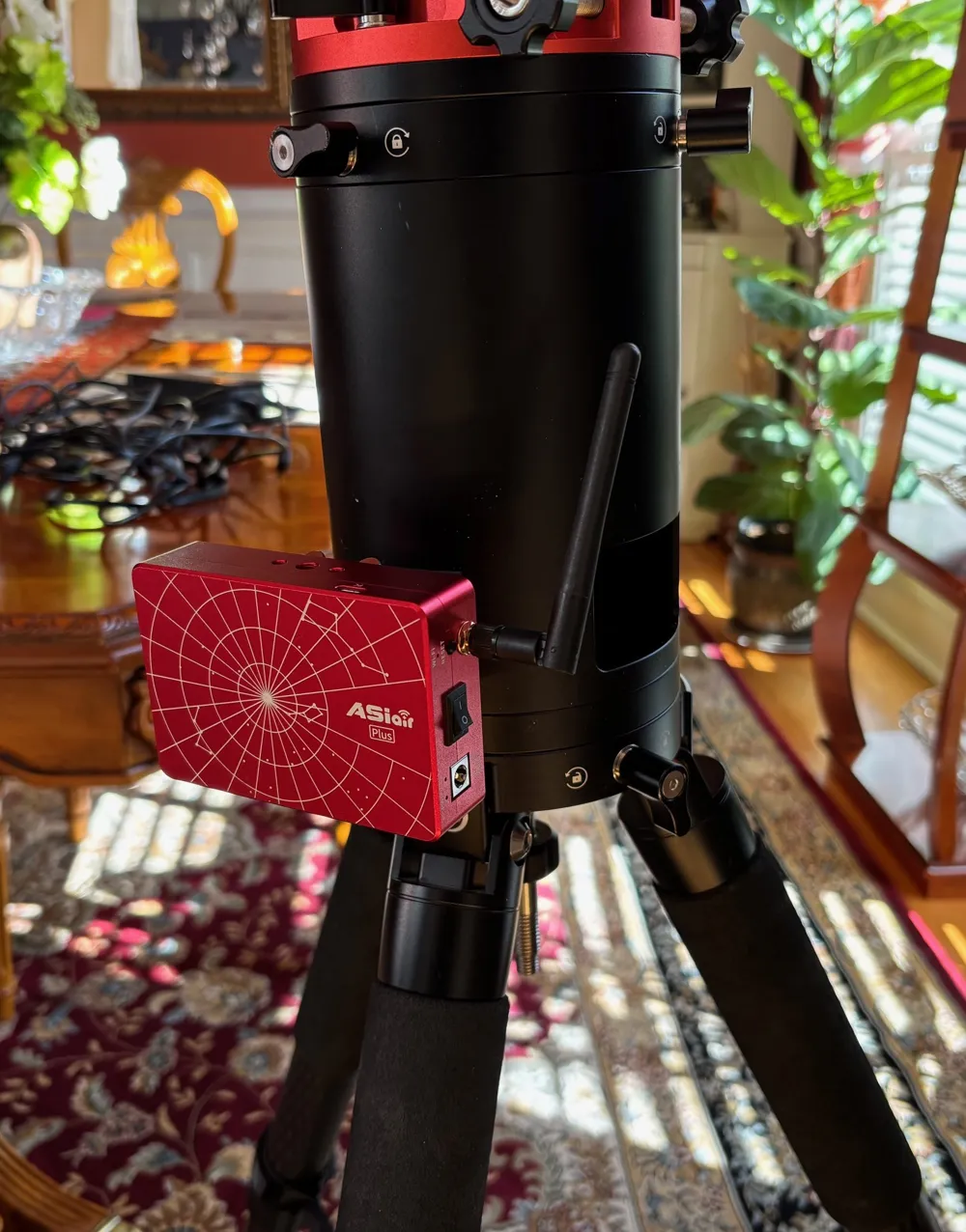

I mounted the asiair in the orientation shown in the pictures but you can place it anywhere you want and oriented in any direction.
You determine this by drilling two holes wherever you want the dovetail mounted on the extension.

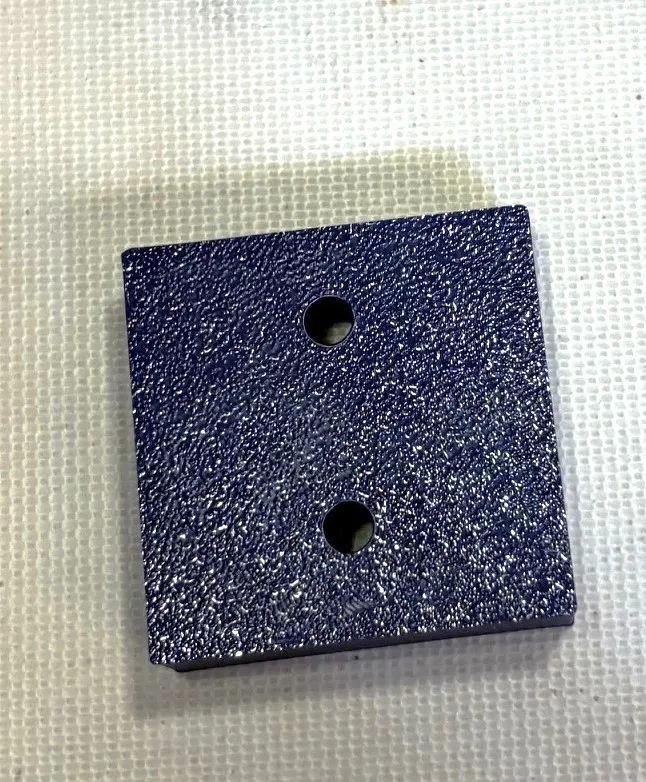

The part has 5mm holes designed in. You will have to supply 2 x screws, 2 x nuts and 2 x washers(for the washers).
I used M3 x 19 screws.
