4x AMS HT Adapter | Add-on for AMS Stand

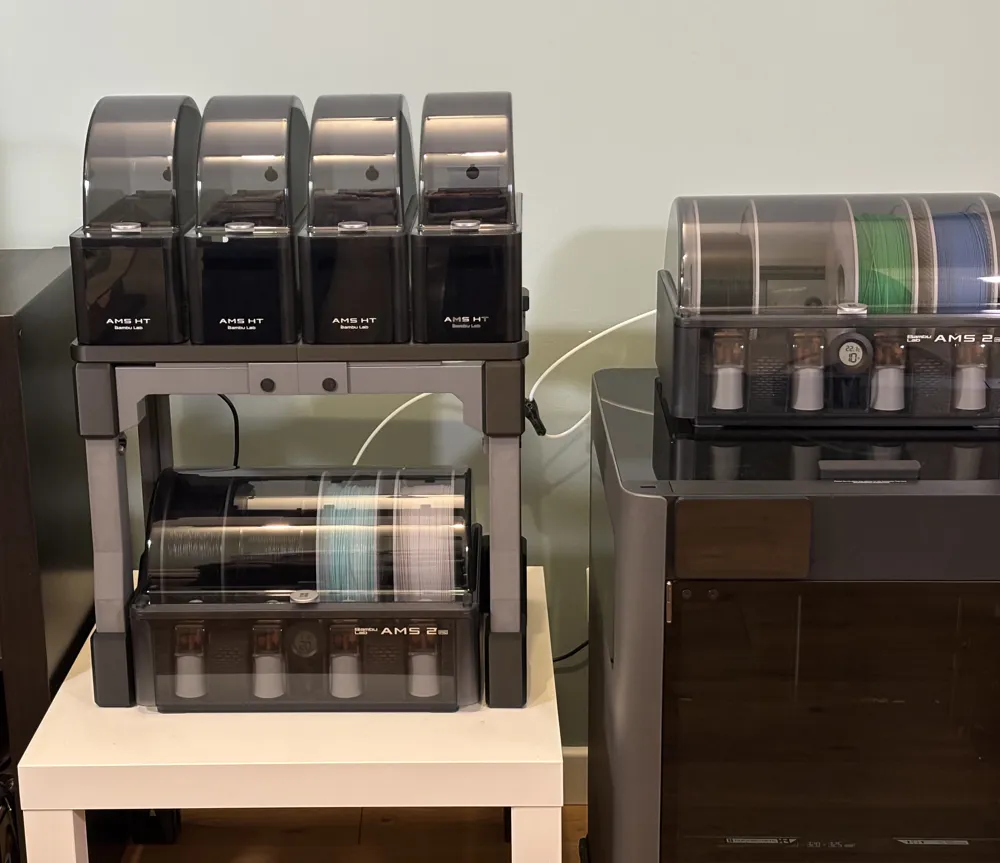

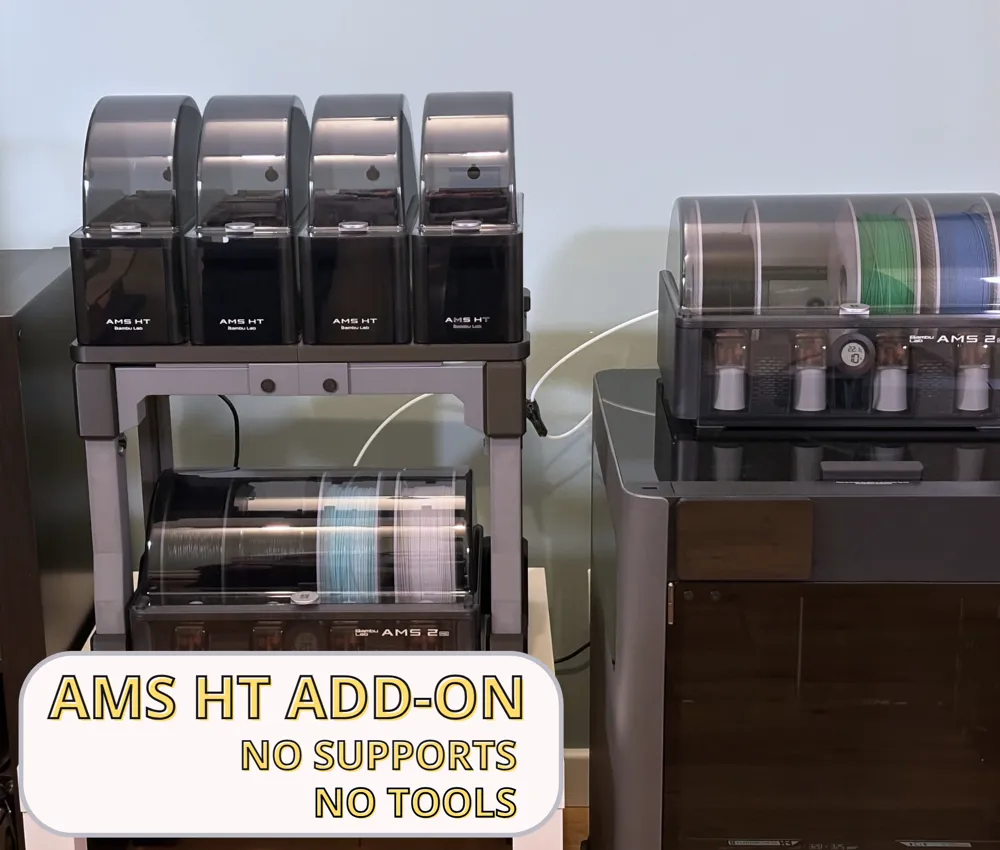

An expansion module for the AMS Stand system, allowing you to mount up to 4x AMS HT units on the top frame.

This project is a direct response to community member feedback. You asked for a way to mount AMS HT units, this is a compact solution that maximizes space efficiency.

🧩 What is this?

This is an optional Add-on. It requires the base AMS Stand to work.

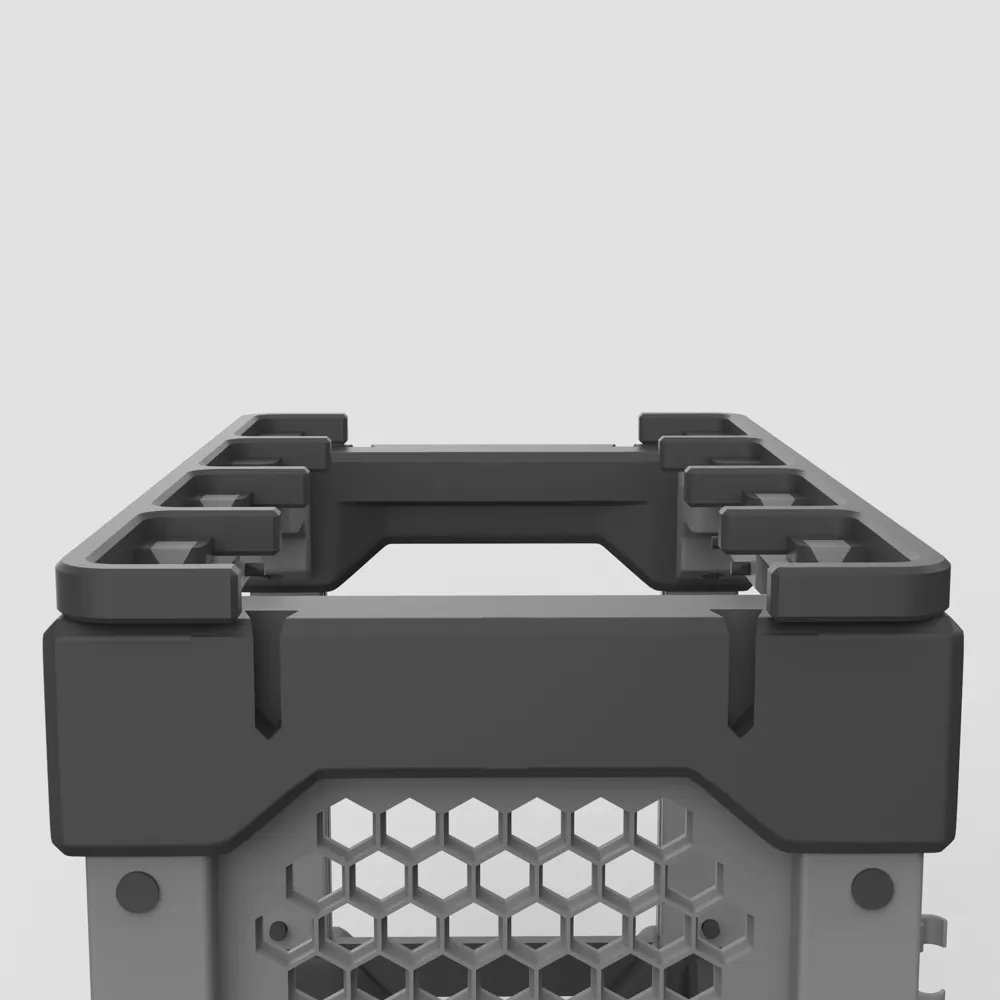

It acts as a "topper" adapter that clips securely onto the existing top frame of the stand.

🏆 Key Features

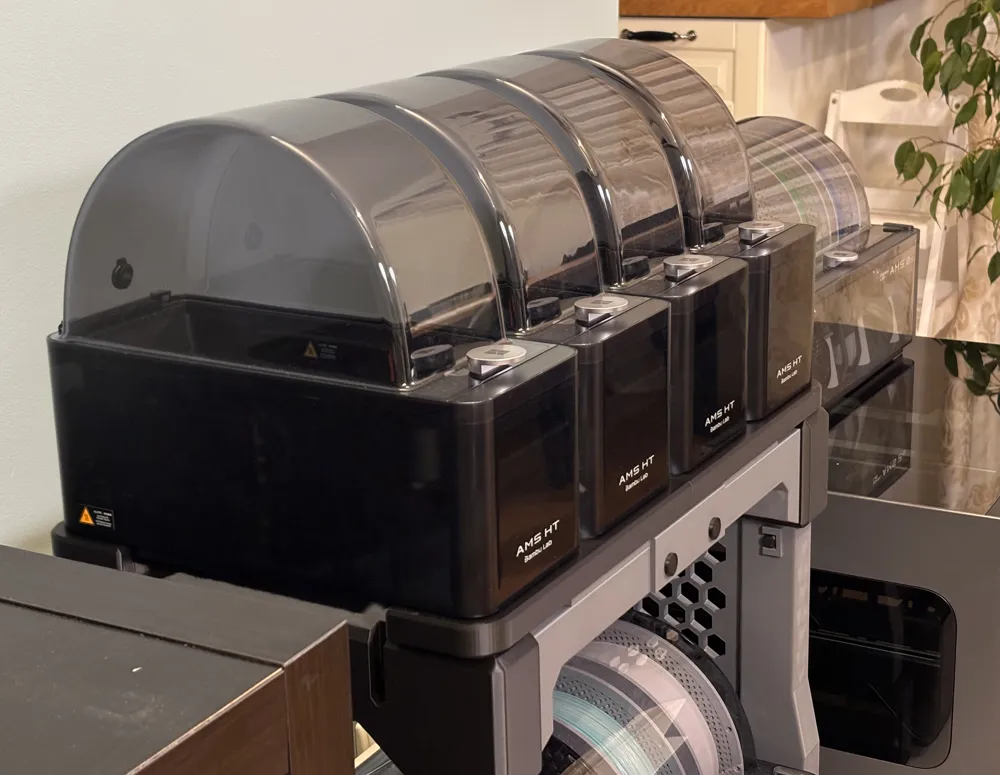

🚀 Capacity up to 4 units
This design optimizes the spacing to fit 4x AMS HT units side-by-side. Maximize your material options in the same footprint.

🛠️ Non-Destructive Upgrade
Already printed the main stand? No problem. You do NOT need to reprint any structural parts. This adapter simply slides into the existing slots of the top frame.

🔒 Secure & Tool-less
Just like the main stand, this adapter uses friction-fit joints and pins. No screws, no glue, no wobbling.

⚙️ Compatibility

• Requires AMS Stand: https://makerworld.com/pl/models/2318234-ams-stand-modular-tool-less-support-free#profileId-2531505

• Fits: 4x AMS HT



📦 Assembly Notes

1. Print: All parts are support-free. Orientation already set in the files.
2.  Assemble: Slide the rail segments together.

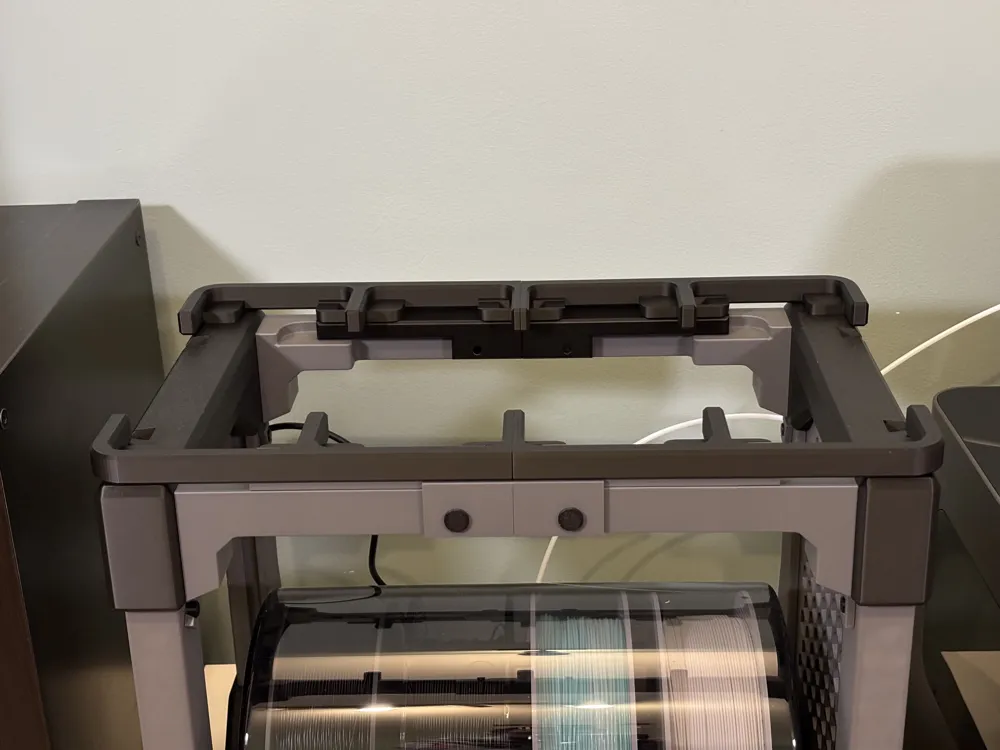

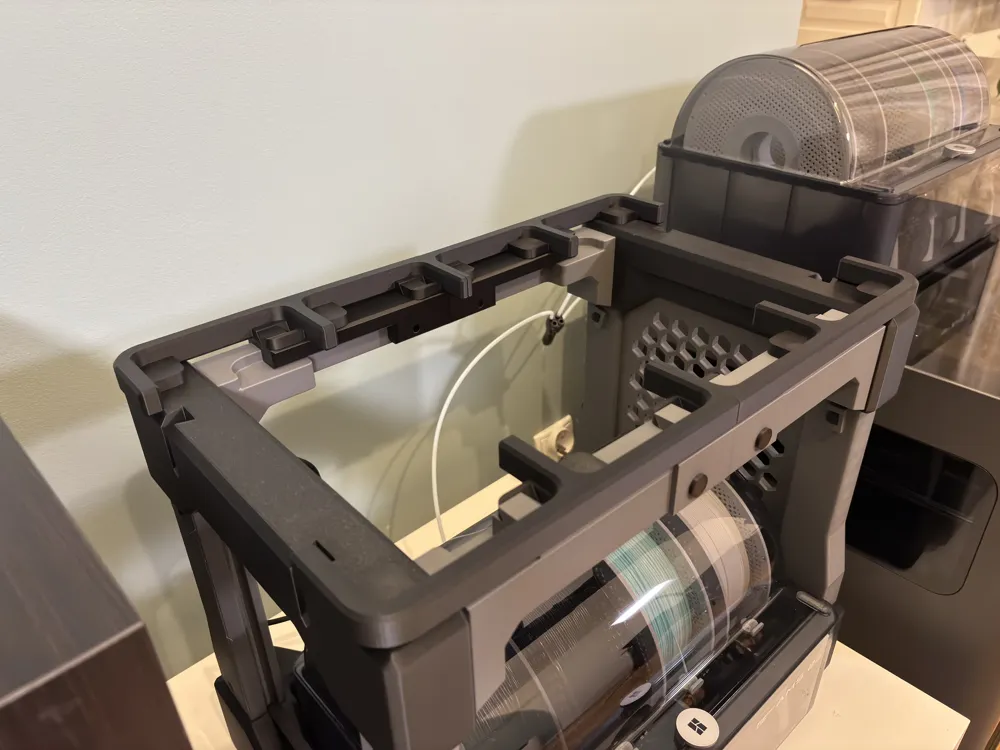

3. Install: Place the assembled segments onto the top frame of your AMS Stand and secure it with pins.

Note: Refer to the included PDF guide for step-by-step visuals.

⚠️ Important

This is NOT a standalone product. You must have the AMS Stand printed to use this adapter.

✍️ Designer's Note

This addon was created in response to community feedback and is part of the ongoing development of the AMS Stand system.

🖨️ Recommended Print Settings

- Layer height: 0.2 mm

- Wall generator: Arachne

- Walls (structural parts): 2

- Infill (structural parts): 8-10% Adaptive Cubic

- Supports: none

- Standard quality profiles (no special tuning required)

Note: Tight tolerances mean that well-calibrated extrusion and flow are important for best results.

📏 Technical Specs

- Build volume: Fits on 256 x 256 mm plates (x1, p1, a1 compatible).

- Orientation: Parts provided as Left/Right (do not mirror).

- Material: PLA. I personally used materials listed in the BOM, with excellent results.

Note: This project was designed and tested exclusively with PLA. Do not use PETG, ABS or ASA, as their different shrinkage rates will affect the tight tolerances and the snap-fits may not work correctly
