Photo .22LR Sectionview model.jpg

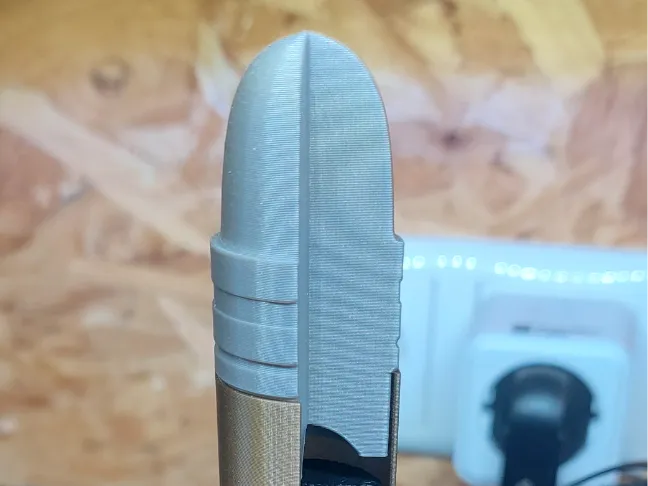

Projectile .22LR


Shell .22LR


Propellant


Priming compound



Print settings:&nbsp;All parts van be printed with 0.4 nozzle. &nbsp;For the projectile you need supports on the underside and the rim arround it.&nbsp;For the case you need to put little supports in the space where the primer compound will be glued.&nbsp;The propellant must printed with fuzzy skin. Looks beter.&nbsp;And finally the primer compound parts are small so put a brim arround them.

0.2mm layer, 2 walls, 15% infill

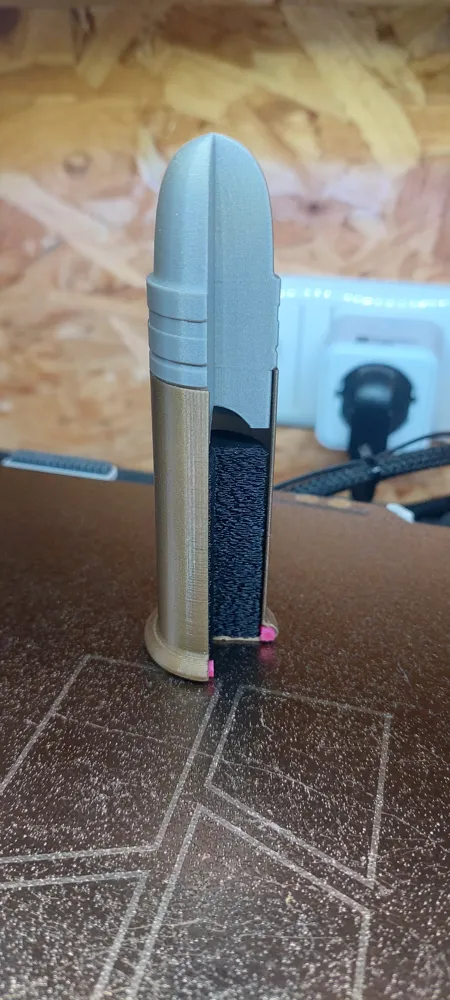

This is a section view model off a .22 LR round. It needs to printed serpertly and glueed together. You can scale it as you see fit.

Section view model of a .22LR
