M0.8 - M30 Cylindrical Dowel Pins / Parallel Pins
Print Profile(1)
Description
👑 SUPPORT & COMMERCIAL LICENSE 🚀
Want to sell physical prints of my designs? - Join my Patreon or MakerWorld membership to unlock your commercial license!
Boost Me (for free)
⚡ Drop a free BOOST if you love this file—every bit of support helps me keep creating! 🙌
──────────────────────────────────────────────
👟 ABOUT [Model Name]
Say hello to [Model Name]! This model features [insert detail, e.g., smooth articulation] and is optimized for clean printing.
Boost Me (for free)

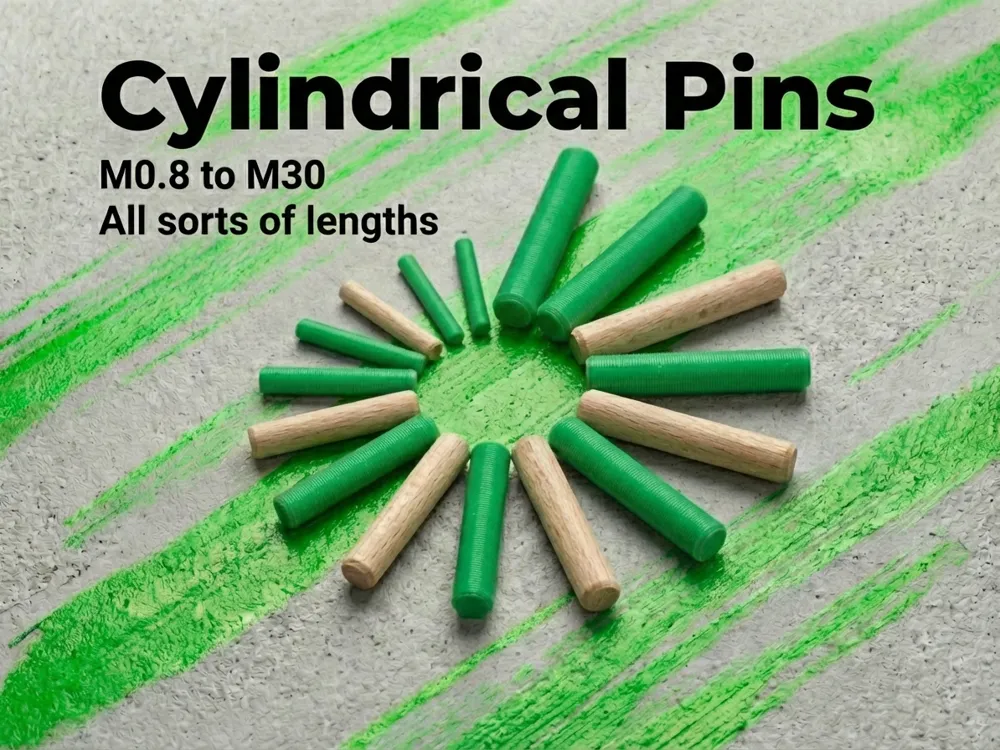

📍 Ultimate ISO 2338 Cylindrical Dowel Pin Collection 📍
⭐ Hit Like and stash this in your collection – your future self will thank you! ❤️
Need perfect alignment? This is a massive, comprehensive library of Solid Cylindrical Dowel Pins designed to ISO 2338 standards. From precision micro-pins to heavy-duty industrial sizes, they are ready for your next fixture, jig, or assembly project!
📐 Available Sizes
- Diameters: From M0.8 all the way to M30 📏
- Lengths: Huge variety from 5mm to 100mm 📏
- Format: STEP files included for easy CAD integration! 💻
✨ Key Features
- Type: Solid Parallel Dowel Pins 🧱
- Shape: Perfectly Cylindrical 🟣
- Ends: Chamfered for easy insertion and smooth fit 📐
- Design: Precision-engineered in OpenSCAD using the BOSL2 library.
🖨️ MakerWorld Print Settings 🛠️
For parts that require high dimensional accuracy like dowels, use these settings:
| Setting | Recommended Value | Why? |
|---|---|---|
| Layer Height | 0.10mm - 0.12mm | Ensures the smoothest surface for easy sliding. |
| Wall Loops | 4 - 6 | For small pins, more walls = more strength! |
| Infill Density | 40% - 100% | Use higher density for pins under load. |
| Infill Pattern | Gyroid | Maximum strength and no internal overlapping. |
| Brim | Outer Brim (5mm) | Highly Recommended for tall, thin pins to prevent tipping! |
💡 Pro Tip: Orientation
For maximum shear strength, print these horizontally. For maximum dimensional roundness, print them vertically (don't forget that brim! 🧴).
🔩 Complete Your Hardware Kit
Need more than just pins? My collection covers everything you need:
- ➕ Phillips Pan & Countersunk Screws
- ⬢ Hex & Torx Drive Bolts
- 🥨 Nuts & Easy-Grip Caps
Not a fan of Phillips? Need Hex or Nuts? Check my profile for the full growing hardware library!
- Or click this image here!
🙌 Join the Community
I’d love to see how you’re using these in your projects!
- 📸 Post a Make: Your photos help the community see the scale and fit!
- 💬 Feedback: Need a specific length or diameter? Drop a comment!
- ⭐ Support: A "Like" goes a long way in keeping these libraries growing.
Happy making! 🛠️✨
📸 LOVE TO SEE YOUR PRINTS!
Please share your unique color combinations and drop your photos and ratings in the review section!
──────────────────────────────────────────────
🚫 PROTECT THE DESIGN
If you see my exclusive files re-uploaded elsewhere, please report it or let me know. Thank you for supporting independent creators! 🙏
