Battery Cover For Walker's Razor Quad BT

Print Profile(1)

All
P1S
H2C
A1
H2S
X1 Carbon
P1P
P2S
A1 mini
X1E
X1
H2D
H2D Pro
X2D
A2L

0.12mm layer, 2 walls, 12% infill
0.12mm layer, 2 walls, 12% infill
Designer
56 min
1 plate
5.0(1)

Open in Bambu Studio
Boost
7
12
1
2
24
16
Released

Description

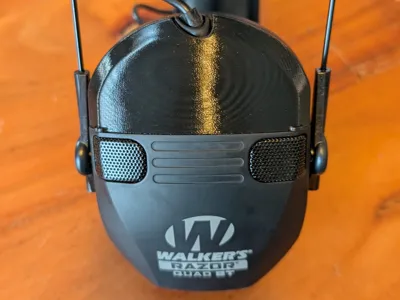

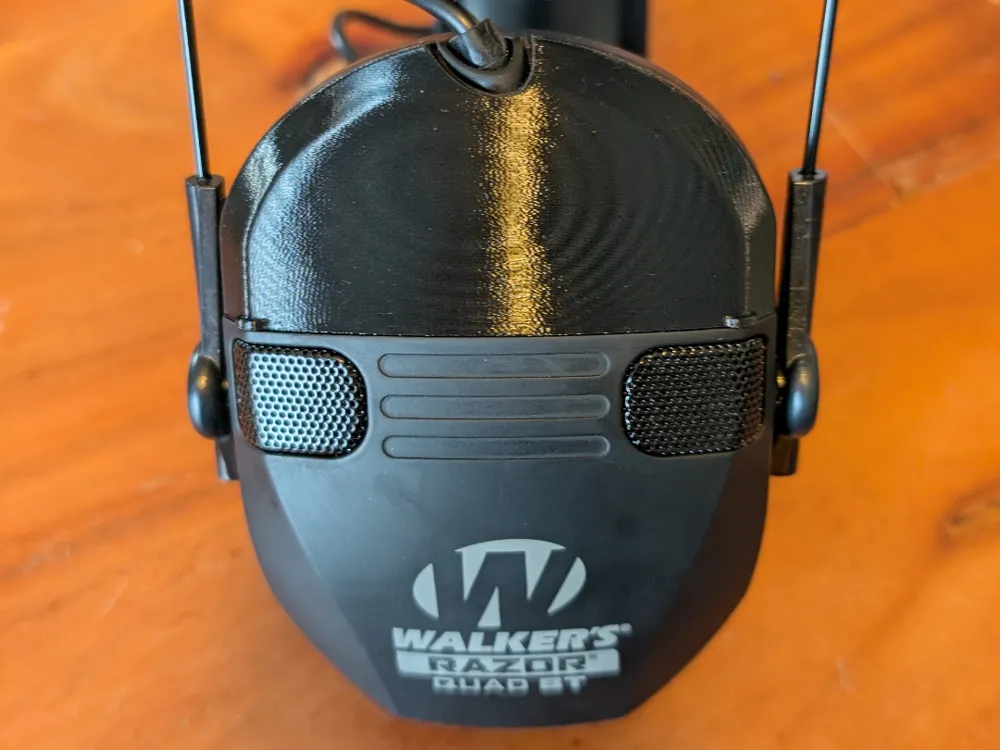

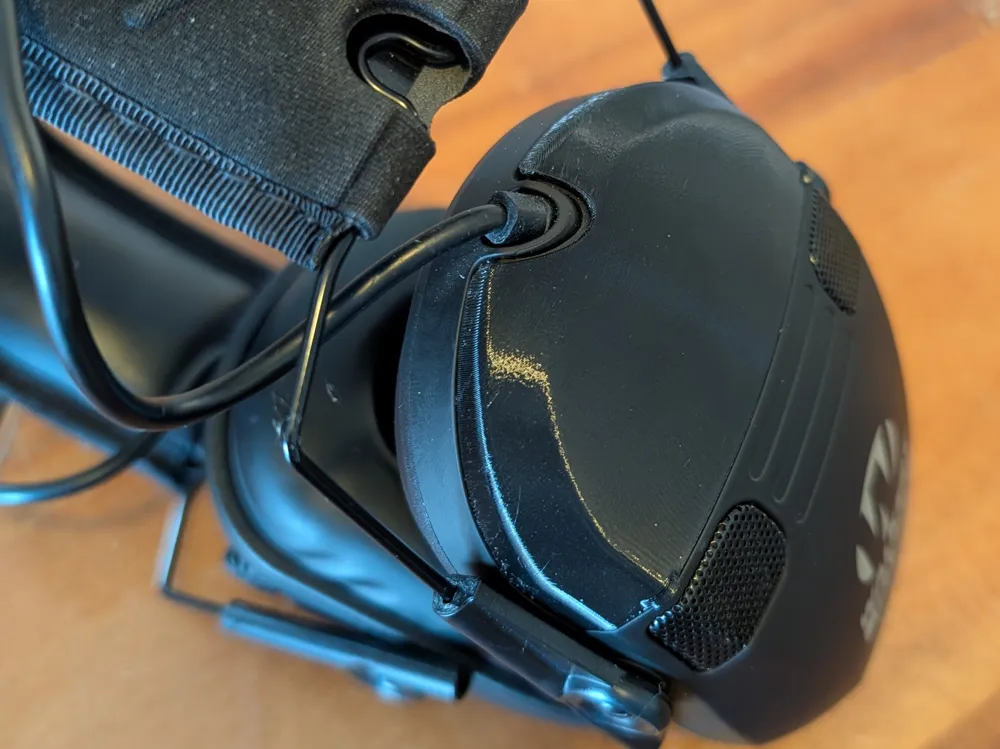

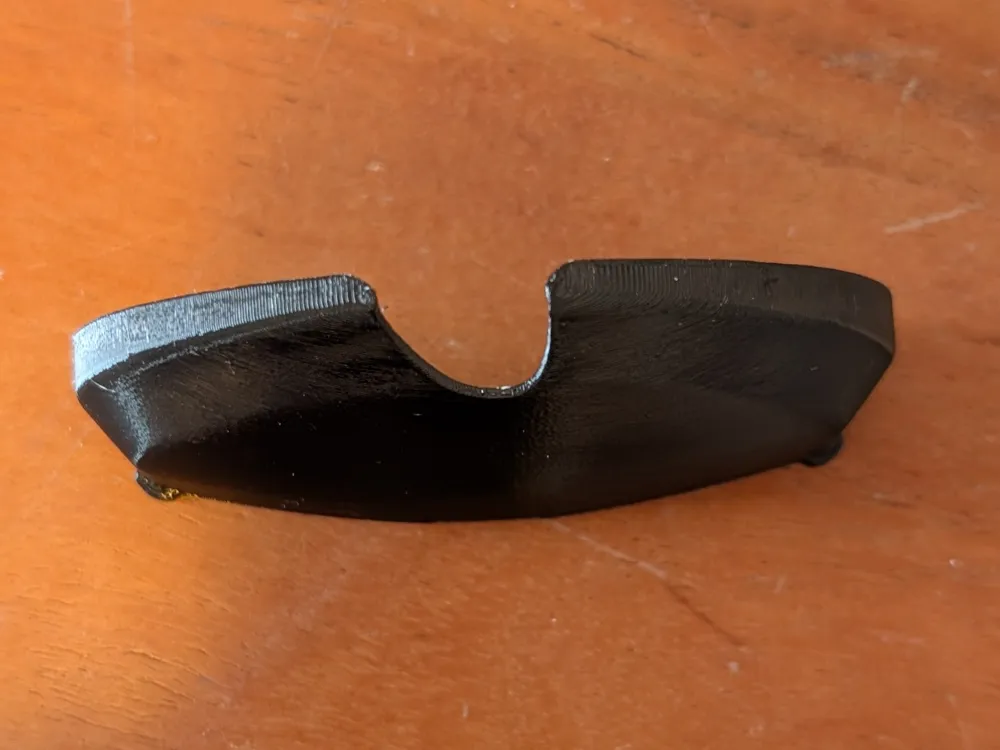

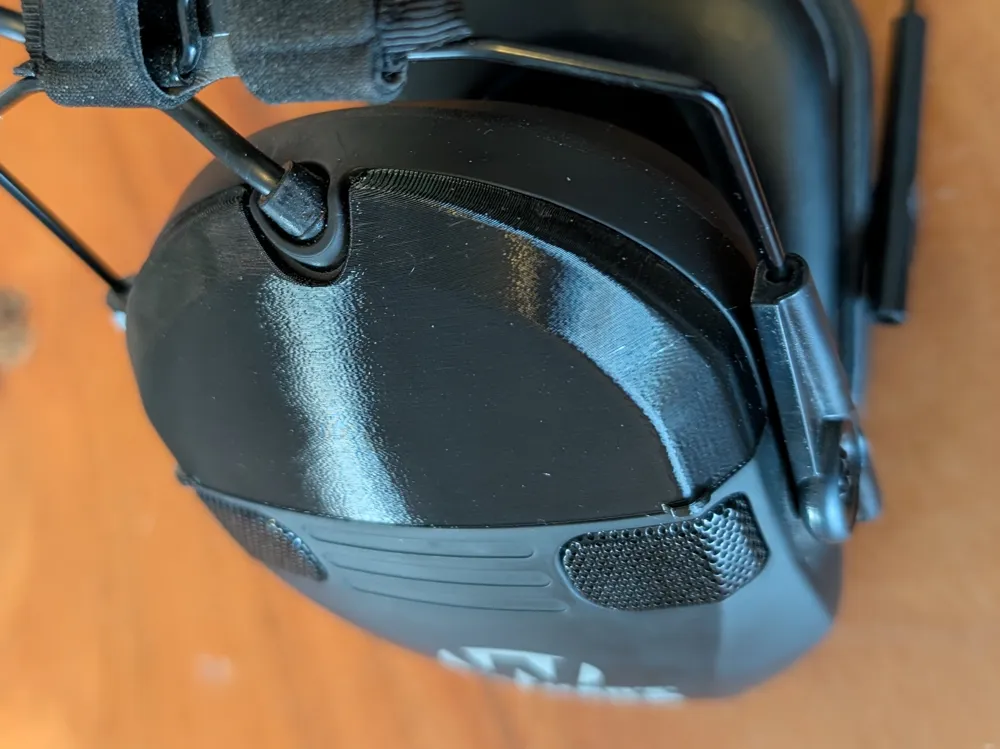

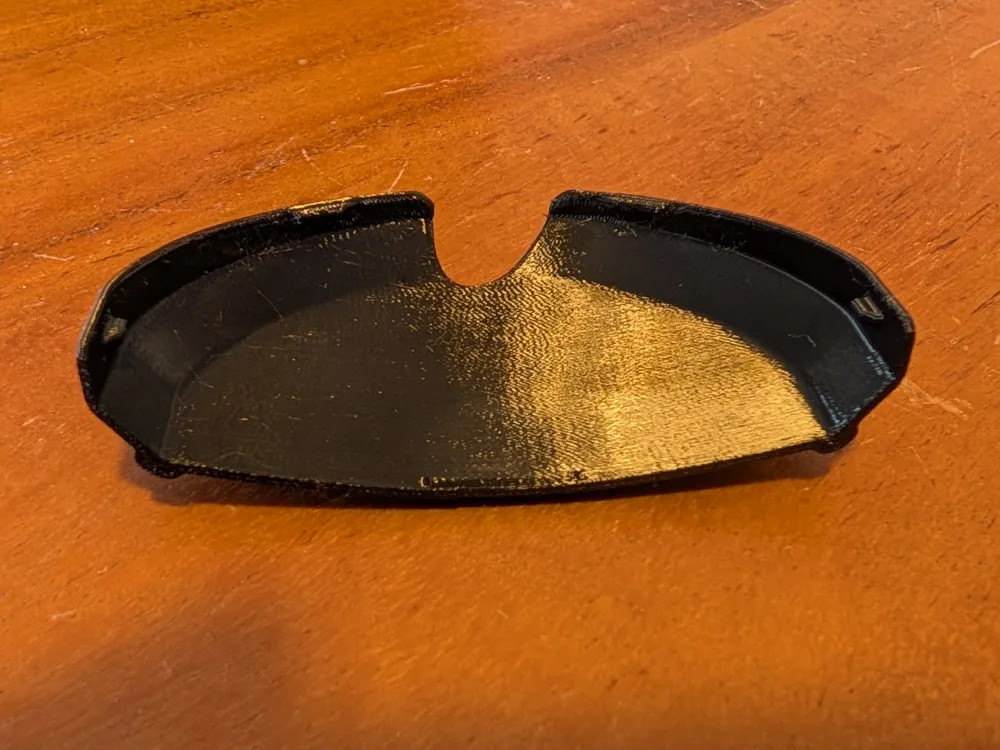

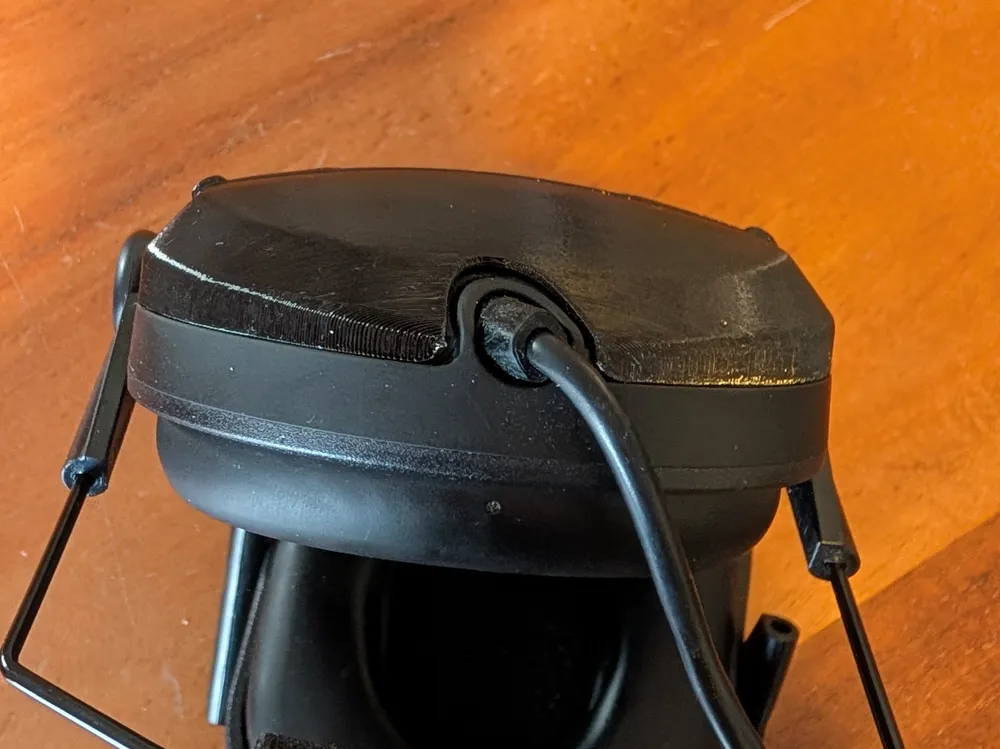

So, in the first month I got these ear muff, I lost the battery cover in a metal chip bin… I could not find a replaceable part on Walker's site. I found a model on makerworld but it doesn't hold on my Razor Quad BT, so I decide to draw my own and here it is. Fit is good, and just a little bit snug. I design small ear at the corner over the mics to take the battery cover off easely.



Please notice that if you don't use my profile, know that I use a Shrinkage of 99.77% in my PETG material profile.



If you use PLA instead of PETG, I suggest to replace the painted brim-ear to a full outer brim. Chamfer the part well after.



Also, support are painted, so use tree(manual).



If you find that it work's on another Walker's model, please inform me and I'll add it to the description and tags.
