OPTA / Funkrufnamen-Schild 230 x 50mm

narrow version 230 × 50 mm

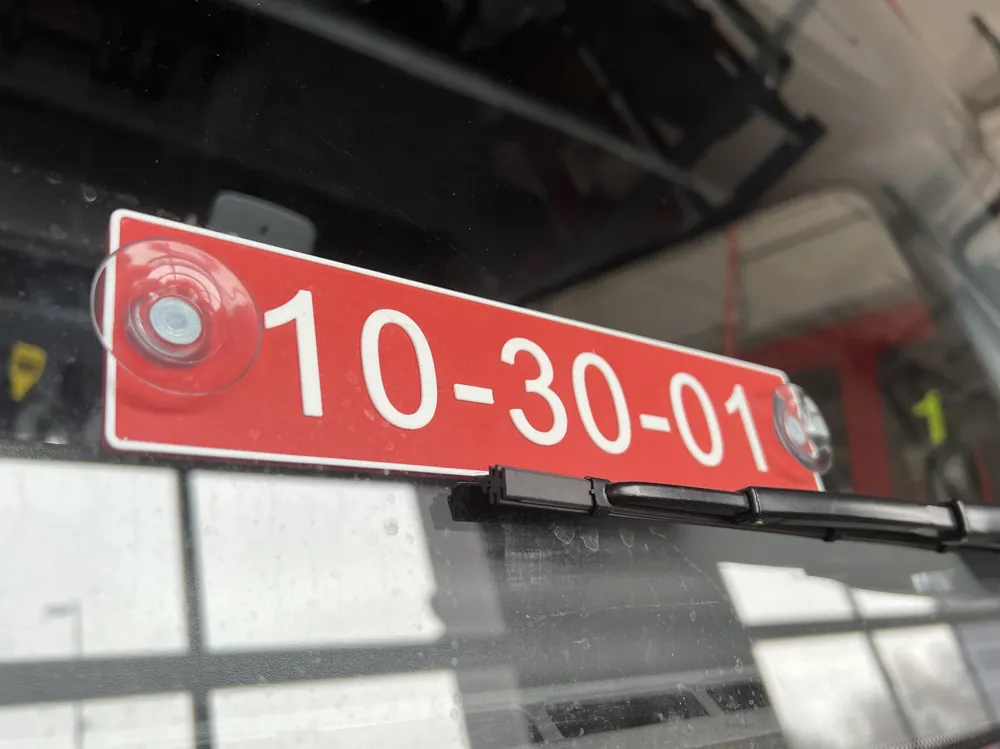

This identification sign serves for the quick and clear identification of fire department vehicles and is attached to the inside of the windshield.

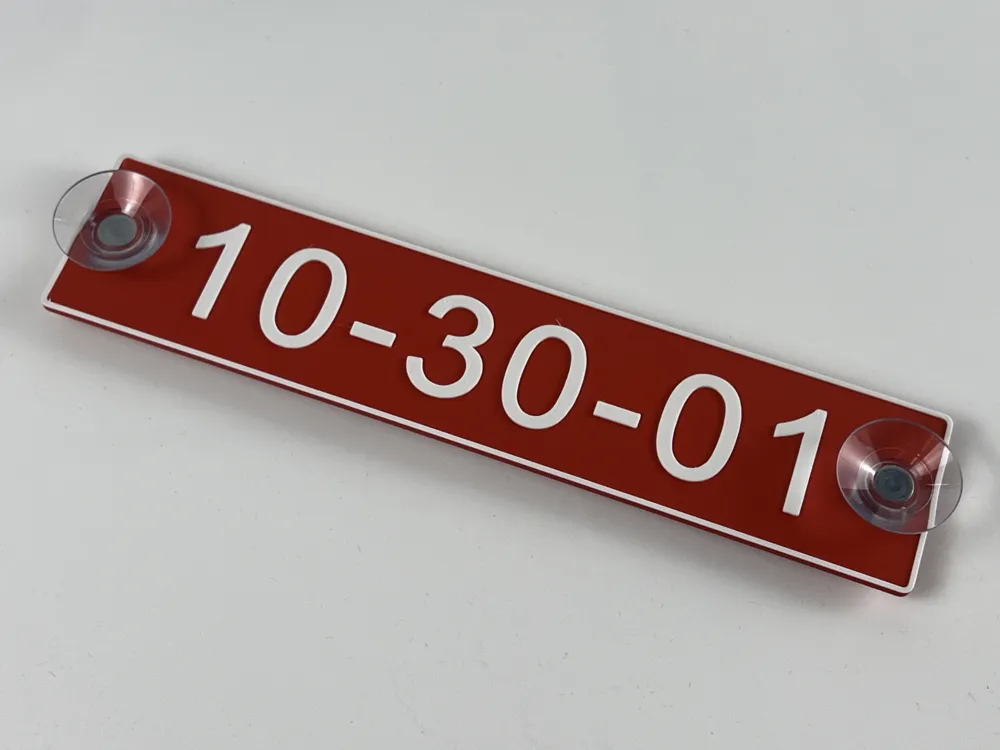

The text and border are raised by 0.6 mm on the red main body. This design shortens print time compared to recessed text and simultaneously improves readability due to the strong contrast. The result is a clean, professional look.

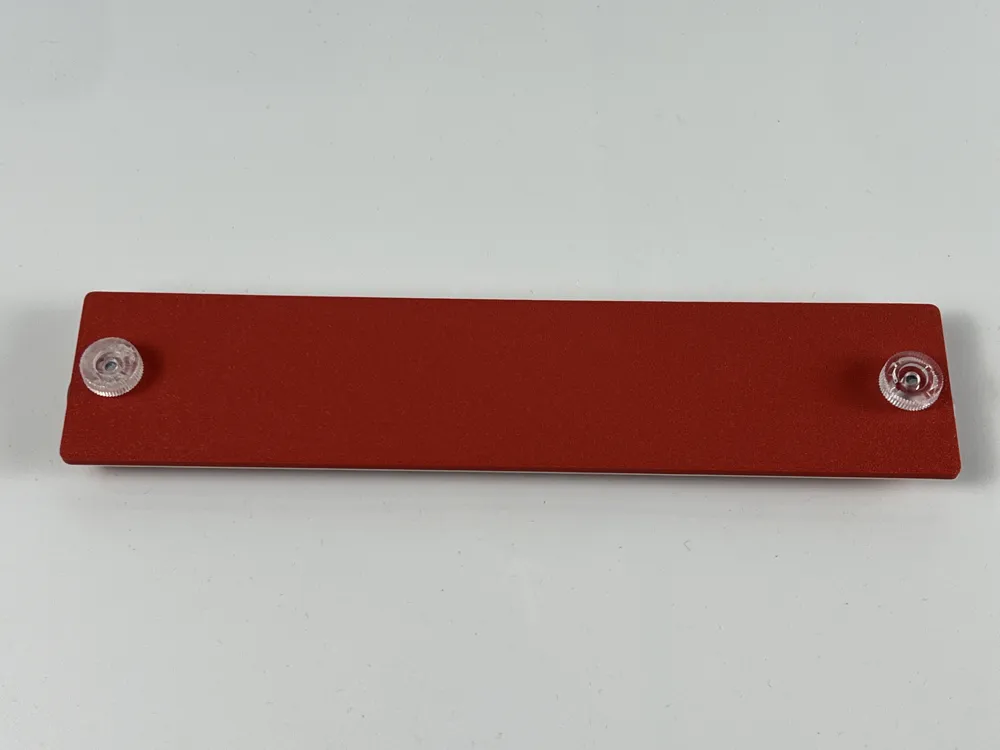

The sign is attached with 32 mm suction cups to the inside of the windshield. It is important to use suction cups with knurled nuts so that the sign sits securely and firmly. Such suction cups are cheaply available in multi-packs and are easy to mount.

Ideally, printing is done with a 0.2 mm layer height. A color change is necessary for the white text, either via pause or using a multi-color system like AMS.

Printing is done with the front side up, support is not required. Due to summer temperatures, printing with ABS or ASA might be necessary. The text can be easily adapted directly in the slicer, for example in Bambu Studio, to your own radio call signs and vehicle designations.

Click here for the larger version in 230 x 95mm

Lastly:

Commercial use of any of my designs is strictly prohibited**. All of my designs are exclusively available on my profile on Makerworld.
If you come across my designs on other platforms, please let me know so I can take appropriate action.
From the beginning, I’ve relied on the honesty of users in order to offer all my content for free.

Regards, Niklas
