Parametric HueForge Photo Frame (Parametric Photo Frame)

🔹 Description

This parametric frame allows you to adjust the photo width, height, and thickness, ensuring compatibility with photos of different sizes and materials.

The front frame width and outer corner radius can also be customized, giving you precise control over the frame’s overall appearance and proportions.

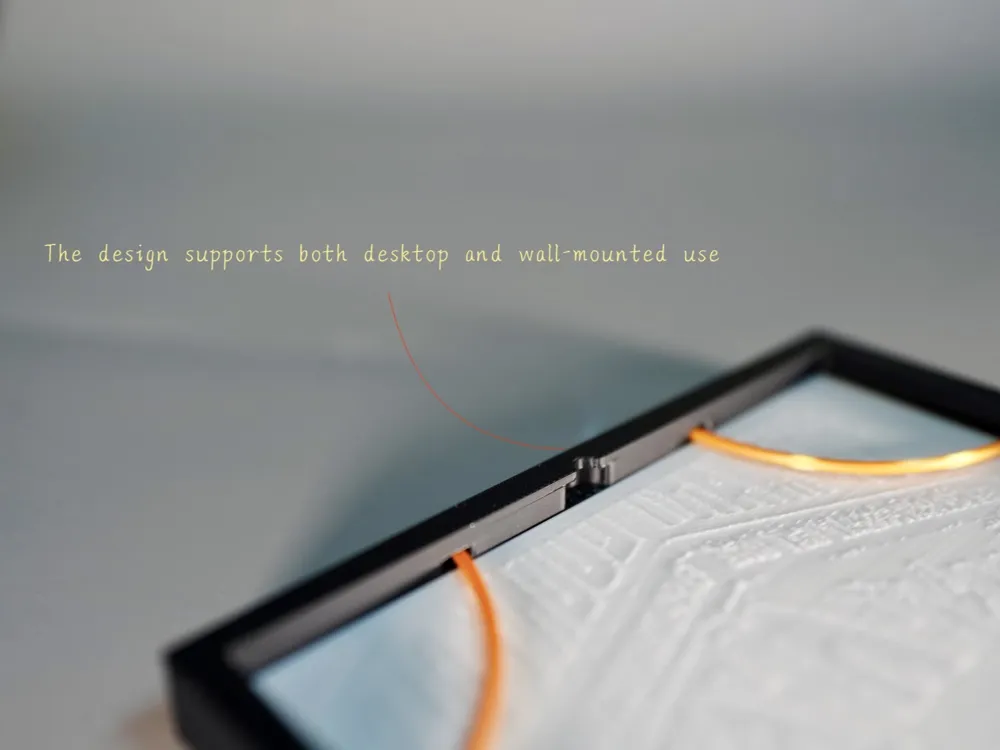

The design supports both desktop display and wall mounting, making it suitable for a wide range of use cases.

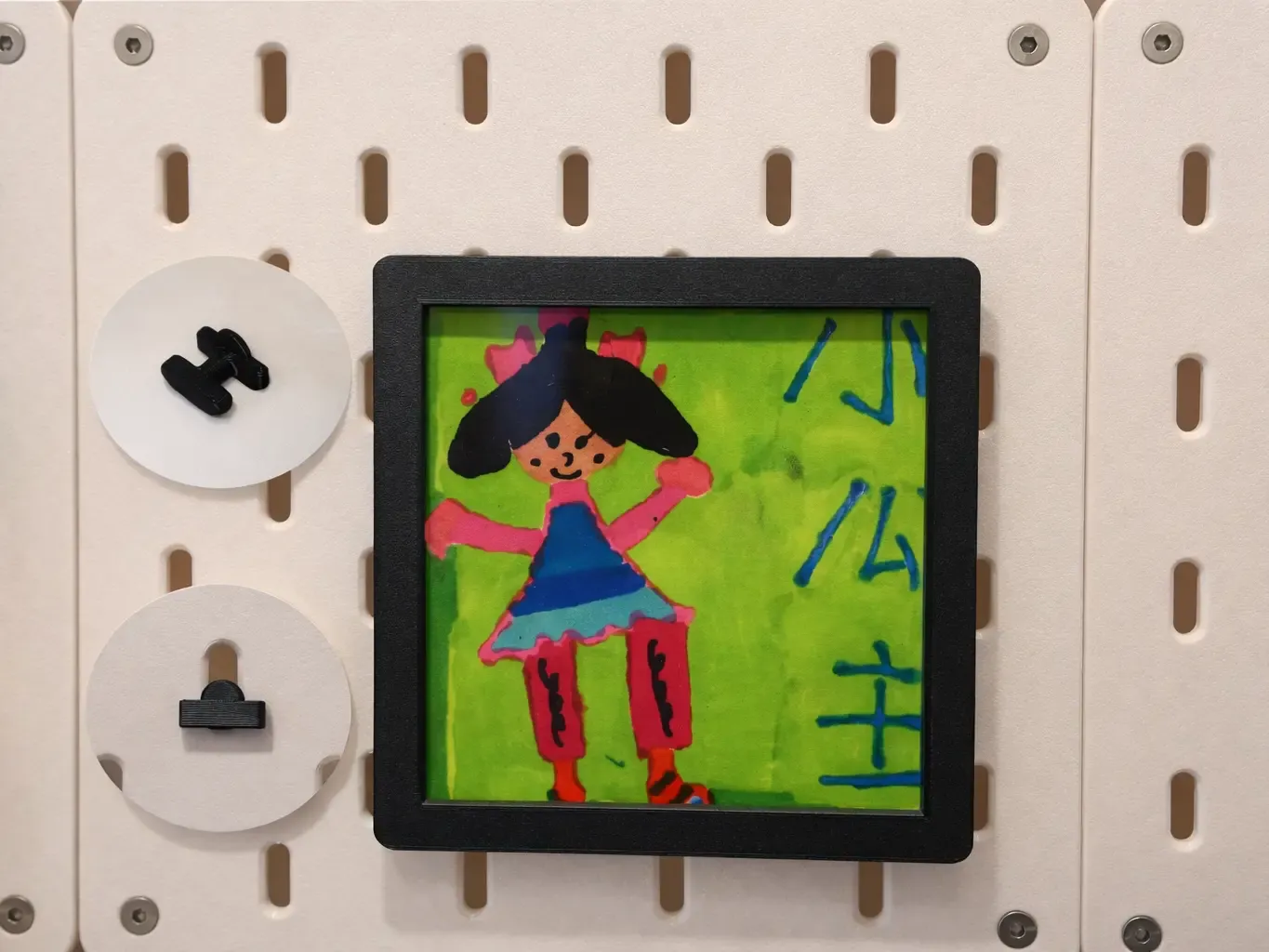

To expand its mounting options, I have also created a dedicated hook specifically designed for IKEA pegboards.

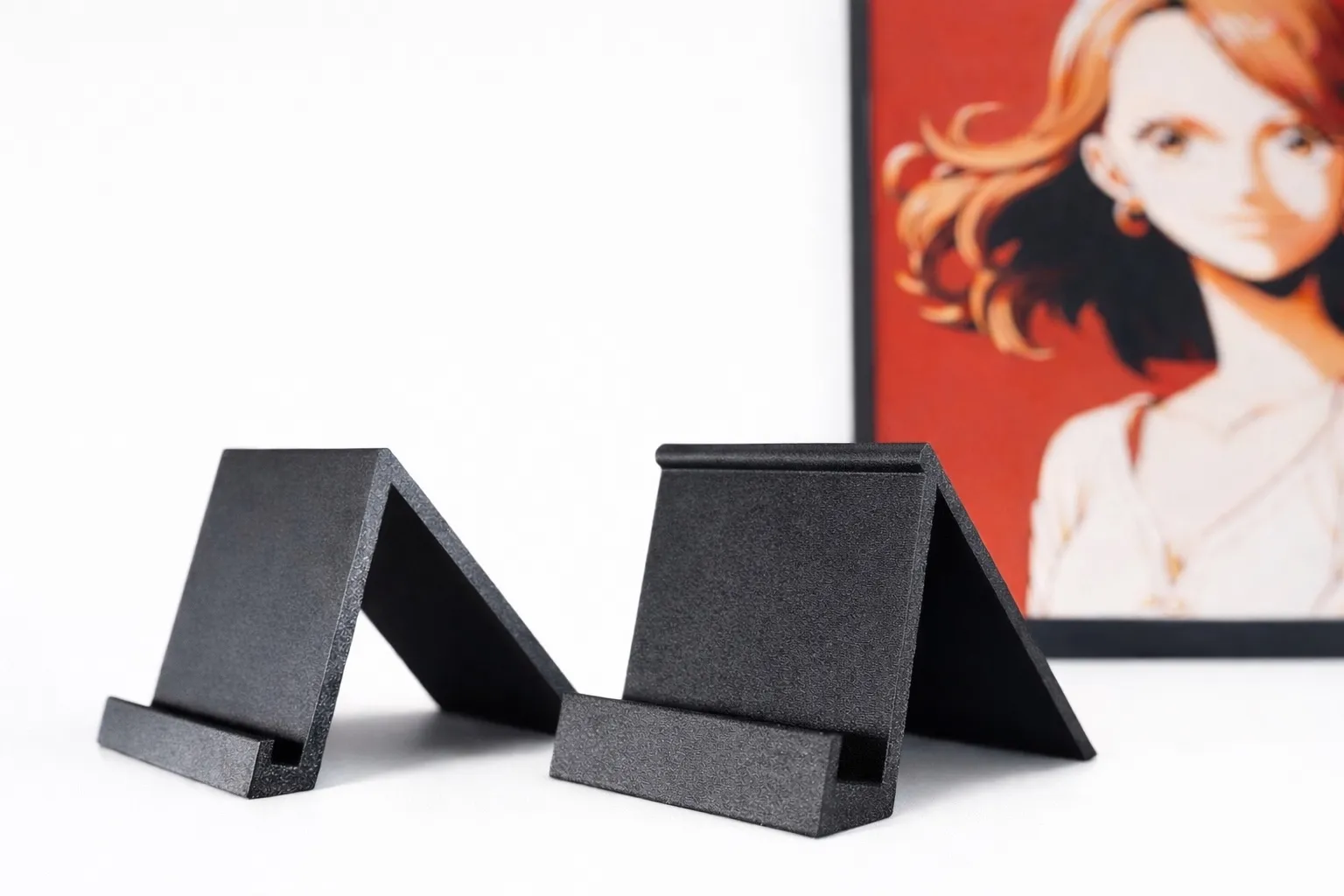

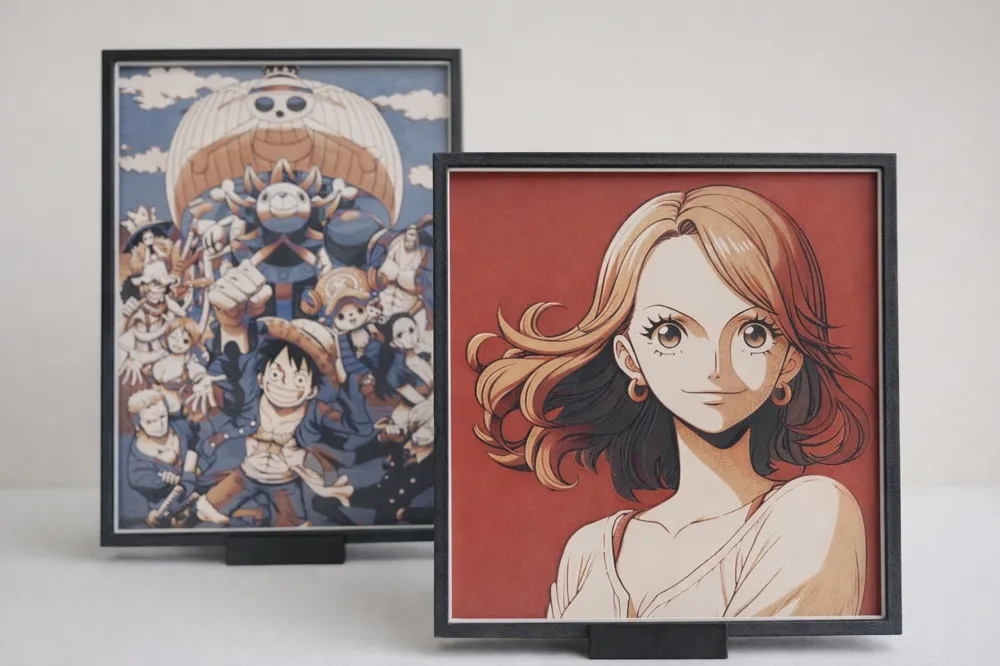

For desktop use, the frame can be paired with a compatible parametric frame stand to achieve stable tabletop display.
Alternatively, it can be mounted on the wall using the integrated preset mounting holes built directly into the model.

You can find the compatible accessories here:

Parametric desktop display stand; IKEA pegboard hook.

This frame is suitable for a wide range of use cases, including custom photo prints, varying photo thicknesses, and minimalist home or workspace displays. The parametric structure makes the model easy to reuse and adapt while maintaining consistent results across different configurations.

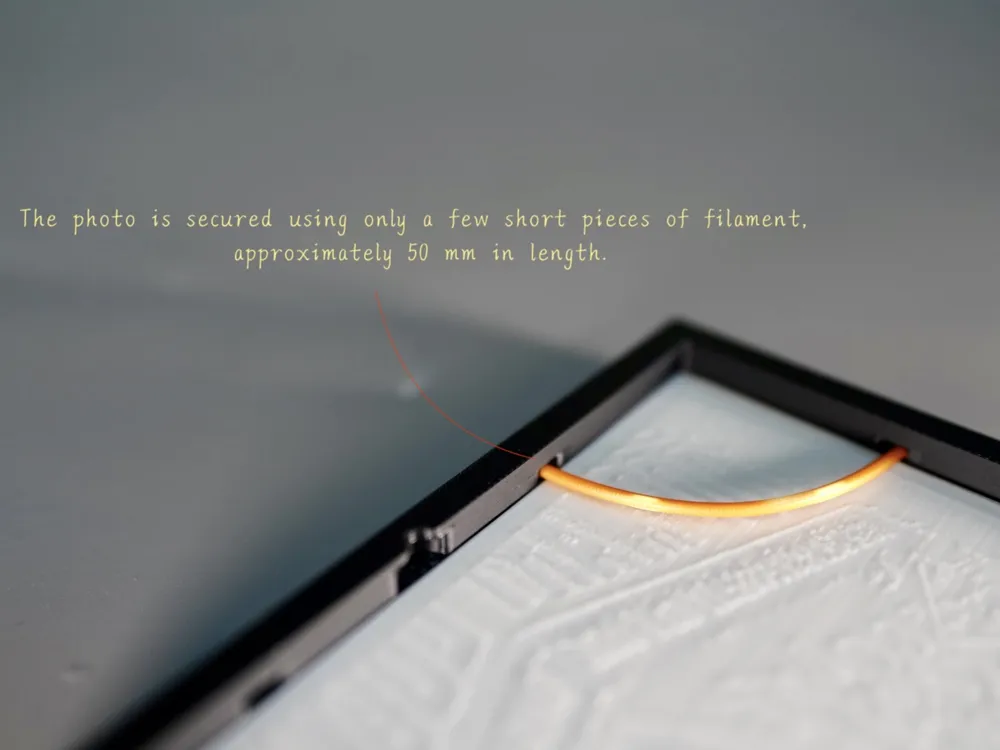

I also designed a dedicated rear locking structure for this parametric frame, completely eliminating the need for any additional fastening parts.

Regardless of the frame size, only four 50 mm segments of filament are required. Simply insert them into the integrated holes in the model to achieve a secure and stable fit.

Among all the frame designs I have personally used, this solution offers the best overall user experience and stands out as one of the most clever and efficient fixing methods.

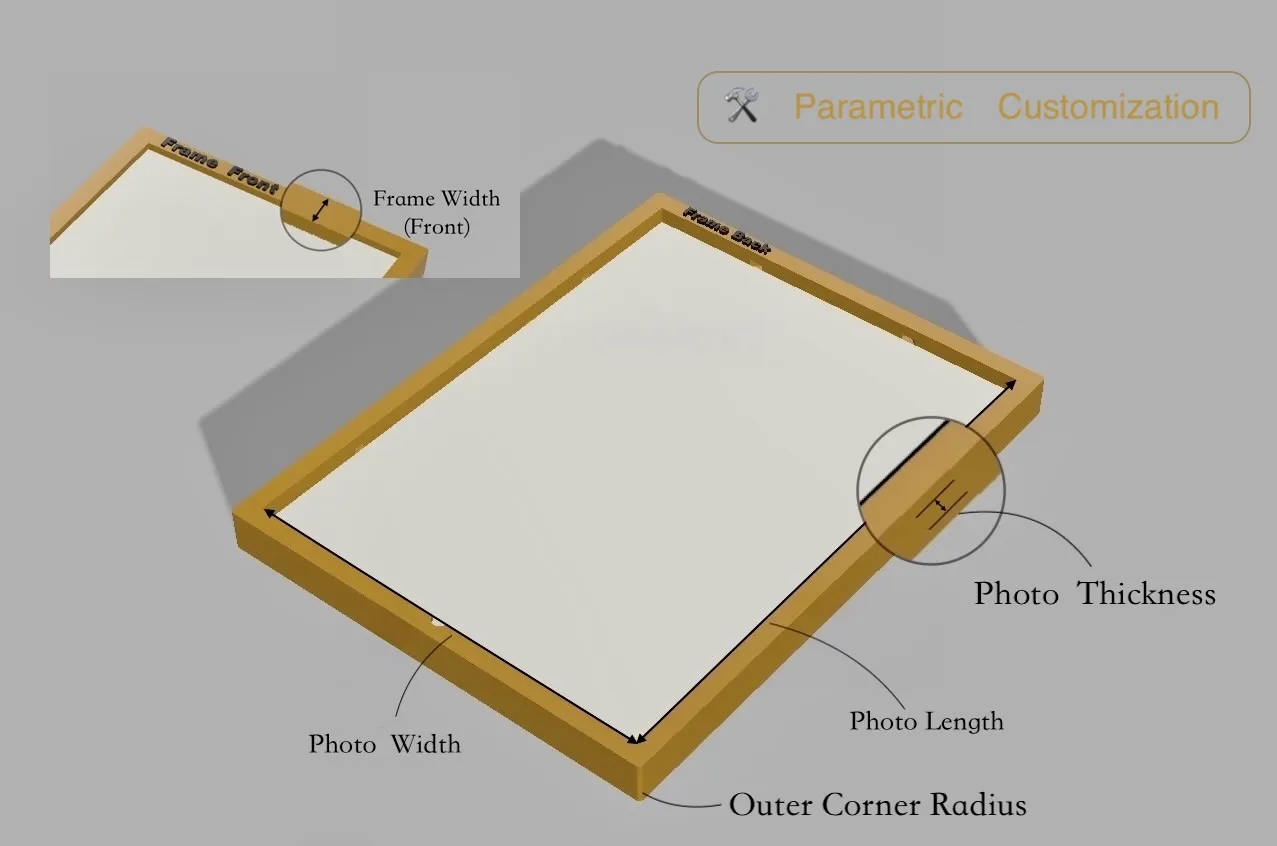

🔹Customizable Parameters:
- Photo Length
- Photo Width
- Photo Thickness
- Frame Width (Front)
- Outer Corner Radius

🔹Printing Notes:
- Wall mounting holes require supports. Please ensure the following three parameters are set correctly before printing.
