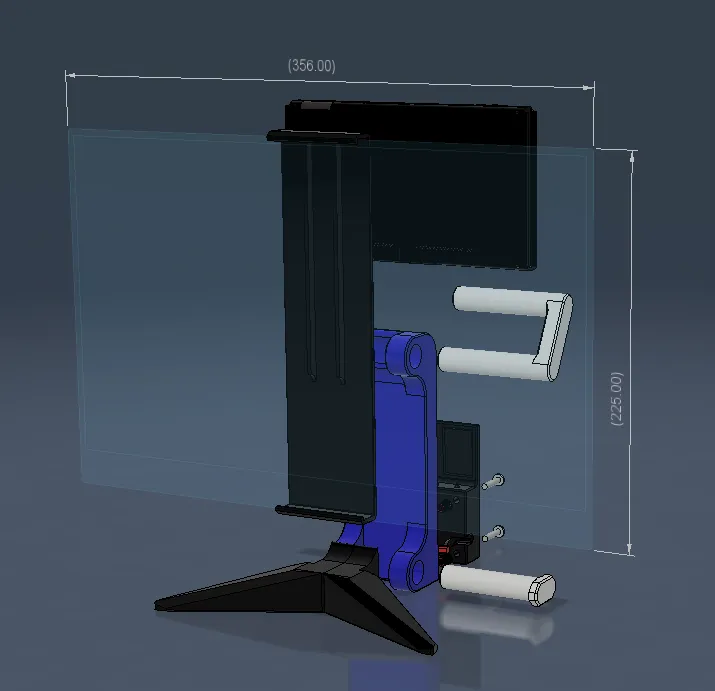

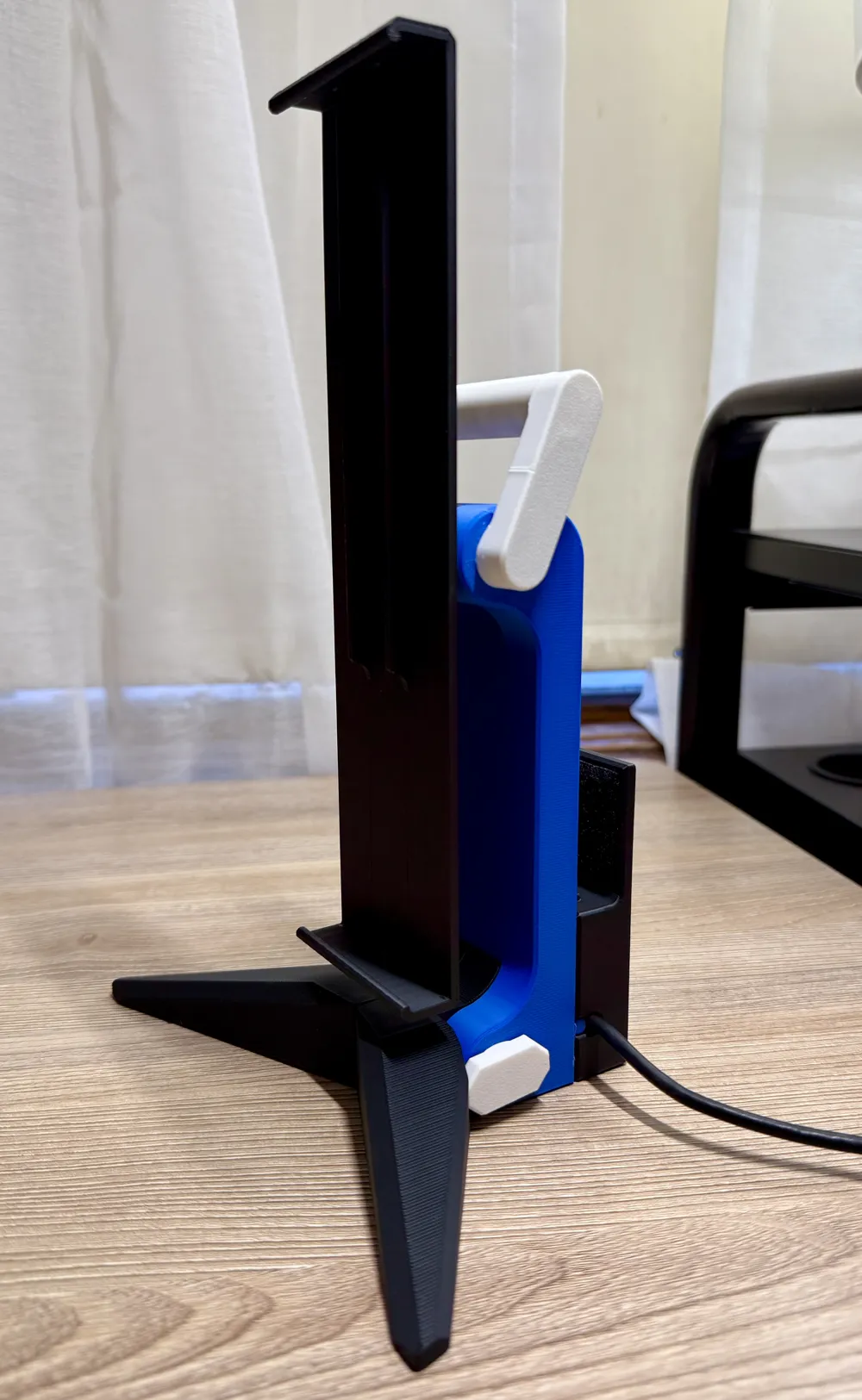

Portable Monitor Stand W/ Handheld Docking Station

V1.0 - Public Release:

Adjustments might be necessary for the holder of the monitor as different brands will have different outside dimensions.

Monitor stand also works if you choose not to print the switch docking station. Some editing might be required for steam deck type handhelds or even switch 2. Tested with Switch OLED.

Hardware requirements:
M4x20 x 4ct
M4 heated Inserts x 4ct
USB Type C Cable Adapter Switch Compatible (amazon ~$10-30 depending on seller)
15.6 inch "Portable Monitor" (Amazon, eBay ~$30-120 depending on refresh rate)
Some Velcro

Print Settings:
6 walls
6 top/bottom
10% Gyroid infill

tree support required on Arm, Switch Dock and Monitor Mount

Updates planned in the future:
-Cam locking mechanism on handle to lock tilt angle (the current 0.2 mm tolerance starts well but loses resistance, allowing the display to fall. the center of balance for the Monitor Mount has been adjusted.
-Steam Deck Docking Station
-Integrate output adapter into docking station design to minimize footprint
-Proper monitor locking mechanism to quickly adjust to different display sizes (or even tablets)

-Fold/self enclose feature for travel
