Automaton (Curved Sword)

>Θ Assembly Manual:

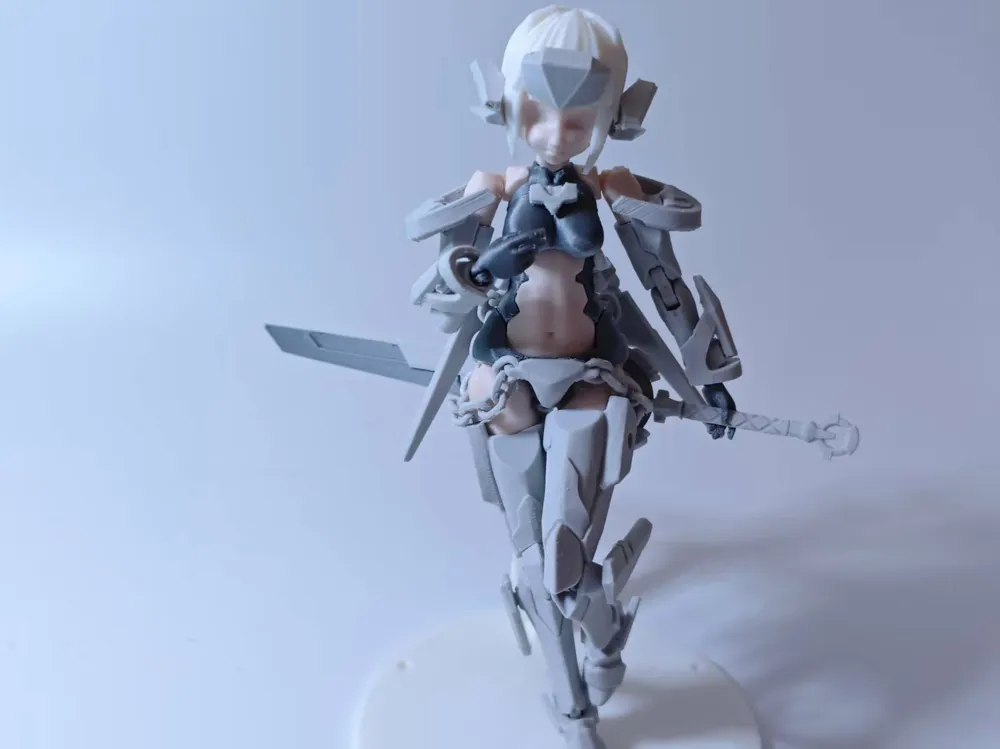

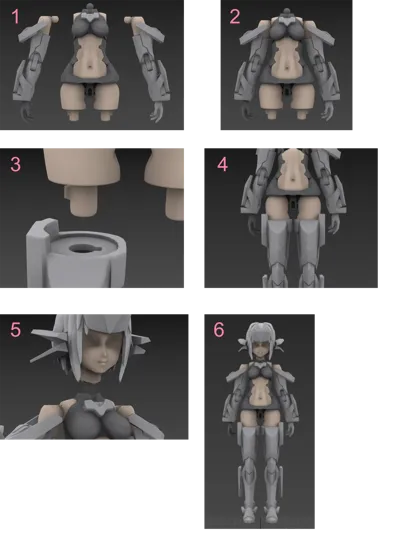

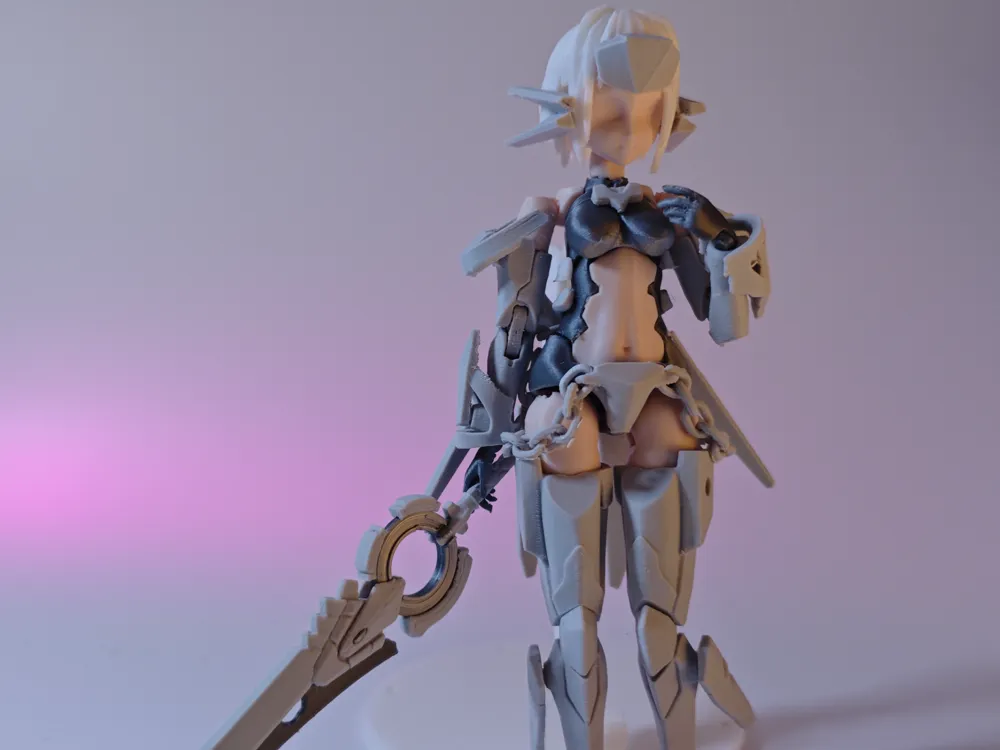

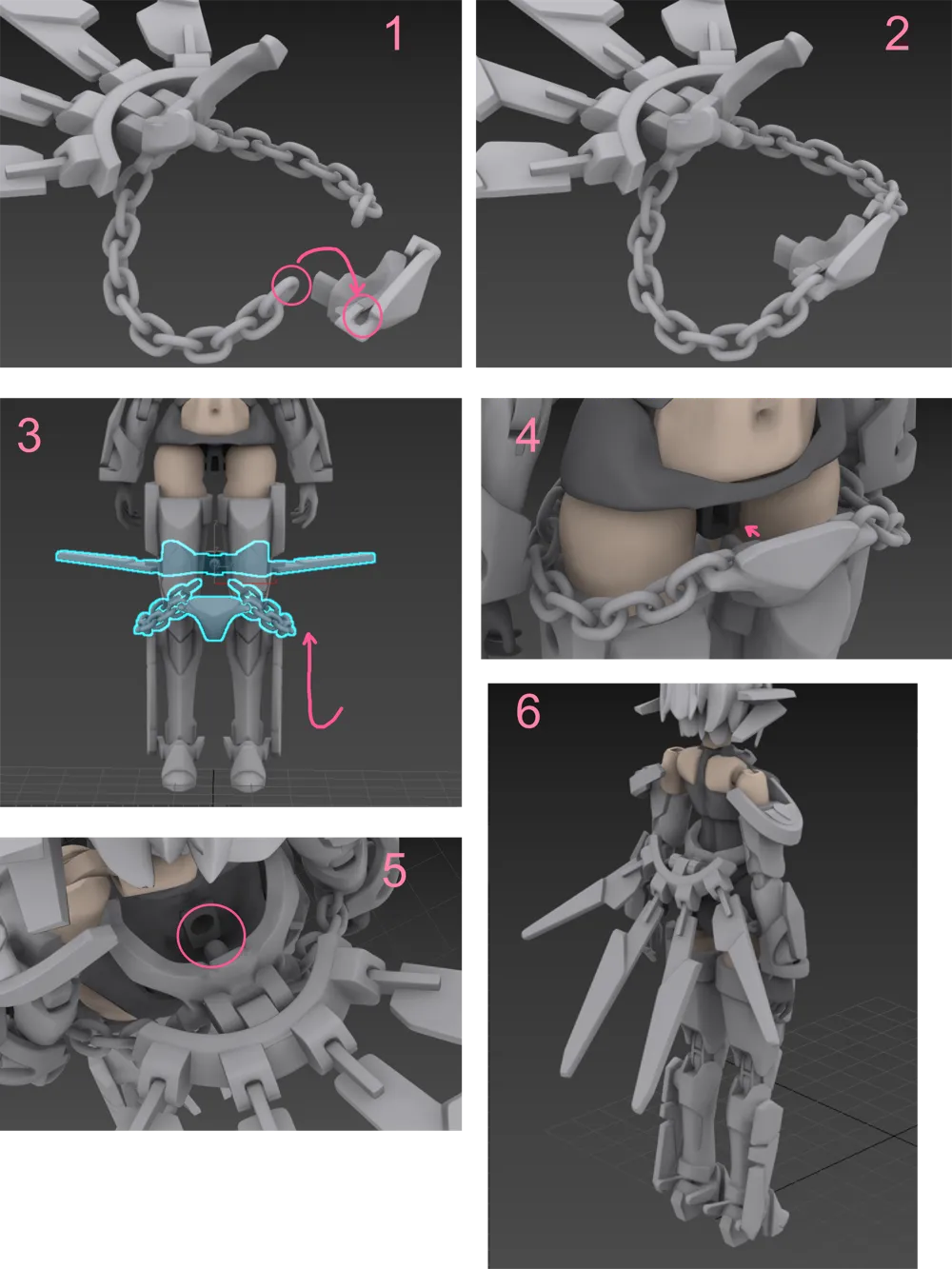

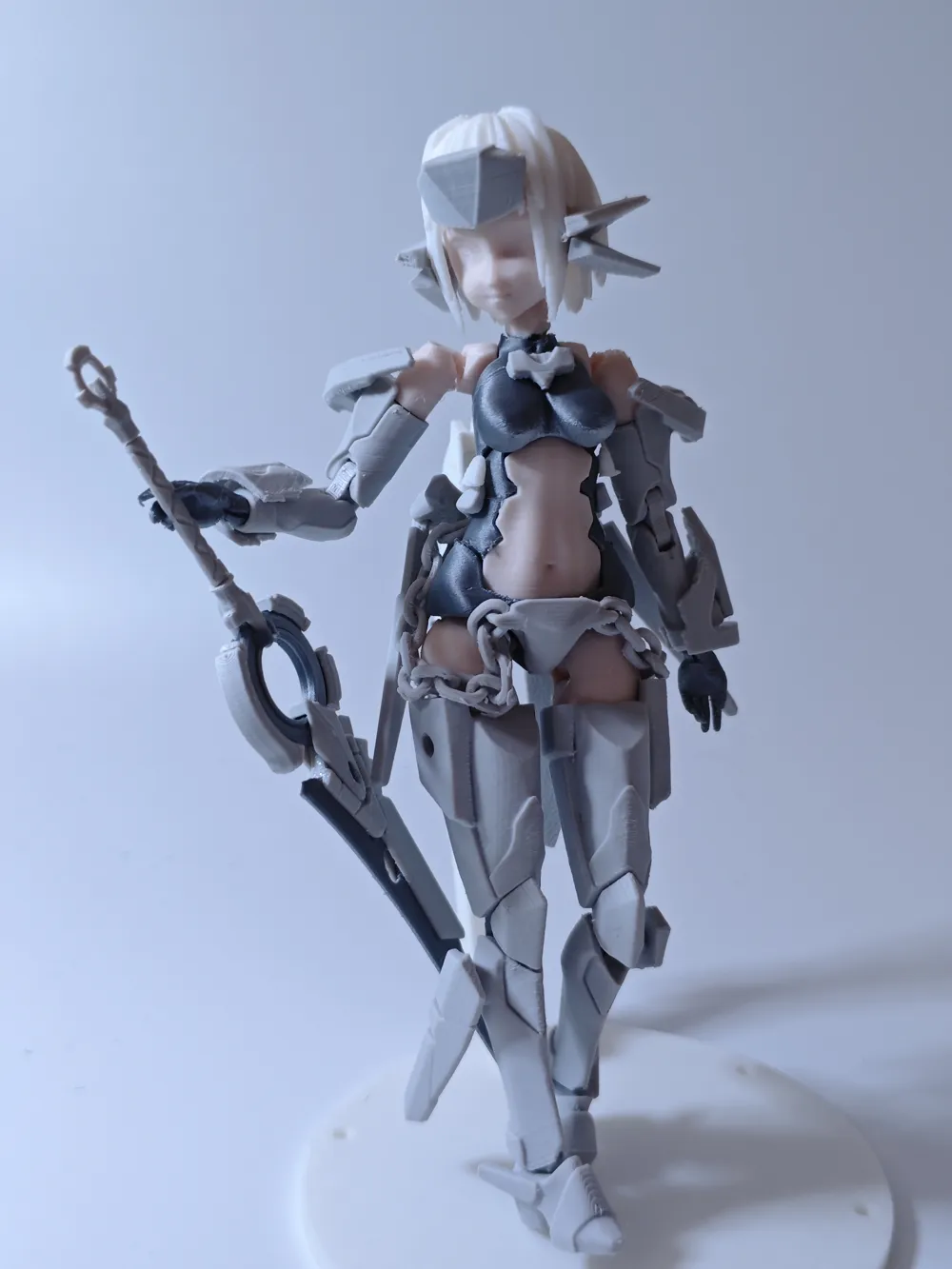

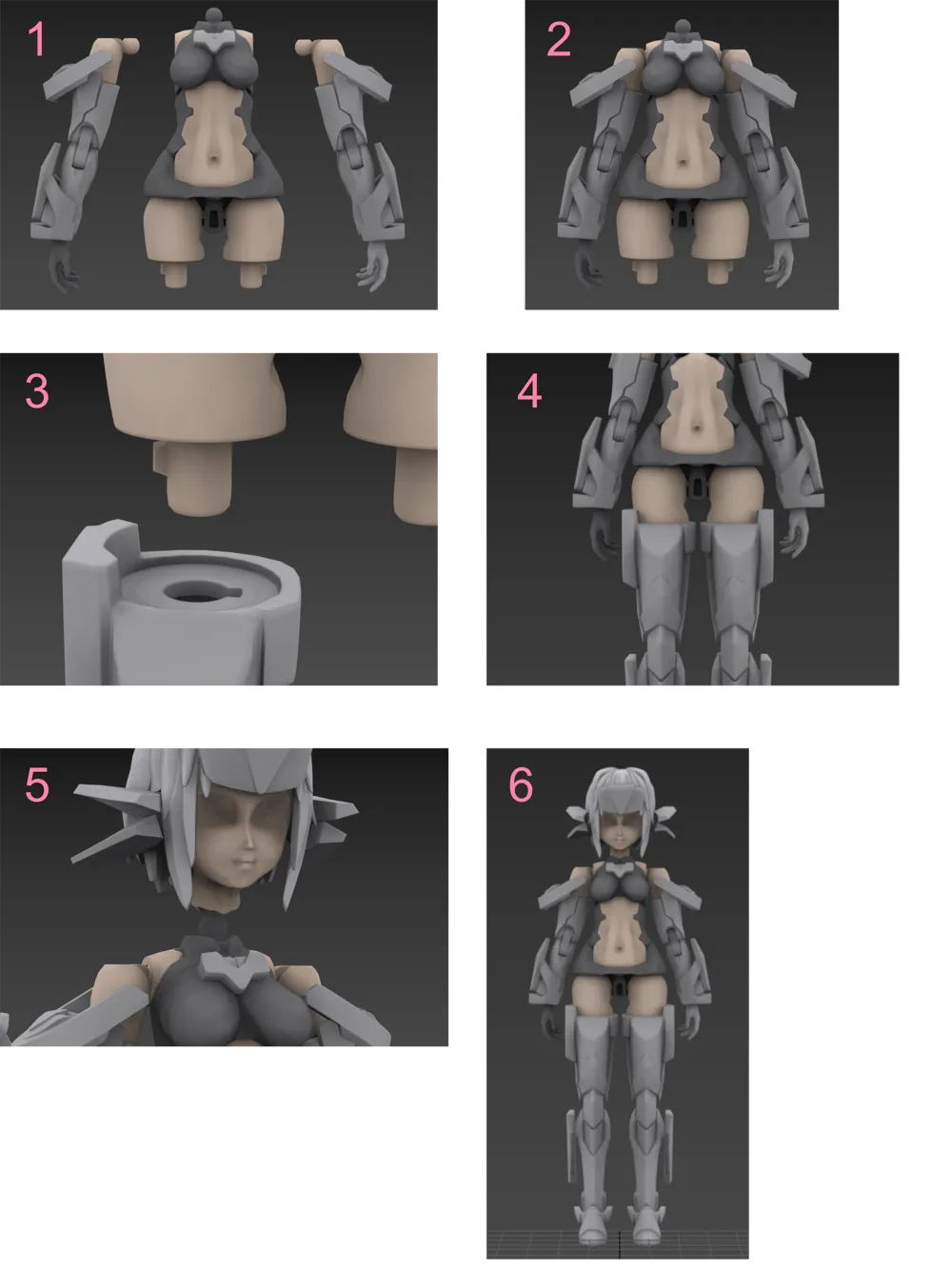

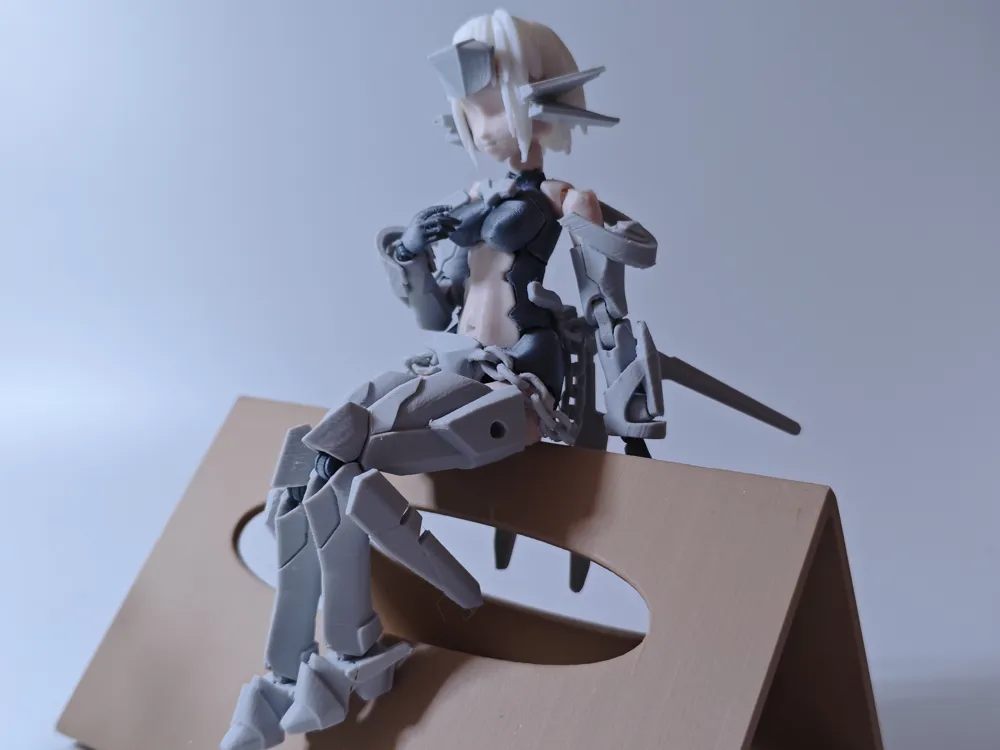

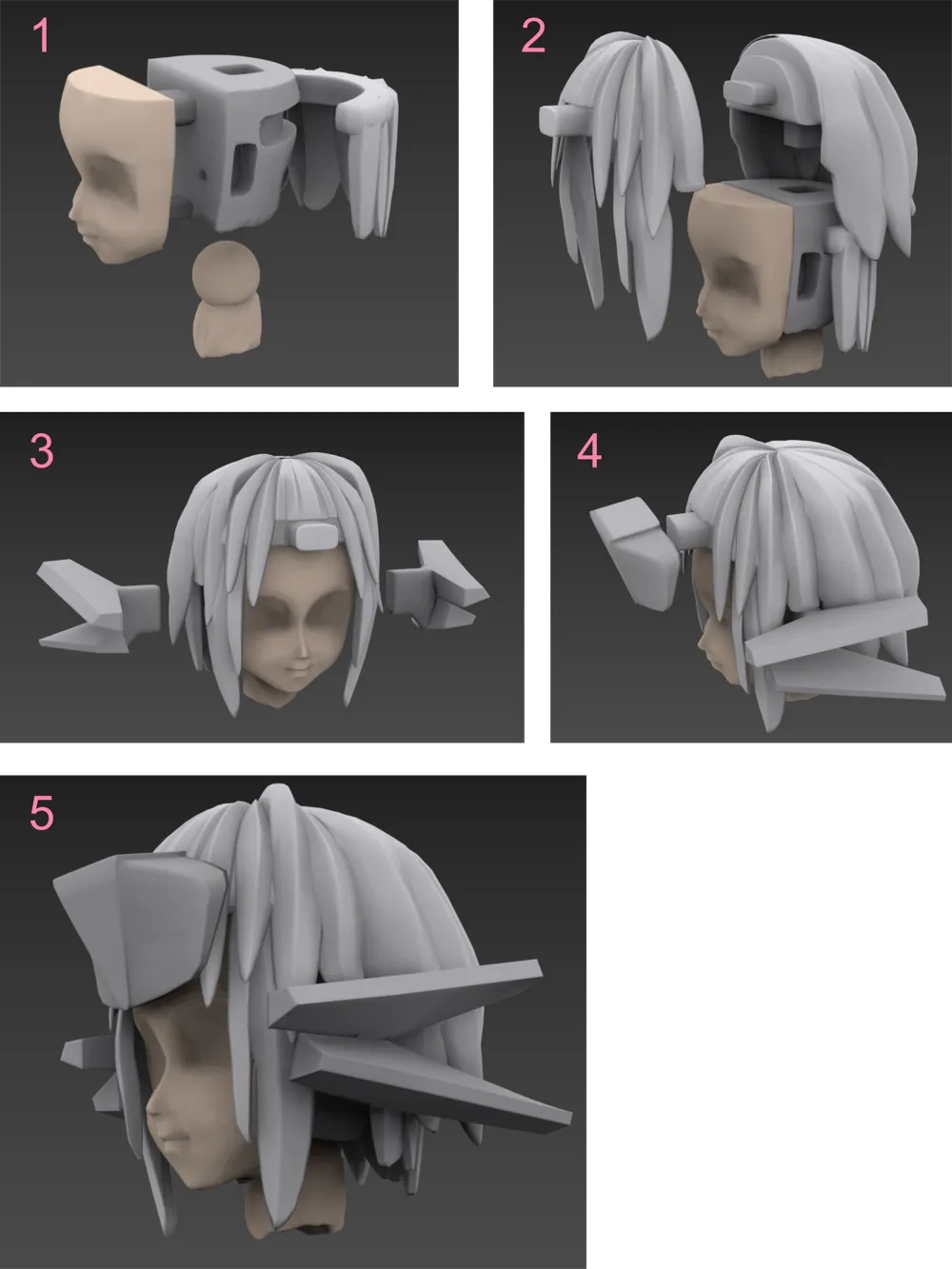

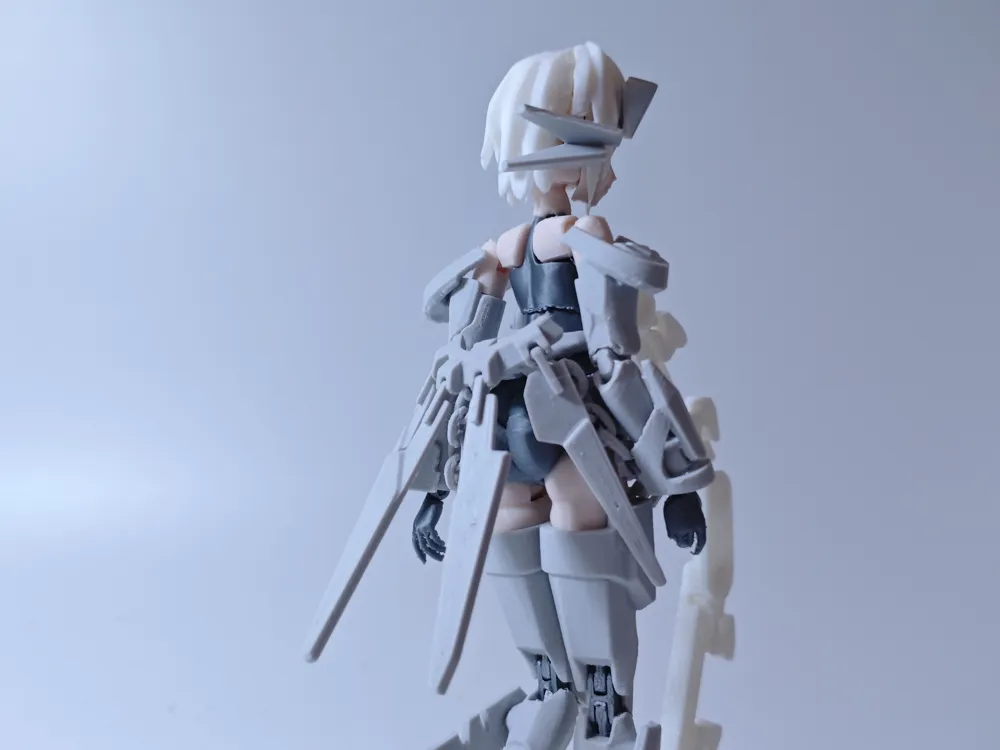

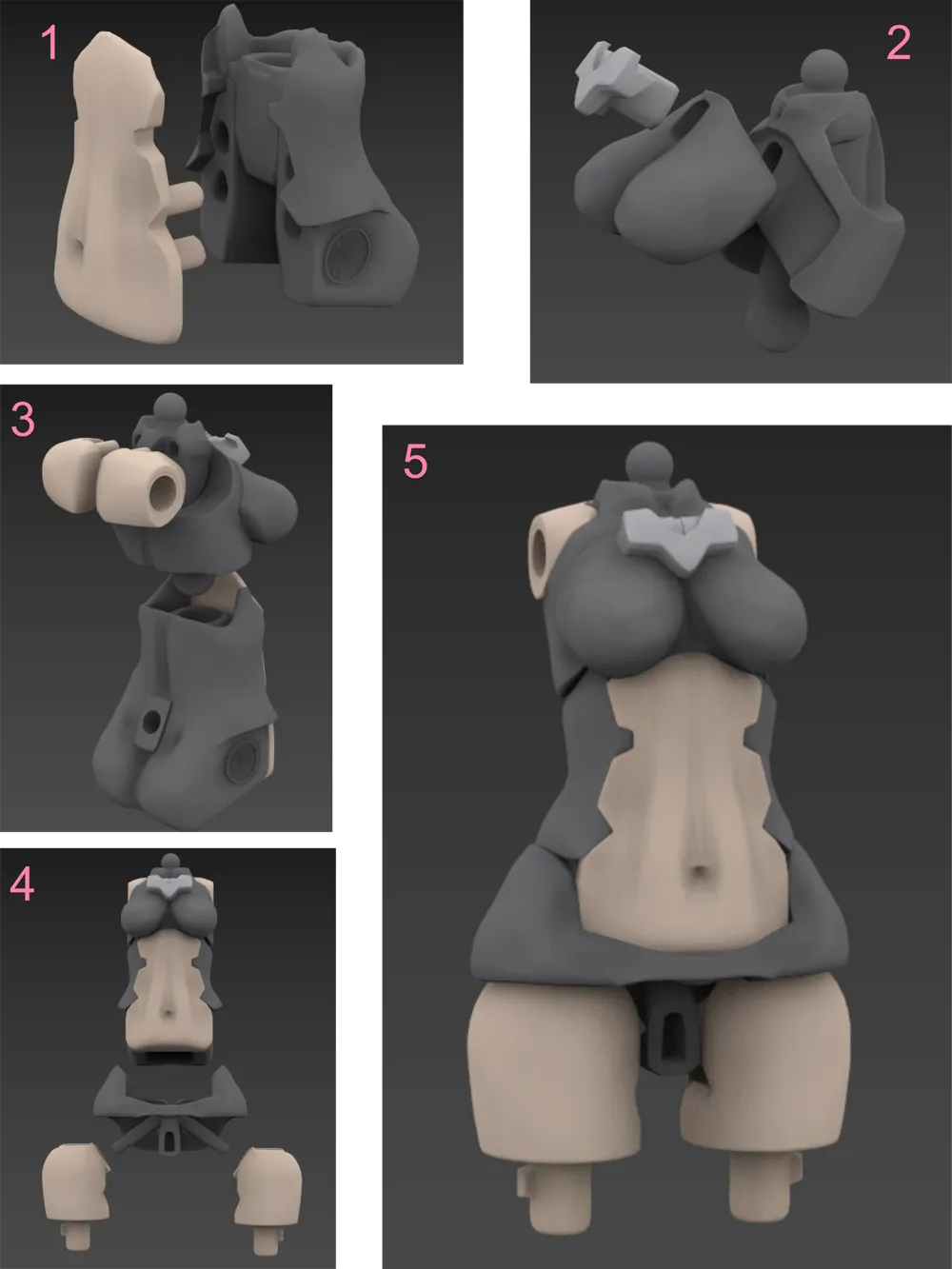

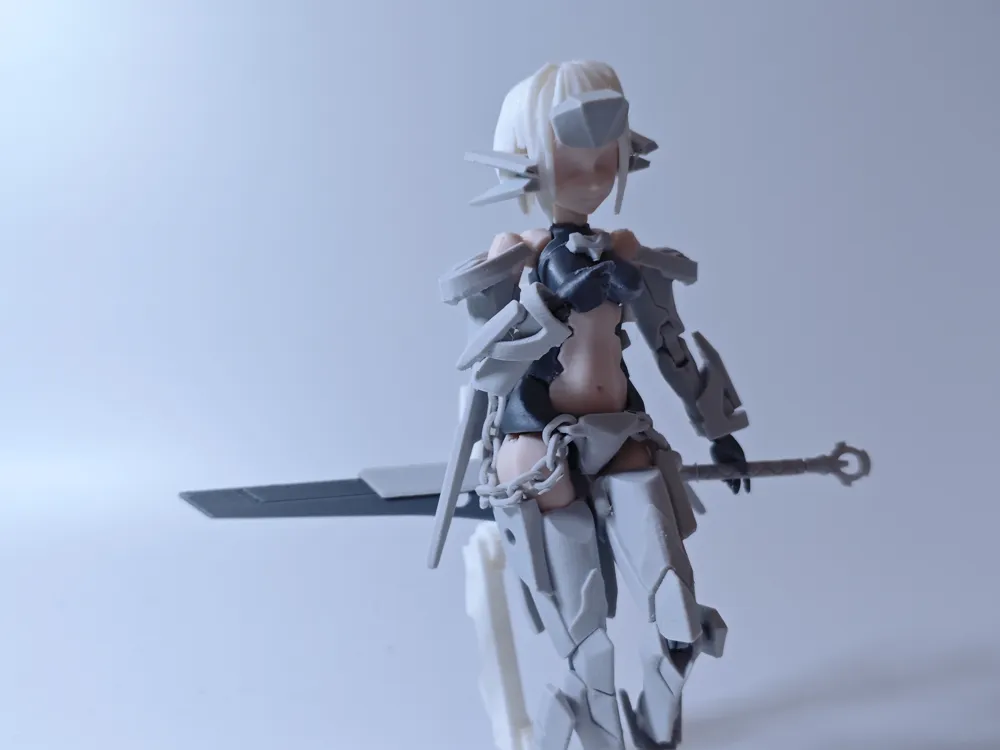

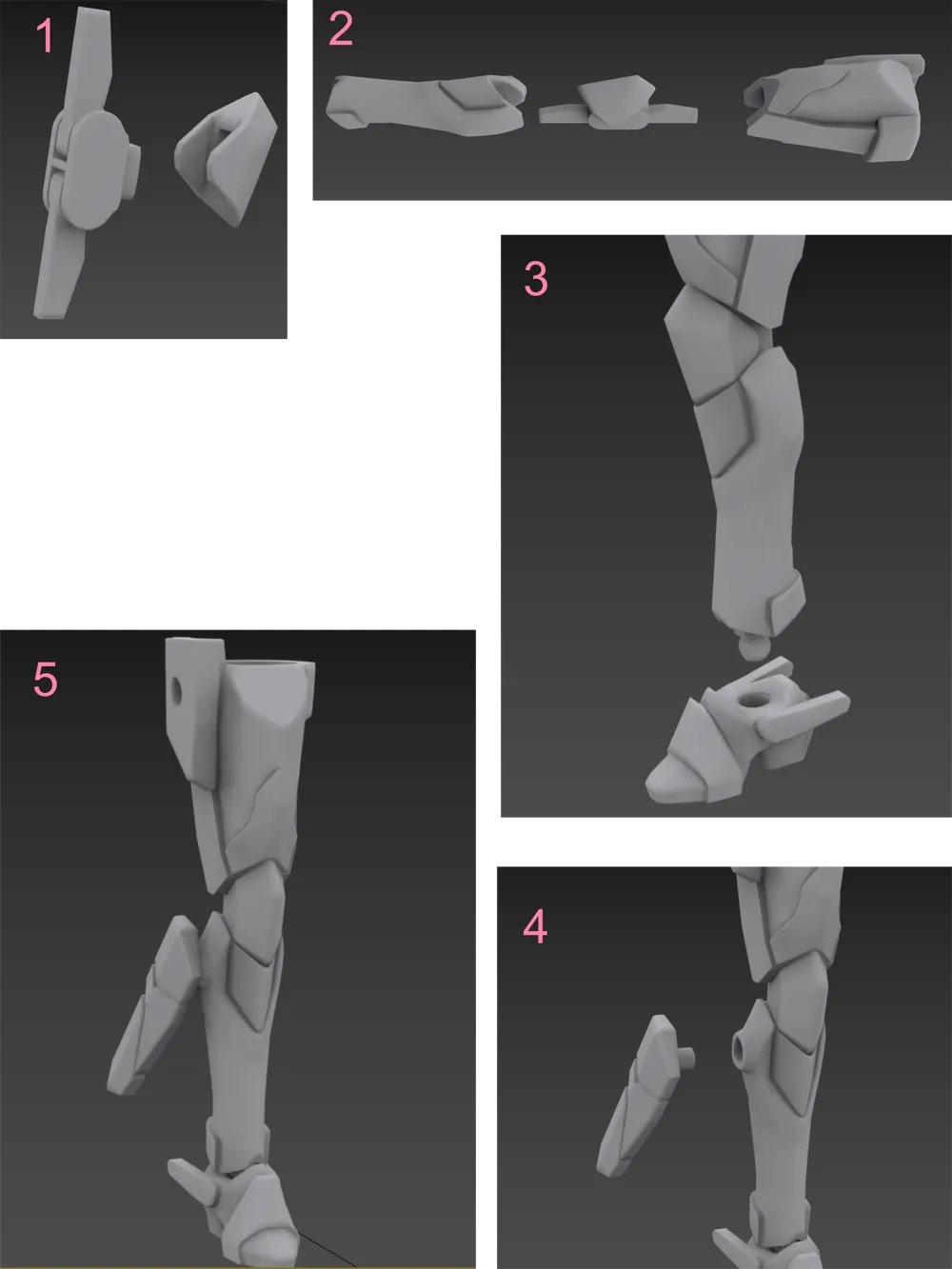

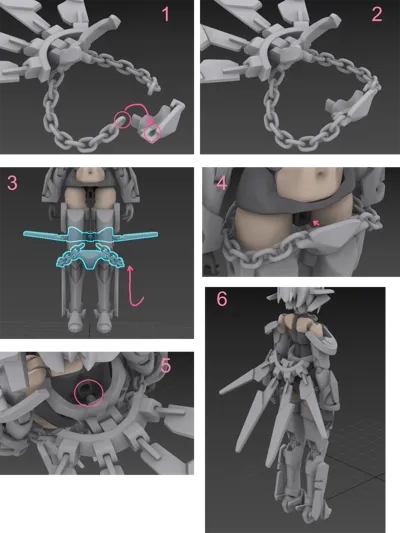

The last few model display images are assembly diagrams.
1. Specifications:
 - Scale: 1/10 (height 160mm)
 - Internal structure:

   · Print in Place joints: 15 (10 in torso, 5 in rear skirt armor)

   · Rotational locking buckles: 6

   · Two Print in Place chains
 - Universal interfaces: The holes on the forearms, shins, soles of feet, and back mounts are 3mm in diameter (due to printing tolerance, the actual size may have a deviation of ±0.2mm)

2. Printing tips:
 - Recommended settings:

   · Nozzle: 0.4mm or 0.2mm

   · Layer height: 0.08mm

 - Material: Default is PLA

   · Other materials such as PETG/TPU have not been tested, and scaling tolerances need to be figured out independently.

 - Debugging suggestions:

   · It is recommended to print the test piece from plate 1 first.

   · If adhesion occurs, it is recommended to scale up the entire model (scaling ratio is suggested to be within 110%, at which point the joint damping feel is optimal; exceeding this range will cause the joints to be too loose, but will not have other effects).

   · Adjusting the layer height may cause some parts to become rough and difficult to insert and remove; if necessary, it is recommended to scale up the model.

3. Assembly instructions:

 - Joint activation (Print in Place parts)

   · The model's shoulders, elbows, hips, knees, and ankles use Print in Place joints, which need to be manually articulated after removal from the build plate.

   · Tools such as needle-nose pliers can be used to assist; normally, no damage will occur unless there is complete adhesion.

 - Limb connection (buckle structure)

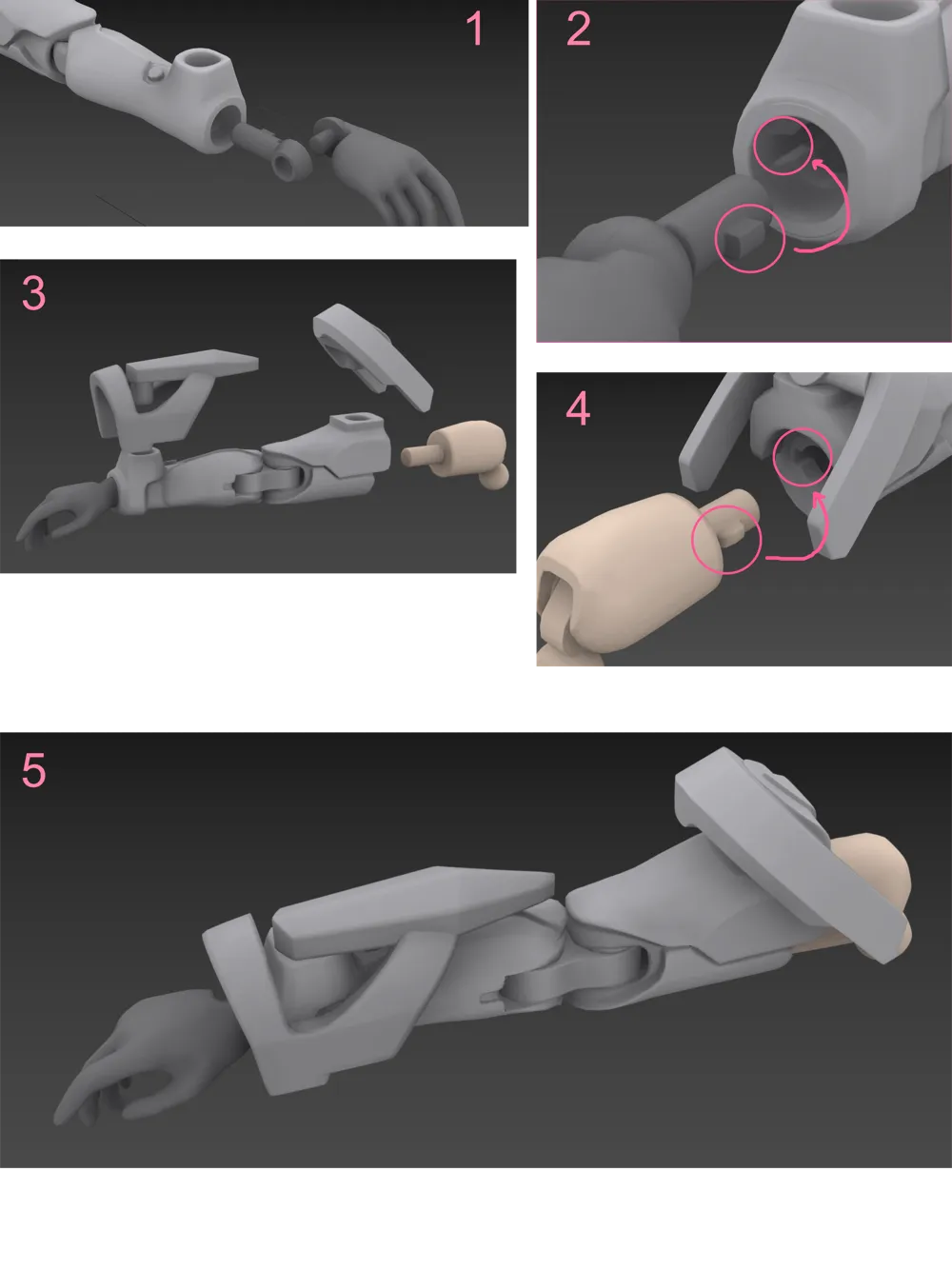

   The connection of the upper arms, forearms, and thighs uses a buckle structure; when assembling, ensure the plug lugs are aligned with the hole openings

   · Alignment: Align the plug lugs with the hole openings (at an angle opposite to normal human anatomy)

   · Locking: After insertion, rotate the joint to lock.

 - The wrist uses a relatively delicate hemispherical joint; pay attention to support removal and elephant's foot during assembly.

 - The torso interface is compatible with 〔Rokushiki〕.

---
☟                        ☟                        ☟
☟                        ☟                        ☟
☟                        ☟                        ☟
