I couldn't really find what I was looking for, so I designed it.

I used Catia V5.



OBJECT AND FEATURES:

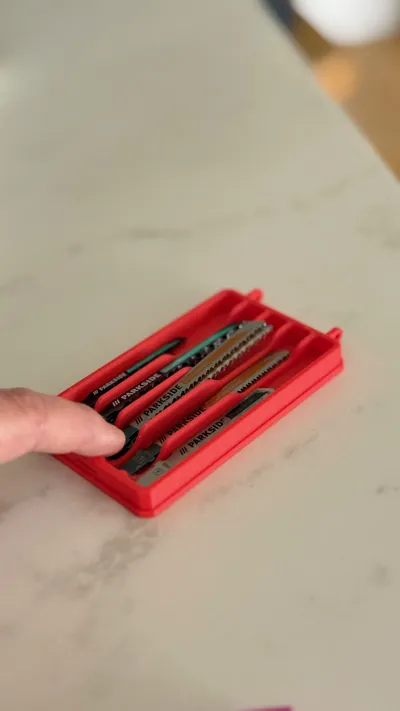

Storage box for jigsaw blades

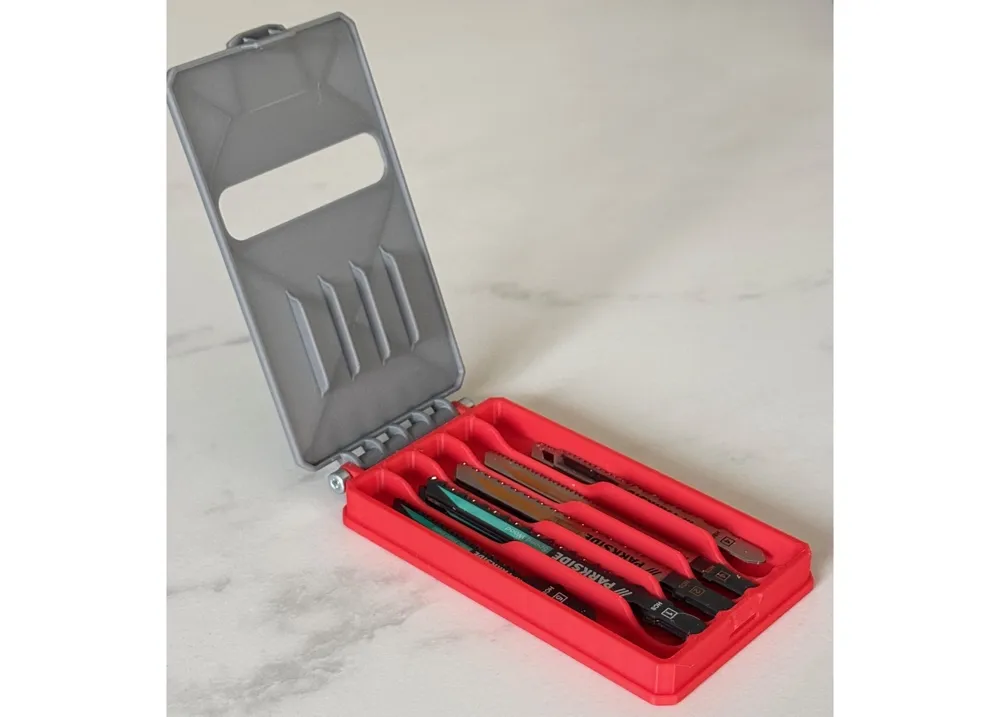

- 5 slots of 110mm x 10.5mm, each capable of holding 6 to 7 blades.
- Design made to lift the blades for easier gripping
- Recess for including ø8x2mm magnets (not tried) for perfect blade retention in position

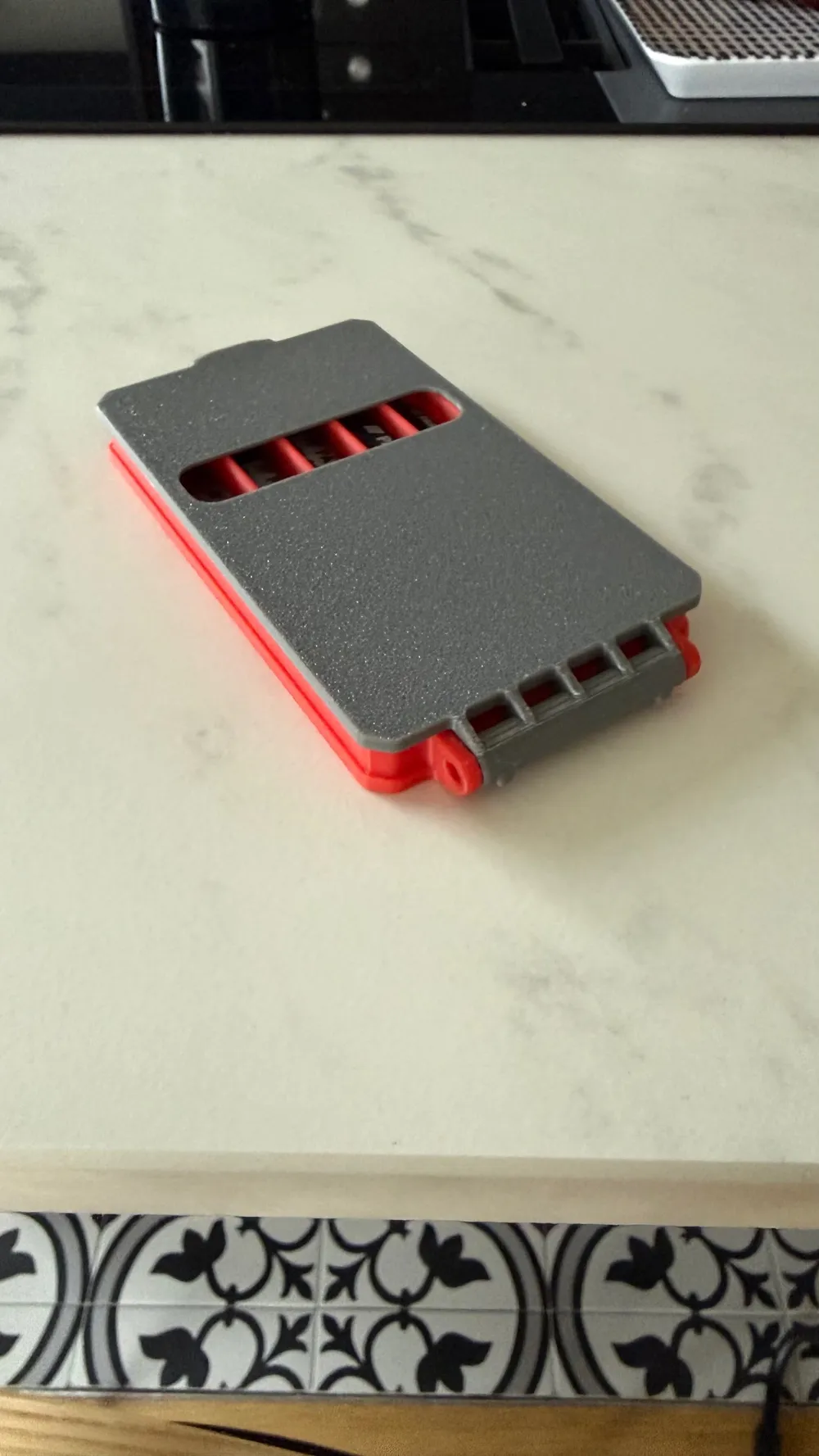

- Opening on the lid for a quick glance
- Stopper to hold the box lid at approximately 100°
- Fully printable on a single plate, I used PLA but PETG should also work)



MATERIALS:
- 2 M4 screws (head of your choice), maximum length 20mm (I used approx 12mm)
- 5 ø8mmx2mm magnets (not tested)


ASSEMBLY:
- If necessary: re-drill the bottom holes with a ø4mm drill bit for the screws to pass through
- create the threads on the lid by force-screwing M4 screws
- obviously do not overtighten the screws to allow movement

NOTE: this is version 2 (I did not publish V1) where I slightly modified the locking mechanism because it was a bit too stiff and put a bit too much stress on the lid, in my opinion.



I am a real novice, I don't know what likes or boosts are or what they do, but feel free to support me even with a comment :)
