Description

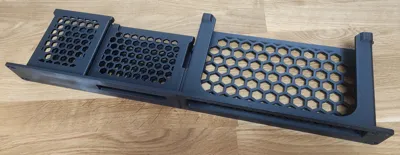

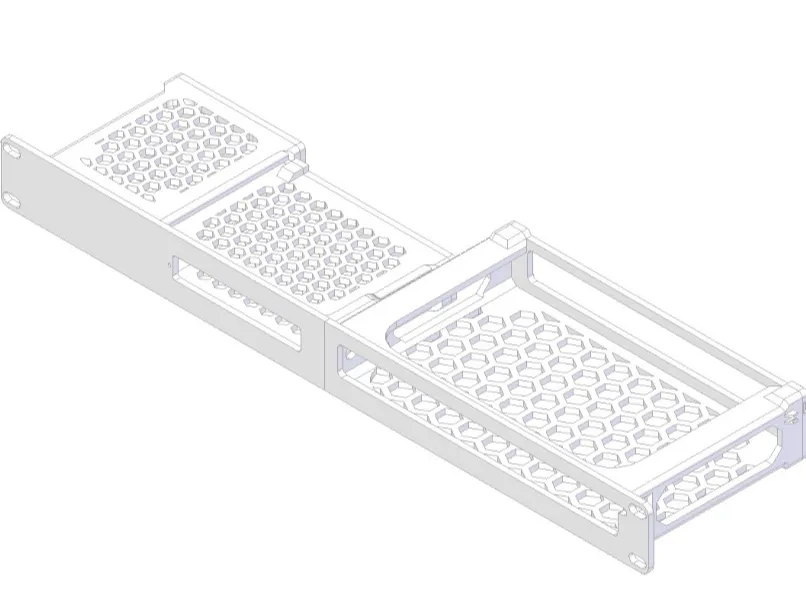

A remix of UCG-Fiber and UCG-Fiber PSU, compatible with the „Modular 19-inch Rack Mounts“ of mauker.

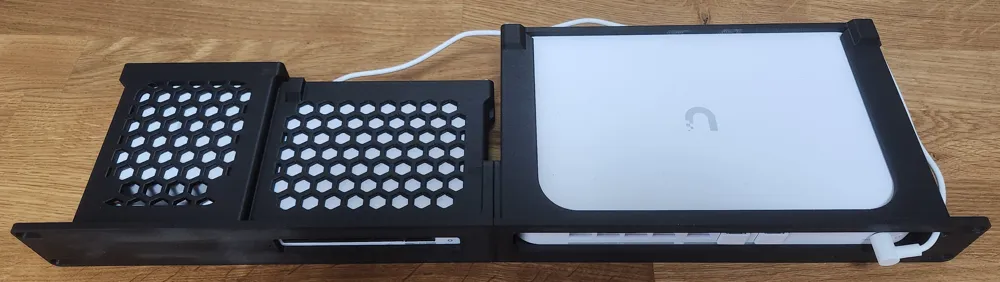

Fits the UCG fiber in one half.
The other half fits the AC-Adapter solo or combination with a USW Flex Mini 2.5G 5.
For the UCG fiber right there are versions with and without spacing fort he power plug, along with cable clamps on the backplate
You need 3x M5x10 Flat head screw and nuts for connecting the two halfs (One longer M5x16 screw needed to get the nut in)
Backplates mounted with M3x10 screws and melt-in threads
I printed it with Bambu PETG-CF, 4 walls, 20% infill
The remix adds the combination with a USW Flex Mini 2.5G 5 and cable clamps
