Skywatcher 6" 150 P/PDS/Quattro Mirror Cover
Print Profile(4)
Description

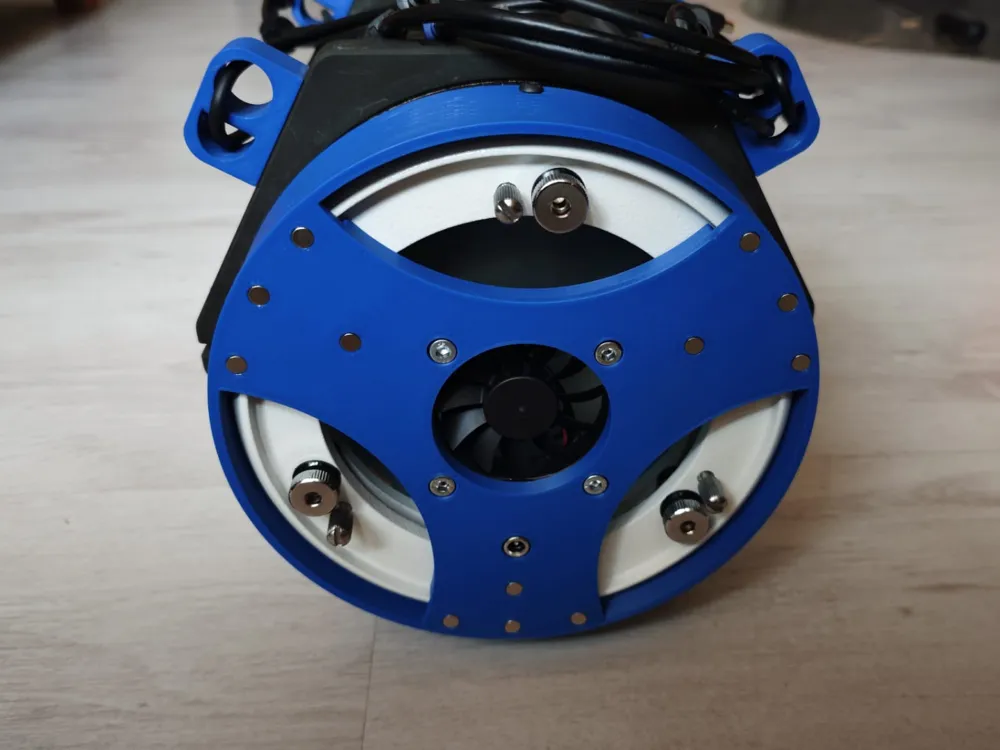

Here I have designed a cover that can be used for a Skywatcher 6" 150 P/PDS or Quattro
The cover with a fan allows for faster tube cooling and also provides perfect light protection

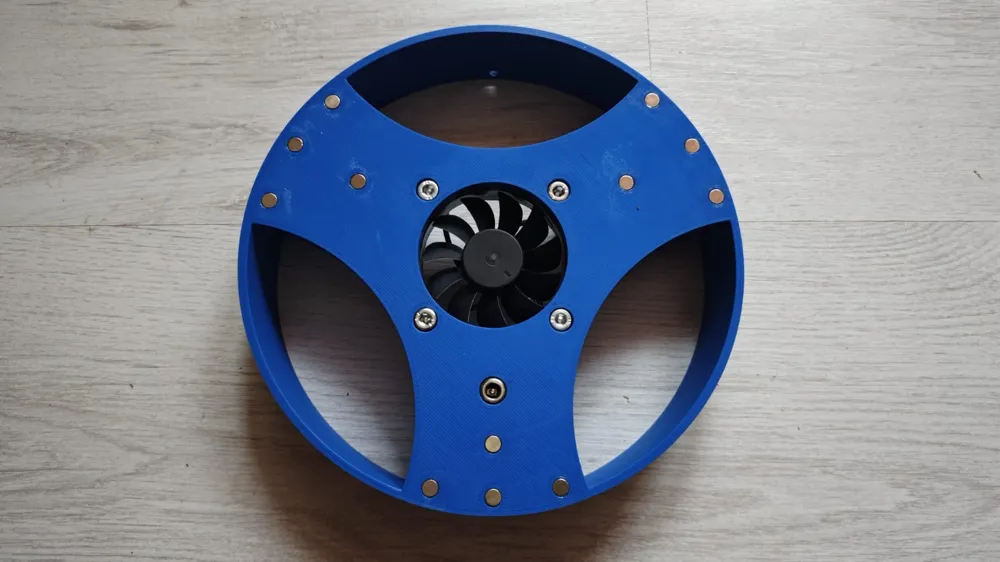

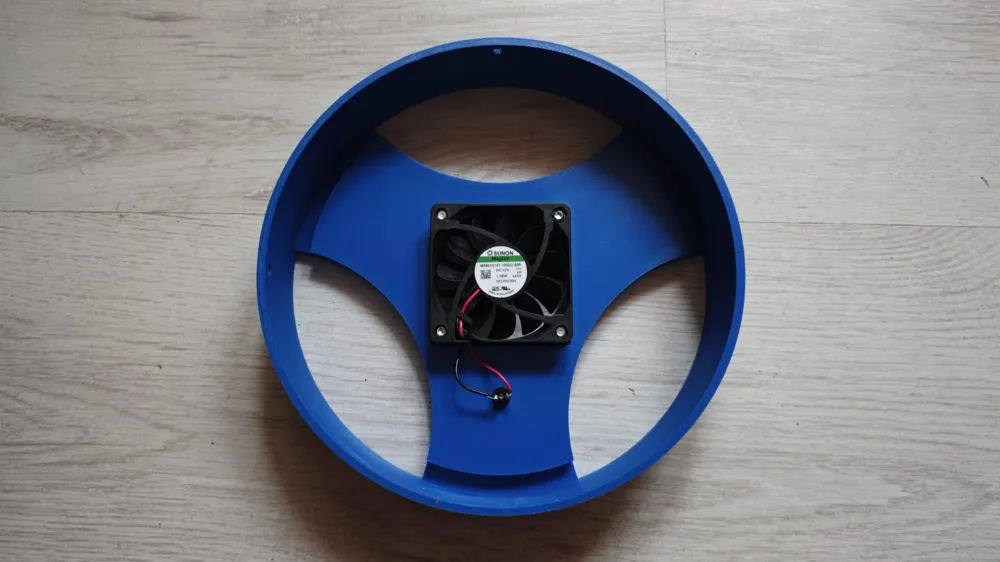

The fan measures 60x60x15 mm, and I used M5x20 mm screws for mounting
For the ring, I used M4x10 screws to replace the original ones

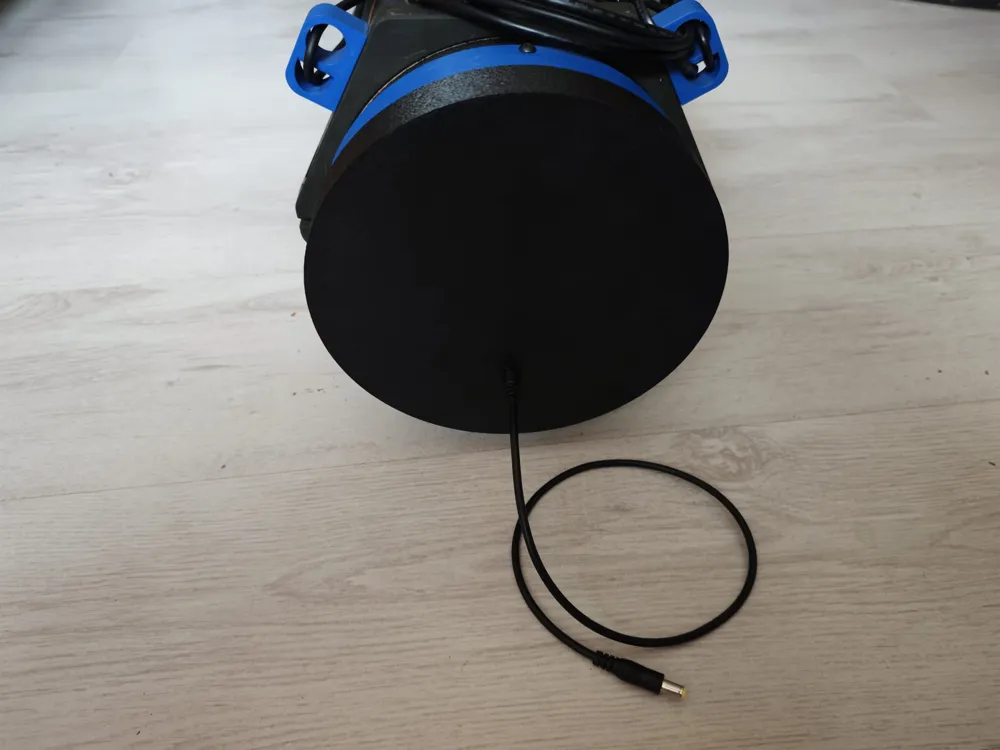

The connector is a 5.5 x 2.1 mm DC jack

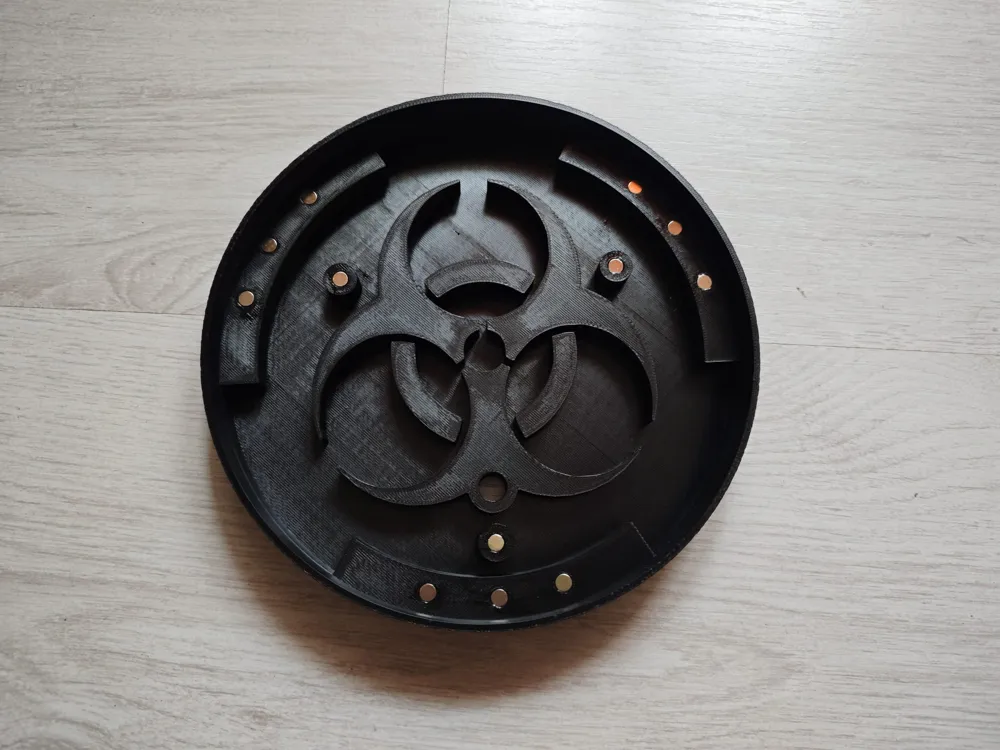

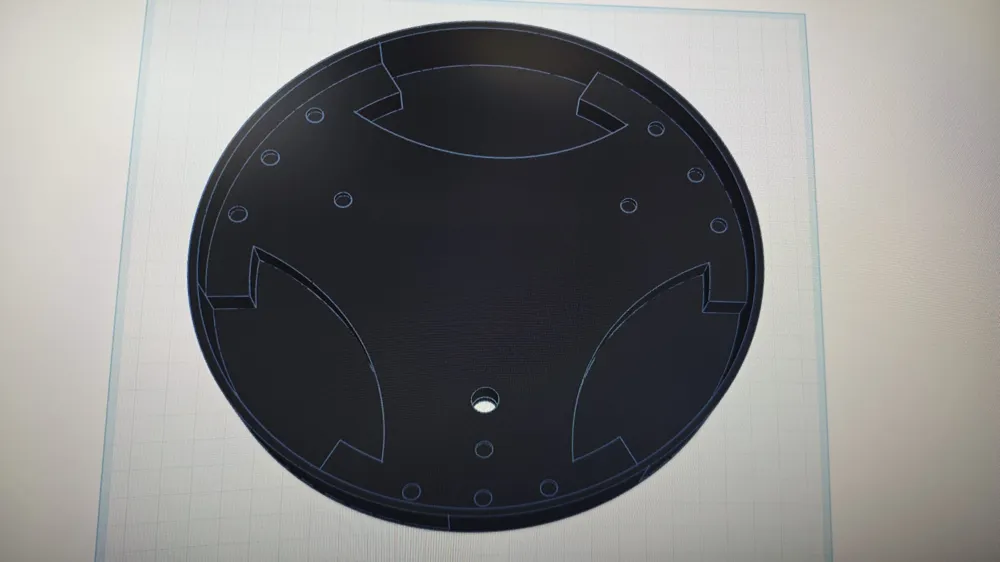

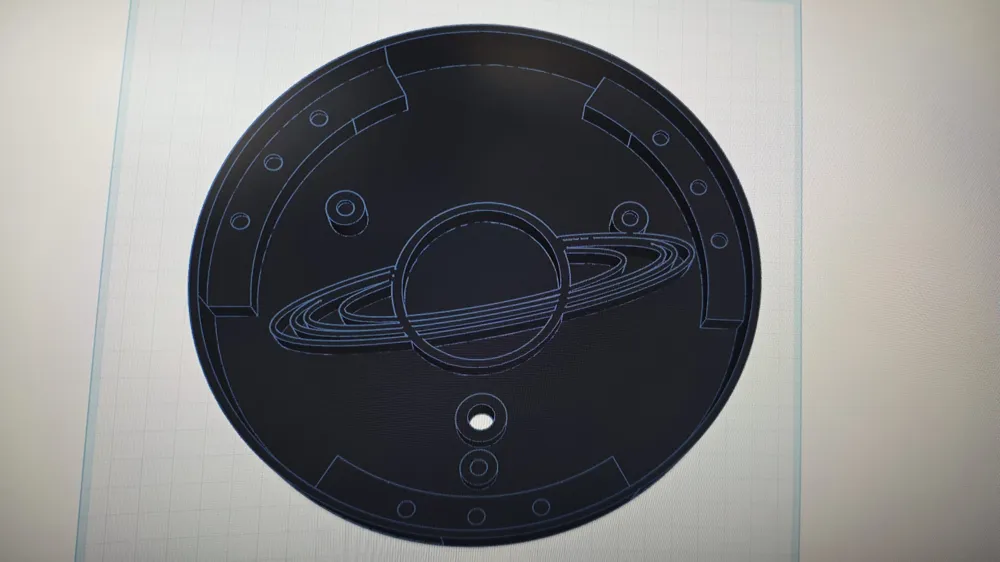

I have designed 3 different lids

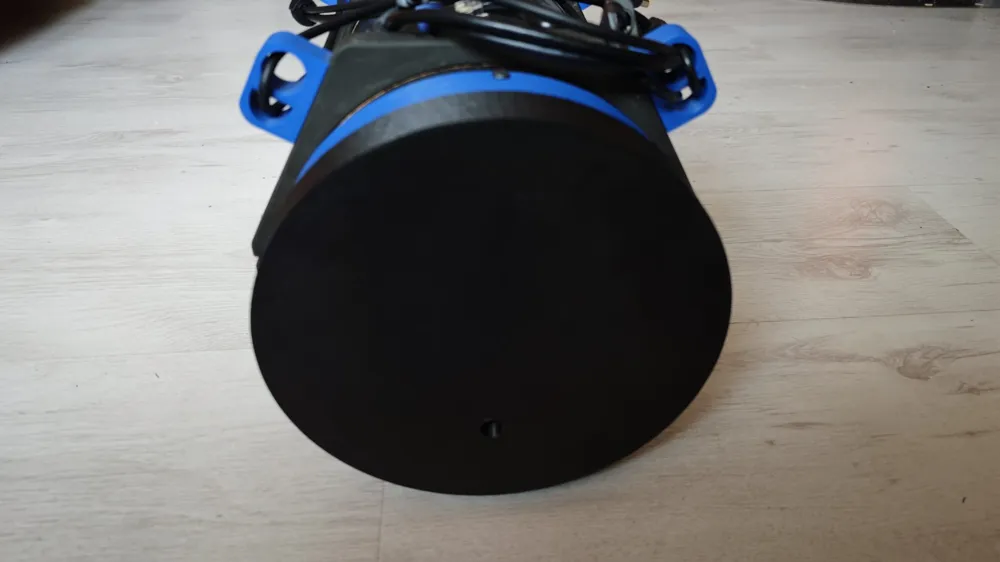

The lid has a small hole so the fan can operate even when the lid is on
