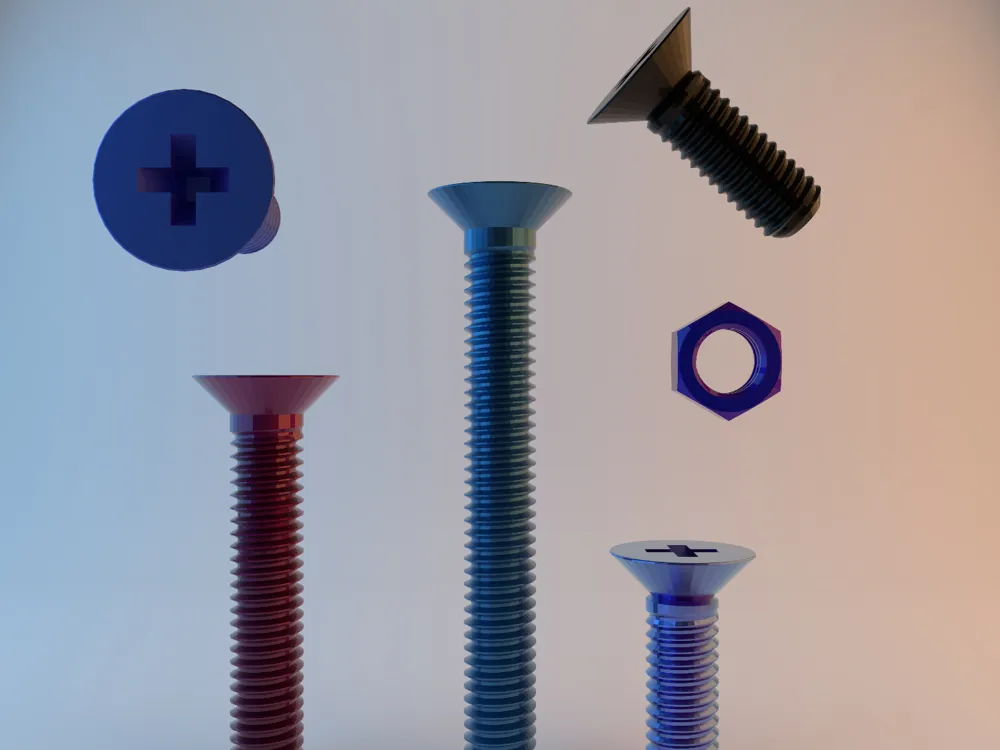

M4 Countersunk Phillips Screw (PH02) & Matching Nut – High Precision, High Strength

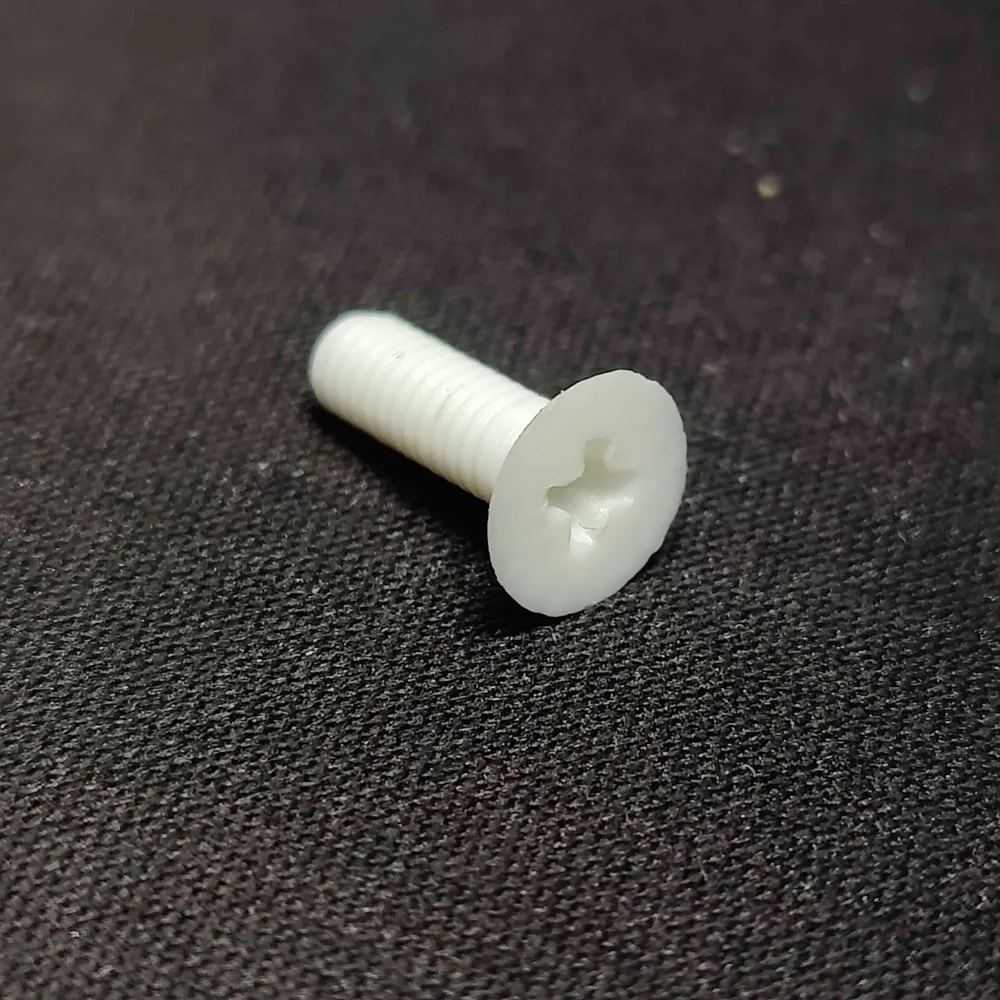

This project features a high-precision M4 countersunk screw with a Phillips (cross) head, designed for clean, flush mounting and reliable mechanical performance.

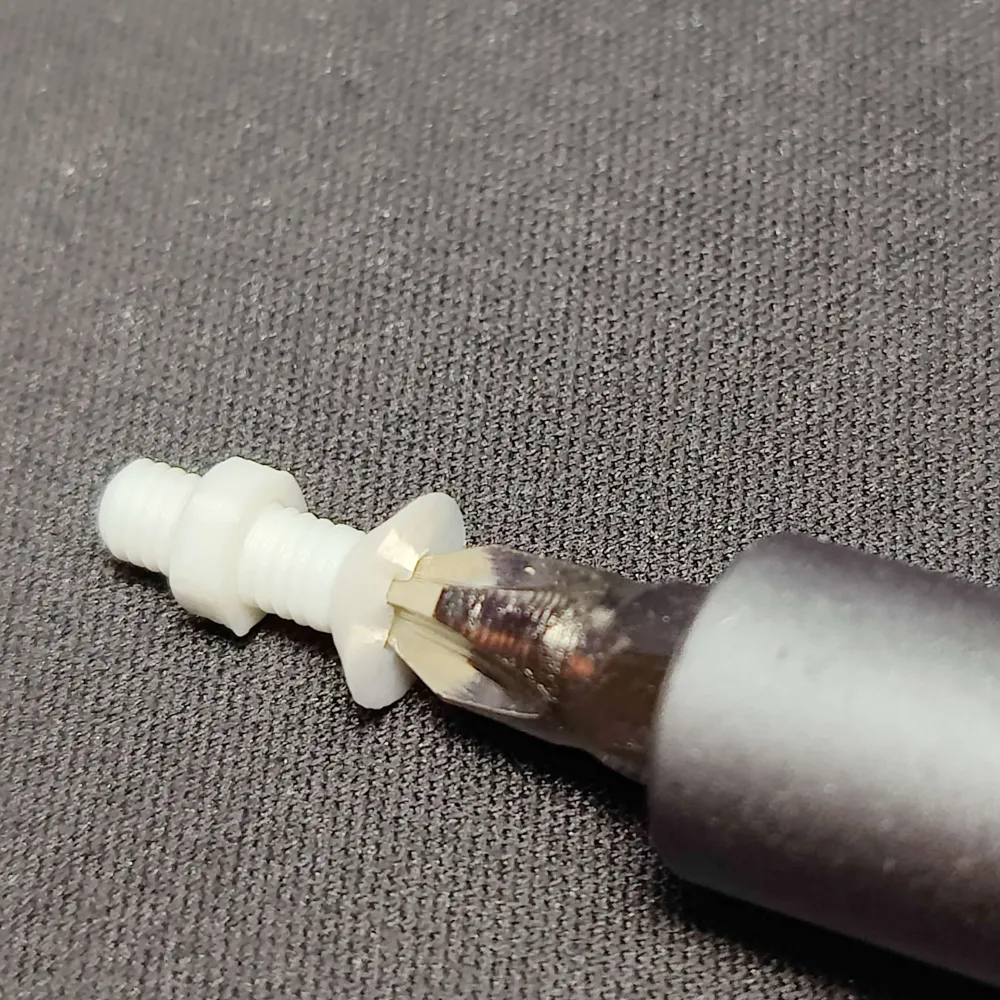

The screw uses a PH02 Phillips head, making it compatible with standard PH02 screwdrivers and bits.
The screw is available in the following lengths:
10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 125, and 150 mm, all with a consistent M4 diameter.

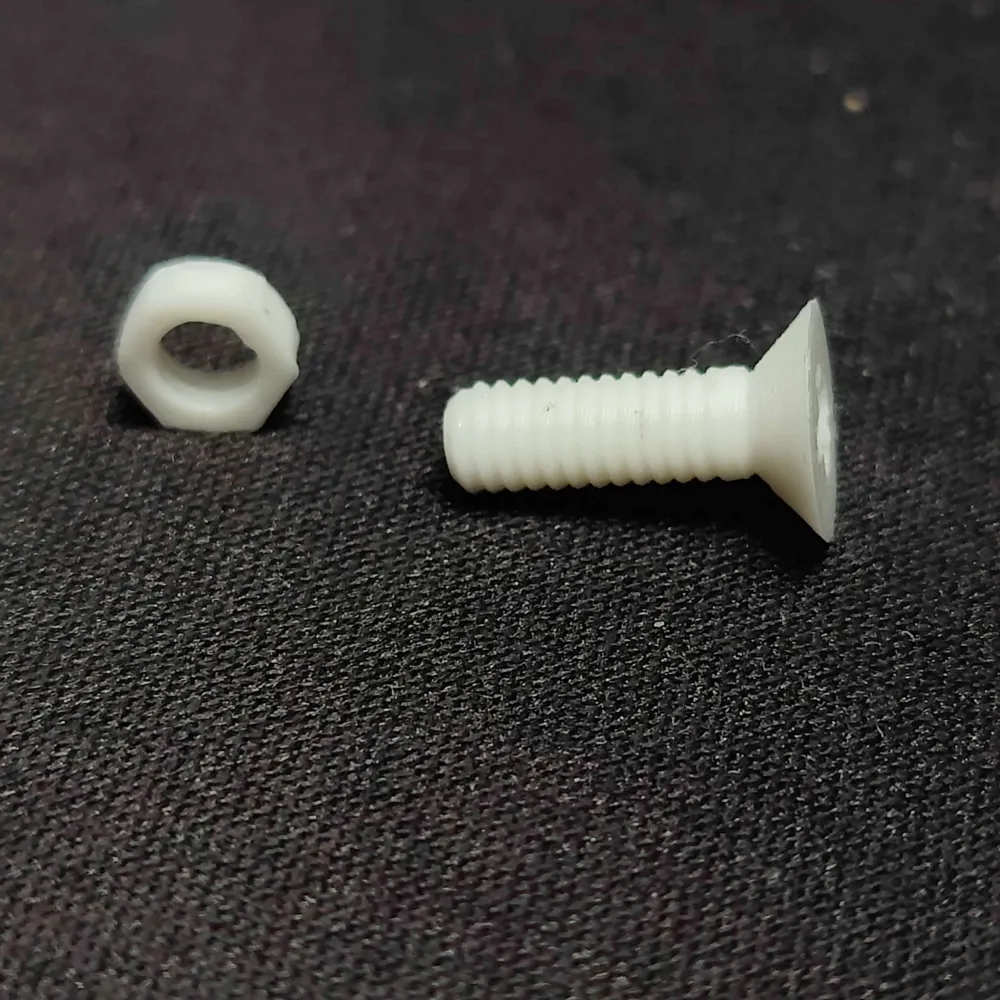

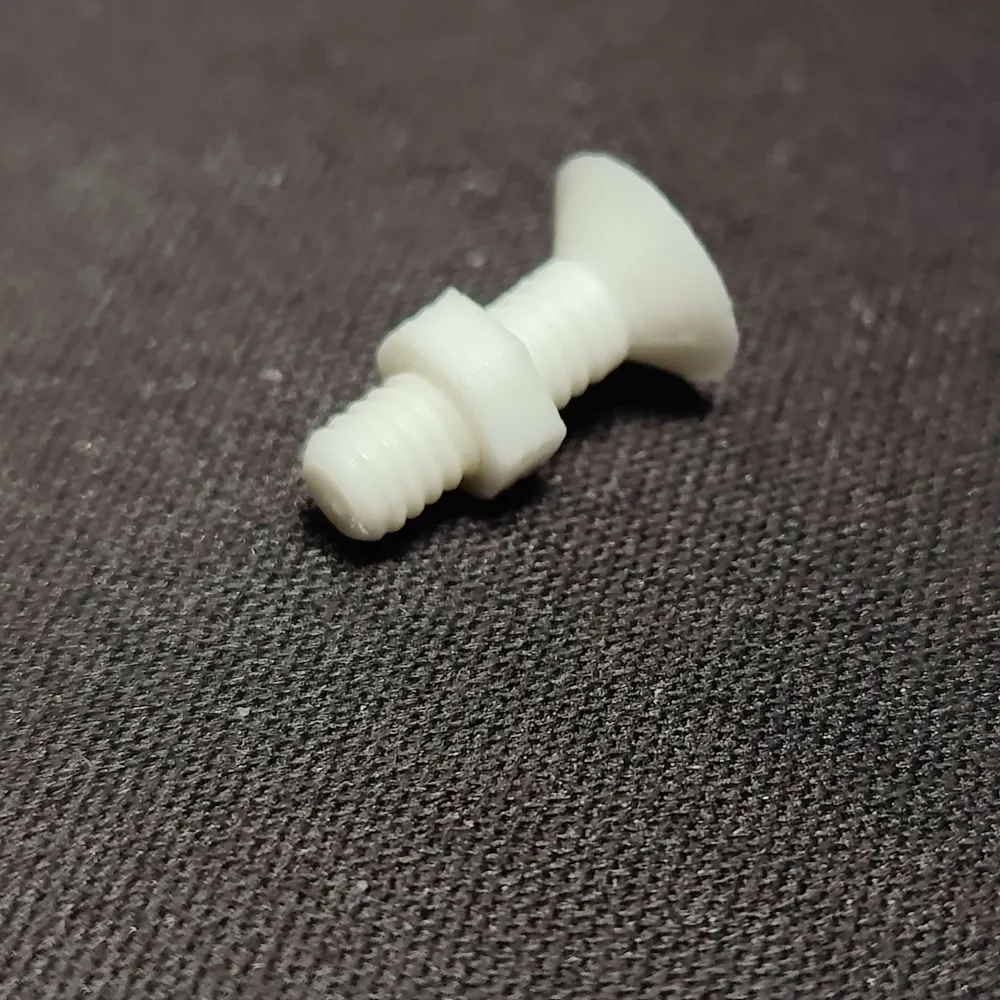

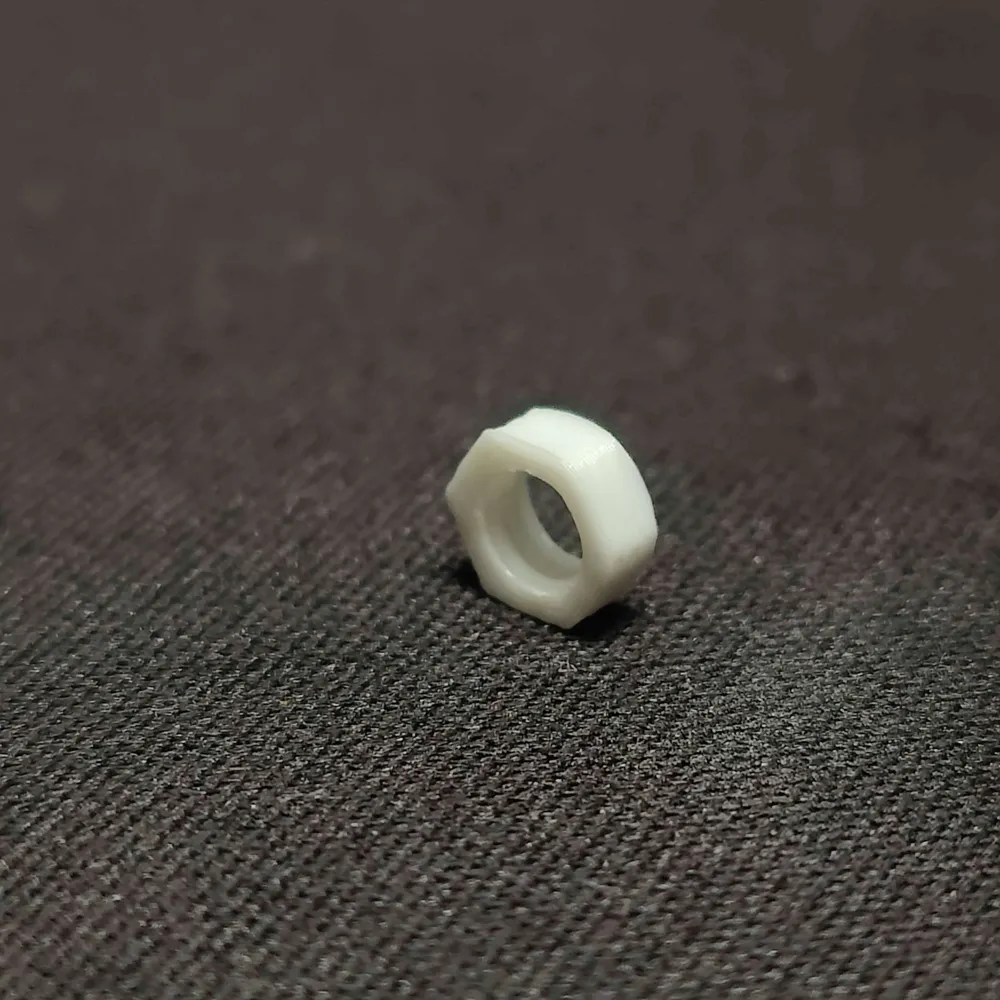

A perfectly matching nut is included and optimized for this screw. Thanks to the tight tolerances and fine layer resolution, the nut threads on smoothly while holding firmly under load.
Print Settings & Strength
- 100% infill for maximum strength and durability
→ Significantly stronger than typical 15–20% infill prints - 0.1 mm layer height for extremely high precision
→ Clean threads and an excellent fit between screw and nut
This model is ideal for functional prints, mechanical assemblies, prototyping, testing, and educational projects, especially where a flush screw head is required.
Highlights
- M4 countersunk screw
- Phillips cross head PH02
- Multiple length options
- Matching nut included
- Very high strength due to 100% infill
- Excellent precision with 0.1 mm layer height
Perfect for makers who need accurate, printable fasteners with a clean countersunk finish.
