Apple Watch Charging Stand / Desk Dock
Print Profile(1)
Description
Description

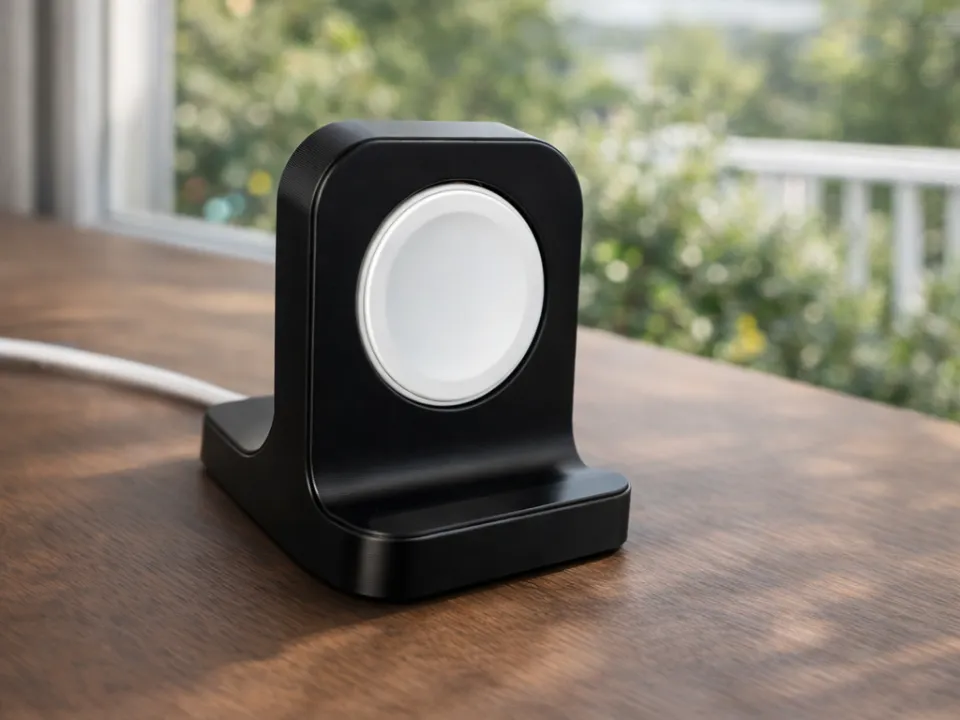

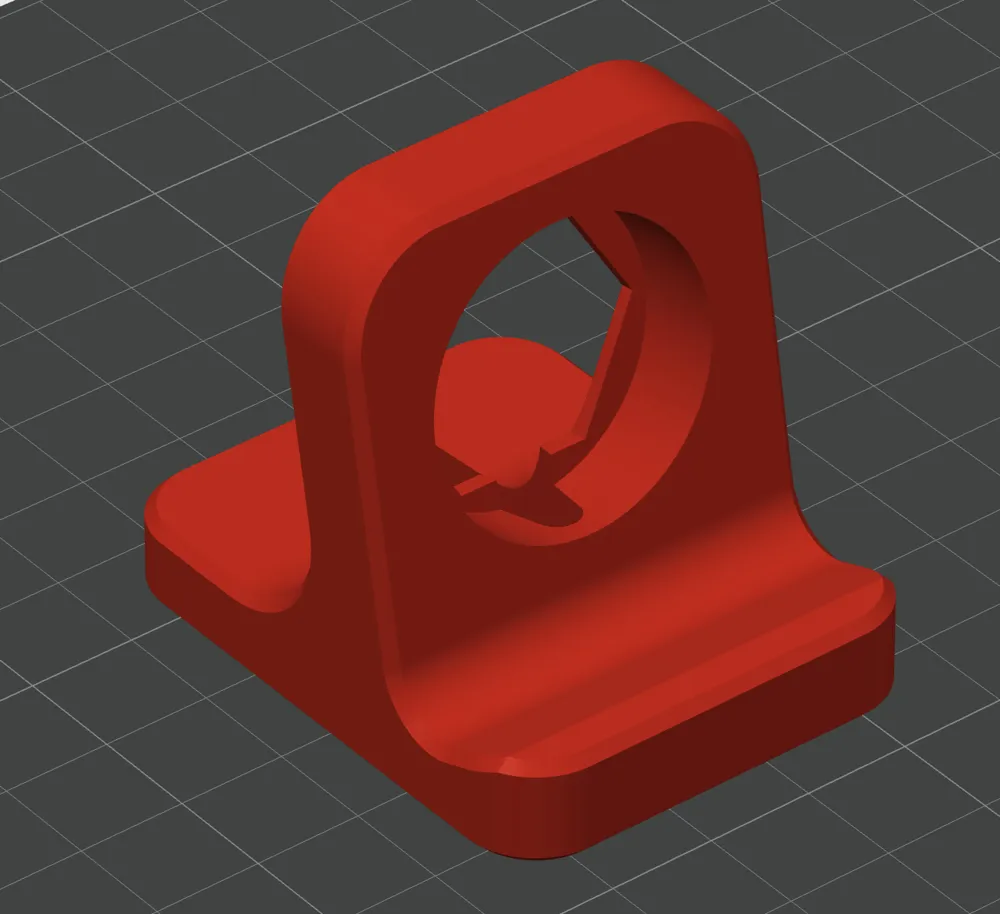

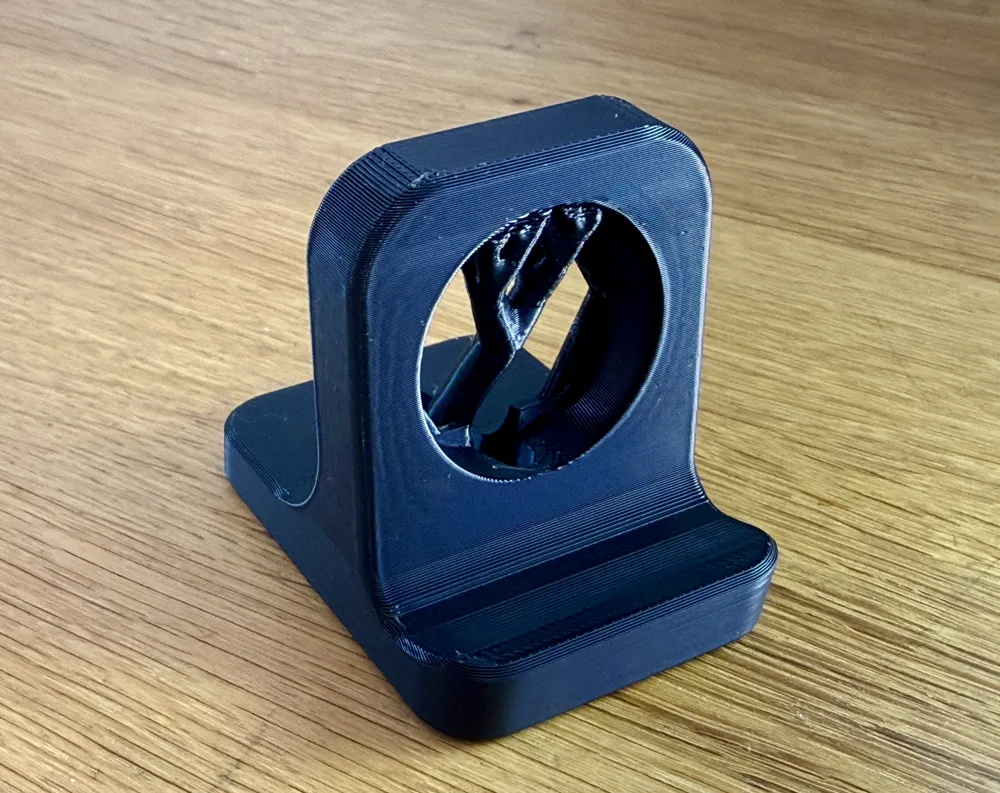

This is a compact Apple Watch charging stand designed for everyday desk or nightstand use, with an emphasis on stability, clean cable routing, and easy printing.
The stand securely holds the Apple Watch magnetic charging puck while keeping the watch face upright and readable. Generous fillets and smooth transitions improve both print quality and durability, making this a reliable, no-nonsense dock you can print and use immediately.
Designed to be simple, sturdy, and practical — no gimmicks, no unnecessary material.
Boost Me (for free)
Support the Learning Process
These models are part of an ongoing effort to improve 3D design skills, geometry, and printability through real-world projects.
If this model was useful, a Boost or tip on MakerWorld helps support continued learning, iteration, and sharing of future designs as those skills develop.
Always appreciated — never expected.
Design Highlights

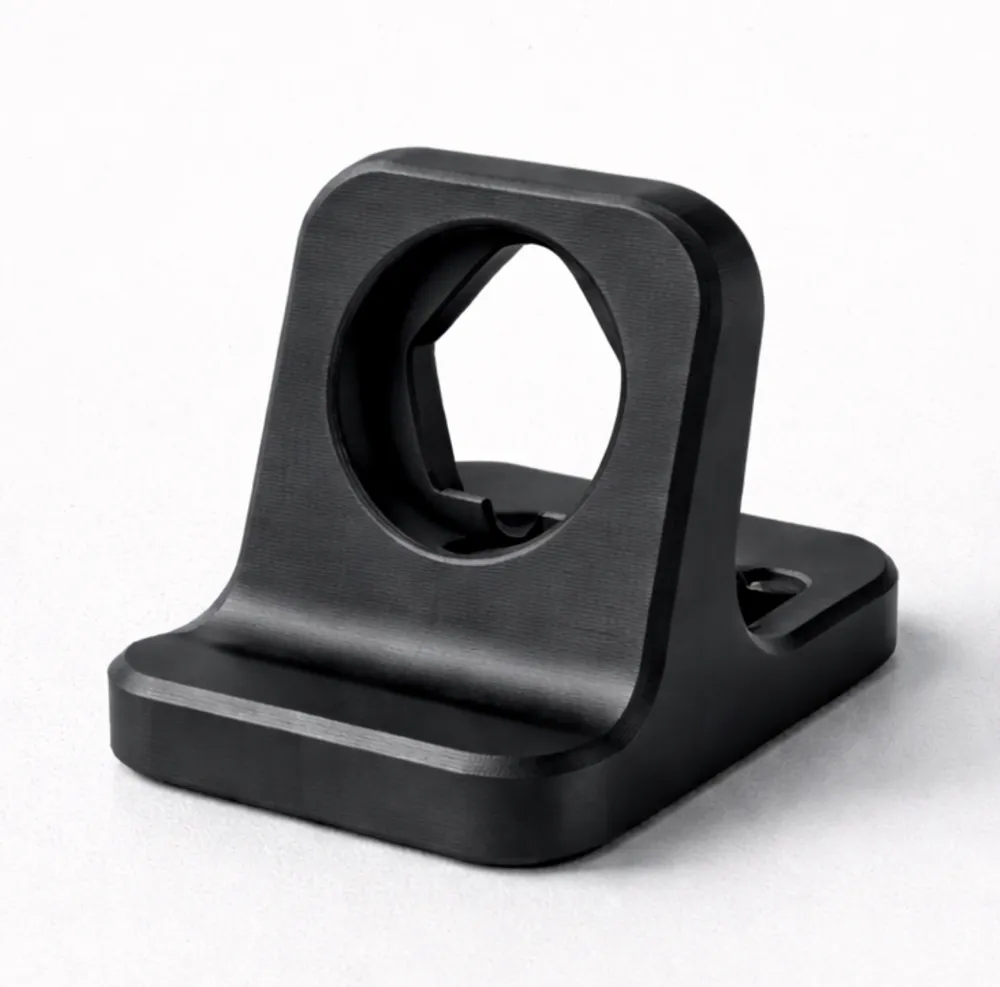

• Press-fit design for the Apple Watch magnetic charging puck

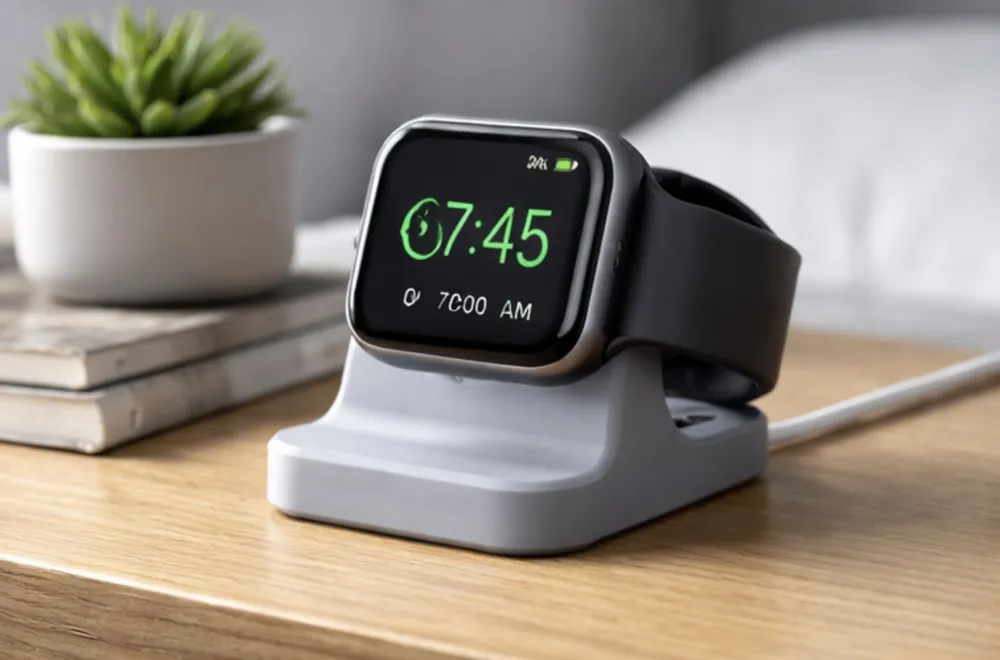

• Upright viewing angle ideal for Nightstand Mode or desk use
• Wide base for stability and tip resistance
• Integrated cable path to keep your desk clean
• Rounded edges and fillets for improved print quality and strength
Use Cases
• Desk charging stand
• Nightstand Apple Watch dock
• Office or bedside charging station
• Minimalist Apple Watch display when charging
Printing Notes

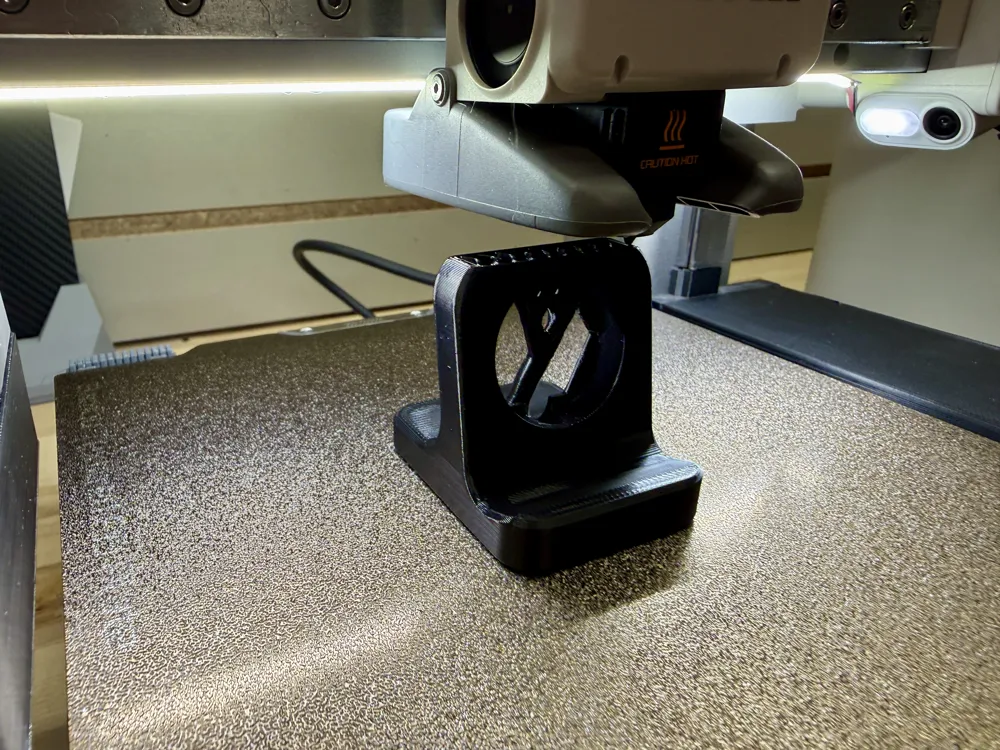

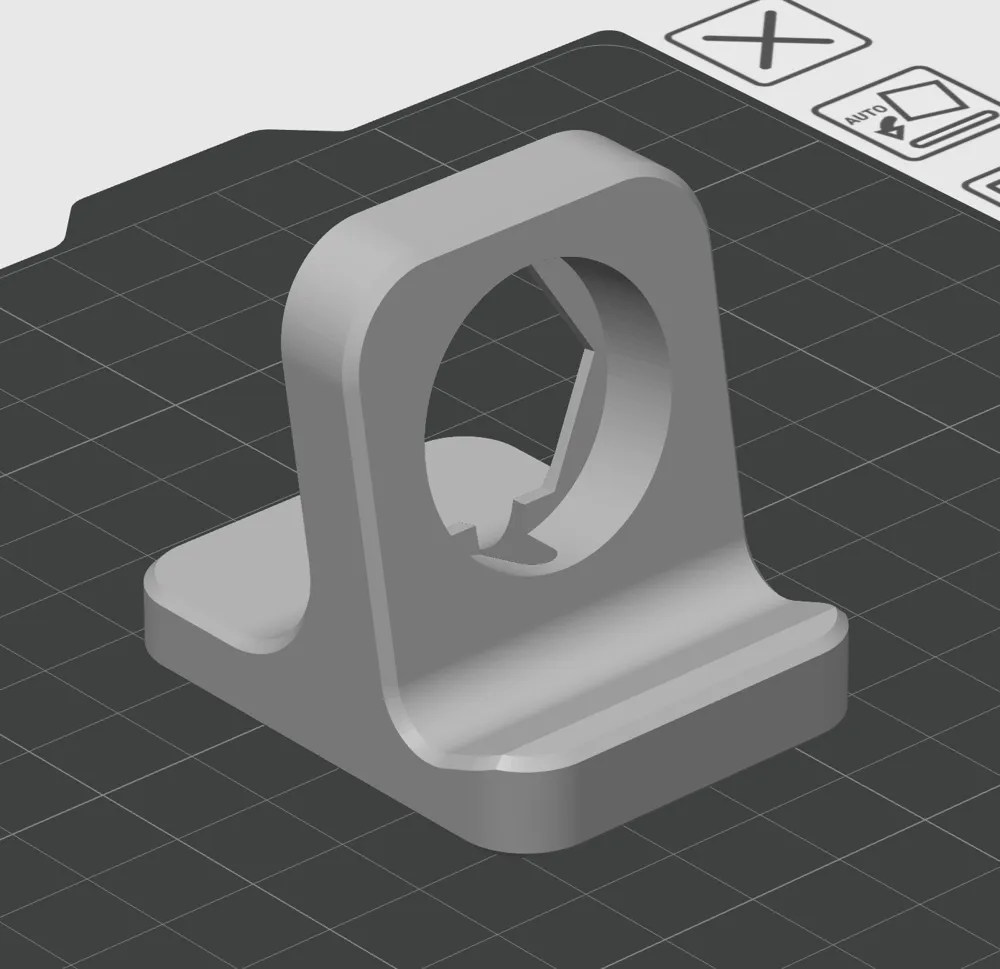

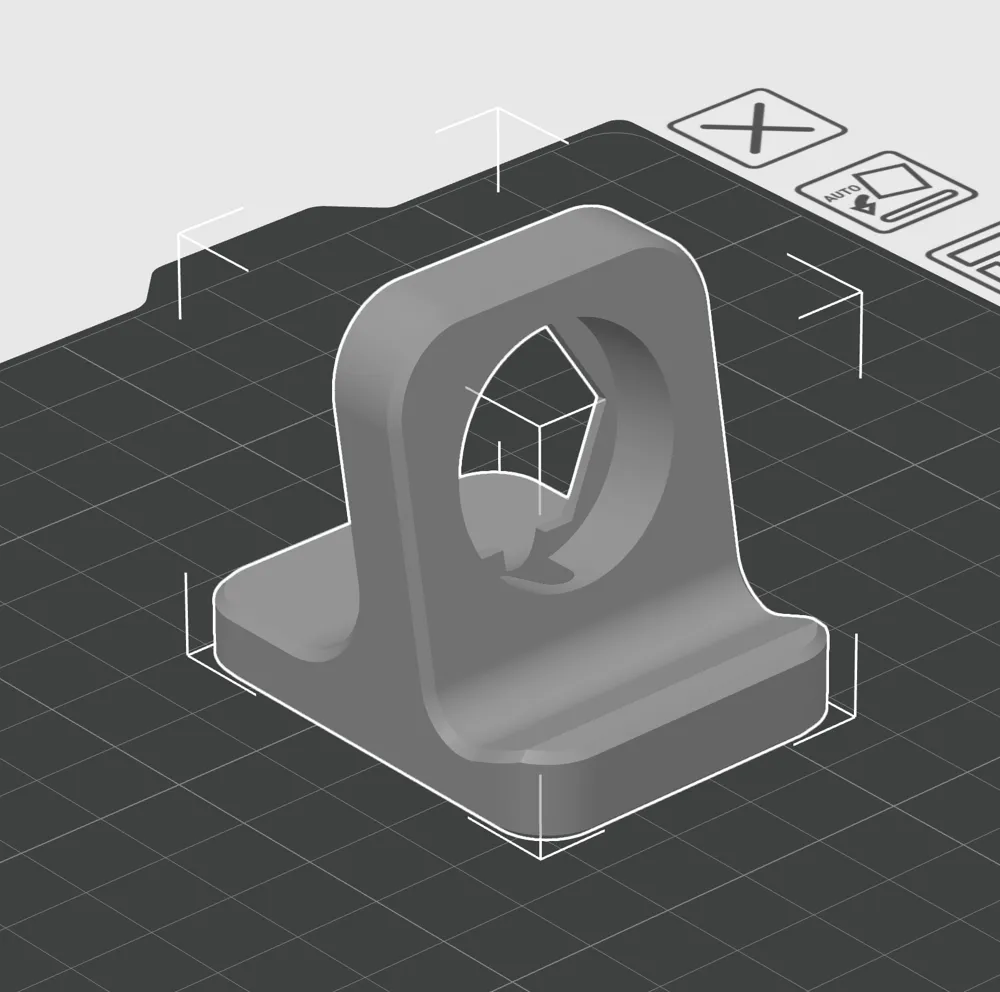

• Orientation: Print flat on the base (as shown)
• Supports:
• Not required for most slicers

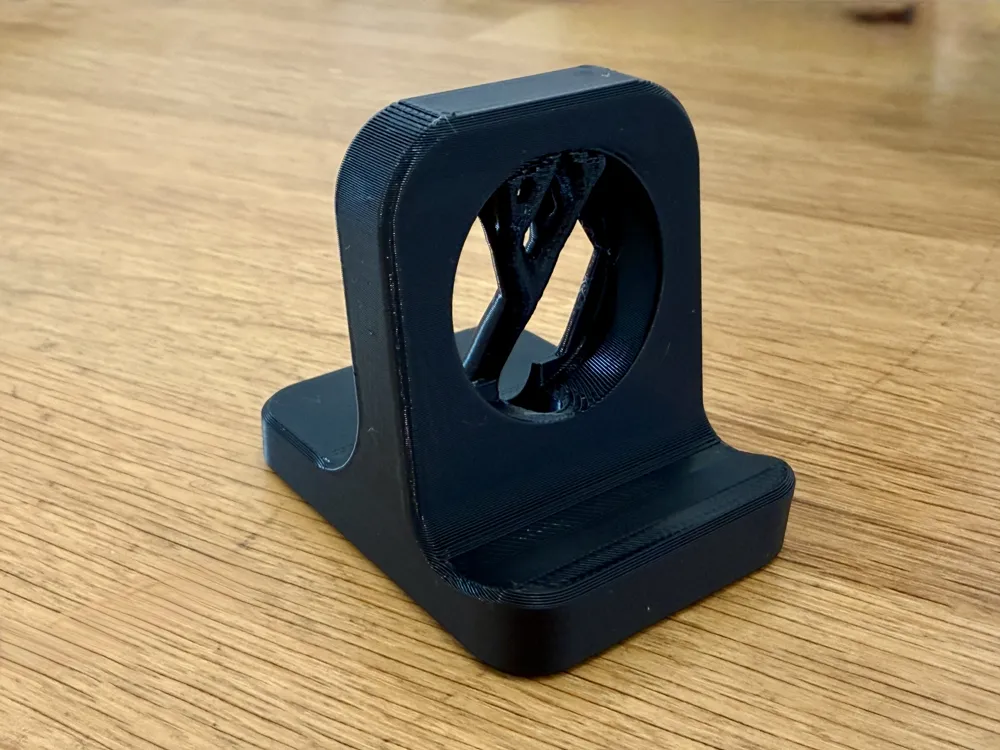

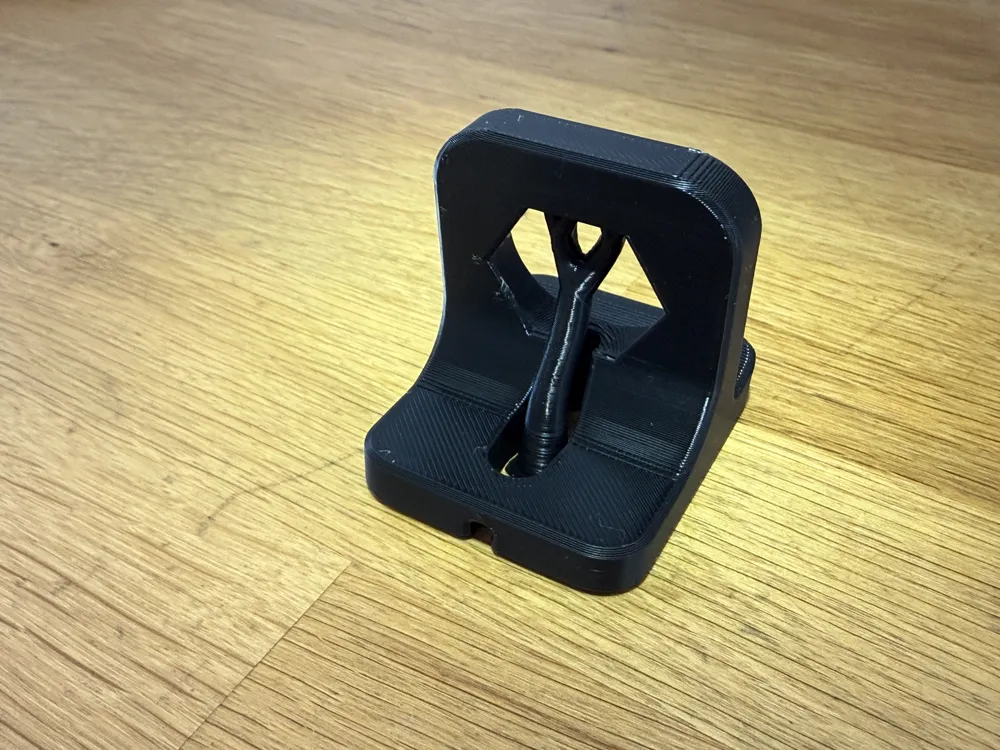

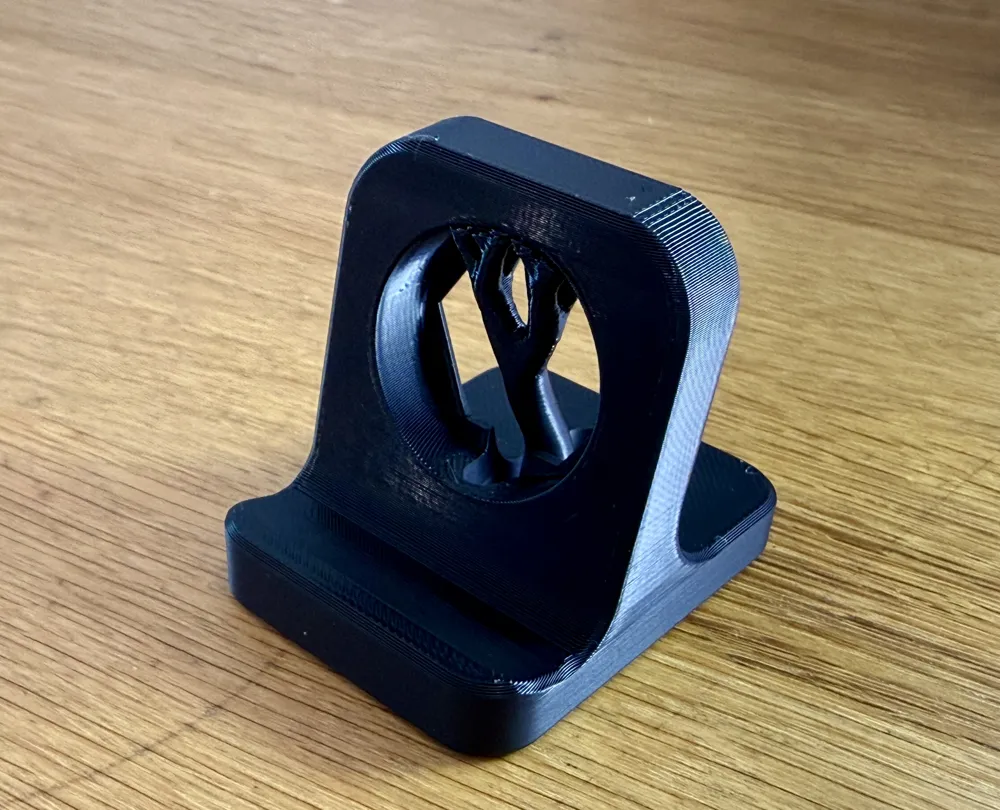

• If your slicer struggles with the internal overhang inside the charger pocket, enable supports for critical areas only
• Recommended material:
• PLA or PLA+ for indoor use
• PETG for higher heat environments (near windows, warmer rooms)
• Layer height: 0.16–0.28 mm
• Infill: 15–25% gyroid or cubic
• Walls: 3–4 perimeters recommended
Fit Note
Designed around the standard Apple Watch magnetic charging puck. Tolerances may vary slightly by brand (Apple vs aftermarket), so a snug press-fit is intentional.
Assembly
1. Route the cable through the rear opening
2. Press the Apple Watch charging puck into the circular opening
3. Plug in and charge
No glue or tape required.
Support the Design (Boosts Appreciated)
If you find this stand useful and it earns a spot on your desk or nightstand, a Boost on MakerWorld is always appreciated.
Boosts help:
• Surface the model so more makers can find it
• Support future refinements and variants
• Justify sharing more clean, functional designs like this one
No obligation — but if this saves you time or filament, a Boost is the easiest way to say thanks.
