90 Degree Angle Nozzle with M5 External Thread
Print Profile(1)
Description
These 90° angle nozzles with M5 external thread have been precisely manufactured using 3D printing and are ideal for applications where media needs to be precisely and space-efficiently redirected

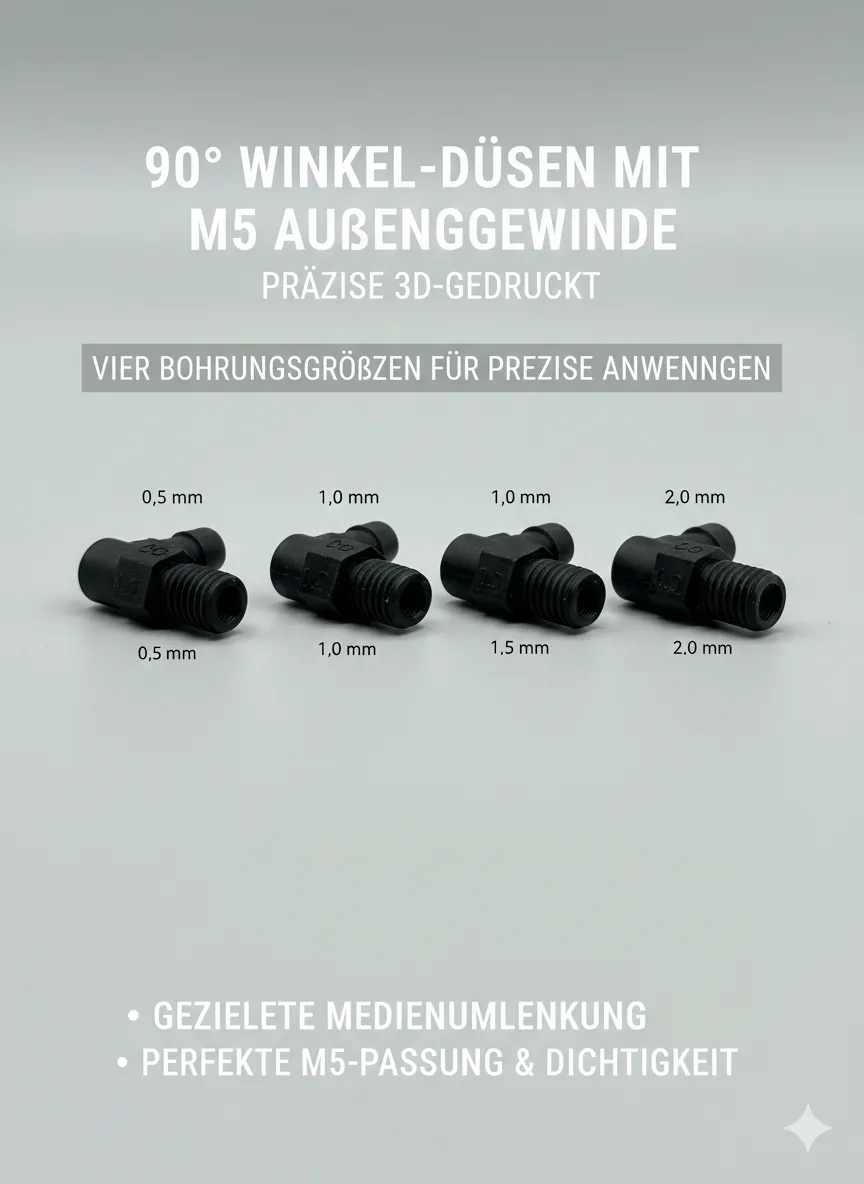

All nozzles are externally identical, the only difference lies in the inner bore, which is 0.5 mm, 1.0 mm, 1.5 mm, or 2.0 mm depending on the version. This allows for precise adjustment of flow, pressure, or spray pattern
The M5 thread has been tested (test assembly on M5 nut

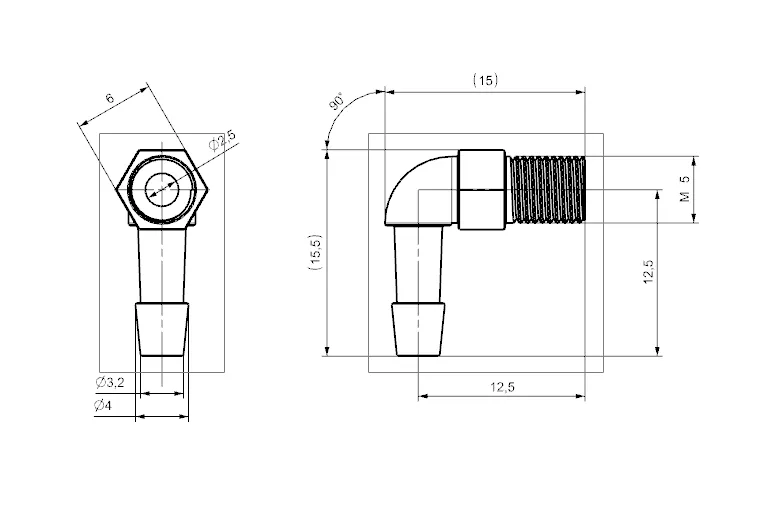

Technical Data
• Design: Angle 90°
• Thread: M5 External Thread
• Material: 3D Printed Plastic (e.g. PA/similar to Nylon)
• Surface: matte, slightly textured (typical 3D printing)
• Inner bore (selectable):
• 0.5 mm
• 1.0 mm
• 1.5 mm
• 2.0 mm
• Color: Black
• Connection: Hose / Air / Fluid (depending on application)
⸻
Possible Applications
• Air or media guidance
• Cooling / Blow air
• Model making
• 3D Printing / DIY projects
• Machine or fixture construction
• Prototypes & Special solutions
⚠️ Note: Not an industrial series part. 3D printing typical manufacturing tolerances possible
