Nintendo Switch & Switch OLED - XXL Travel Box
Print Profile(7)
Bill of Materials
- M3x40 screw x 6:
Description
☕ Like my designs? Keep the magic brewing — buy me a coffee at buymeacoffee.com/the.magic.squid.3d 🦑✨
Membership
Want to support or sell prints? Pick your power: Magic Supporter 💛🐙, Giant Squid 💼🦑, Kraken Master 🔥⚡🐉 (1 custom/month).
Boost Me (for free)
If you like my design, don't hesitate to give me a little boost :-) It's really appreciated and will encourage me to make other creations!
⚠️ Updated Version Available
A new and improved V2 screwless version of this travel case is now available.
Main improvements:
• No screws required – fully clip-assembled for easier printing and better durability
• Redesigned cartridge slots for more secure game retention over time
• Replaceable lids and clips for easier customization and maintenance
• Reduced hinge stress for improved long-term reliability
If you are printing this case for the first time, I strongly recommend using the new V2 version instead.
This original model remains available for users who specifically prefer the screw-based design.
Link for the new version: https://makerworld.com/fr/models/2795300-switch-case-classic-oled-ultimate-edition#profileId-3108906

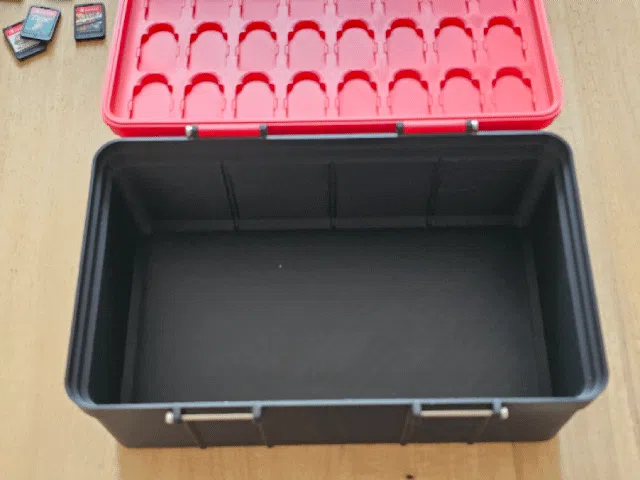

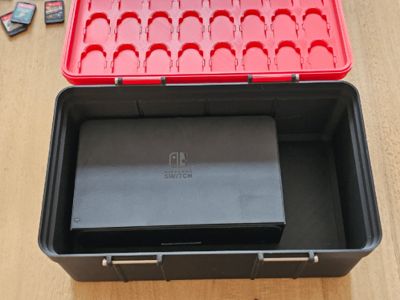

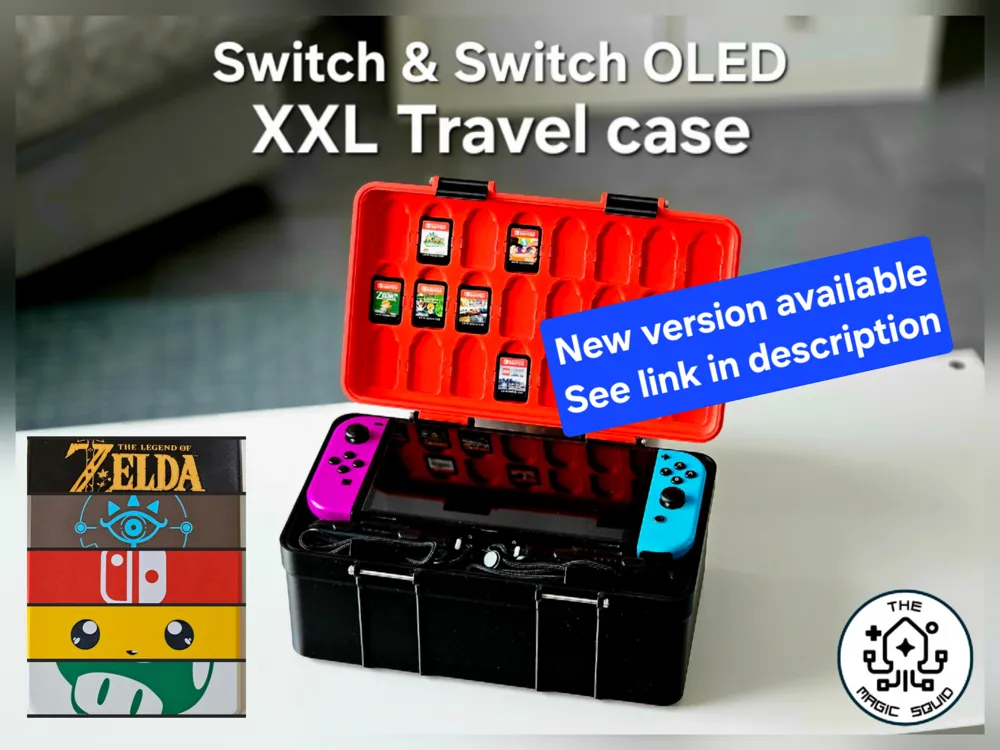

🎮 Nintendo Switch / Switch OLED XXL Travel Case
After the success of my XXL case for Switch 2, many people asked for the same concept for the Nintendo Switch (V1) and Switch OLED — so here it is!
This XXL storage & travel box is designed to carry your full setup safely, while keeping everything organized.

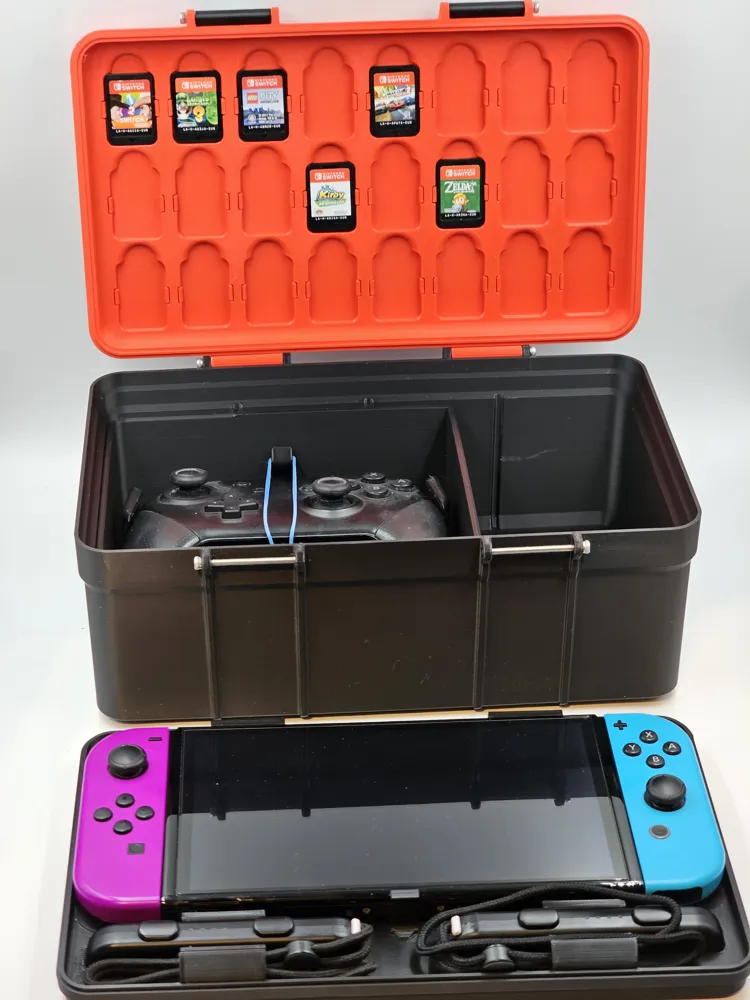

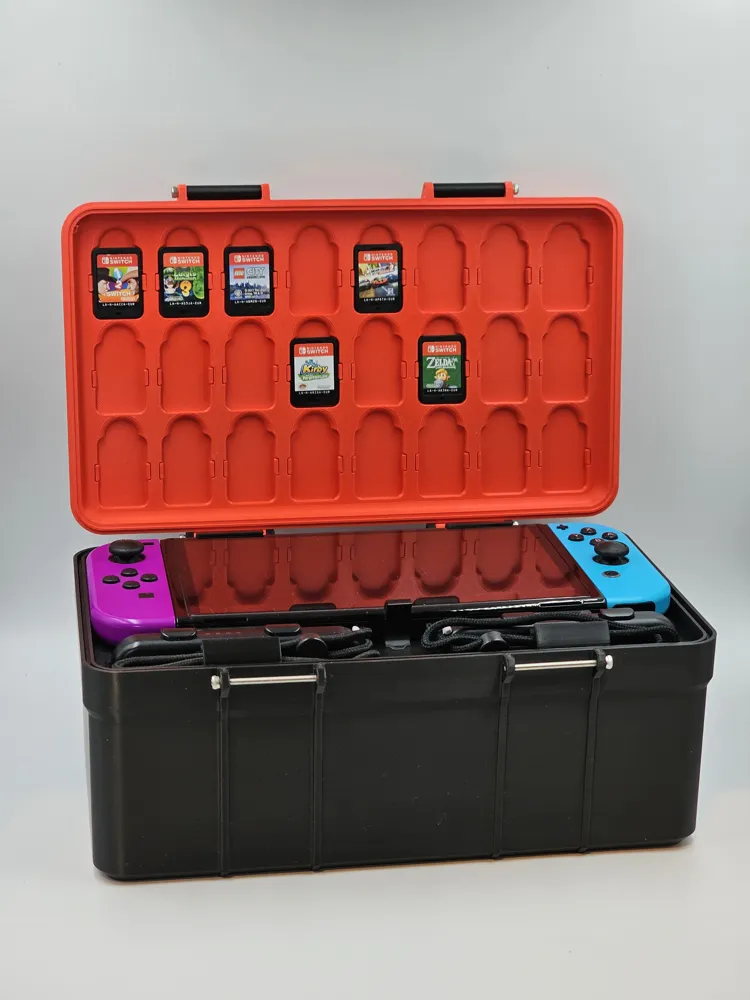

🧩 What fits inside?
The large base gives you room for:
- Pro Controller cradle
- Charger
- Dock in station
- Extra Joy-Cons & straps
- Amiibos
- Accessories
- …or even your snack for the trip 😄
The lid includes storage for up to 24 game cartridges.
🖨️ Main print profile (6 plates)
- Switch + strap holder

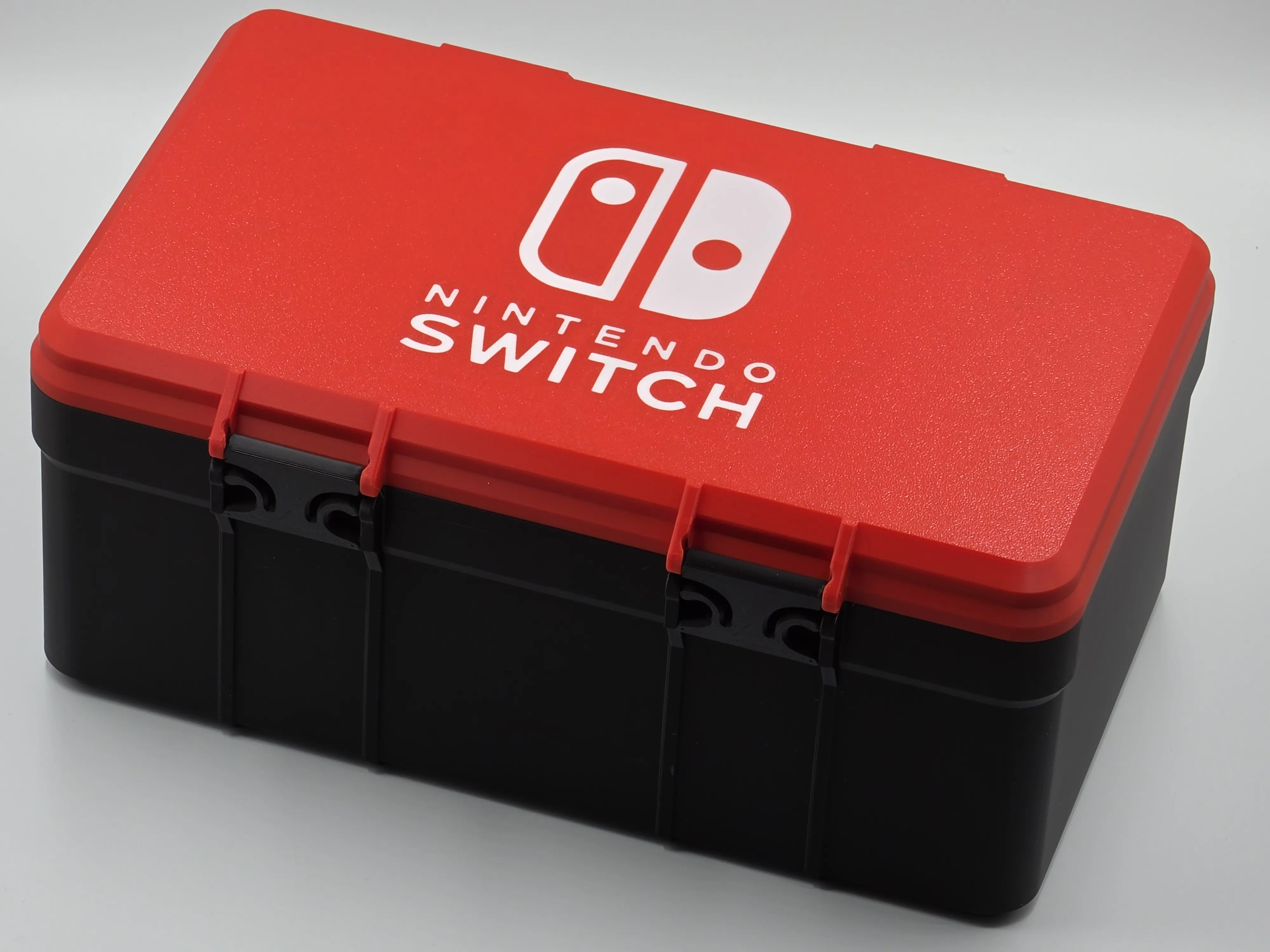

- Lid with Nintendo Switch logo (same lid as my Switch Slim Case, so you can upgrade and save the lid printing time)
- Main base
- 2 latches + Switch support retainer
- Pro Controller cradle
- Base divider
🎨 Extra lid designs
Other profiles include themed lids: Zelda, Pokémon, Splatoon, and more — pick your favorite!
🔧 Assembly (M3×40 screws ×6)
- Place the lid on the base
- Insert 2 screws into the rear hinges (outside → inside)
- Insert 2 screws in the front latches
- Insert the last 2 screws at the front base hook points
- Add the controller cradle and/or dividers
- Insert the Switch support retainer into the holder
- Place the holder into the base
- Insert the Switch (top first, then clip the bottom)
- Slide straps into their slots
- Close the case — ready to go!
🎮 Pro Controller security
The cradle holds it well, but for extra safety you can add an elastic band:
Attach it to the ring, pass it over the controller, and hook it to the front tab.
⚙️ Printing tips
- Prints great in PLA
- Avoid Silk PLA (weaker layer bonding → hinge break risk)
- For durability: PETG, ABS or ASA recommended
- Minimal supports (mainly the Switch holder) + small brim for latches
👉 Check out my other models:
- Switch Slim Case (V1/OLED)
- Switch 2 Slim & XXL cases
- Slim game cartridge travel case
Enjoy, and take your full Switch setup anywhere! 🚀
---------------------------------------------------------------------------------------------------------------
